ARCHIFEST ZERO WASTE PAVILION

Wow Architects

Archifest Zero Waste Pavilion
© Aaron Pocock

ARCHITECTS
Wow Architects

CATEGORY
Pavilion

YEAR
2012

LOCATION
Singapore

PHOTOGRAPHS
Aaron Pocock, C3M Studio

Archifest Zero Waste Pavilion
© Aaron Pocock

Text description provided by architect.

WOW Architects | Warner Wong Design was selected over four shortlisted firms in acompetition to design and build the first-ever Pavilion for Singapore’s Archifest 2012.

The“Wonder|Wall” is a zero waste pavilion that reuses materials in a new way to extraordinary functions and delight thus engaging and inspiring the hearts and minds of all to Rethink Singapore”.

Archifest Zero Waste Pavilion
© Aaron Pocock
Archifest Zero Waste Pavilion
© Aaron Pocock

SPECIFICITY OF THE SITE

The design of the pavilion was a response to the duality of the site. On the one hand, FortCanning, once know as the “Forbidden Hill” still retains its quiet, reposeful and almost mythicalcharacter. Directly opposite is Clarke Quay, vibrant and bustling with people and activities.

Inbewteenis the Foothills that once was a hive for social activities with the public swimming pooland the National Theatre.The proposed pavilion seeks to embody the duality between the two realms, with itspermeable skin. The undulating web inspires curiosity and amazement as well.

At certainangles, the membrane looks almost solid like a wall, and when one moves along Wonder|Wall,a “moire” effect is created due to the double cladding around the structure. When viewed onthe perpendicular, the membrane seems totally transparent and merges with the surrounding buildings and landscape.

ZERO WASTE, BUILDABILITY AND AFTER LIFE

The zero waste and buildability strategy was developed around two highly rapid deployableand re-useable systems. The first is the main structure, composed of box-truss systemsdeveloped for the Formula One Night race and the National Day Parade.

Archifest Zero Waste Pavilion
© Aaron Pocock
Archifest Zero Waste Pavilion
© Aaron Pocock

The second is apolymer mesh developed for slope control that has unique attributes that enhance theusability and interaction of the space, the membrane and its landscape system can be reutilizedaround Fort Canning for slope and erosion control.

The second is apolymer mesh developed for slope control that has unique attributes that enhance theusability and interaction of the space, the membrane and its landscape system can be reutilizedaround Fort Canning for slope and erosion control. Overall time frame to complete Wonder|Wall erection wouldbe 10-15 days.

The cellular membrane once taken down can be re-used for the following: Fort Canning Hill’s other areas that require slope protection and stabilization.- Donate to a nearby country whose village / farmland has been affected by soil erosion fromslopes.- The steel box-truss once taken down will be re-used in other commercial events along withthe future National Day parades.

ARCHITECTURE AS PROGRAM - ENGAGING THE PUBLIC

Normally used as a subterranean soil control technology, the membrane is given a new use asa vertical surface onto which to project, insert, interact and engage with the public.

Archifest Zero Waste Pavilion
© Aaron Pocock
Archifest Zero Waste Pavilion
© Aaron Pocock

Seminarson Pop Up Farming, and Zero Waste Strategies can be conducted using the Versiwebmembrane as a display surface. The cellular nature of the mesh system also forms “pockets” ofintimate space or crenellations in which seeds of thought are propagated and nurtured.

-Archifest “post” cards are distributed to visitors at the entrance and they are encouraged topost thoughts, ideas and memories in the “pockets” to be shared and read by all.

Archifest Zero Waste Pavilion
© Aaron Pocock
Archifest Zero Waste Pavilion
© Aaron Pocock

- One of the initial inspirations for the pavilion was the humble straw mat for a park-likeatmosphere. Rolled up Archifest straw mats are inserted into the “pockets” to encouragevisitors to sit and converse, tell stories and share experiences

-The entire Wonder|Wall is the Urban Pop Up farm with small foliage plants with geo-textilewrapped roots and a hydro-gel planting medium inserted into the cells.

Archifest Zero Waste Pavilion
© C3M Studio
Archifest Zero Waste Pavilion
© C3M Studio

WOW director, James Tan, who led the Pavilion design team comments, “WOW’s design ethoshas always been to challenge and explore new and innovative ways to create experientiallyrich spaces that are environmentally as well as economically sustainable for all our projects.

In the pavilion design, a simple material (Versiweb) was used to create exciting and intriguingspaces that met all the requirements of the competition brief. The Versiweb forms a permeableskin for the pavilion, allowing natural ventilation whilst providing shelter from the sun and rain.

When viewed at different angles, the Pavilion seems to disappear and merged with thesurroundings. In another instance, while walking alongside the Pavilion, a “moire effect” iscreated due to the double layering effect.

The Pavilion design is also intended to be a “highlyinteractive platform” for the activities of the Archifest. Straw mats are inserted in the Versiweb“pockets” to encourage visitors to use them for seminars or picnics around the Pavilion.”

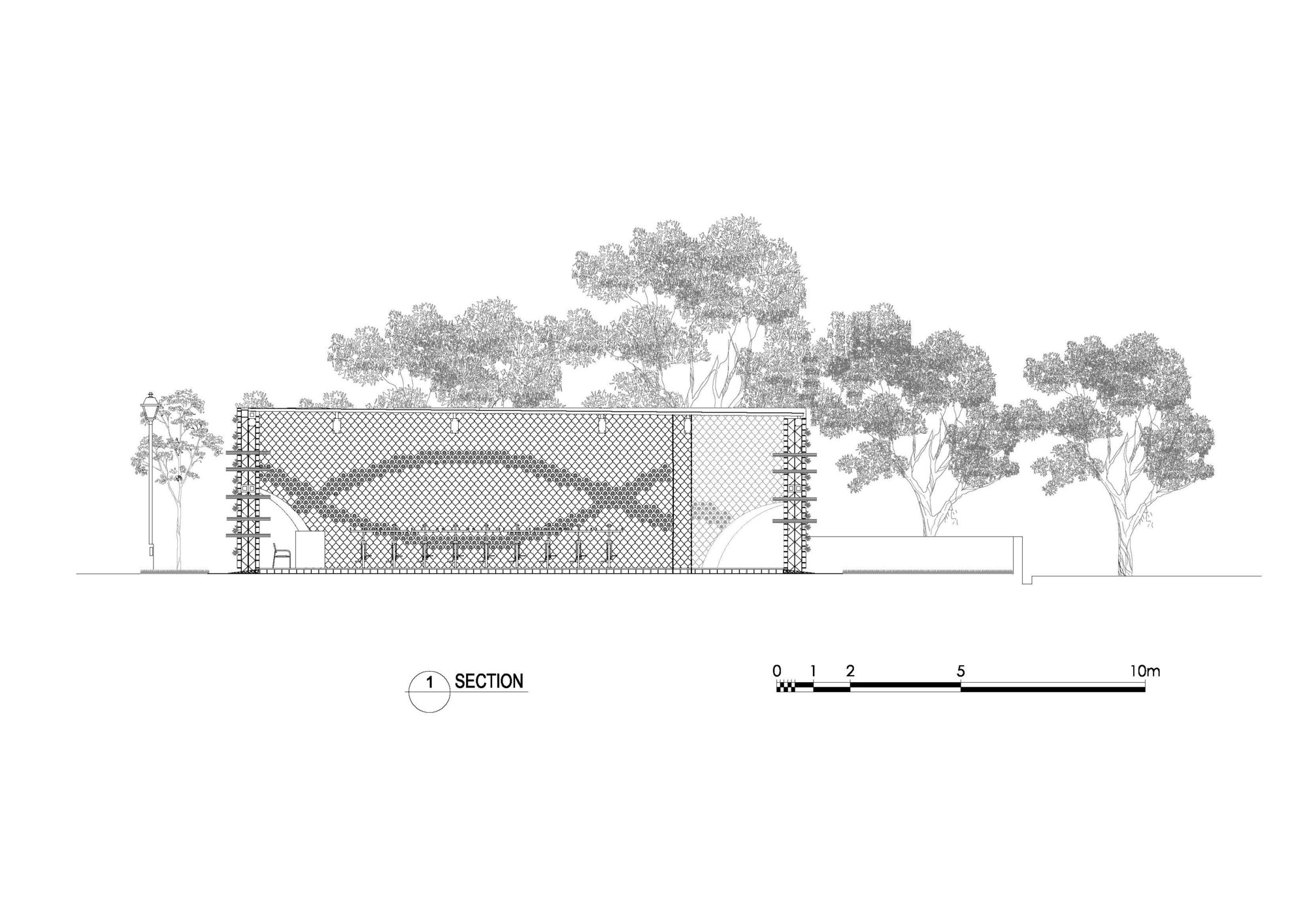

Archifest Zero Waste Pavilion
Courtesy of WOW Architects
Archifest Zero Waste Pavilion
Courtesy of WOW Architects
