151 HOMES, SHOPS AND GARAGE IN MIERES

Amann Canovas Maruri

LOCATION
Mieres, Spain

ARCHITECTS
Amann Canovas Maruri

CATEGORY
Houses

AREA
2676808.0 m²

PHOTOGRAPHS
David Frutos

YEAR
2012

Text description provided by architect.

This project is produced in a context were the volume of the building is previously strictly define by urban regulations so the exterior form is not a problem to be considered, - thanks!

151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos

– For this reason it is possible to concentrate the design energy in other conditions. In this case in the specific study of the functional variables of housing: type.

The proposal is a building protected by two galleries, that has a interior dwellings space released of the presence of the structure.

The mechanical and wet spaces are concentrated around a "technical wall”. This decision allows: cross ventilation, free disposition of storage and flexible spaces.

151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos

The galleries are configured as an intermediate space between the inner housing and contact with the city. They are warm in winter and cool in summer. They are a thermal insulation space for the building and a same time a in-between space for different uses.

The dwelling is thought around natural regulated thermal condition, the space in-between defend from noise and seeks defuse light, and protect from exterior views, to provide the best living ambience.

151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos

The use of galleries is very traditional in the North of Spain, where rain and clouds are common every day, and reduce the use of heating in the winter. The summers are very humid so easy cross ventilation is an important necessity.

The interior patio is place for some trees that help to protect the views and the noise between different dwellings.

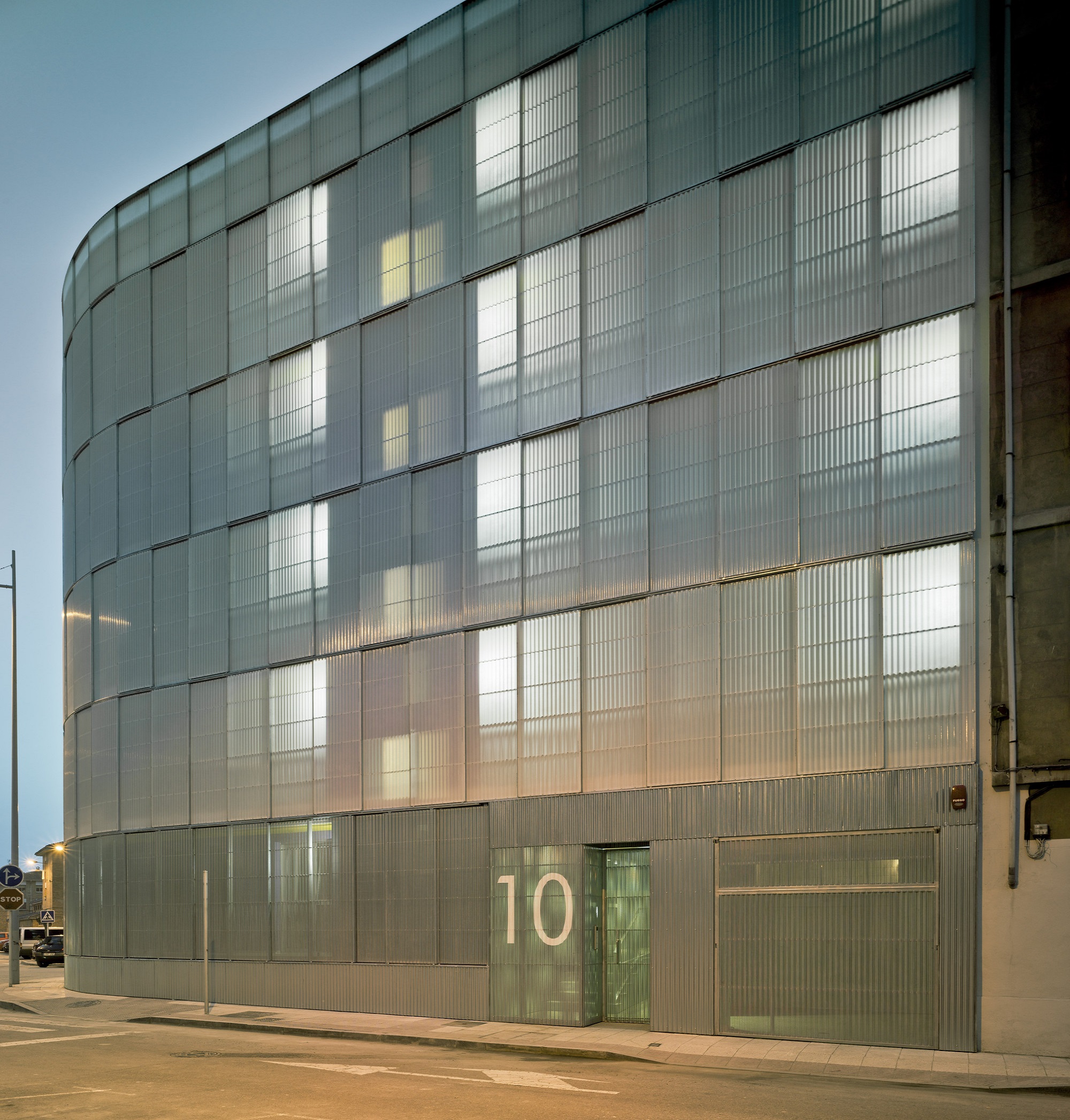

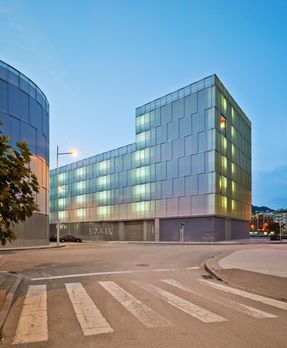

The urban facade is solved with a polycarbonate skin located on the front of the continuous terrace, on the first level, instead of polycarbonate, the façade is made of perforated steel sheet.

151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos

This skin is opened by a sliding system, which solves the relationship of the dwellings with the outside.

The second front of the gallery is lined with ceramic tiles of various colors. The system allows a intermediate location between the outside temperature and the internal working climate condition. The interior color of the ceramic is in contrast with the gray skies of the area.

151 Homes, Shops And Garage In Mieres
© David Frutos


151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos
151 Homes, Shops And Garage In Mieres
© David Frutos


151 Homes, Shops And Garage In Mieres

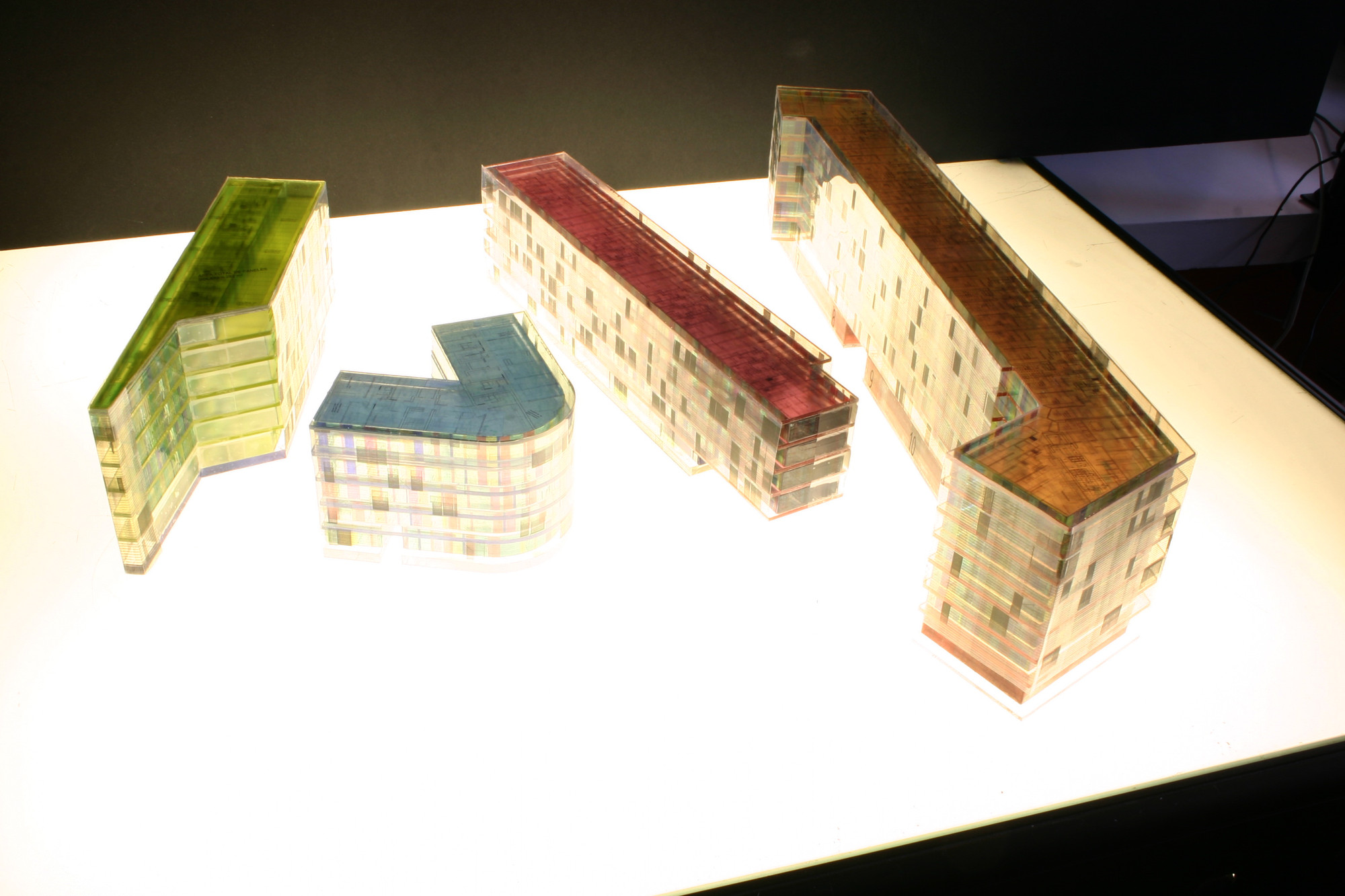

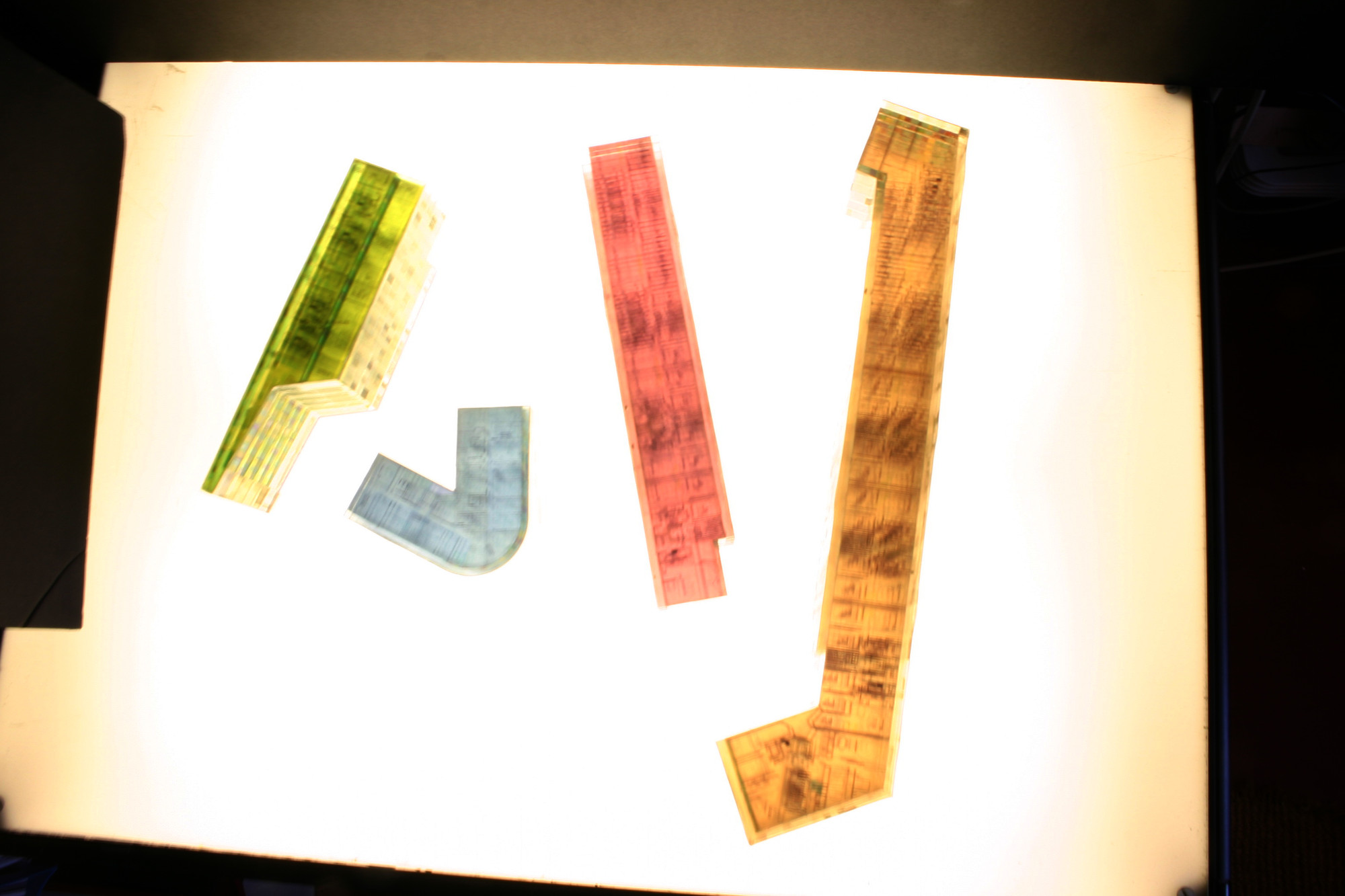

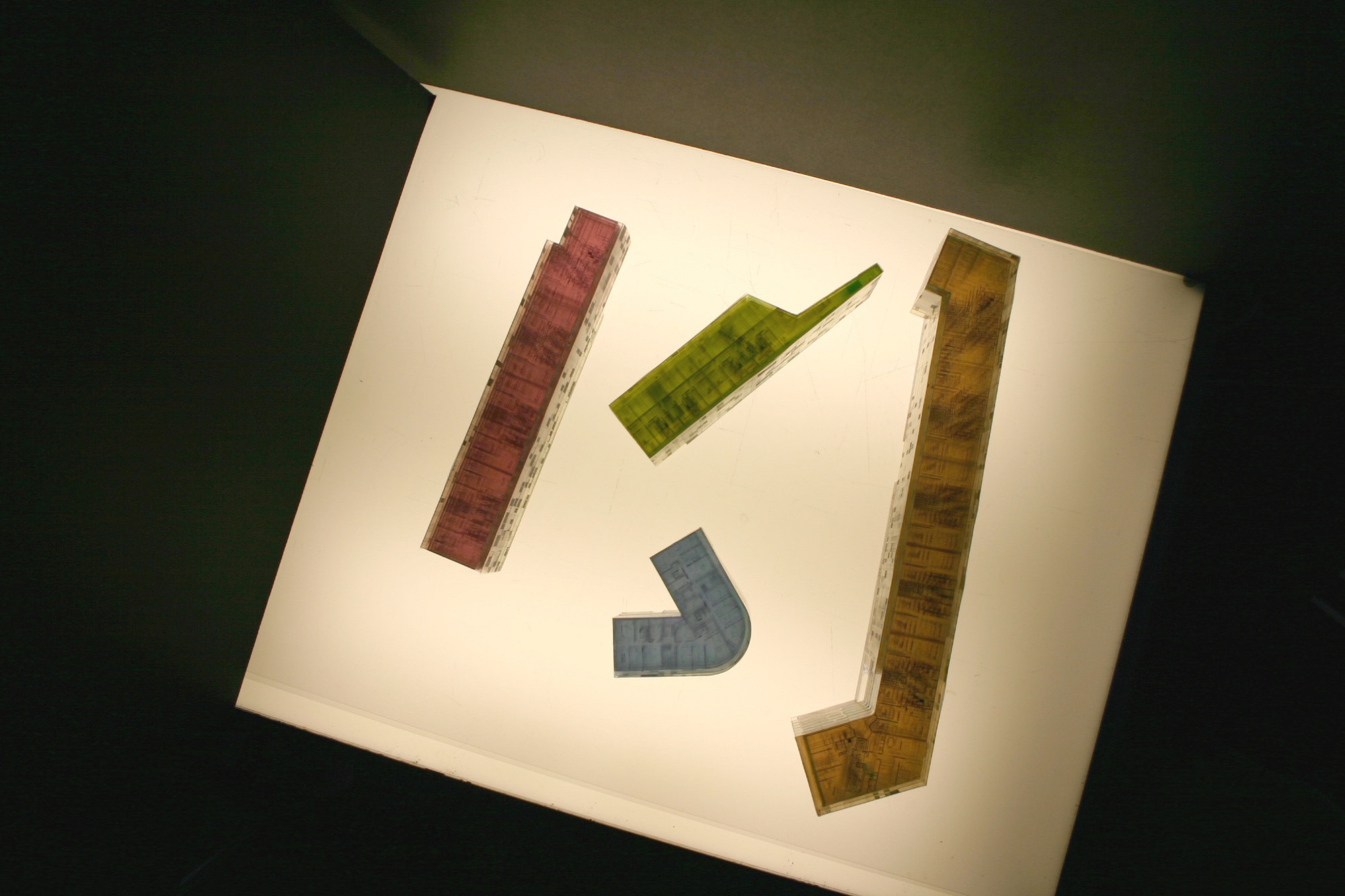

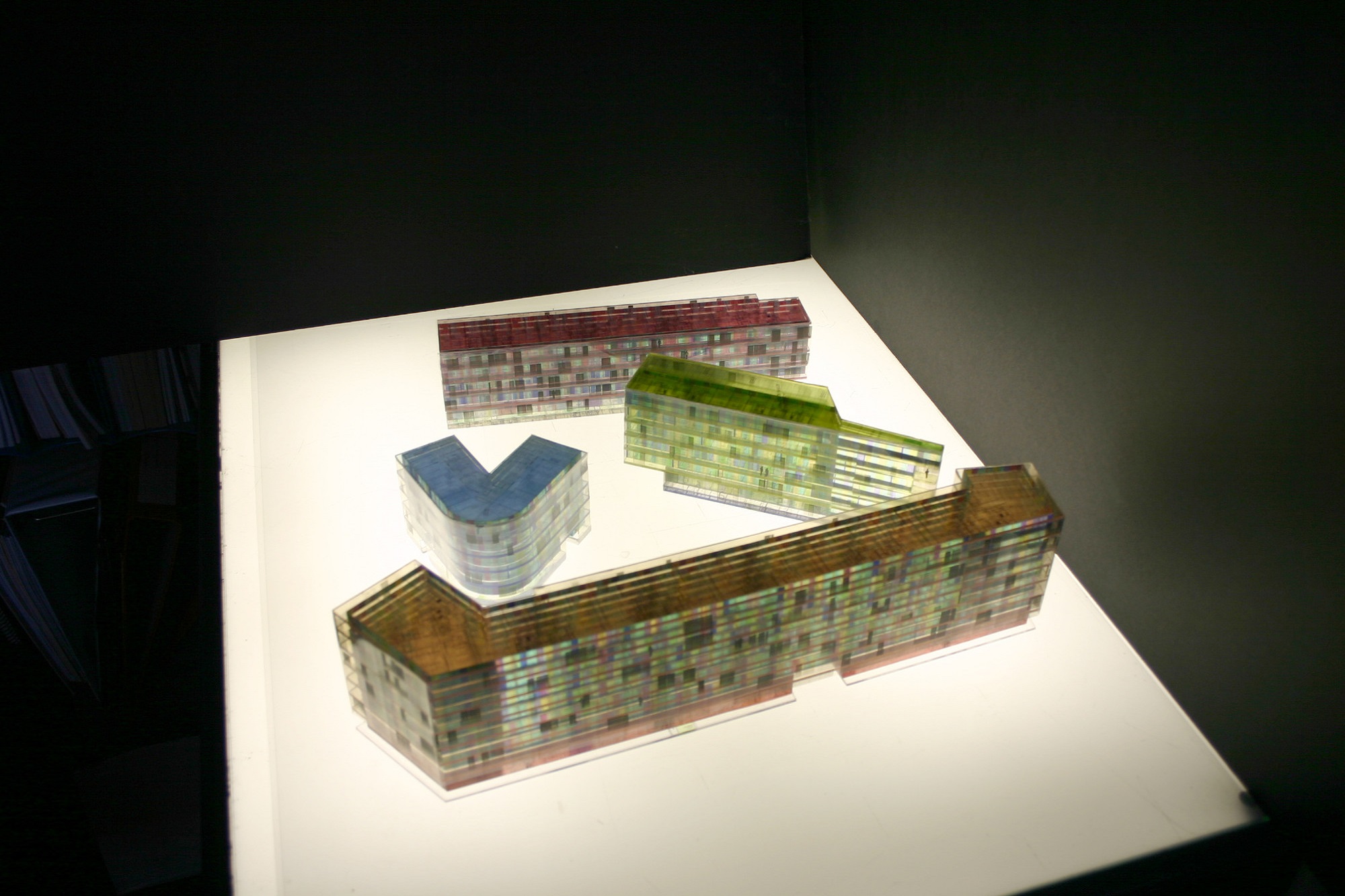

Model
151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model

151 Homes, Shops And Garage In Mieres
Model


151 Homes, Shops And Garage In Mieres
Elevation

151 Homes, Shops And Garage In Mieres
Elevation

151 Homes, Shops And Garage In Mieres
Elevation

151 Homes, Shops And Garage In Mieres
Elevation


151 Homes, Shops And Garage In Mieres
Section

151 Homes, Shops And Garage In Mieres
Section


151 Homes, Shops And Garage In Mieres
Detail

151 Homes, Shops And Garage In Mieres
Detail

151 Homes, Shops And Garage In Mieres

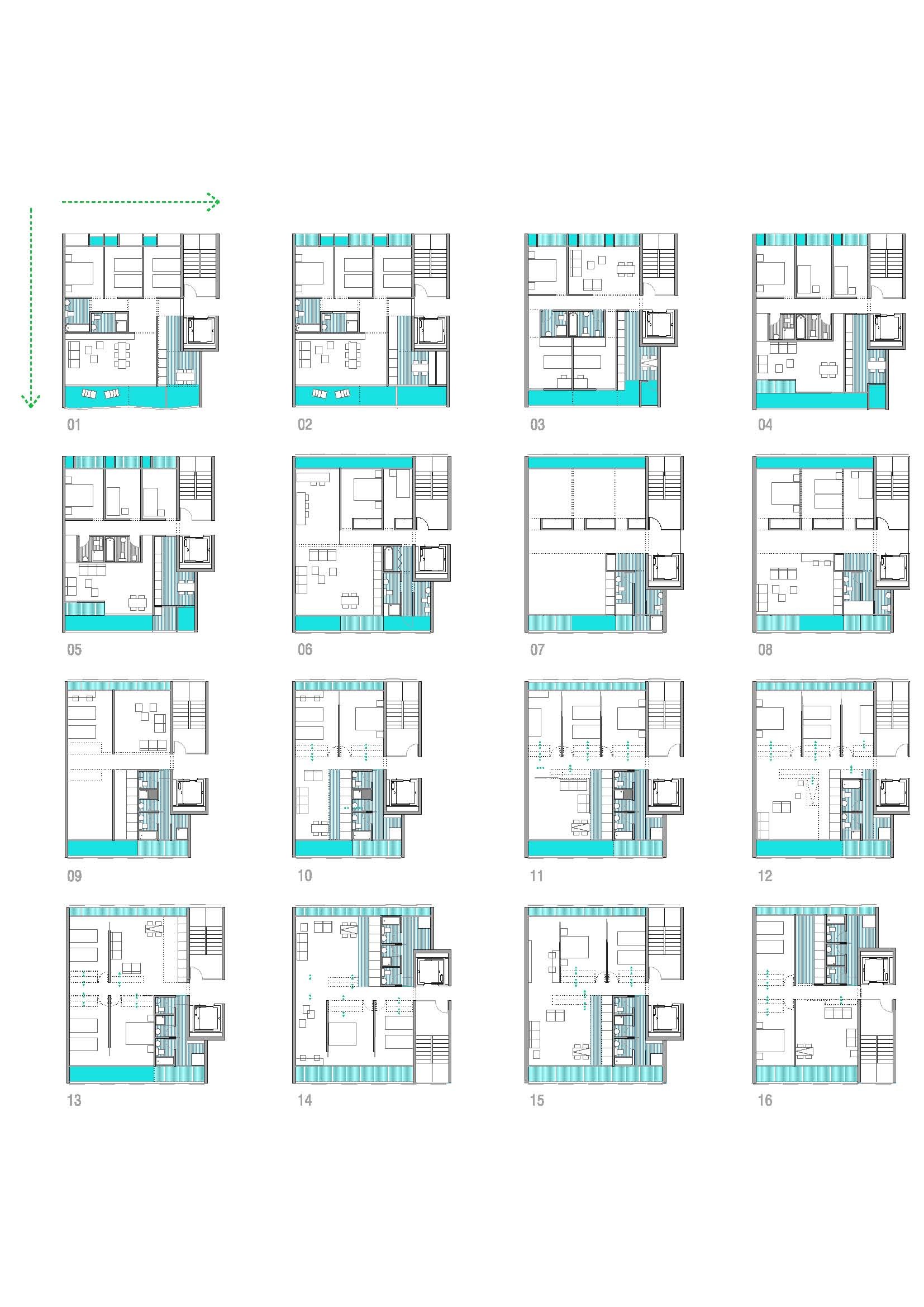

Ground Floor Plan


151 Homes, Shops And Garage In Mieres
Ground Floor Plan
151 Homes, Shops And Garage In Mieres

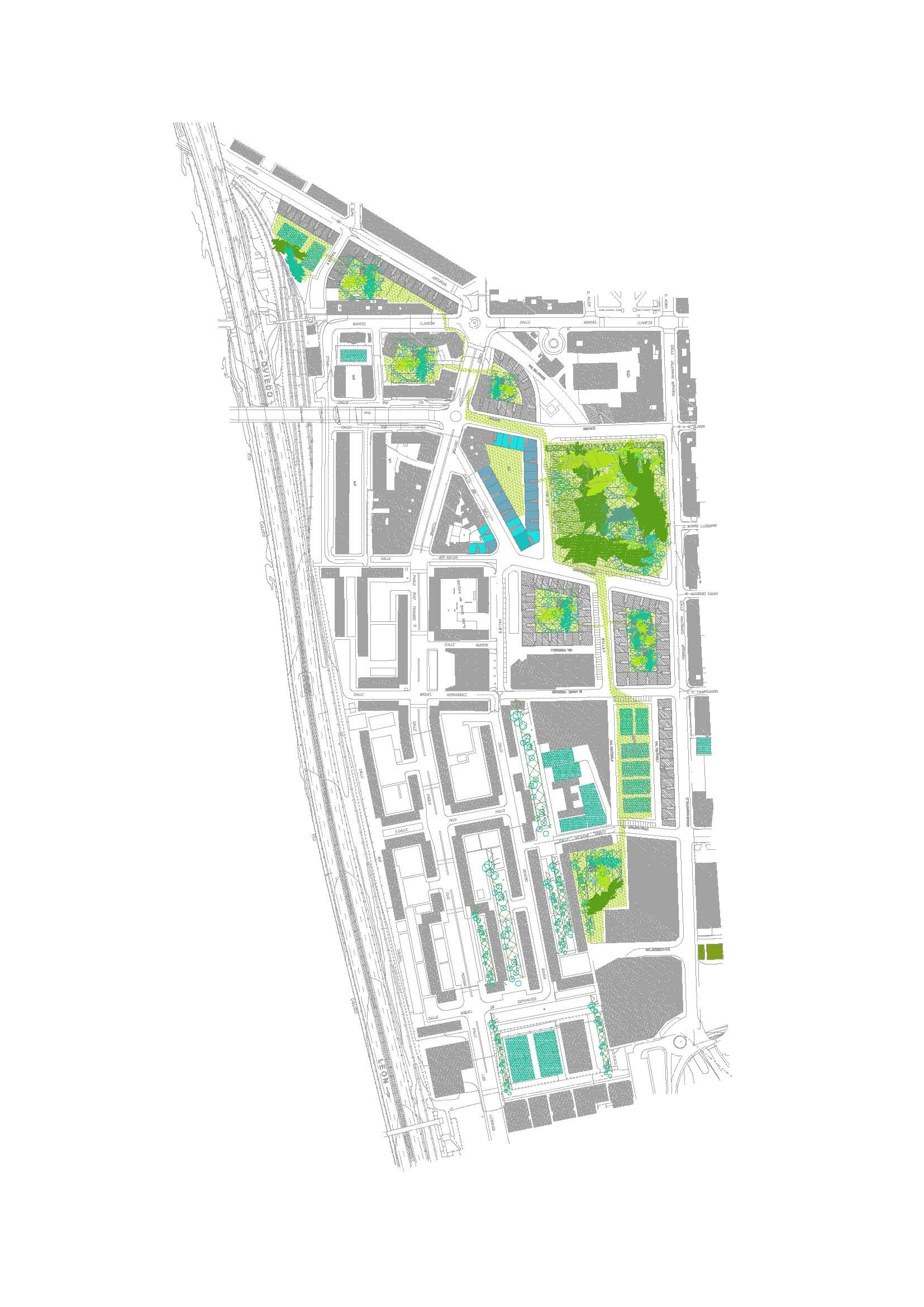

Site Plan
151 Homes, Shops And Garage In Mieres
Site Plan
