SENTOSA HOUSE

Nicholas Burns

ARCHITECTS
Nicholas Burns

YEAR
2012

PHOTOGRAPHS
Archinesia

LOCATION
Singapore

CATEGORY
Houses

Text description provided by architect.

A series of open spaces clustered against the core. The core provides, structure, vertical circulation, services and adjacent has all baths and the kitchen maximising efficiency.

Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia

Adaptable space, these open spaces and freed from pre determined function, the structure is designed to allow reconfiguration to future needs, walls can be erected where required.

Materials are chosen for their inherent qualities. Recycled golden teak, fair faced concrete, stone and steel all offer duality of function. Their richness and texture provides the decorative element.

Structure, the bones of the house are on display creating clear open space with a sense of seamlessness interconnecting with the gardens and landscape, framing views.

The structural grid provides a logic, an order with which every element and detail diminishing in scale relates to and relies on.

Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia

Detail, details are painstakingly distilled and resolved, nothing is left undone. The intention is the create an ease, a wholeness, a stillness...a sense of timelessness.

Experience, the journey through the house is one of wholeness with distinct parts offering a layered and complex series of experiences.

Enclosure and compression expands to openness, the contrasts emphasis the feeling of space.

Sentosa House
© Archinesia
Sentosa House
© Archinesia

Views are framed, and vary in scale, sometimes intimate and close into a court, other times expanding into borrowed landscape of the jungle and out to distant vistas.

Environment, the house is designed for the tropical climate. The recycled teak screen and desk fits over the concrete structure and glazing protecting it from the sun allowing the thermal mass of the concrete to stabilise the internal temperature.

Sentosa House
© Archinesia
Sentosa House
© Archinesia

Cross ventilation, the other critical element of tropical design is maximises, the glass openness allowing even slight breezes to freely flow throughout he house creating a level of comfort.

On the mechanical side, the climate control is the energy efficient aided by double glazing. The hot water is heated using a heat pump, utilising the free heat form the air and then circulated so hot water is available at taps with wasting water.

Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia

Materials are reduced, the structure is exposed. The structural design using flat slabs reduces concrete usage by 25%. All of the timber is recycled.

All of the materials are chosen to minimise surface treatments and unnecessary materials.

Landscape, the landscape uses species that suit the climate, that thrive with minimal intervention. The rear area merges with the jungle enhancing the element of borrowed landscape

Sentosa House
© Archinesia


Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House
© Archinesia
Sentosa House


Sentosa House
Ground Floor Plan
Sentosa House
First Floor Plan
Sentosa House
Second Floor Plan
Sentosa House
Third Floor Plan
Sentosa House
Roof Plan


Sentosa House

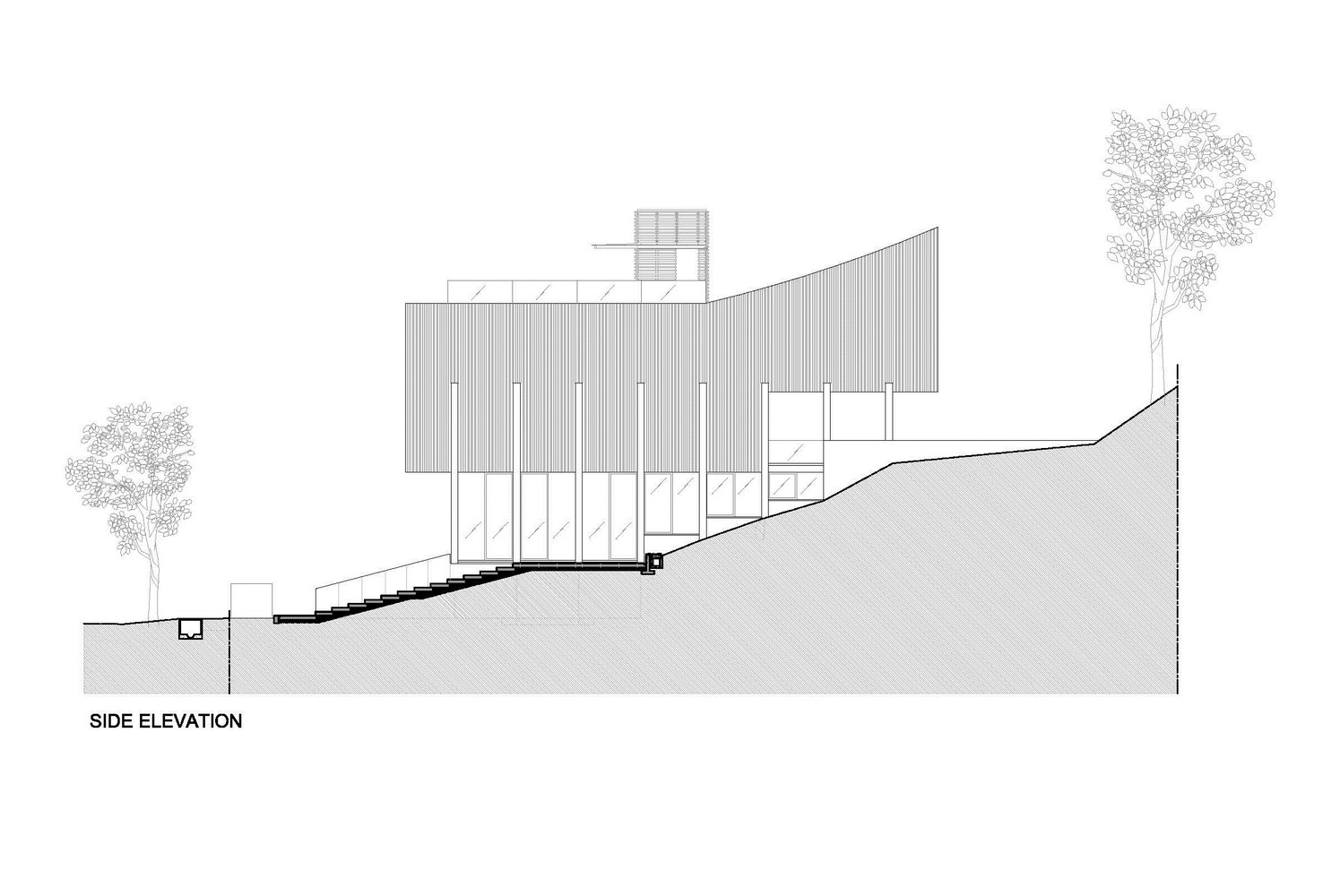

Elevation
Sentosa House
Elevation
Sentosa House
Elevation & Section
Sentosa House
Section
