Housing In Tres Cantos
HOUSING IN TRES CANTOS
R&AS
ARCHITECTS
R&AS
ARCHITECT IN CHARGE
Ricardo Saldías Barreneche
STRUCTURE
E.T. Estructuras
TECHNICAL ARCHITECTS
Vicente Arenas Benitez, Pedro Valiente Bravo, Javier Sáenz Neira
DESIGN TEAM
Carlos Rubio Carvajal, Enrique Álvarez-Sala
PROMOTOR
FCC Construcción
SERVICES
Integral
PHOTOGRAPHS
Liven Photography
YEAR
2012
LOCATION
Tres Cantos, Spain
CATEGORY
Apartments
Text description provided by architect.
The project has 186 VPPB (official protection housing) of 2 or 3 bedrooms, 186 box rooms, 279 parking spaces, and all the necessary building systems for its correct functioning.

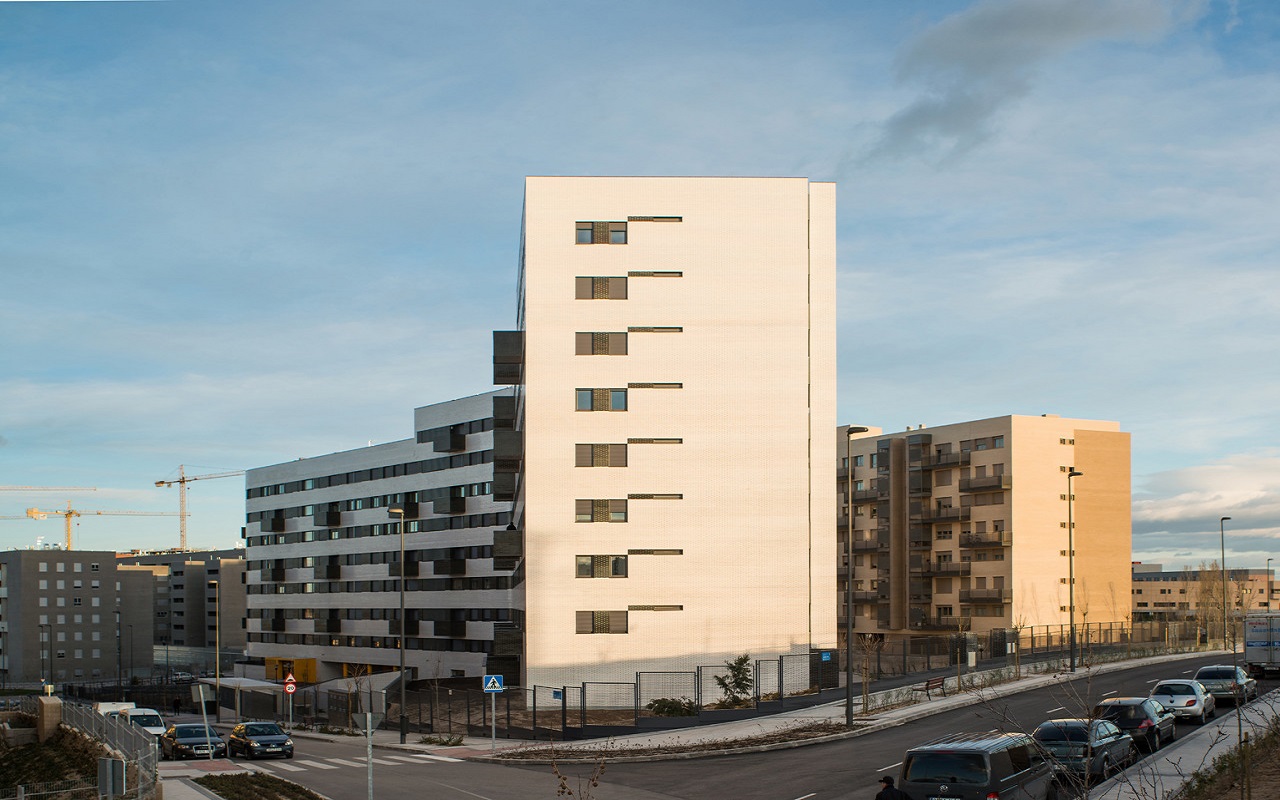

Above ground level the building is solved like a unique, continuous and linear volume. Staggered in ground level as in the roof level, trying to adapt itself to the existing topography and development/urbanization and following the east-west axis which is the longest in the plot.
Its linear shape plus its position in the longitudinal axis allows a more rational occupation , releasing/freeing up space for gardens (or creating green spaces) and promenades of generous dimensions.
The floors below ground level are situated in the projected footprint of the building extending towards the garden until they reach the necessary dimensions to accommodate all the box rooms and parking spaces.

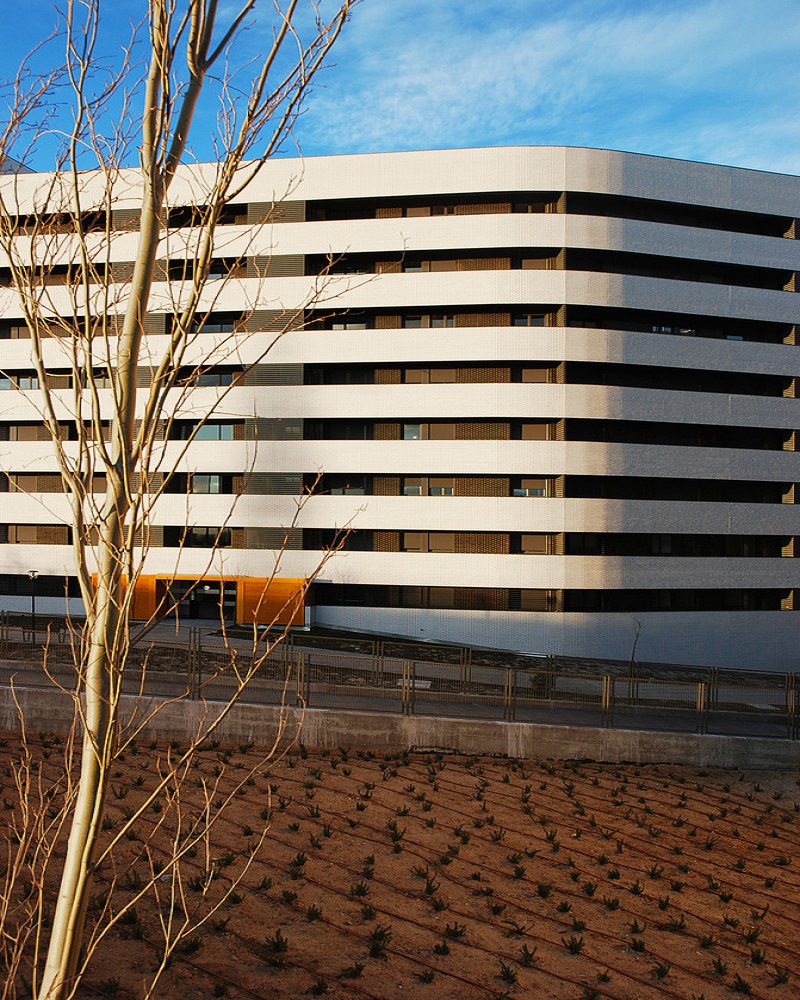

The horizontal lines are the tendency in the façade. This is highlighted with the black and white brick walls that predominate throughout the façade.
In the north façade balconies stand out and in the south façade the extending terraces stand out. Access to the private urbanization is situated in the midpoint of the north limit plot, and through a lodge close to the future pedestrian crossing at Transversal Sur st.
All 1All 186 dwellings are distributed throughout 6 doorways, all of them with direct access from the private urbanization.86 dwellings are distributed throughout 6 doorways, all of them with direct access from the private urbanization.
Circulation is defined by promenades that communicate every doorway and resolve the different levels/heights with steps or adapted ramps for the disabled.
Inside each doorway there is one staircase and one elevator that connect the different levels (above and below ground).
Each doorway is made up of 4 dwellings per floor, 2 of them orientated towards the north façade and 2 of them orientated towards the south façade.
