Luciano Pia

25 Green

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

25 GREEN

Luciano Pia

ARCHITECT
Luciano Pia

AREA
7500.0 sqm

CATEGORY
Housing

PHOTOGRAPHS
Beppe Giardino

PROJECT YEAR
2012

STRUCTURAL ENGINEER
Ing. Giovanni Vercelli -Torino

GREEN PROJECT
LINEEVERDI, Stefania Naretto, Chiara Otella

MANUFACTURERS
Bertolotto

ENERGY PROJECT
Ing. Andrea Cagni -Torino

LOCATION
Via Gabriele Chiabrera, 25, 10126 Torino, Italy

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

Text description provided by architect.

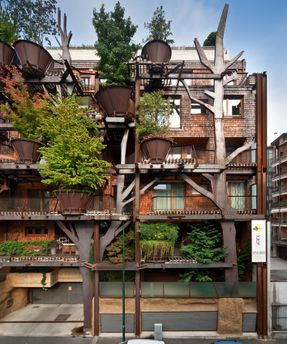

A new house has put down its roots in Turin. Its structure is in steel and it looks like a forest where trees are rooted in terraces with irregular shapes, ponds are crossed by footings and lush gardens cover the roofs.

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

The building has been thought as a living forest, a house on the trees like the houses children dream of and sometimes build.

The project comes from the necessity of making a residential building to complement a block featured by lack of homogeneity and heterogeneous prospects.

The aim of the project is both the construction of the block perimeter with a continuous façade and the making of a filter between the internal inhabited space and the streets.

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

The project wants to create a flowing and smooth transition space to soften the passage from the inside to the outside where the space is always enjoyable.

The smooth and changeable transition is emphasized by a targeted use of the green and the building materials so to create a structure which is compact and distinct but also transparent, mutable and enjoyable.

It is a special building because it is alive: it grows up, it breaths and it changes since 150 trees with tall trunks cover its terraces.

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

Together with 50 trees planted in the court garden they produce oxygen, absorb carbonic anhydride, cut down air pollution, protect from noise, follow the natural cycle of Seasons, grow up day after day and create a perfect microclimate inside the building so diminuishing the fall and rise in temperature in summertime and wintertime.

The streeps in solid wood that floor the terraces filter the sunlight in summer, while in winter they let the light break into the house.

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

The wainscot in larch shingles is a sort of soft and vibrant surface. The metal structures look like trees and they “grow” from the groundfloor to the roof while holding up the wooden planking of the terraces: they become entwined with the vegetation to form a unique façade.

One of the aims of the project is the increase of the energetic efficiency and for this reason several integrated solutions have been adopted:

continuous insulation, sun protection, heating and cooling systems which make use of the geothermal energy with heat pumps and recycling of the falling rain to water the green.

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

There are 63 residential units in the building and they are all different and fitted with wide terraces of irregular shapes that surround the trees. The last floor is covered with private green roofs .

In the vases there are trees or shrubs of different heights from 2.5 m. to 8 m. Deciduous species have been planted to have sun irradiation in wintertime too.

The choise of the species , even if diversified according to the different needs, has been made to grant a variety of leaves, colours and flowering.

25 Green
© Beppe Giardino
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino

When all the green is fully blooming it gives the feeling of living in a tree house. You can dream of a house or live in a dream!


25 Green
© Beppe Giardino
25 Green
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino
25 Green
© Beppe Giardino


25 Green

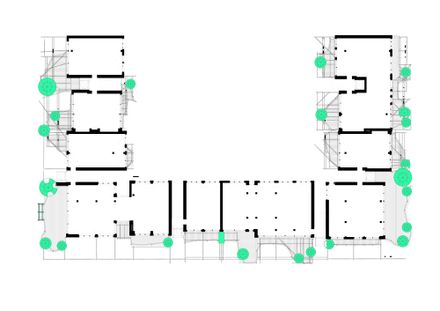

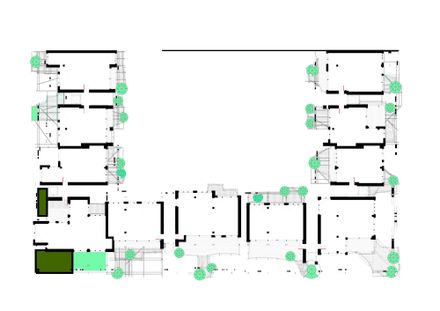

Level 0
25 Green
Level 1
25 Green
Level 2
25 Green
Level 3
25 Green
Level 4
25 Green
Level 5


25 Green
Section 1
25 Green
Section 2
25 Green
Section 3
25 Green
Section 4


25 Green

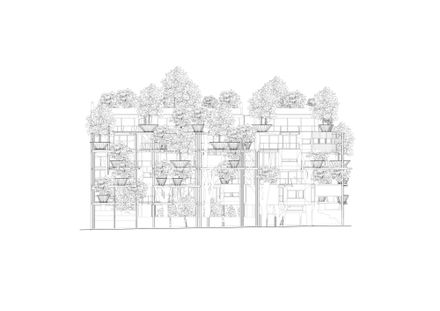

Elevation
25 Green
Elevation


25 Green
Terrace Detail
25 Green

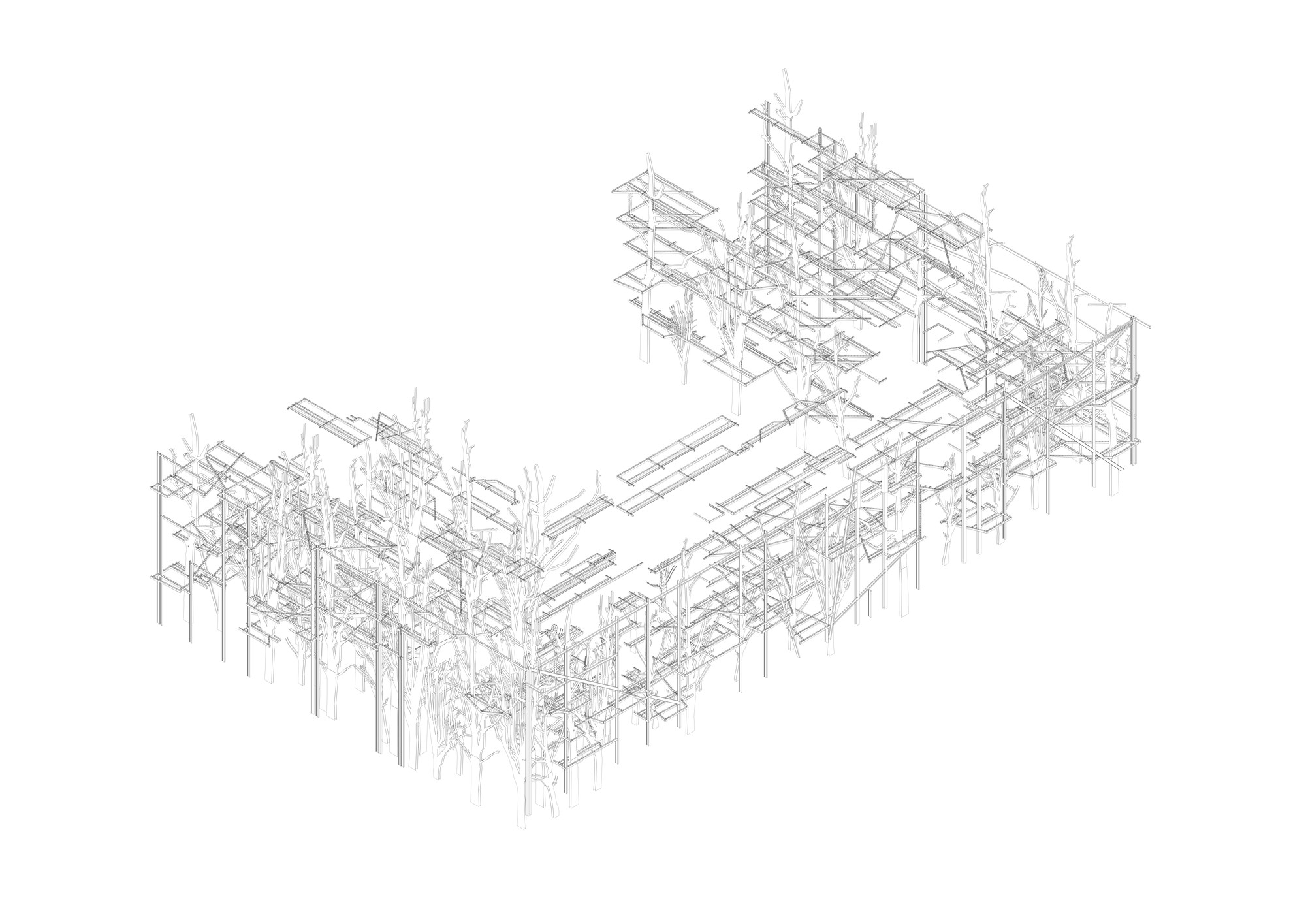

Balcony Axonometric
25 Green
Terrace Detail
