ILOT BOIS SOLEIL

Transform + 109 Architect(E)s

ARCHITECTS
Transform + 109 Architect(E)s

CONSULTANTS
Seca (Thermal Studies), Satob (Structure)

QUANTITY SURVEYOR
Alayrac

RENDERING PICTURE
Scalène ©

CLIENT
Oppidea

LANDSCAPEAGENCE
Poles

MAIN CONTRACTOR
Satob Construction Bois

PHOTOGRAPHS
Philippe Ruault

AREA
3200.0 m²

YEAR
2012

LOCATION
Toulouse, France

CATEGORY
Apartments

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

The main goal of this project is to bring to collective housing some qualities of the individual dwelling. The buildings are designed as the juxtaposition of houses.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

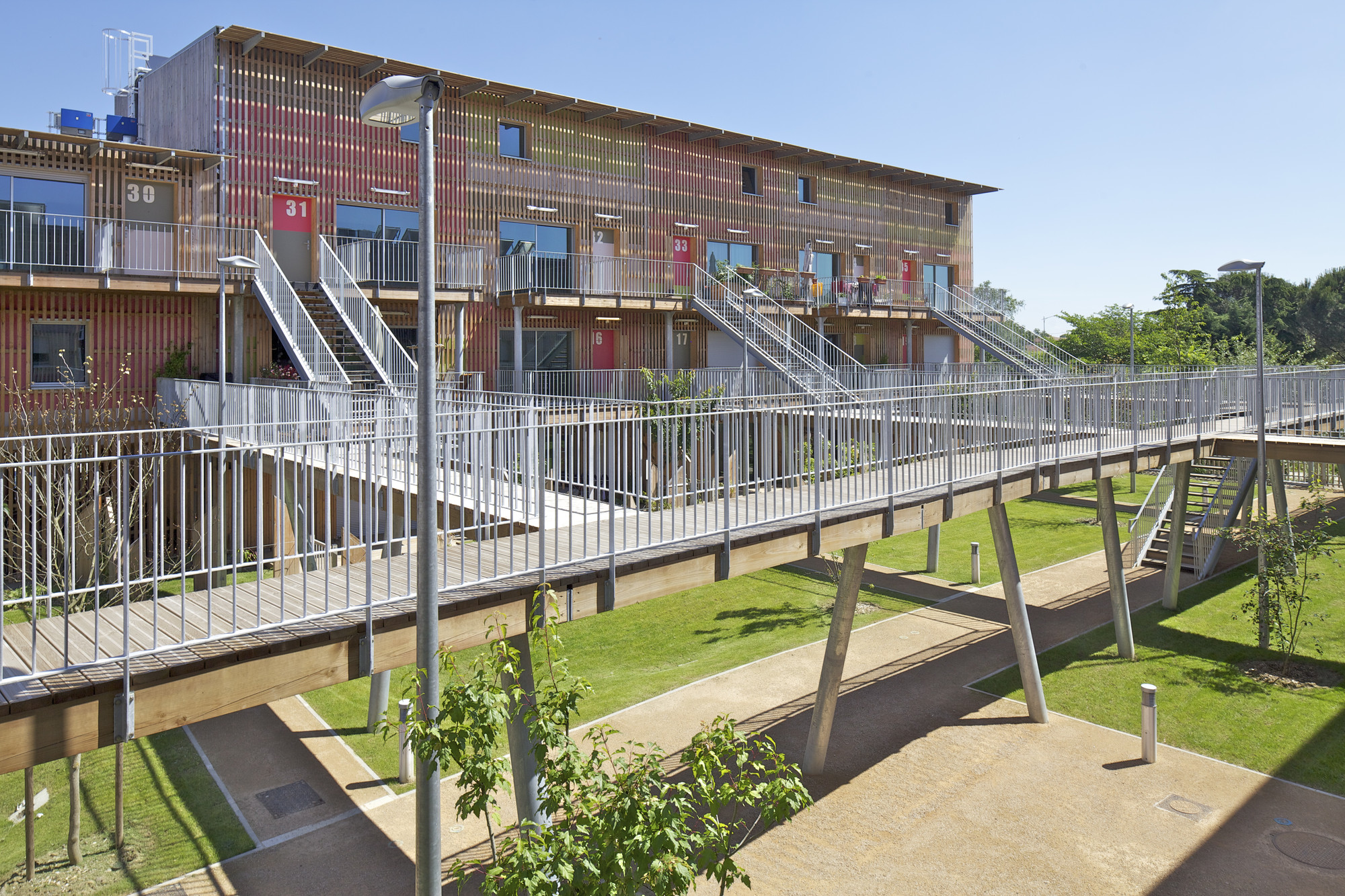

The shared spaces are all external and far from the flats in order to preserve intimacy. The main footbridge allows people to cross a garden at 3m above ground level, between tree branches.

Each of the 35 flats has double orientation with its living-room facing south and its bedrooms facing north.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

A large number of the housing units are duplexes, the double height of the living-room being more or less closed depending on the desires of the buyers.

Each living room is extended outside by a private external space large enough to eat outside.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

The car park is external, for cost reasons. The nearest parkings are hidden behind a fishnet on which some vegetation will grow.

The project is linked to the subway station by a pedestrian path. At the entrance to the site, a large number of bicycle parking spaces are provided, for both residents and visitors.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

The whole project, including its structure, is made of wood, using a platform frame system, which led to a shorter construction time.

The fact that the whole structural frame was designed with the construction company has lowered the cost of construction, the production of good quality, affordable housing being one of the main targets of the client.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

The global environmental design is based on simple concepts: the buildings are very compact, with a low ratio of façades. The south façades are very open, north façades very closed.

Efficient boxes instead of using sophisticated systems: the insulation is very effective and air insulating has been tested.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault

Hot water is provided by solar panels on the roofs and large areas of photovoltaic panels were installed and sold to an external company in order to lower the cost of the buildings.

The projet has received the BBC (Low energy consumption buildings) label.

Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault


Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault
Ilot Bois Soleil
© Philippe Ruault


Ilot Bois Soleil
Plan
Ilot Bois Soleil
Plan
Ilot Bois Soleil
Plan
Ilot Bois Soleil
Plan


Ilot Bois Soleil
Section
Ilot Bois Soleil
Detail
