Jarmund / Vigsnæs, AS Arkitekter MNAL

Log House

Log House
© Nils Petter Dale

LOG HOUSE

JVA

ARCHITECTS
JVA

CONSULTANTS
Bark AS

lOCATION
Oppdal, Norway

AREA
302.0 sqm

PHOTOGRAPHS
Nils Petter Dale

CATEGORY
Houses

CLIENT
Withheld At The Owners Request

PROJECT YEAR
2012

PRIMARY ARCHITECTS
Einar Jarmund, Håkon Vigsnæs, Alessandra Kosberg, Nikolaj Zamecznik, Claes Cho Heske Ekornaas

Text description provided by architect.

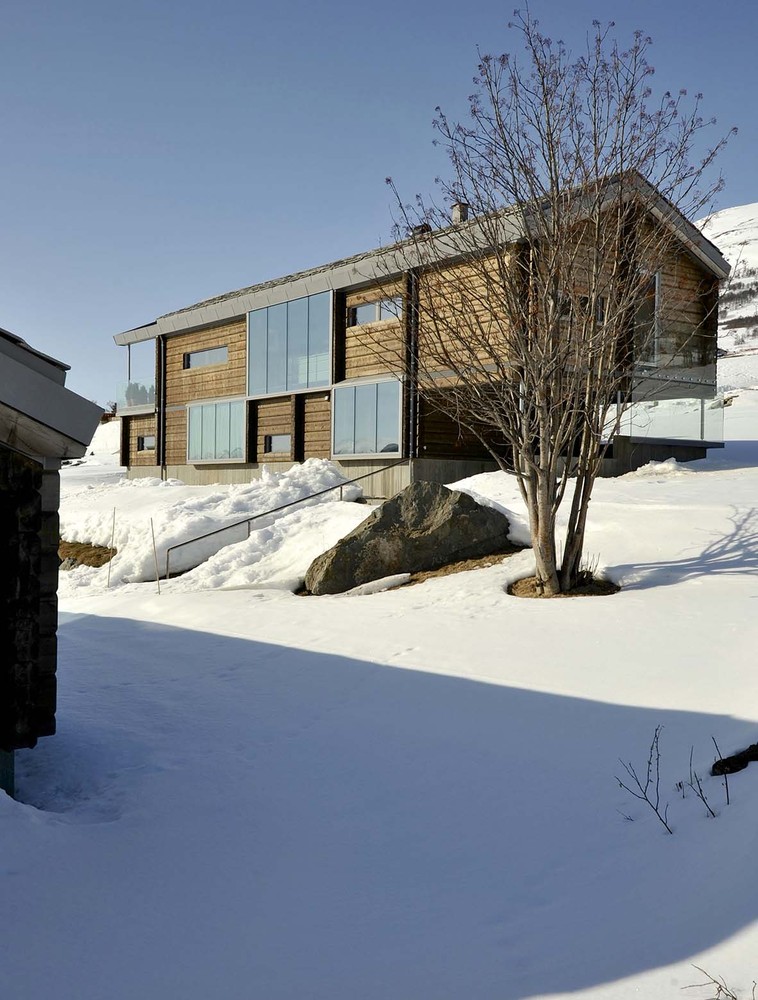

This family house in the mountain area of Oppdal is placed on the upper part of a sloped site, offering great views towards the south. An annex is placed on the lower part of the plot with a courtyard formed between the two.

Log House
© Nils Petter Dale
Log House
© Nils Petter Dale
Log House
© Nils Petter Dale

Both buildings are timber log structures placed on an elevated base wall of concrete. This foundation wall is elevated in order to handle the height differences in the surrounding terrain. Decks and roof structures are made of massive wood.

The buildings combine traditional vernacular log techniques with a modern architectonic expression. This comes to show by using large glass surfaces mounted between the knots of the log structure.

Interplay between open glass-framed parts and the log structure arises – creating varied spaces.

Log House
© Nils Petter Dale
Log House
© Nils Petter Dale
Log House
© Nils Petter Dale

The static differences between large sheets of glass, and the moisture relative timber construction, has been a challenge regarding technical detailing, resulting in flexible window fixings and adjustable steel columns.

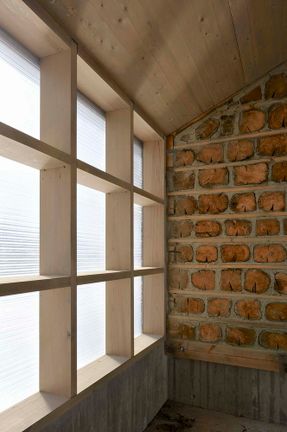

The cold part of the annex is built in another traditional technique. Remains of the timber material is used as ”bricks” set in mortar, which is possible because of the dry climate at the site.

Log House
© Nils Petter Dale
Log House
© Nils Petter Dale

The main shape of the two houses has a clear reference to the formal language of the traditional building style, both in terms of the principal of adding volumes length vice in the sloping terrain, and the angle of the roof.

LOG CONSTRUCTION IS VERY FAVORABLE IN A CRADLE-TO-CRADLE PERSPECTIVE:

Log construction has very low energy consumption in the production phase, it is a large CO2 storage during use, and can very easily be reused, recycled or be used as a heating source after use.

For this reason, log structure has exemptions in energy codes in many countries, including Norway.

Log House
© Nils Petter Dale
Log House
© Nils Petter Dale
Log House
© Nils Petter Dale

The Log house is constructed of logs which is sustainable due to quick assembly and local “short travelled” materials and builders.

The in-door climate is good due to natural ventilation and low emitting treatment of wooden surfaces. Heating is based upon thermal energy, heat pump and wood burning stoves.

JVA thinks it is necessary to explore the traditional technique and possibilities of log building in a contemporary way.

Log House
© Nils Petter Dale
Log House
© Nils Petter Dale


Log House
© Nils Petter Dale
Log House
© Nils Petter Dale
Log House
© Nils Petter Dale
Log House
© Nils Petter Dale
Log House
© Nils Petter Dale


Log House
Model


Log House
Floor Plan
Log House
Floor Plan
Log House
Floor Plan
Log House
Floor Plan
Log House
Floor Plan
Log House

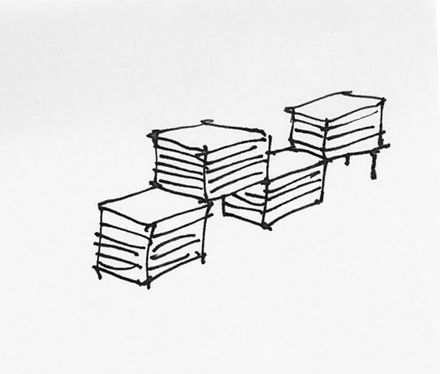

Sketch


Log House
Section
Log House
Section
Log House
Section
Log House
Section
Log House
Section
Log House
Section

Log House
Elevation


Log House

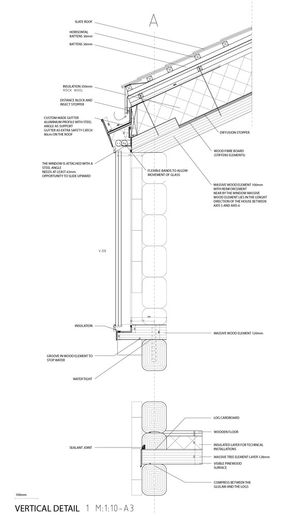

Detail
Log House
Detail
Log House
Detail
Log House
Detail
Log House
Site Plan
