DNB HOUSE

Dark Arkitekter

LOCATION
Norway

ARCHITECT
Dark Arkitekter

AREA
11700.0 sqm

PROJECT YEAR
2012

PHOTOGRAPHER
Olaf Kon, Jiri Havran, Christian Roth Christensen

Text description provided by architect.

Barcode is part of the mixed-use development of Bjørvika, a former harbor area and highway intersection that expands Oslo city center. Dark teamed with MVRDV and A-Lab and won the international design competition for the development.

DNB House
© Olaf Kon
DNB House
© Jiri Havran

The winning entry proposed as a string of narrow, yet heterogeneous building shapes inspired in the design of a barcode.

DNB’s three-building headquarters is part of the Barcode development, and each member of the Barcode team designed a different part of the trio.

DNB House
© Jiri Havran
DNB House
© Jiri Havran
DNB House
© Olaf Kon

Dark was responsible for the glass-and granite“West-Building”, which accommodates 600 occupants.

An underground concourse containing meeting rooms, canteen, and other common functions runs continuously under all three DNB buildings.

The 15-story office building resembles a giant stair, in which each tread is a large roof terrace and each riser is a two-story-tall glazed common room.

DNB House
DNB House
© Jiri Havran

The extensively planted rooftops retain water while also providing employees with contemplative break spaces that look towards the east and south.

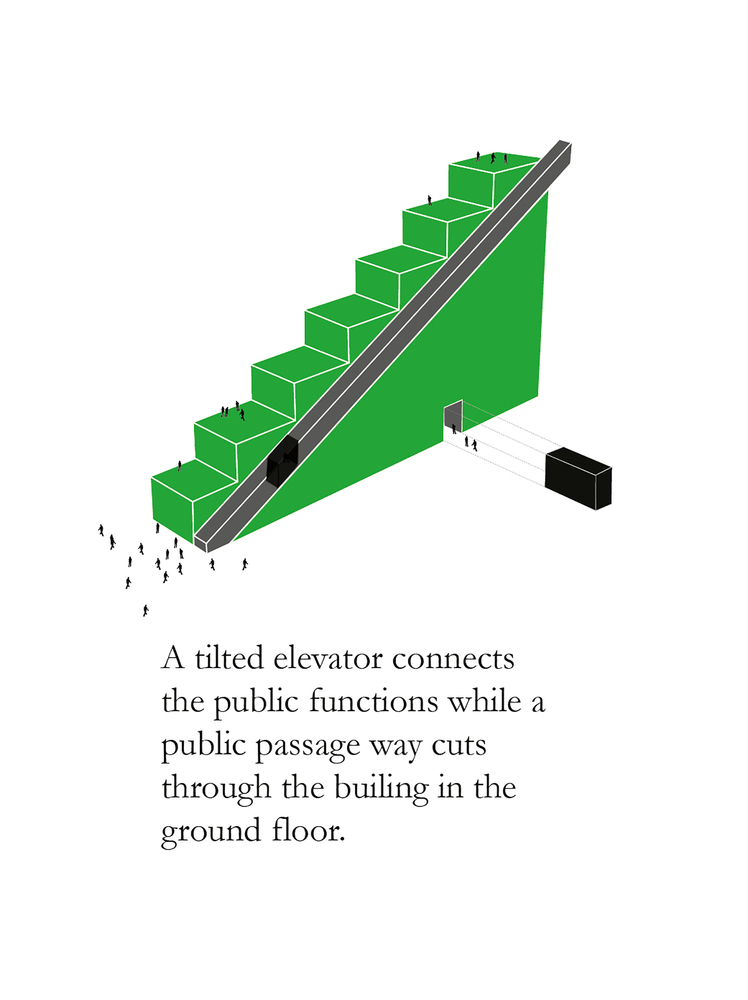

A publicly accessible inclined elevator that terminates in a penthouse restaurant outlines the stair-shaped volume.

DNB House
© Jiri Havran
DNB House
© Jiri Havran

Alongside this elevator, an internal stairwell connects the several floors where DNB offices’ are located.

Shops, food vendors, and other commercial services populate the street level, which also features an open passage punching through all the buildings in Barcode complex.

DNB House
© Jiri Havran


DNB House
diagram_2
DNB House
diagram_3
DNB House
diagram_4
DNB House
diagram_5


DNB House
Fifth floor plan
DNB House
Roof Plan
DNB House
Site Plan


DNB House
Elevation
DNB House
Section
