VIA 31

Somdoon Architects

AREA
9682.75 m²

YEAR
2012

PHOTOGRAPHS
W-Workspace

LOCATION
Bangkok, Thailand

CATEGORY
Apartments

Text description provided by the architects.

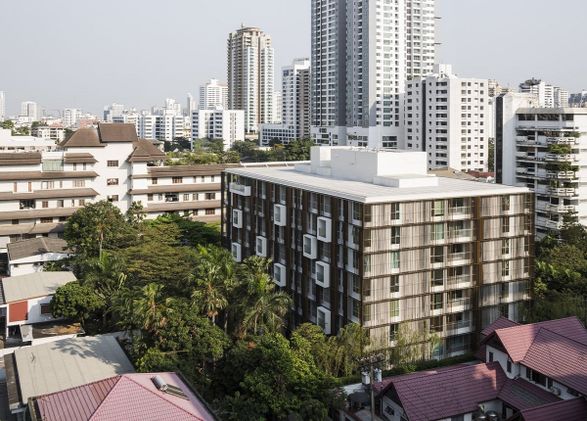

Via31 is a housing project that takes place in Sukhumvit, the most prime residential area of Bangkok.

The site is located within a quiet lane surrounded by low-rise residential buildings and away from the bustling main road.

Via 31
© W Workspace
Via 31
© W Workspace

The building is intended to cosy like a birds nest; introvert in design, where residents can live privately and peacefully.

The building has 8 floors with a basement and consists of 88 units ranging from a single bedroom unit (47 sq.m.) to a three bedroom unit (145 sq.m.)

The local building regulation allows for a maximum building height of 23m, bringing the conception of a sunken first floor and allowing a higher floor to ceiling height.

Via 31
© W Workspace
Via 31
© W Workspace
Via 31
© W Workspace

The green slope on the north side leads to the entrance of the building. Along with the lobby, these two elements act as a buffer from the entrance road.

The 950mm slope helps to distinguish between public and private space. While on the South the landscape level is raised by 1.2m to match the second floor.

This allows allowing the gym on the second floor to continue out to the swimming pool and landscape space.

Via 31
© W Workspace
Via 31
© W Workspace

The exterior of building is composed of straw like aluminium fins of various warm colours. They are installed from the RC ledge to ledge and act as a sun shading device.

The density of the fins is strategically controlled to create privacy and also in relation to the internal living space and the exterior.

The lowest density is at the living room window, where a clear view is required, to the densest covering air-condensing units.

Via 31
© W Workspace
Via 31
© W Workspace

The continuous aluminium ‘screen’ is interrupted at random internals by white box balconies.

These 25 extra cantilevered balconies create variation within the design language and are seen as the only extrovert element of the design.

They provide a comfortable space for owners to enjoy the vast views over the low-rise neighbourhood and the surroundings.

Via 31
© W Workspace
Via 31
© W Workspace

From the second floor onwards, the units are organized by two connected corridors revolving around the three atriums.

The base of these atriums is common seating area.

Via 31
© W Workspace
Via 31
© W Workspace
Via 31
© W Workspace

They open up to the roof skylight and louvers allowing natural sun light to come down and disperse into the building.

The atrium spaces also connect to swimming pool deck on second floor allowing the air to get in and create stack effect ventilation.

Via 31
© W Workspace
Via 31
© W Workspace

It helps to reduce the use of artificial light and mechanical ventilation for most of the common areas.


Via 31
© W Workspace
Via 31
© W Workspace
Via 31
© W Workspace
Via 31
© W Workspace


Via 31
Section
Via 31

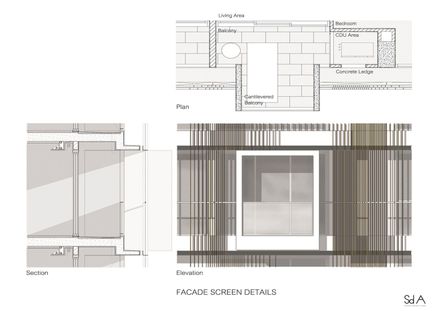

Detail
Via 31
Diagram
