BOX HOUSE IN STRATHFIELD

Zouk Architects

ARCHITECTS
Zouk Architects

AREA
700.0 sqm

PROJECT YEAR
2013

PHOTOGRAPHS
3.2.1 Photography

Text description provided by architect.

The project is located in one of the most sought after region with exclusive real estate properties known as the golden triangle of Strathfield, NSW Australia. The leafy suburb predominantly has pre-war bungalows and houses contributing to conservative streetscapes.

Due to the ineffectiveness of the existing dwelling in its planning, relation to outdoors surrounding and maintenance cost, the client has decided to start afresh by completely rebuilding.

Box House in Strathfield
© 3.2.1 Photography
Box House in Strathfield
© 3.2.1 Photography

The beginning of this project goes through complex analysis of the environment, starting with the surroundings directly affected by the conservative town planning regulations.

The analyses singled out planning controls positively contribute to the immediate surrounding which determined the final shape and envelope of the building.

The building envelope and composition of “The Box House” consists of series of boxes interlocked in an organized and formal manner.

Box House in Strathfield
© 3.2.1 Photography
Box House in Strathfield
© 3.2.1 Photography

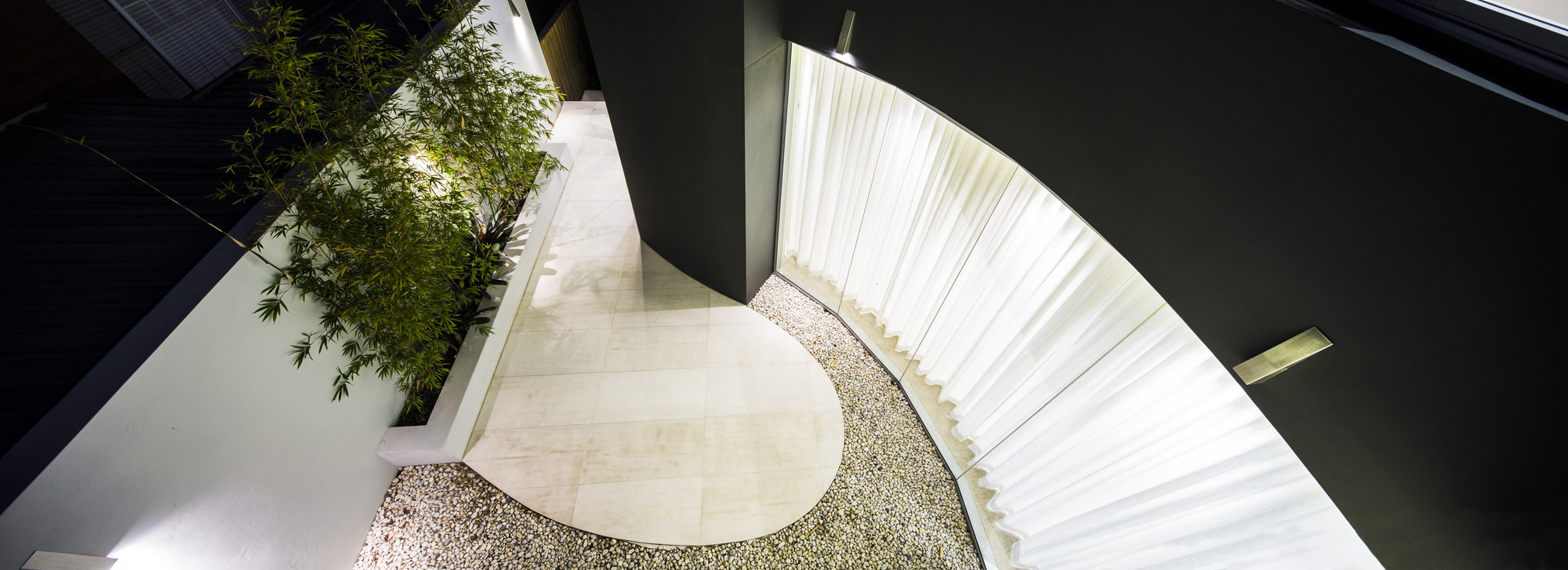

The rigid formation, however, is “deformed” with the insertion of an organic element in the form of a bamboo courtyard to the centre of the dwelling.

This courtyard serves as an incision to the lineal planning of the dwelling in order to provide emission of natural lights and serves as an extension to outdoor spaces.

The client, who is also a structural engineer, has good working rapport with the architect which contributed to the success of the built by providing unconventional structural solutions.

The suspended concrete slab and roof parapet wall has been constructed with single pour of concrete to ensure no construction joints visible to achieve seamless exterior finish.

Box House in Strathfield
© 3.2.1 Photography
Box House in Strathfield
© 3.2.1 Photography

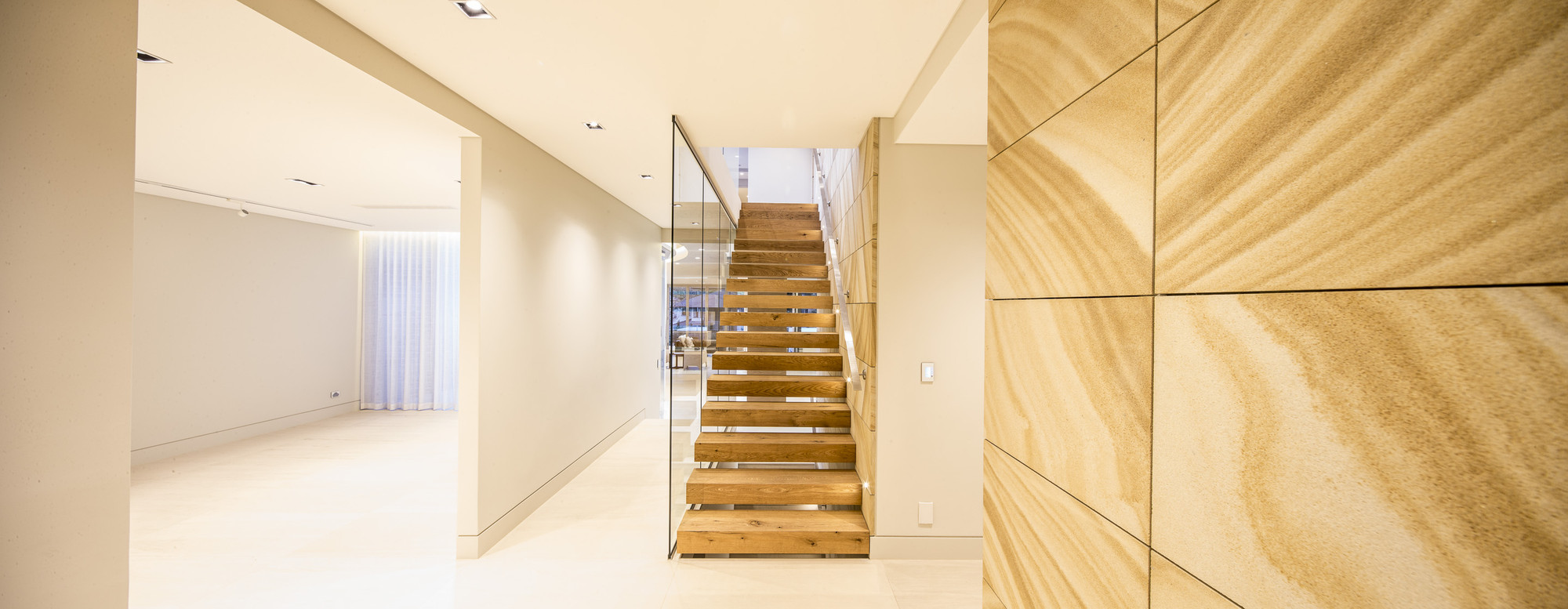

The interior also feature a custom built cantilevered staircase tread with welded steel plates finished in warm American White Oak which seems befitting with the sand stone wall.

From the street, the dwelling is designed to be well grounded to the immediate surrounding with the curved retaining wall fluidly descend from the façade to the landscape.

Box House in Strathfield
© 3.2.1 Photography
Box House in Strathfield
© 3.2.1 Photography

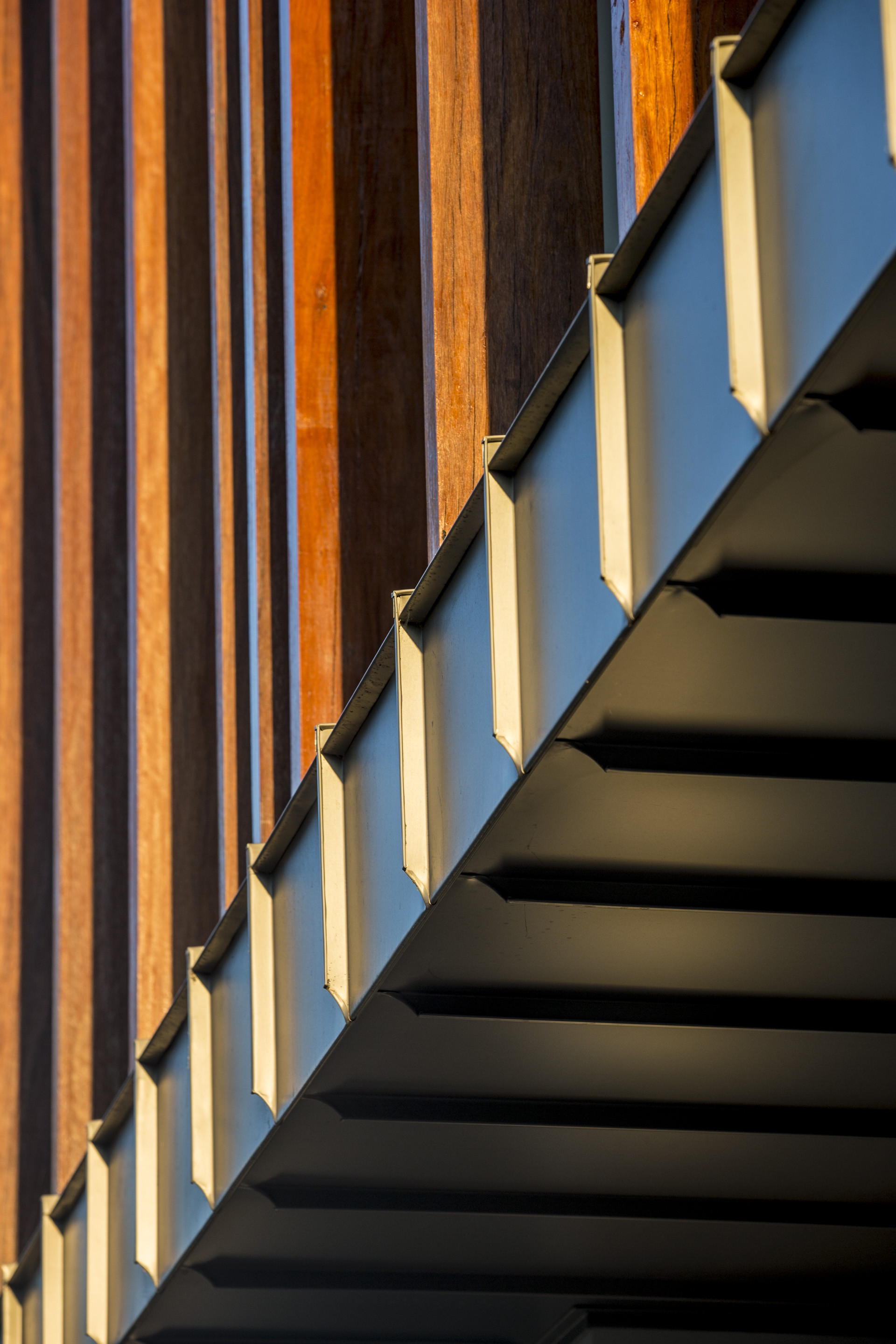

Sandstone cladding formed the heavier element on the exterior ground level with careful insertion of timber element to compliment the earthy tone of the dwelling.

In contrast, however, the zinc cladding provides a fresh and unique element which signifies the new built and punctuates the otherwise conservative conventional streetscape.

Box House in Strathfield
© 3.2.1 Photography


Box House in Strathfield
Basament Floor Plan
Box House in Strathfield
Upper Floor Plan
Box House in Strathfield
Ground Floor Plan


Box House in Strathfield
East Elevation
Box House in Strathfield

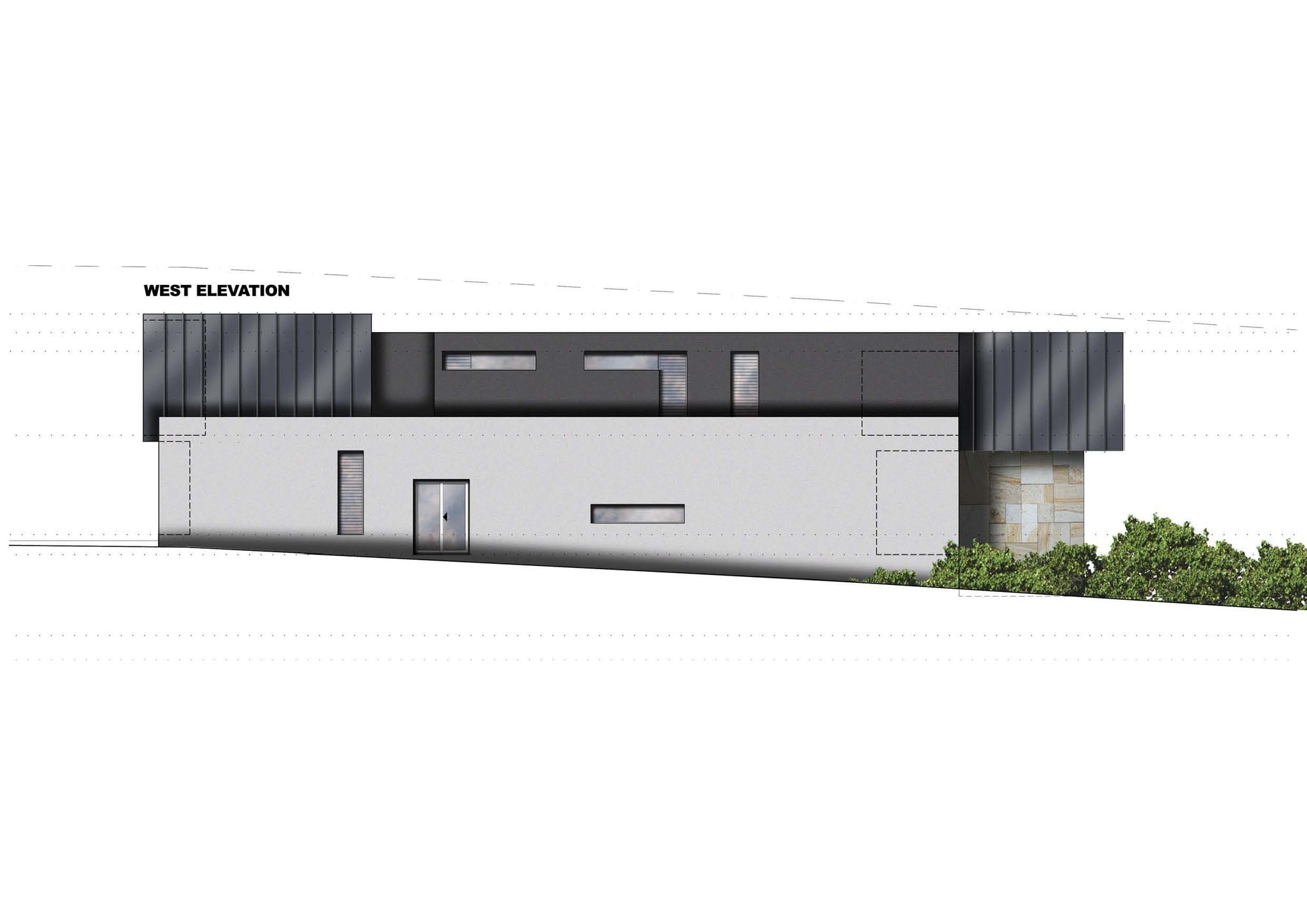

West Elevation
Box House in Strathfield
South Elevation
Box House in Strathfield
East Elevation
Box House in Strathfield

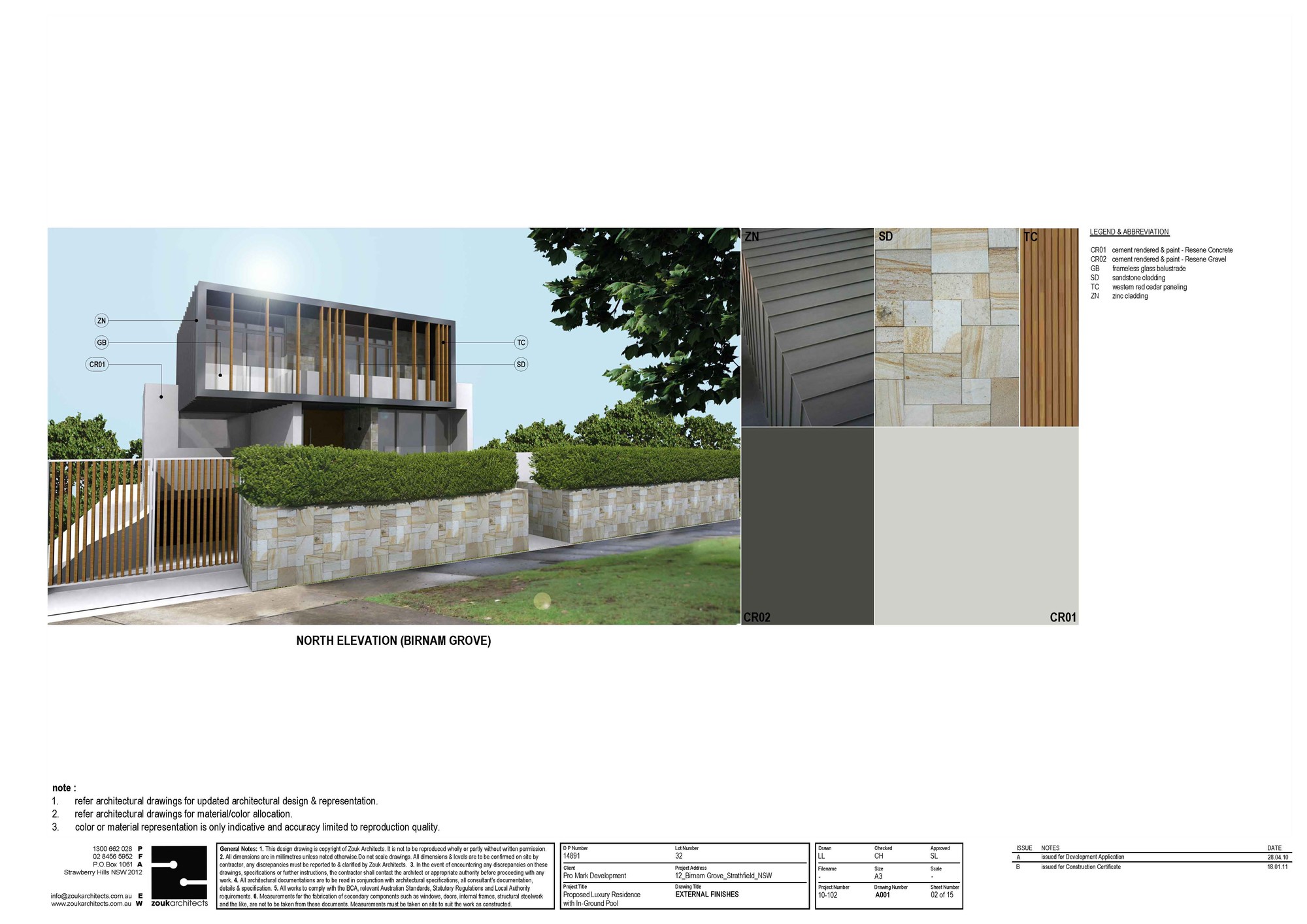

North Elevation
Box House in Strathfield
West Elevation


Box House in Strathfield
Detail


Box House in Strathfield
Section
Box House in Strathfield
Diagram

Box House in Strathfield
Diagram
