MAR – Rio Art Museum Bernardes

MAR – Rio Art Museum Bernardes
© Leonardo Finotti

MAR RIO ART MUSEUM
BERNARDES

Jacobsen Arquitetura

ARCHITECTS
Leonardo Finotti

LANDSCAPE
Burle Marx e Cia ltda.

LOCATION
Rio De Janeiro, Brazil

FACILITIES
ADDAGE Engenharia e Planejamento / Install Ltda.

LIGHTING
Franco + Fortes – Lighting Design

STRUCTURE
Cerne- Engenharia e Projetos/ GOP – Gabinete de Organização e Projectos

AIR CONDITIONING
Clima Engenharia, LTDA.

ACOUSTICS
Roberto Thompson Motta Arquiteto Ltda

WINDOWS AND FRAMES
QMD Consuiltoria

FIREFIGHTING CONSULTANTS
ML Proteção Contra Incêndio LTDA

WATERPROOFING
PROASSP Assessoria e Projetos

ELECTRONIC SYSTEMS
Bosco & Associados LTDA

SIGNS
Jair de Souza

SOUNDINGS
Audium Áudio e Acústica

LIGHTING PROTECTION SYSTEMS
Instal Engenharia Ltda.

SUSTAINABILITY
CTE inteligência 360º

MANAGEMENTS
Engineering

CONTRACTOR
Concrejato

IMAGES
Metro ao Cubo

SITE AREA
2300 m²

INICIATIVA
Prefeitura da Cidade do Rio de Janeiro

CRIAÇÃO E REALIZAÇÃO
Fundação Roberto Marinho

INTERIORS
Bernardes + Jacobsen Arquitetura

INTERIORS ARCHITECT
Eza Viegas

AUTORES
Paulo Jacobsen, Bernardo Jacobsen e Thiago Bernardes

INTERIORS TEAM
Isabel Beloniel, Luiza Torres Homem

MANUFACTURERS
Interface, Knauf, Levantina, Otis, Plaka, Sapa Building System International NV, Belmetal, Deca,
Interfacefloor, Lumini, Neocom System, Painel lady, Resinfloor, Technical Glass Group T2G, Vidro Real

Our challenge was to unite tree existing buildings with different architectural characteristics to house the Museu de Arte do Rio, the school “A Escola do Olhar” as well as cultural and leisure spaces.

MAR – Rio Art Museum Bernardes
© Leonardo Finotti
MAR – Rio Art Museum Bernardes
© Leonardo Finotti

The existing buildings, the palace Palacete Dom João”, the police building and the old central bus station of Rio, connected shall be part of the major urban redevelopment in the historic downtown of Rio de Janeiro. For each construction we analysed different levels of preservation.

The first step was to establish a flow system allowing the Museum and school to work in an integrated and efficient manner.

MAR – Rio Art Museum Bernardes
© Leonardo Finotti
MAR – Rio Art Museum Bernardes
© Leonardo Finotti

Therefore we proposed the creation of a suspended square on the police building rooftop, which will unite all accesses and host a bar and an area for cultural events and leisure. Consequently, the visitation will be from top to bottom.

It was established that the palace, due to its large ceiling height and structure free plan should hold the exhibition areas of the museum. The police building shall be used for the school, auditoriums, multimedia exhibition areas, administration areas and employee areas of the complex.

MAR – Rio Art Museum Bernardes
© Leonardo Finotti
MAR – Rio Art Museum Bernardes
© Leonardo Finotti

The stilts, currently used as an access to the road, will turn into a large foyer for entire complex, and will hold the sculpture exhibition areas. Access will be controlled between the two buildings, characterizing this empty space as internal, open and covered.

The marquee of the Road, heritage element listed by the City, will be used for lavatories, store and region of loading, unloading and deposits. The connection and circulation of visitors between the two buildings, in the form of a suspended catwalk will belong to this new building, featuring the most unusual state possible.

MAR – Rio Art Museum Bernardes
© Leonardo Finotti
MAR – Rio Art Museum Bernardes
© Leonardo Finotti

For the police building, we propose the suspension of the last floor to balance the height of the two buildings as well as the replacement of the masonry closing façade profiles using translucent glass, making the structural system of indented columns visible and revealing the stilts.

Finally as the main mark of the project, we suggested that the suspended square have an abstract and aerial form.

A fluid and extremely light structure, simulating water surface waves.

MAR – Rio Art Museum Bernardes
© Leonardo Finotti
MAR – Rio Art Museum Bernardes
© Leonardo Finotti
MAR – Rio Art Museum Bernardes
© Leonardo Finotti

A poetic architectural character full of meaning, simple and at the same time modern in regards to the structural calculation.

This element shall be seen near and by far, and from below to who is arriving at the Praça Mauá, from above by those who are at the Morro da Conceição.

MAR – Rio Art Museum Bernardes
© Leonardo Finotti


MAR – Rio Art Museum Bernardes

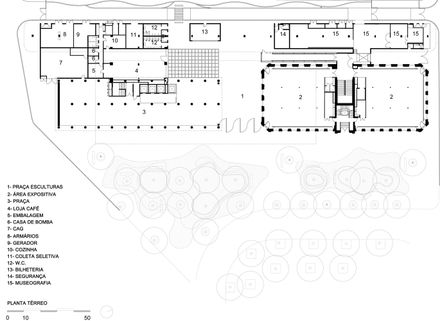

Ground Floor Plan
MAR – Rio Art Museum Bernardes
Mezzanine Floor Plan


MAR – Rio Art Museum Bernardes
Planta 1º Pavimento
MAR – Rio Art Museum Bernardes
Planta 2º Pavimento
MAR – Rio Art Museum Bernardes
Planta 3º Pavimento
MAR – Rio Art Museum Bernardes
Planta 4º Pavimento
MAR – Rio Art Museum Bernardes

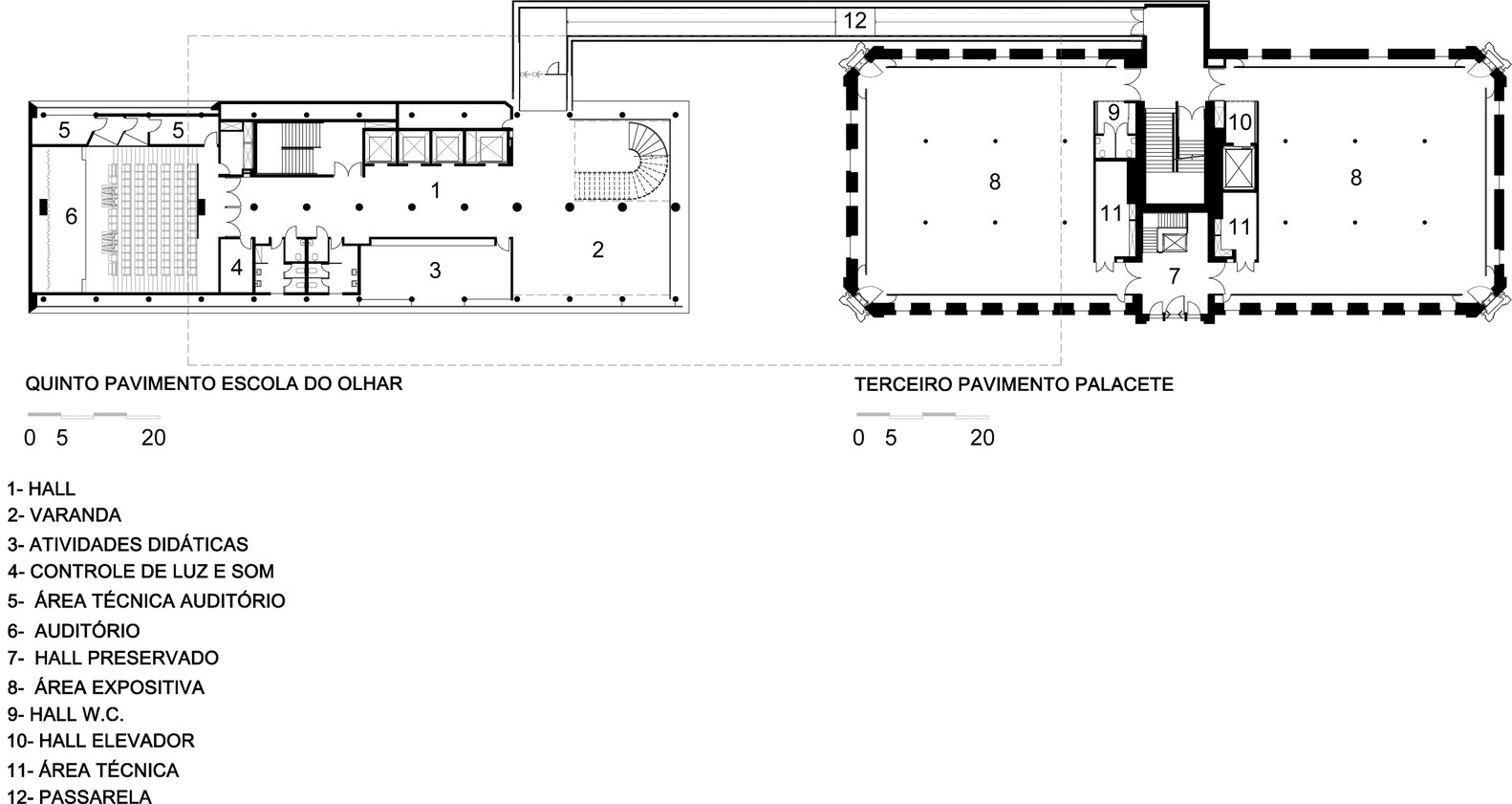

Planta 5º Pavimento
MAR – Rio Art Museum Bernardes
Planta 6º Pavimento


MAR – Rio Art Museum Bernardes
Elevation


MAR – Rio Art Museum Bernardes
Section
MAR – Rio Art Museum Bernardes
Schematic Section


MAR – Rio Art Museum Bernardes
Fluid Roof Diagram
MAR – Rio Art Museum Bernardes
Fluid Roof Diagram
MAR – Rio Art Museum Bernardes
Fluid Roof Diagram
MAR – Rio Art Museum Bernardes
Building Diagram
MAR – Rio Art Museum Bernardes
Roof Diagram


MAR – Rio Art Museum Bernardes
Model
MAR – Rio Art Museum Bernardes
Model
MAR – Rio Art Museum Bernardes
Model
MAR – Rio Art Museum Bernardes
Model
MAR – Rio Art Museum Bernardes
Model
MAR – Rio Art Museum Bernardes
Location
