THREE PARTS HOUSE

Architects EAT

ARCHITECTS
Architects EAT

LOCATION
South Yarra, Australia

PROJECT ARCHITECT
Albert Mo, James Coombe

AREA
520.0 sqm

PHOTOGRAPHS
Earl Carter, James Coombe

PROJECT YEAR
2013

ESD CONSULTANT
Geokal Consulting

LAND SURVEYOR
Farren Group

LANDSCAPE
Jim Fogarty Design

BUILDER
Sargant Construction

PROJECT ARCHITECT
Albert Mo, James Coombe

ENGINEER
R. Bliem & Associates

BUILDING SURVEYOR
Building Strategies

HYDRAULIC
MRA Consulting

CATEGORY
Houses

Three Parts House
Three Parts House
© Earl Carter

Text description provided by architect.

Three Parts House is an alteration and addition to a 1950s clinker brick residence on a 1200sq.m block of land. The house is programmatically and conceptually divided into 3 parts – the Lantern, the Courtyard and the Brickhouse.

Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter

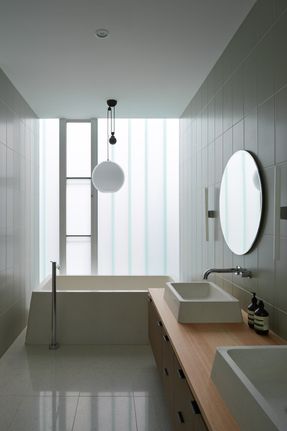

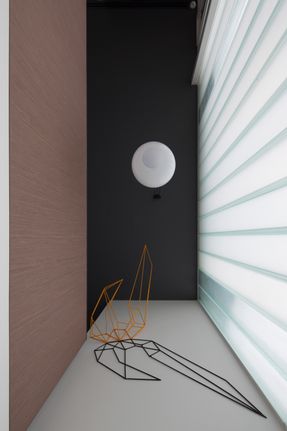

The Lantern is the existing 2 storey part of the house, programmatically it contains the bedrooms, bathrooms, a formal living room, as well as the entry. The north, west and part of the south facade are glazed with double layered U-profile glass panels to achieve a large singular span façade for monumentality, under the existing roof and eaves.

8 varying textures and frostings were selected to wrap around the existing structure, providing tactility and varying light transmission quality. This façade is further shaded by a large growing Ginkgo tree, and after dark the building turns into a glowing lantern.

The Courtyard is the link between the old and new, with the long corridor and sewing room forming part of this connection. This central courtyard allows light and air to penetrate into the depths of the building plate.

Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter

Much like a Japanese Imperial villa, multiple layers of sliding doors and screen modify the spatial relationship between indoor and outdoor, transforming the circulation space into an extension of the courtyard, or using the retractable flyscreen to create a shaded, airy passageway on hot summer days.

We envisage this space to be filled with a flurry of activity throughout day and night, the direct connection to the courtyard making it the perfect for the kids.

With that in mind the screens are painted as chalkboard with magnetic undercoat, these become kids’ doodle central, activating an otherwise utilitarian transitional zone.

Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter

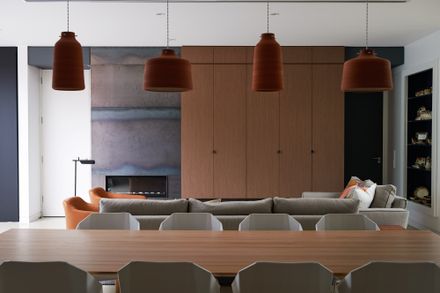

The Brickhouse is the new addition, a space for the family, as well as for entertaining guests. It opens to both the courtyard and the backyard, bringing the two outdoor spaces together under one roof.

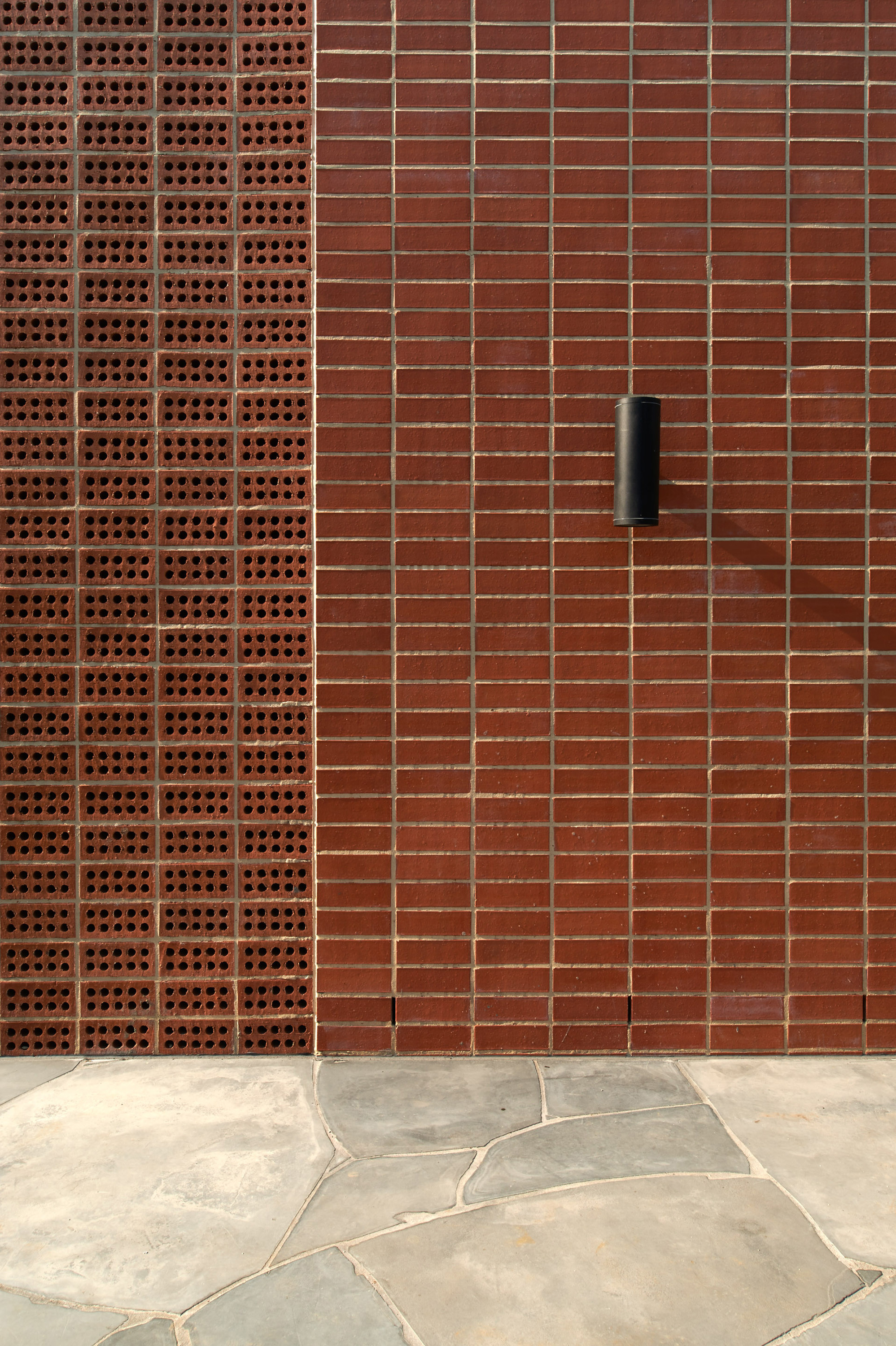

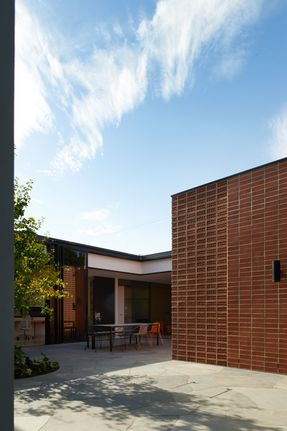

As the brickhouse extends into the courtyard, a simple brick-laid-on-edge brise-soleil screens form the walls, providing access and natural ventilation to the basement garage.

This often seen but forgotten core-hole pattern creates a memorable and highly textured surface en masse, and at the same time, a functional and breathing façade.

Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter

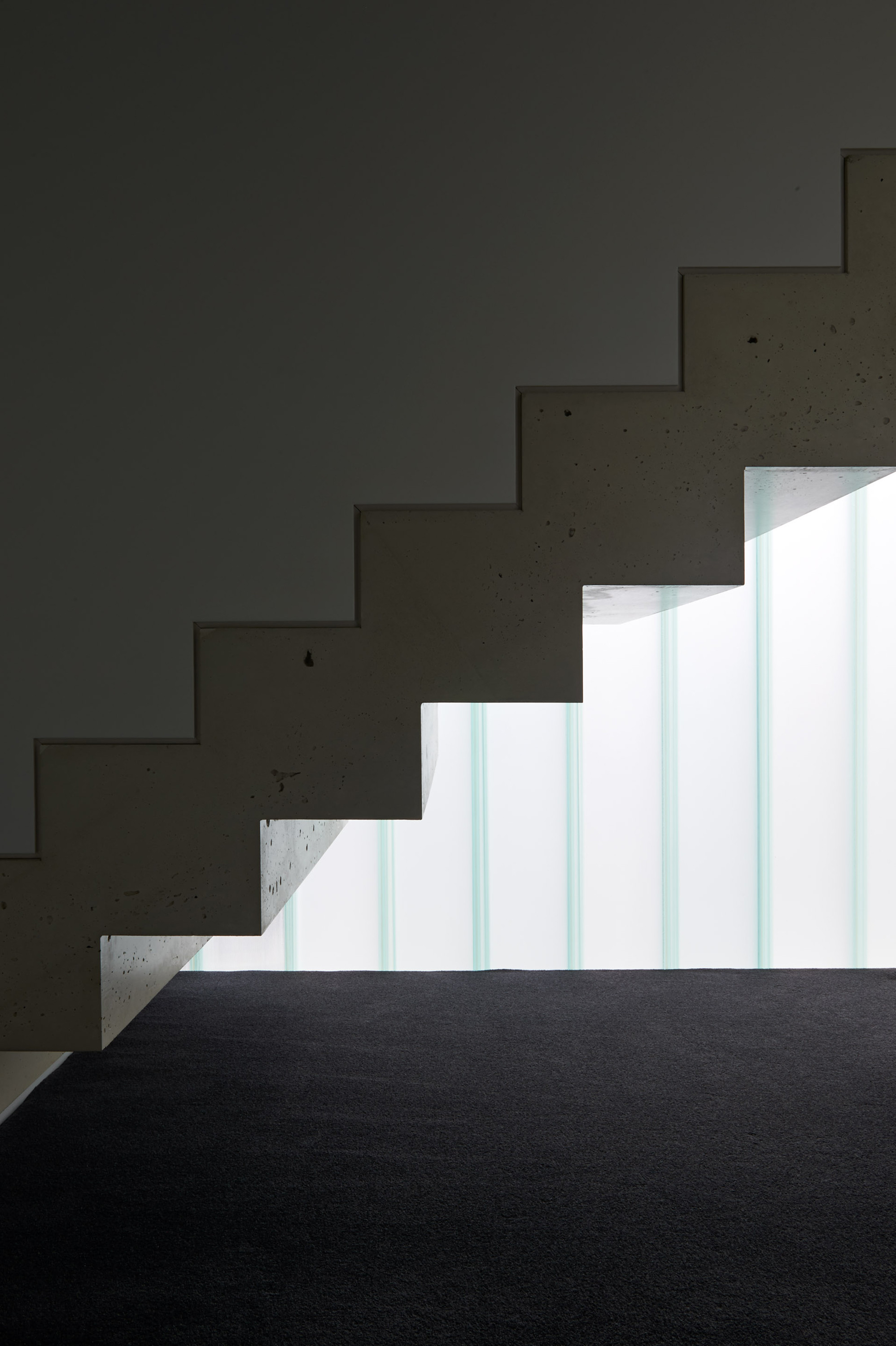

Our approach to materiality was playful and dialectic. The gridded pattern of the bricks and the straight vertical lines of the U-profile glazing are juxtaposed against the crazy paved Mintaro slate courtyard floor;

the heaviness of the bricks was contrasted against the lightness of the U-profile glazings; fine timber veneers and luxurious honed marble are placed directly next to raw unfinished steel.

Colours were chosen to compliment the furnishings and predominantly white to act as a backdrop. We have used the client’s favourite colour – yellow, dotted throughout the entire house, and intermingling with other yellow objects

– the entry coat peg, the awning, the rug, Dion Horstmans’s sculpture, basin mixers, chairs in the courtyard, the kitchen cupboards, and the monkey bar in the backyard. It is a playful journey that invites one to join the dots.

Three Parts House
© Earl Carter


Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
© Earl Carter
Three Parts House

© Earl Carter

Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
Three Parts House
© Earl Carter


Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
Three Parts House
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
© Earl Carter
Three Parts House
Three Parts House


Three Parts House
Basement Floor Plan
Three Parts House
Ground Floor Plan
Three Parts House
First Floor Plan


Three Parts House
West Elevation
Three Parts House

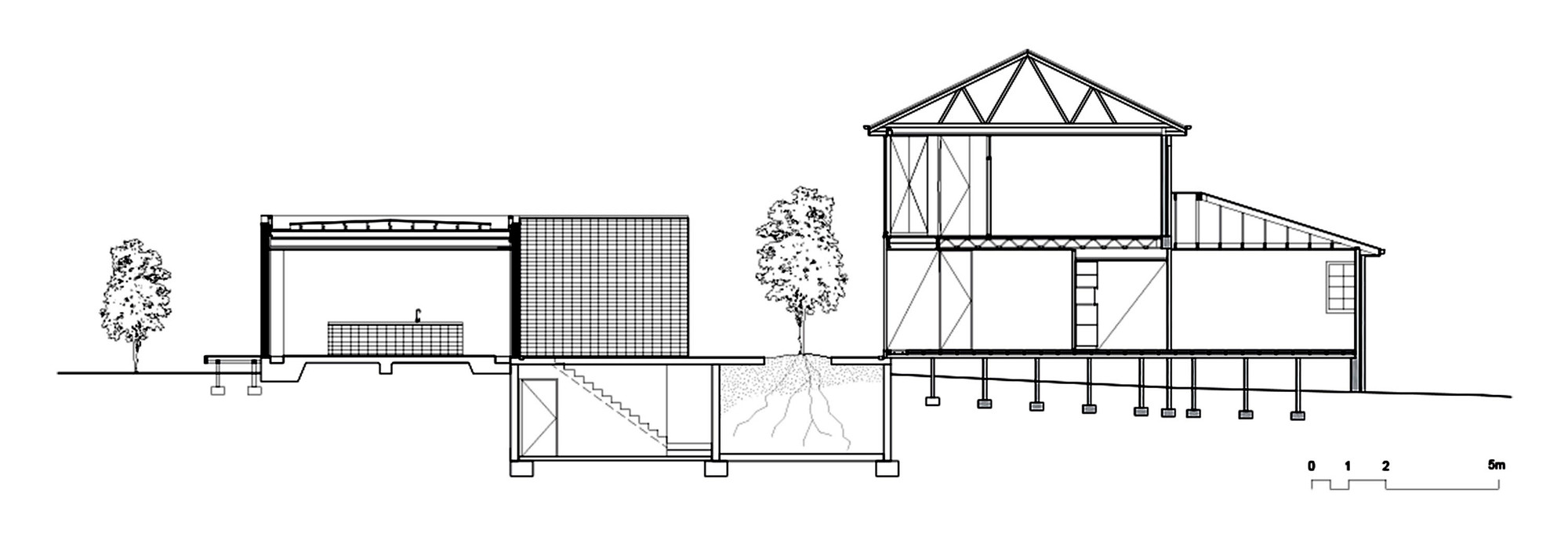

Section


Three Parts House

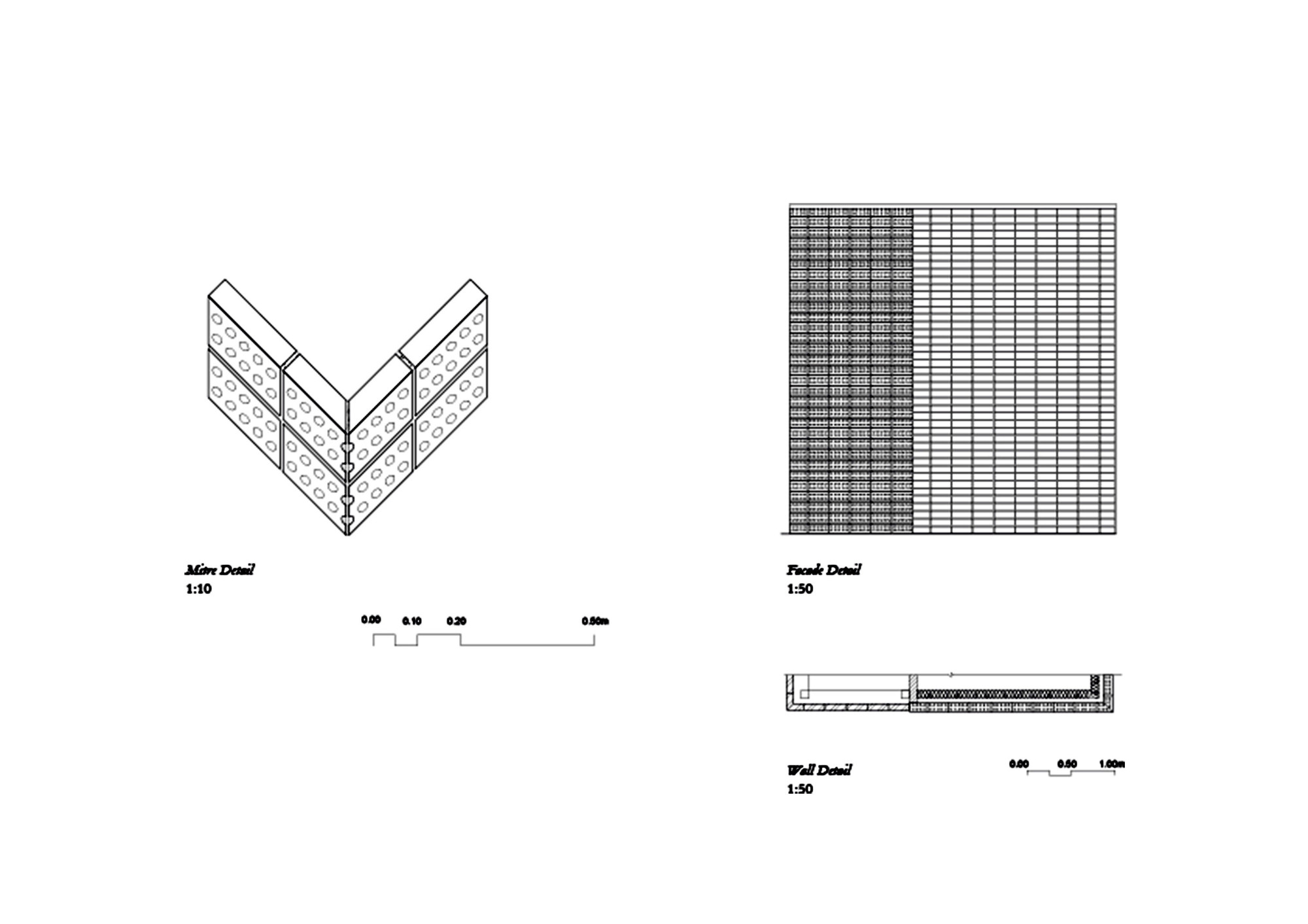

Details
Three Parts House
Exploded Axonometric
