FITZROY NORTH RESIDENCE

Chan Architecture

ARCHITECTS
Chan Architecture

PROJECT YEAR
2013

LOCATION
Melbourne, Australia

PHOTOGRAPHS
Brendan Finn, Mark Fergus

ENERGY RATER
Green Doors

MANUFACTURERS
James Hardie

GEOTECHNICAL ENGINEER
Apex Geotechnical

STRUCTURAL ENGINEER
Jonicha Consulting Engineers

BUILDER
Whelan Master Builders

PROJECT TEAM
Anthony Chan, Miriam Harris, Mei Yang, Michelle Ng

LAND SURVEYOR
Aline Surveying

Text description provided by architect.

This project involved renovating an existing single fronted Edwardian home and adding a rear and first floor extension on a tight site in the inner city suburb of Fitzroy North, Melbourne.

Fitzroy North Residence
© Brendan Finn
Fitzroy North Residence
© Mark Fergus

There were numerous site constraints, including strict heritage controls, existing neighbouring walls on boundary, difficult soil conditions, tight access, large neighbouring trees and a small west facing block.

The response was to create an extension that addressed all these site issues, created light filled, livable spaces whilst still making a statement from the exterior.

Fitzroy North Residence
© Brendan Finn
Fitzroy North Residence
© Mark Fergus

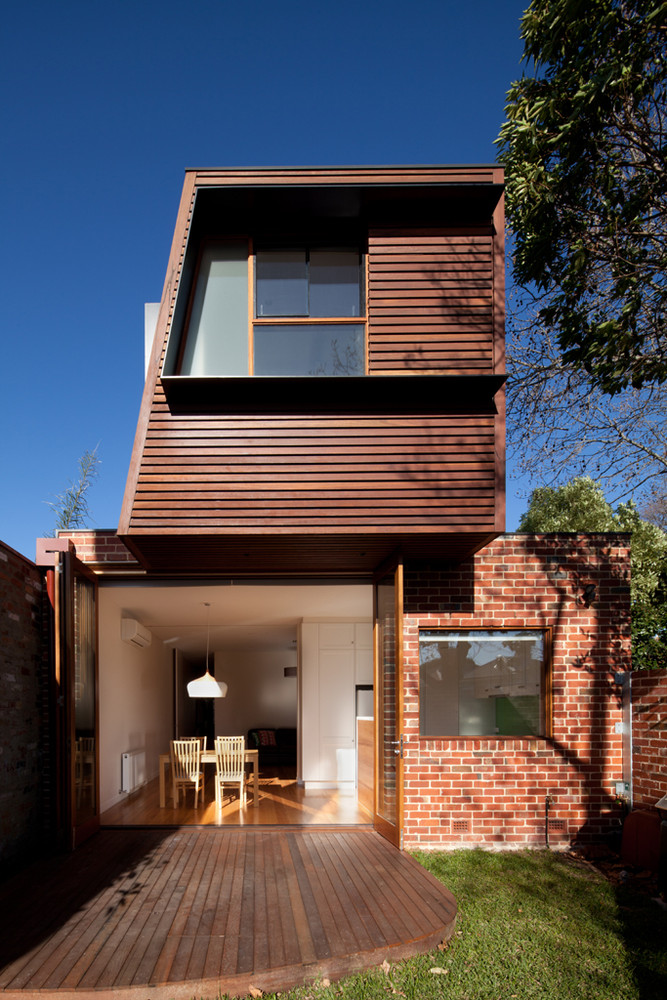

The first floor extension is clad in horizontal spotted gum battens that conceal the timber slotted panel that slides across the first floor window to provide shade in the afternoon. They also provide a visual connection to the timber deck on the ground.

The black steel frame on three sides provides shade and provides articulation and depth to the rear facade. The single angular wall to the left makes the form allows for natural light into the neighbouring courtyard as well as make the rear form more dynamic.

Fitzroy North Residence
© Mark Fergus
Fitzroy North Residence
Fitzroy North Residence
© Mark Fergus

The materials that were chosen for this building were selected for their texture, warmth, quality and honesty, which we found was most suitable for the surrounding context.

The rear street context consisted of a mix and match of face brickwork, paling fences, corrugated iron behind a streetscape of established street trees and timber paling fences.

The response was to make reference to all these materials, but in a carefully considered combination with a strong emphasis on detailing.

Fitzroy North Residence
© Mark Fergus


Fitzroy North Residence
Ground Floor Plan
Fitzroy North Residence
First Floor Plan
