Baumschlager Eberle Architekten GmbH

2226

2226
© Eduard Hueber

2226

Baumschlager Eberle Architekten

Assistance
Hugo Herrera Pianno, Markus Altmann

MANUFACTURING
Zumtobel

PHOTOGRAPHS
Eduard Hueber

AREA
13138.0 m2

YEAR
2013

LOCATION
Lustenau, Austria

CATEGORY
Office Buildings

Text description provided by architect.

No cooling, no heating While buildings require less and less energy, more and more is being spent on the maintenance and service needed to sustain this reduction.

2226
© Eduard Hueber
2226
© Eduard Hueber

The prospect of buildings functioning as power stations is highly reminiscent of the promises of Modernism.The only disruptive factor in this energy balance from an ideal world, however, is the human element.

bebaumschlagereberle has no intention of replacing nature with technology in this office block in Lustenau, Austria. Their aim is rather to establish meaningful coherence for the user.

2226
© Eduard Hueber
2226
© Eduard Hueber

The building has no heating, ventilation or cooling system, the flow of energy being controlled by software. Above all, however, this is a stone building with walls, doors and high-ceilinged rooms.

It needs little grey energy, and elementary architectural means are used to create a sense of well-being that derives from the pleasant proportions and self-explanatory use.

2226
© Eduard Hueber
2226
© Eduard Hueber

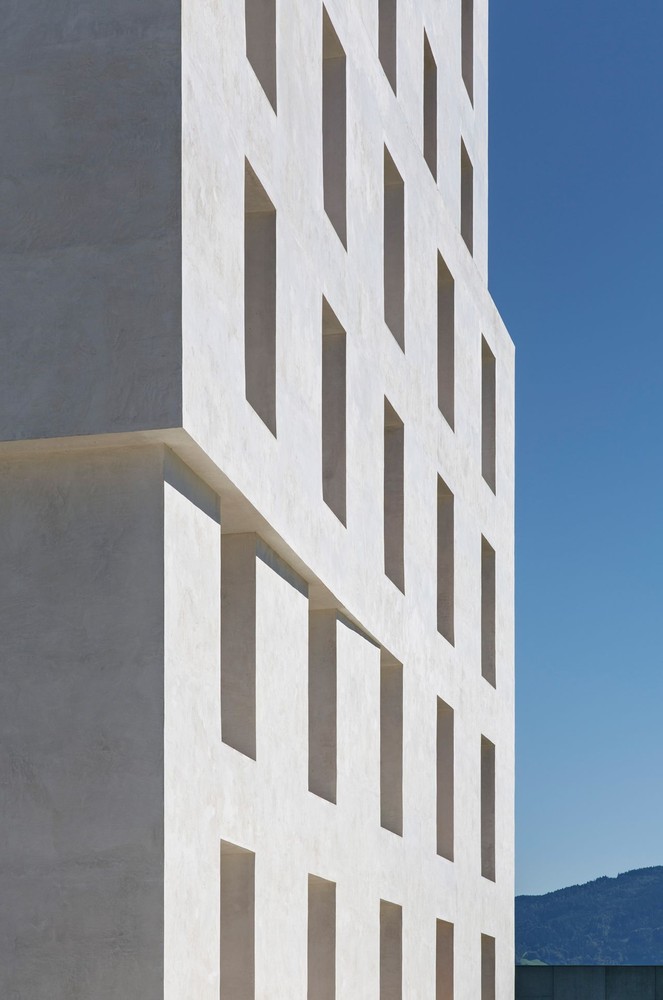

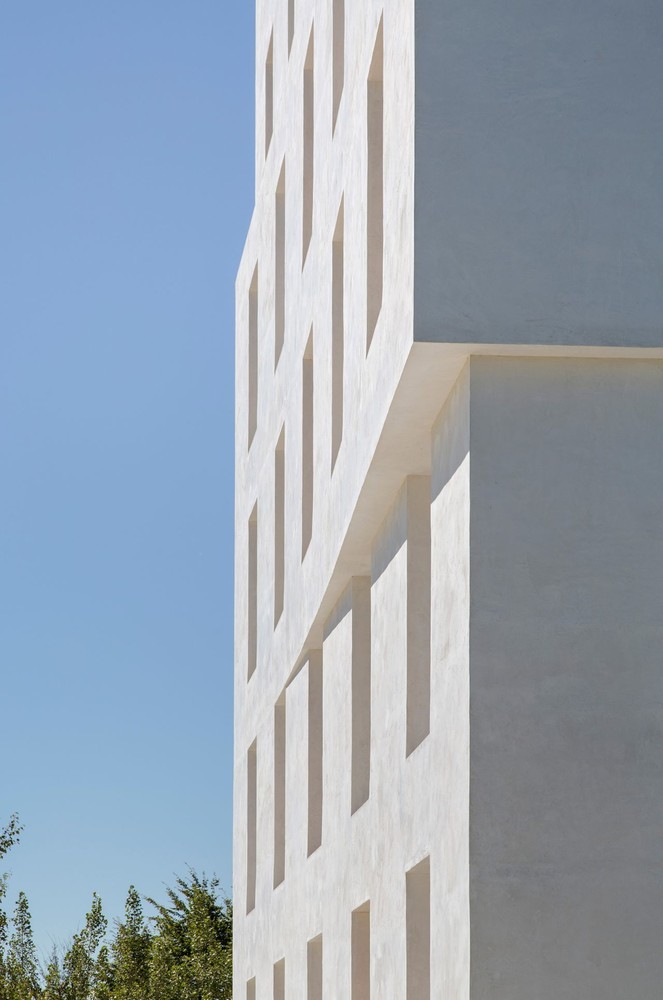

Deep window reveals reduce the heat input, while vents fastened inside are controlled by sensors to provide a pleasant room climate.

The constructional and energy-related foundations needed to achieve this effect illustrate the know-how bebaumschlagereberle has built up over 28 years.

The envelope has a cavity wall structure with each wall consisting of 36-centimetre bricks.

2226
© Eduard Hueber
2226
© Eduard Hueber
2226
© Eduard Hueber

The inner layer of this interconnected shell ensures high compressive strength while the outer layer guarantees efficient insulation.

In winter, for example, the waste heat ensures a high energy input and the window vents only open if the volume of carbon dioxide in the room increases.

During hot weather in summer the vents open at night to induce a draught for natural cooling.

2226
© Eduard Hueber
2226
© Eduard Hueber

Sensors support, in a perhaps less controlled manner, the normal activity of the occupants of a building that in conceptual, aesthetic and everyday terms will retain its validity for a long time to come.

2226
© Eduard Hueber
2226
© Eduard Hueber


2226
© Eduard Hueber
2226
© Eduard Hueber
2226
© Eduard Hueber


2226
Plan
2226
Plan


2226
Section
2226
Site Plan
