JAPANESE CULTURAL CENTER OF D.R. CONGO

Keio University SFC Hironori Matsubara Laboratory

YEAR
2013

AREA
271 m²

LOCATION
Kinshasa, Congo (Democratic Republic Of The Congo)

Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects

This building has built by “grass-root grant aid fund” of Ministry of Foreign Affairs (Japan) in area of Gombe Institute of Pedagogique, the center part of Kinshasa city, D.R. Congo.

Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects

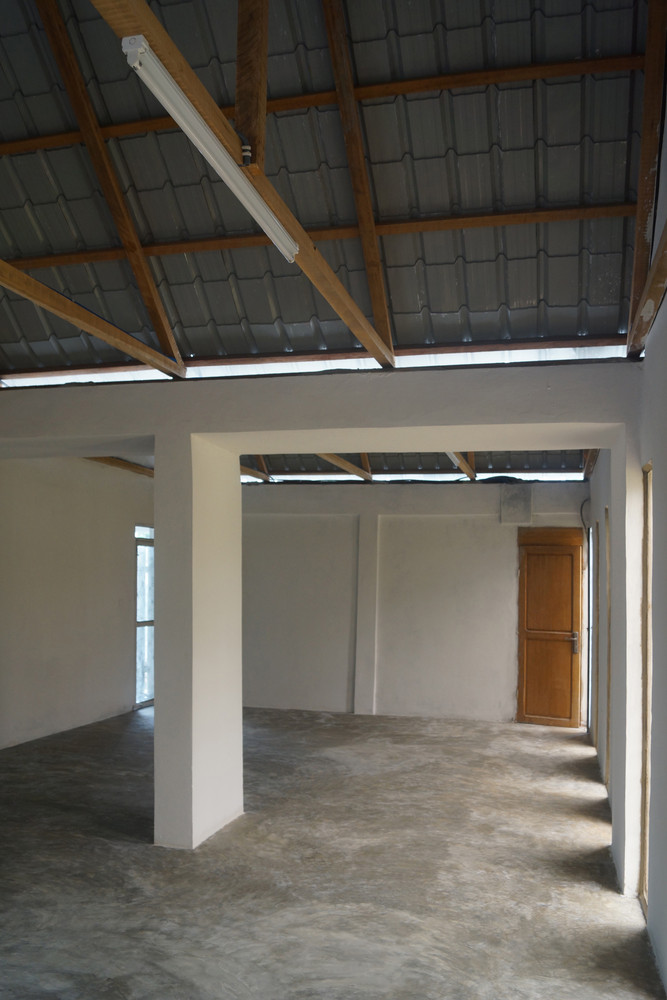

The plan is 19m ×19m and single story building. Semi-exterior penetrates the building and connects different rooms– training hall, classroom, office, tea ceremony room etc.

We built 43 sheets of RC wall-pillars (210mm of thickness, 2420mm of height, and 1050mm of width) and join thm with beams in the top.

Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects

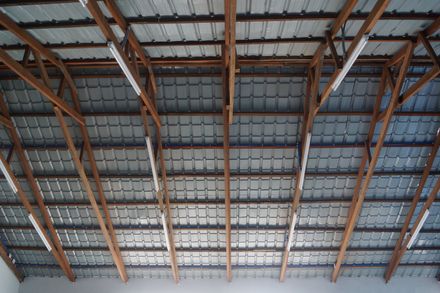

These beams become the drainage in the rain season. The wooden roof trussed with three different spans have same height.

A semi-exterior corridor and the outside courtyard will become the important environmental buffer and the place where people gather in the dry season.

Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects

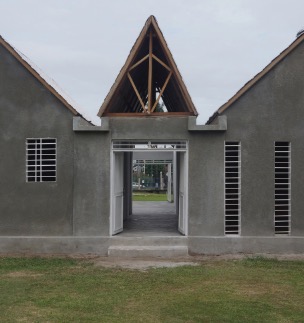

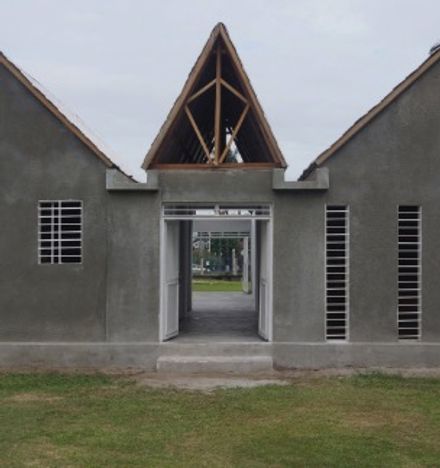

This building looks simple from outside, however the inside space has more complicated impression because the interior and exterior space are coexiting.

This building was built with small scale of governmental budget ( 10 million Japanese Yen) and by non-professional workers, so that the building has open and tolerant atomosphere.

Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects


Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects


Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects


Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects


Japanese Cultural Center Of D.R. Congo

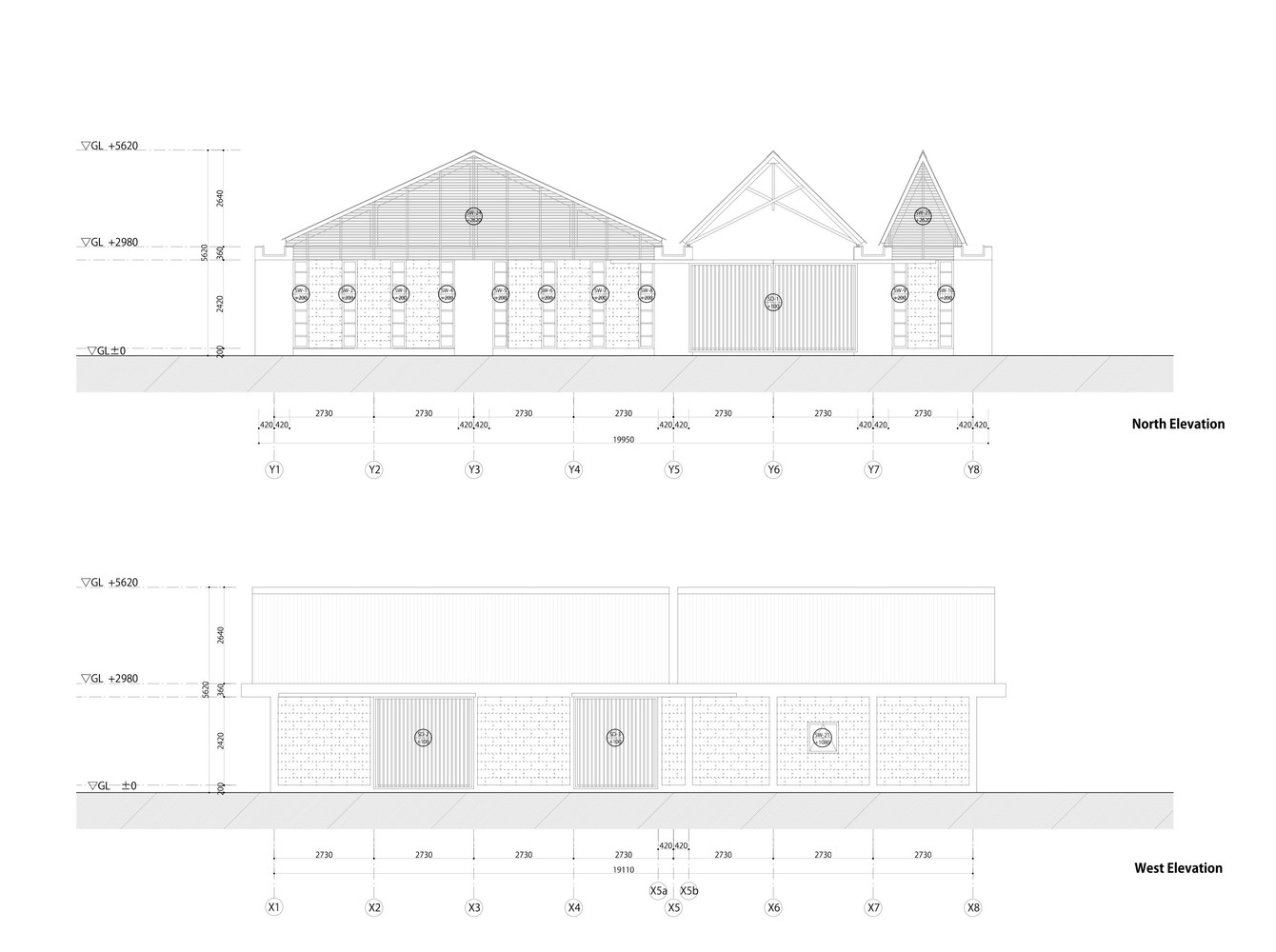

Elevations
Japanese Cultural Center Of D.R. Congo
Elevations


Japanese Cultural Center Of D.R. Congo
Sections
Japanese Cultural Center Of D.R. Congo
Sections
Japanese Cultural Center Of D.R. Congo
Section Details
Japanese Cultural Center Of D.R. Congo
Section Details
Japanese Cultural Center Of D.R. Congo
Section Details
Japanese Cultural Center Of D.R. Congo
© Tokyo Matsubara and Architects


Japanese Cultural Center Of D.R. Congo
Foundation Plan
Japanese Cultural Center Of D.R. Congo
Beams Plan
Japanese Cultural Center Of D.R. Congo
Roof Plan
Japanese Cultural Center Of D.R. Congo
Roof Truss Plan
Japanese Cultural Center Of D.R. Congo
Floor Plan
Japanese Cultural Center Of D.R. Congo
Plan Details
Japanese Cultural Center Of D.R. Congo
Site Plan
