EL CARAJO HOUSE

Obranegra Arquitectos

ARCHITECTS
Obranegra Arquitectos

LOCATION
El Retiro, Colombia

CATEGORY
Houses

PHOTOGRAPHS
Nicolás Mántaras, Isaac Ramírez, Alejandro Ochoa, Carlos Pardo

PROJECT YEAR
2013

El Carajo House
@ Nicolás Mántaras
El Carajo House
@ Isaac Ramírez

Text description provided by architect.

El Carajo house is located in Los Salados ecological park in La Fe dam, 30 miles south-east of Medellin.

El Carajo House
@ Carlos Pardo
El Carajo House
@ Isaac Ramírez

Its core values are rooted in respectful dialogue with the environment, promoting multiple relationships with the landscape and in the translation of elements of traditional architecture. In line with the demands of contemporary life components.

The particular place with its geographic, landscape and environmental characteristics, were determinant in the volumetric configuration, the siting and spatial layout of the house.

The north facade (convex) is composed of concrete walls, pierced by deep openings that frame the surrounding landscape and accompany the main circulation. In the center of this façade a black volume (vestibule) stands to provide access and help organize the interior circulation.

El Carajo House
@ Alejandro Ochoa
El Carajo House
@ Isaac Ramírez

On the side walls, small openings allow a more intimate relationship with vegetation. More transparent and open to the landscape, the south facade has a slight concavity as an attempt to dialogue with the organic form of the dam. The roof bends to face the dam separating itself from the facade and creating a gap under the eaves, a threshold that reduces tension between interior and exterior.

The house is therefore a simple horizontal volume that sits gently following the way of natural terrain, in order to become an element of the landscape. The longitudinal configuration of the house facing the landscape through a wide corridor, refers to the traditional types of Colombian Andes’ architecture.

El Carajo House
@ Carlos Pardo
El Carajo House
@ Isaac Ramírez

From a distance the building is perceived as an ordinary house but when approaching the particular details become visible responding to the requirements of contemporary living and the specific desires of its inhabitants.

Both owners and architects agreed to develop a country house away from the standards of urban housing and achieve a cozy and comfortable space for relaxation.

That was how it was decided to build the house with natural materials that act in consonance, noble materials and touchable to the sight materials that show their age at the time like the concrete made with local sand. Unpolished wood and stones from the region when in contact with the light were able to produce a warm atmosphere and a natural feel in the space.

El Carajo House
@ Isaac Ramírez
El Carajo House
@ Isaac Ramírez
El Carajo House
Isaac Ramírez

BIOCLIMATIC DESIGN

When placed over the Andes at an altitude of 2,100 meters above sea level, the temperature ranges between 12 ° C in the morning and over 22 ° C in the afternoon. This condition led us to propose passive ventilation and lighting solutions, thinking in avoid the use of additional technologies that demand unnecessary energy and high costs.

The roof leans towards the rising sun with the intention of capturing solar energy and heat the house in the morning.

In the opposite direction of the inclination, the height attained by the cover facilitates air circulation throughout the day by maintaining a constant temperature inside.

El Carajo House
@ Isaac Ramírez
El Carajo House
@ Isaac Ramírez
El Carajo House
@ Carlos Pardo

The wide eaves also help protecting the facades of the heavy rain and insolation. Additionally they allow continuous windows on top of the volume of concrete, allowing light controlled entry into interior spaces giving a natural feel.


El Carajo House
Longitudinal Section
El Carajo House
Cross Section


El Carajo House
Elevation 1
El Carajo House
Elavation 2


El Carajo House

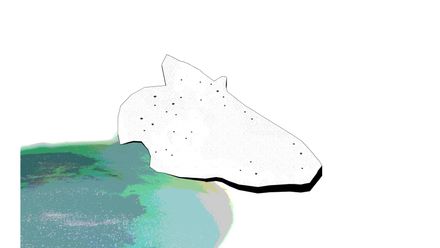

Site plan
El Carajo House
Ground floor plan
El Carajo House
Roof plan
El Carajo House
Scheme
