Gualano + Gualano Arquitectos

La Pedrera Block House

La Pedrera Block House
Cortesía de Marcelo Gualano

LA PEDRERA BLOCK HOUSE

Gualano + Gualano: Arquitectos

ARCHITECTS
Gualano + Gualano Arquitectos

PPHOTOGRAPHY
Courtesy of Marcelo Gualano

PROJECT AREA
96.0 m2

LOCATION
La Pedrera, Uruguay

CATEGORY
Houses

A seasonal dwelling in La Pedrera, a resort on the Atlantic coast 220 km from Montevideo, in the department of Rocha. An affordable, easy, and concrete house.

La Pedrera Block House
Cortesía de Marcelo Gualano
La Pedrera Block House
Cortesía de Marcelo Gualano

This project was done with a remote team of workers, therefore systematizing construction, facilitating mounting, and solving simple details, was part of how to approach this project.

Hence it was decided to use the block of concrete as "unique" material incorporating different sizes and formats.

La Pedrera Block House
Cortesía de Marcelo Gualano
La Pedrera Block House
Cortesía de Marcelo Gualano

SITE

An area of ​​12 x 36 m, amid a young eucalyptus forest, within the urban layout of the beach resort. A flat terrain, a few blocks away from the sea.

PROGRAM

- Two bedrooms, bathroom, and kitchen, an interior space (dining - living room), an exterior space (deck - barbecue).
- A sequence of programmatic bands

La Pedrera Block House
Cortesía de Marcelo Gualano
La Pedrera Block House
Cortesía de Marcelo Gualano

- Simple spaces, that are defined programatically and geometrically.
- Interior area: 64m2
- Exterior area: 32m2

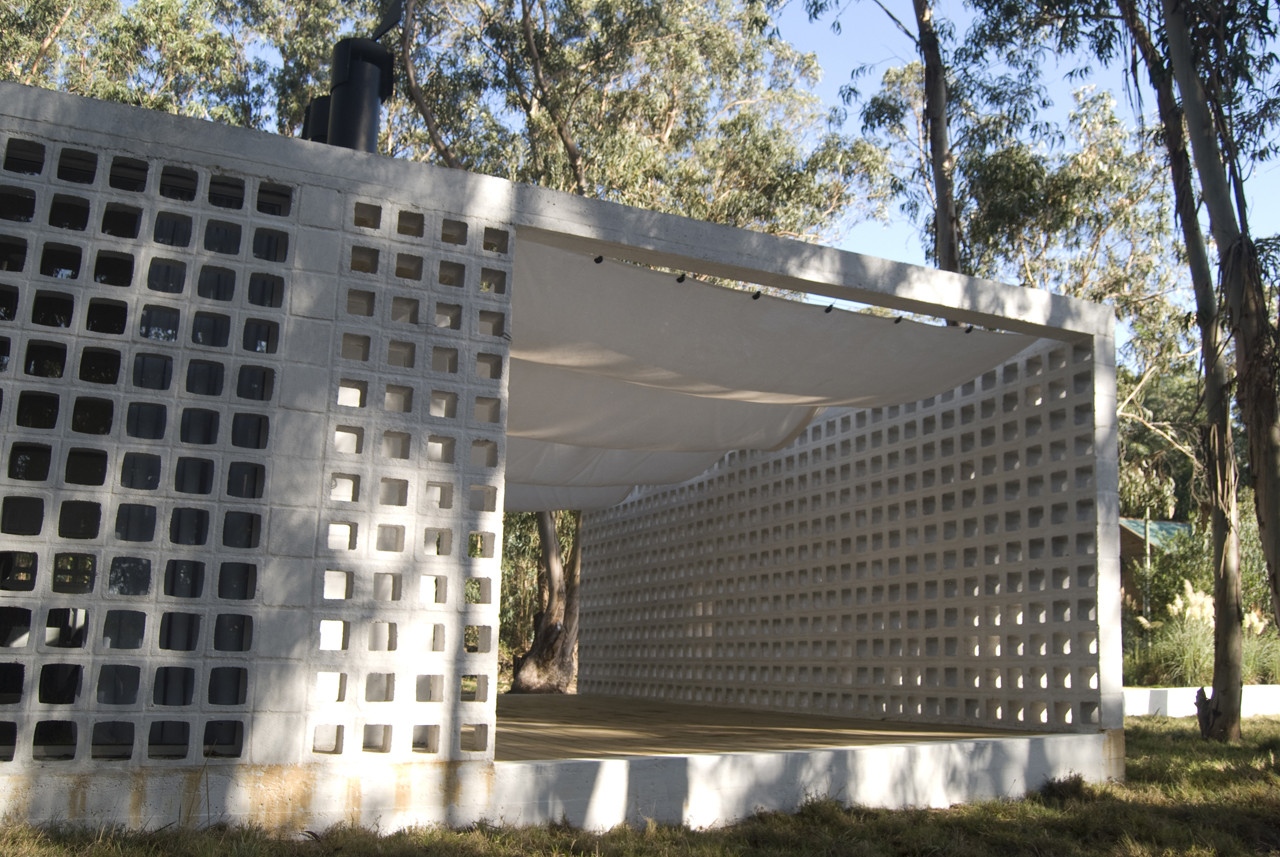

The house defines a boundary, an edge of blocks, solid and hollow, which incorporate into their perimeter the exterior barbecue-deck space.

La Pedrera Block House
Cortesía de Marcelo Gualano
La Pedrera Block House
Cortesía de Marcelo Gualano

In this way, the house is defined as a single piece, abstract, which contains its program "inside".

Outside, the house is connected, but it does not colonize.

Only a low wall defines the vehicular and pedestrian entrance, which takes advantage of the shade of tall, slender eucalyptus. In sum, a white piece that fits between the thin trunks.

La Pedrera Block House
Cortesía de Marcelo Gualano
La Pedrera Block House
Cortesía de Marcelo Gualano


La Pedrera Block House
Cortesía de Marcelo Gualano
La Pedrera Block House
Cortesía de Marcelo Gualano


La Pedrera Block House
Diagrams
La Pedrera Block House
Plan


La Pedrera Block House

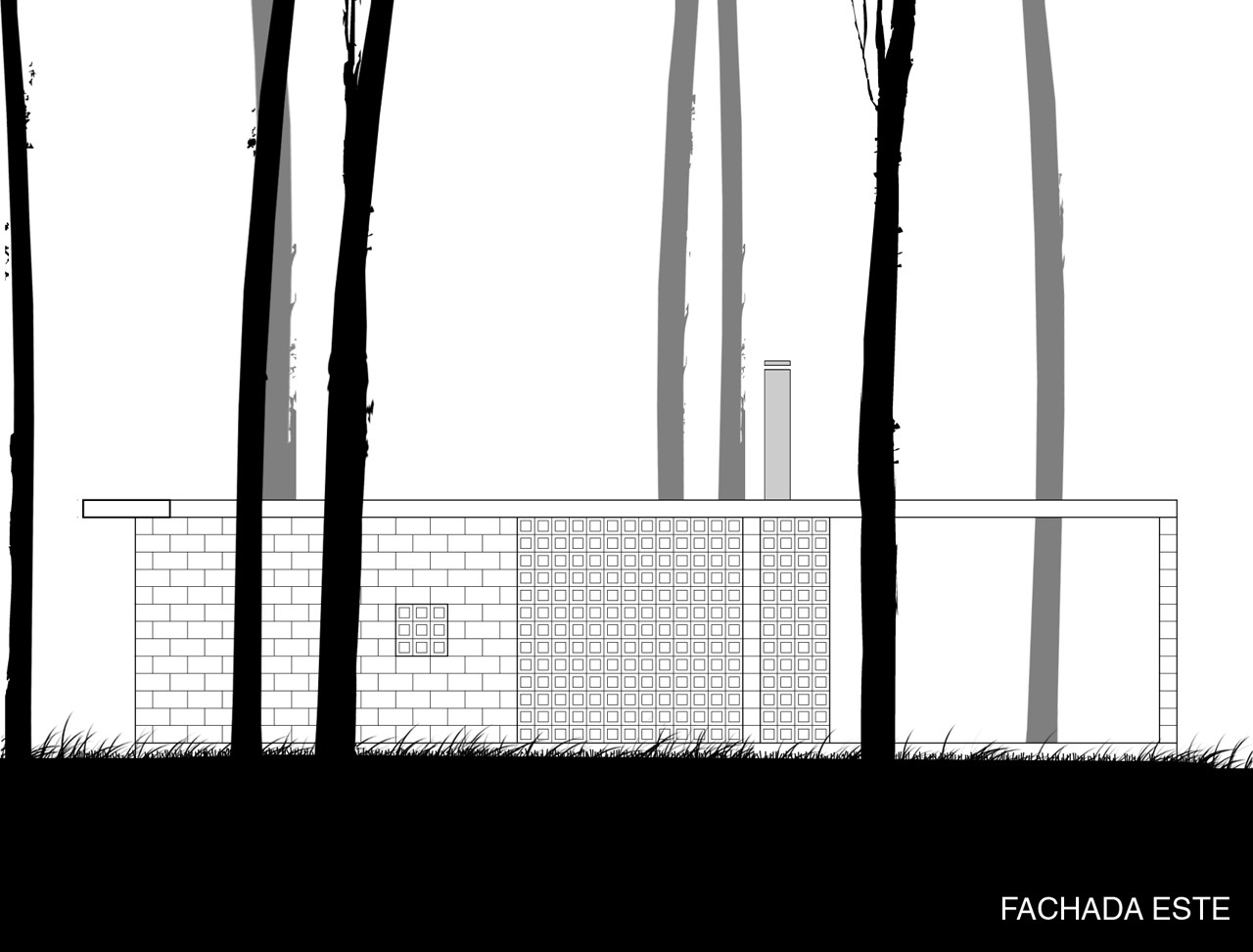

East Facade
La Pedrera Block House

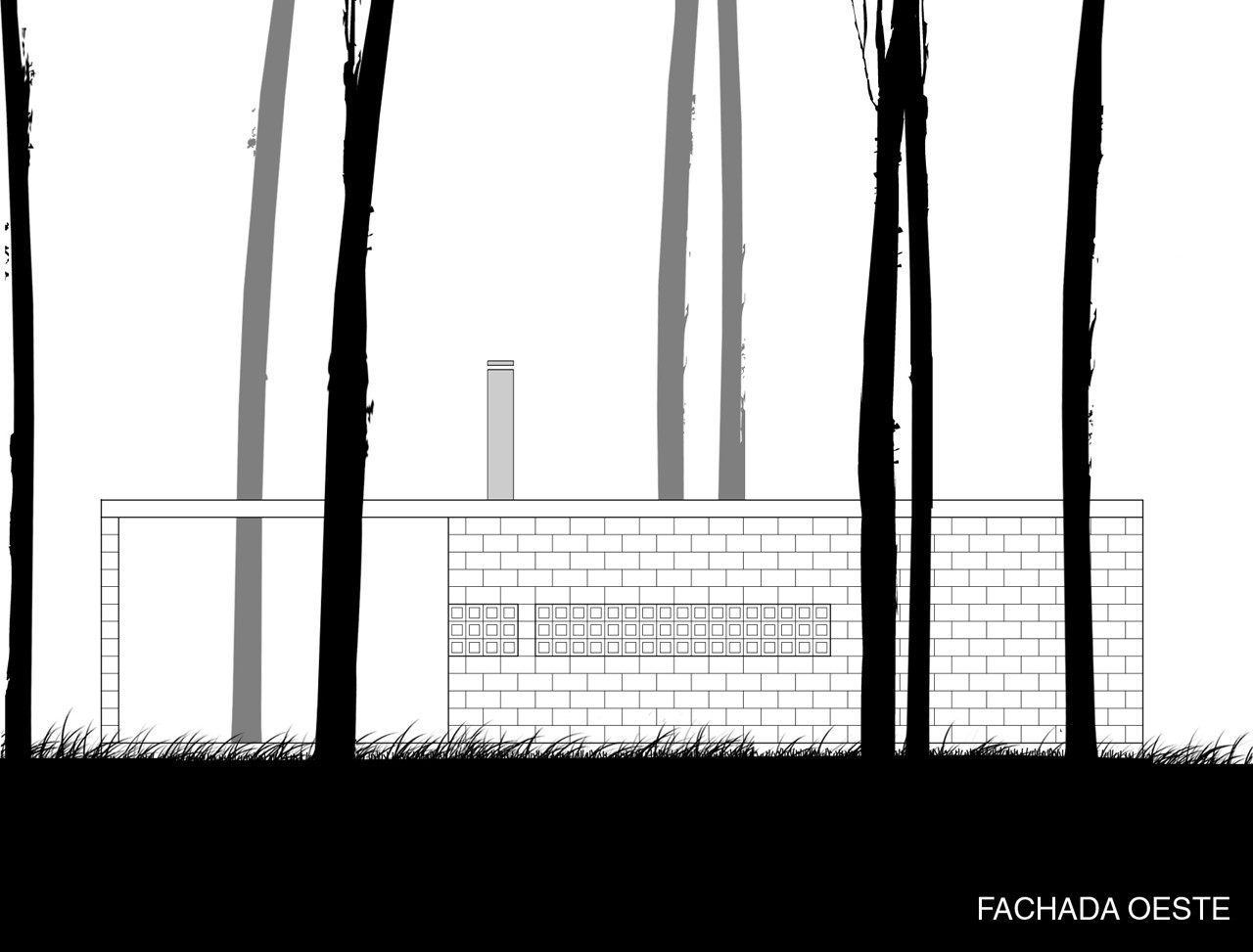

West Facade
La Pedrera Block House
South Facade
La Pedrera Block House
North Facade
