TWO FLOOR ADDITION IN EXISTING BUILDING IN PAPAGOU

Nelly Marda

Two Floor Addition In Existing Building In Papagou
© Erietta Attali
Two Floor Addition In Existing Building In Papagou
© Erietta Attali

ARCHITECTS
Nelly Marda

ARCHITECTURAL DESIGN
Nelly Marda, Dora Balnta

CONSTRUCTION
ΜΤ Αte

STRUCTURAL DESIGN AND SUPERVISION OF CONCRETE STRUCTURE
A. Sakellaris

ELECTROMECHANICAL DESIGN AND SUPERVISION
A. Asimakis, K. Georgakopoulos

INTERIOR DESIGN AND SUPERVISION
A. Saridakis

STRUCTURAL DESIGN AND SUPERVISION OF STEEL STRUCTURE
S. Papadopoulos

PHOTOGRAPHS
Erietta Attali

AREA
550.0 sqm

YEAR
2013

LOCATION
Papagou, Greece

CATEGORY
Refurbishment

Two Floor Addition In Existing Building In Papagou
© Erietta Attali
Two Floor Addition In Existing Building In Papagou

Text description provided by architect.

The brief consists of the design of an apartment block that will split in three independent flats, to house three families: a two storey ground floor flat, a first floor flat and a top floor two storey flat.

Two Floor Addition In Existing Building In Papagou
© Erietta Attali

Instead of knocking down the existing house, the decision of using its basic structure for an extension was taken very early on, on environmental and financial grounds.

The layout of the flats offers a simultaneous visibility of Hymettus Mountain and of the adjacent green space (for the ground floor-first floor flats) and of the city of Athens (for the second floor flat).

Two Floor Addition In Existing Building In Papagou
© Erietta Attali
Two Floor Addition In Existing Building In Papagou
© Erietta Attali
Two Floor Addition In Existing Building In Papagou
© Erietta Attali

The design of the addition follows special technical specifications. The initial building was knocked down revealing its structure. The existing structure is reinforced internally by the use of gunite. Externally it is “enveloped” with concrete beams and columns. In that way the house extends in two more floors.

Two Floor Addition In Existing Building In Papagou
© Erietta Attali

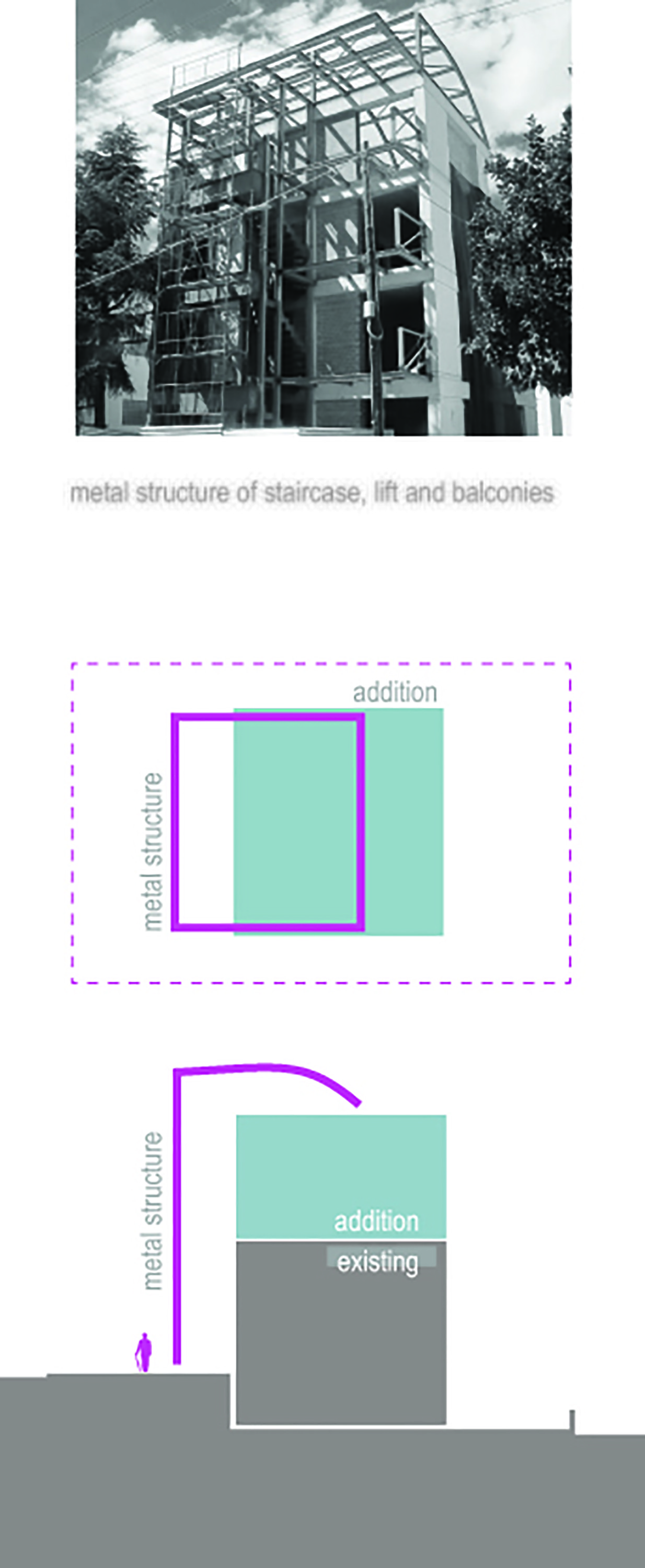

The main staircase, lift and roof are made of self supporting metal structure. This being lighter in comparison to concrete structure, gives space to the flats and to the pre-existing mature cedar tree in the northeast corner of the site.

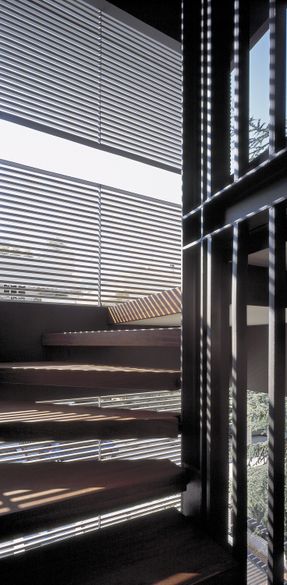

The southeast main elevation is characterized by a bioclimatic panel that covers and shades the central staircase. Additionally the cedar tree, the three balconies and the top shelter offer shadow to the southeast elevation during the warm summer months of Greece.

Two Floor Addition In Existing Building In Papagou
© Erietta Attali
Two Floor Addition In Existing Building In Papagou
© Erietta Attali
Two Floor Addition In Existing Building In Papagou
© Erietta Attali

Solar panels are used partly for heating and mainly for the provision of hot water for the most part of the year. These are placed on top of the southeast shelter.


Two Floor Addition In Existing Building In Papagou
Detail 1

Two Floor Addition In Existing Building In Papagou
Detail 2


Two Floor Addition In Existing Building In Papagou
Diagram 1
Two Floor Addition In Existing Building In Papagou
Diagram 2
Two Floor Addition In Existing Building In Papagou
Diagram 3
Two Floor Addition In Existing Building In Papagou
Diagram 4
Two Floor Addition In Existing Building In Papagou
Diagram 5


Two Floor Addition In Existing Building In Papagou
First Floor Plan
Two Floor Addition In Existing Building In Papagou
Section
