Villa Kavel 01

Villa Kavel 01
© Peter Cuypers

VILLA KAVEL 01

Studioninedots

ARCHITECTS
Studioninedots

INTERIOR DESIGN
Studioninedots

CONTRACTOR
Valleibouw, Veenendaal

CONSULTANCY CONSTRUCTION
Abt, Stephan Toonen

CONSULTANCY INSTALLATIONS
Installatiebedrijf Bouman, Veenendaal

FURNITURE
Pajaco Interieurbouw, Veenendaal

COLLABORATOR
Wouter Hermanns, Max Meijer

TECHNICAL ENGINEERING
Jean-Marc Saurer

CONSULTANCY LIGHTING
Beda Elektro, Veenendaal

PHOTOGRAPHS
Peter Cuypers

AREA
379.0 m²

YEAR
2014

LOCATION
Amsterdam, The Netherlands

CATEGORY
Houses

Text description provided by architect.

On the tip of an island near Amsterdam lies a mysterious black volume, a house full of surprises and contrasts.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

Located on an angled, waterfront site the striking 425 m2 house is divided into three levels, each with its own specific character.

Light and the spectacular views were key considerations of the design.

We based the plan on a diamond shape – a better fit for the angular site than a conventional rectangle.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

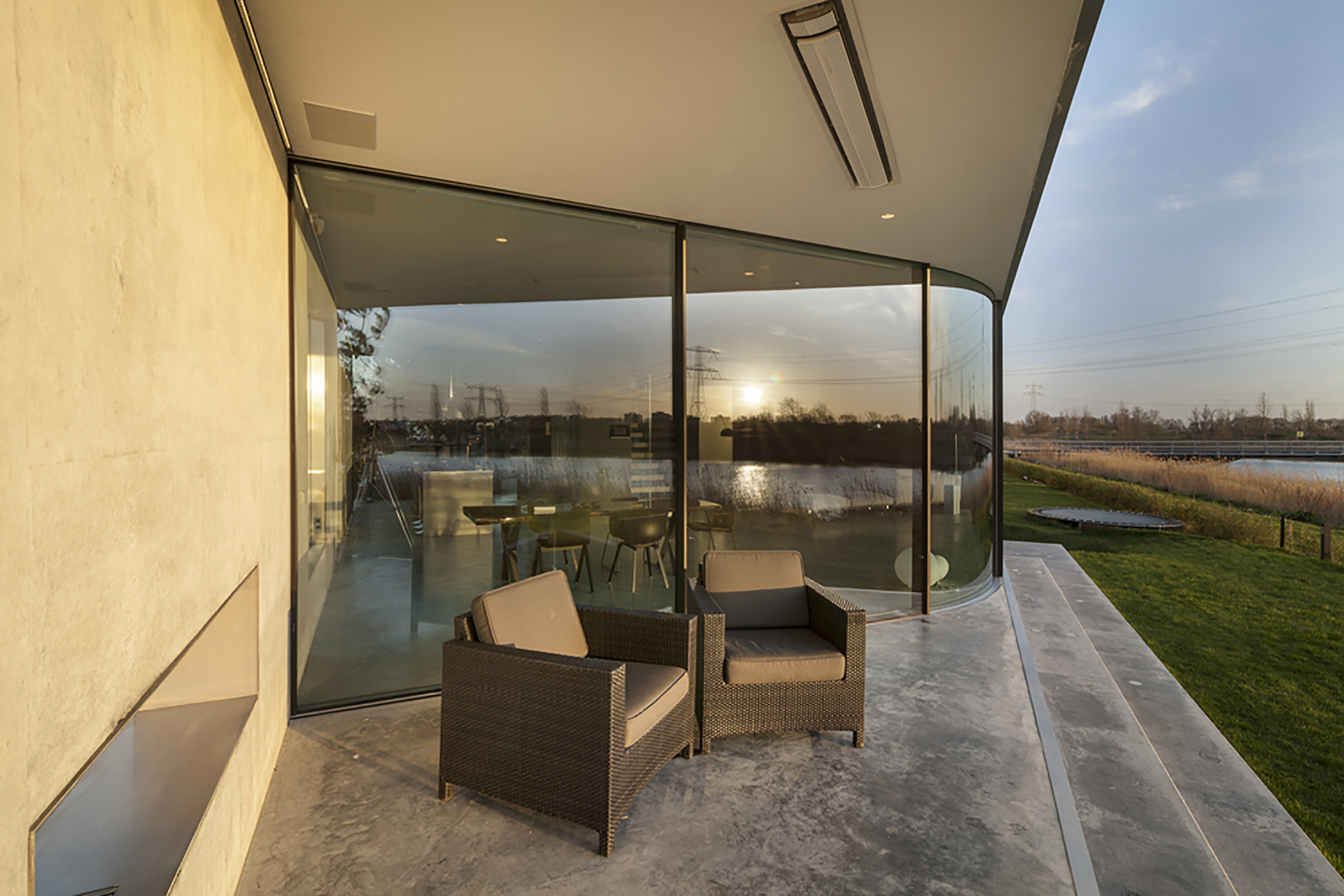

Housing the living spaces, the ground floor remains completely open to maximise views and seamlessly connect inside and outside.

Functions such as storage, the fireplace and television are concealed inside freestanding bespoke furniture units, strategically positioned to direct the flow of space.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

Due to height restrictions, the house is partly built underground. This ‘secret’ domain contains the guest room, study, games room and cinema.

Along the south facade, the ground is carved out to bring sunlight into the lower spaces.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

This intervention transforms the appearance of the volume dramatically: here the house appears to float. The first floor intentionally feels closed and private.

The three bedrooms are concealed behind a veil of black perforated shutters that cast lively patterned shadows on the floors and walls.

While lying in bed or in the bath with the shutters and sliding glass doors open, it’s easy to imagine yourself in the middle of nature.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

CRAFTING A BEAUTIFUL HOME ON A CHALLENGING ANGLED PLOT WITH SPECTA

On the north side, we extended the volume towards the tip of the island, thereby extending the southwest elevation; this maximises sun into the house and views of the water and opposite park, and creates an angular form more suited to the site.

On the ground floor, huge windows are cut in the facade to capture these views.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

The upper floor remains closed and the basement is partly hollowed out – its form inspired by the shape of the dike that surrounds the island – resulting, overall, in an intriguing, abstract volume.

A SITE-SPECIFIC HOUSE FULL OF CONTRASTS.

Material contrasts lend an element of surprise: raw concrete is paired with warm, dark timber, and delicate glass with perforated black metal.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

With its sharp angles and high elevations, the building changes appearance depending on the viewing point, from delicate and slender to wide and solid.

Inside, the atmosphere varies between light and airy to dark and intimate, as in a nightclub.

We created a largely open plan interior thanks to the load-bearing concrete facades and the structural central stair shaft.

Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers

From the bespoke door handles and 4mm-thick stainless steel kitchen bench to the custom black intercom column and perforated steel shutters, a meticulous level of detailing results in a sleek, coherent aesthetic that evokes a sense of calm.


Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
© Peter Cuypers
Villa Kavel 01
Elevation 1
Villa Kavel 01
Elevation 2
Villa Kavel 01
Elevation 3
Villa Kavel 01
Elevation 4


Villa Kavel 01
Detail
Villa Kavel 01

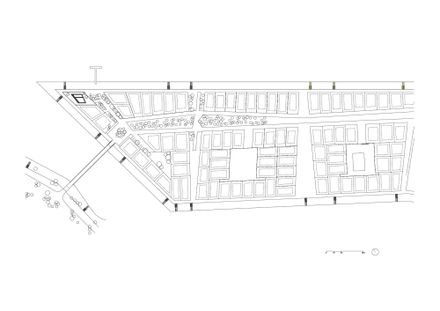

Site Plan


Villa Kavel 01
Ground Floor Plan
Villa Kavel 01
Floor Plan 1
Villa Kavel 01
Floor Plan 2
Villa Kavel 01
Section 1
Villa Kavel 01
Section 2
Villa Kavel 01
Section 3


Villa Kavel 01
Diagram 1
Villa Kavel 01
Diagram 2
Villa Kavel 01
Diagram 3
Villa Kavel 01
Diagram 4
Villa Kavel 01
Diagram 5
Villa Kavel 01
Diagram 6
Villa Kavel 01
Diagram 7
Villa Kavel 01
Diagram 8
Villa Kavel 01
Diagram 9
