Dietmar Feichtinger Architectes

Passerelle De la Paix

Passerelle de la Paix

Dietmar Feichtinger Architectes

Passerelle De la Paix
© Michael Zimmermann

ARCHITECTS
Dietmar Feichtinger Architectes

PHOTOGRAPHS
Michael Zimmermann , Jose Luis Fuentes

YEAR
2014

LOCATION
Caluire-Et-Cuire, France

ENGINEER
SBP GMBH, BET structure

CLEAR SPAN
157 m

CLIENT
Communauté Urbaine de Lyon

TIME SCHEDULE
20 months of construction

TOTAL LENGTH
220 m

WIDTH
1,5m / 5m / 8,8m

HEIGHT ABOVE RIVER LEVEL
8m over normal Rhône level

BUILDING COST
9 795 500 €HT

MODEL
Philipp Weinberger

CATEGORY
Pedestrian Bridge

AERODYNAMIC STUDIES
Wacker Ingenieure

WEIGHT
800tn

CONTRACTORS
Zwahlen & Mayr, SMB, CBR TP, Soletanche Bachy, DR Equipement, Société Lyonnaise CITEOS,

Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann

The new bridge for pedestrians and cyclists over the Rhone in Lyon – la passerelle de la Paix - reveals the landscape and urban changes.

This portion of the river is part of the development of the city to the North. The footbridge links the conference centre ‘Cité Internationale’ and St. Claire as well as two major parks on each side of the river, the Parc de la Tete d’or and the Parc of Saint Claire.

Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann

It forms a landmark that is first seen from the high-speed rail track entering Lyon.

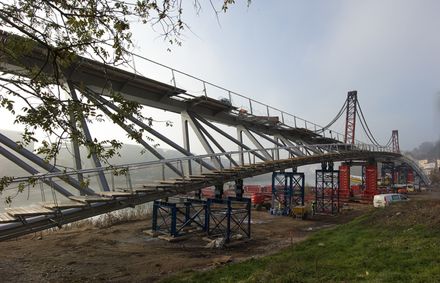

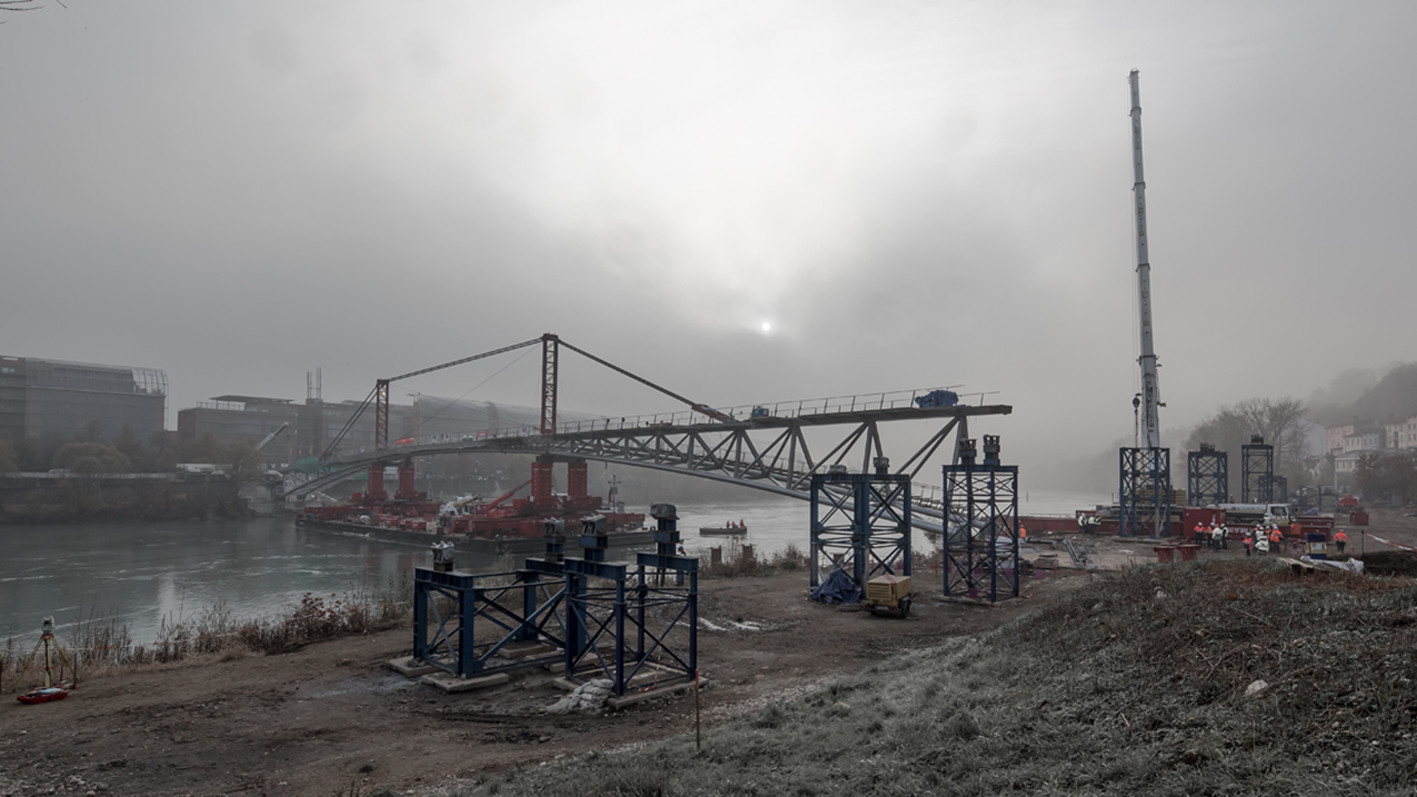

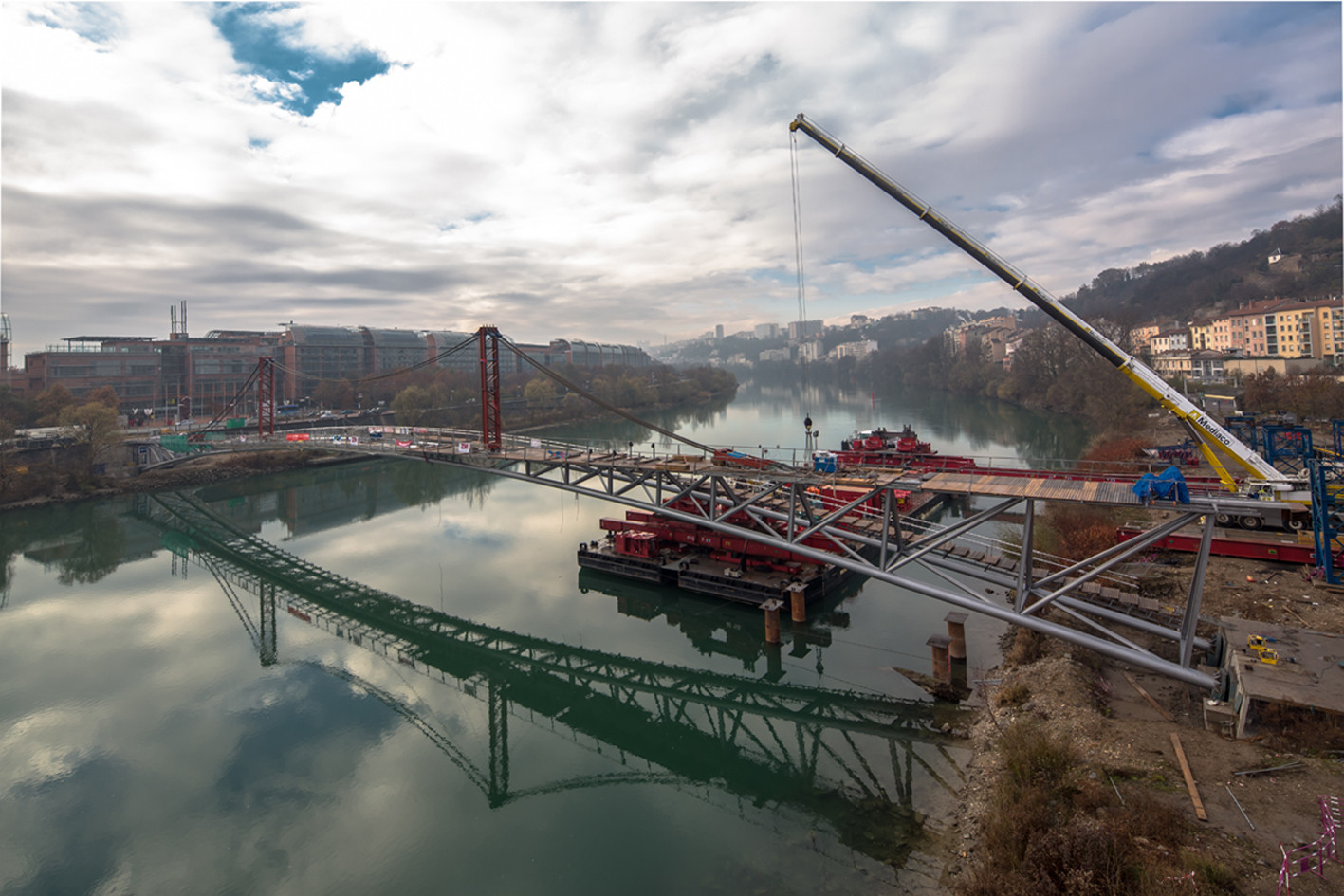

The bridge spans over the river with a free span of 157 meters. Two cantilevers built of a three dimensional asymmetric tube structure join in the middle of the river. The structure is extremely slender and offers a maximum of transparency.

Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann

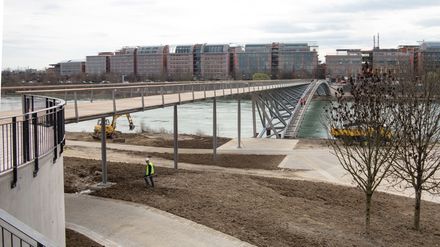

Two walkways lead to the riverbanks. The major one on top links the quay level, it is five meters large and divided into a bicycle lane and a footpath facing towards the city.

The second walkway follows the lower arch of the structure and links the lower riverbanks. In the middle of the river the two paths join and form a large public space offering a fabulous view.

Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann

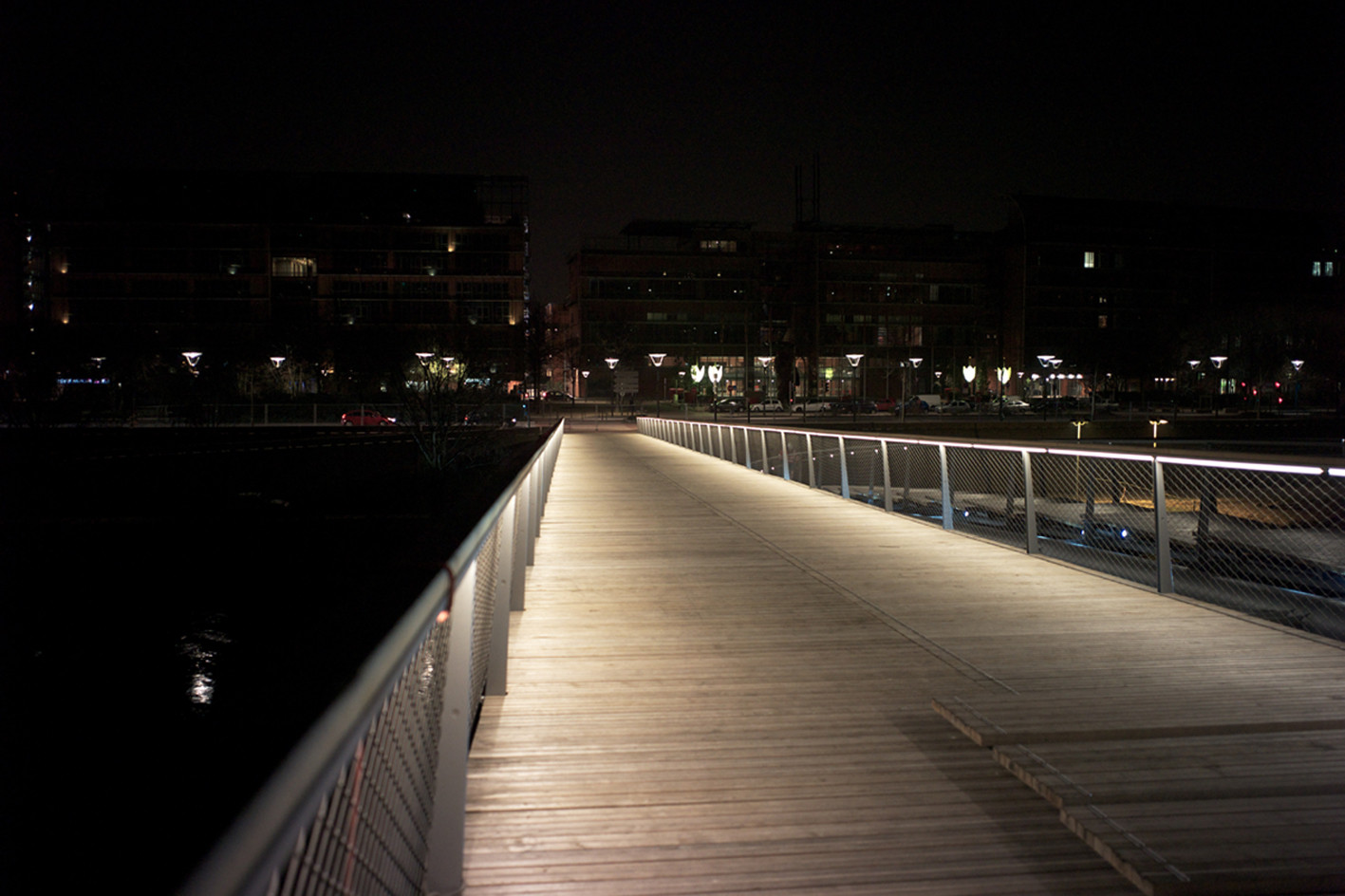

The wooden deck is made in oak wood providing anti-slipping features by integrating epoxy resin bands with silex. The railing consists of handrails in inox integrating LED lights and cable-net filling.

At night additional lights integrated in the structure transform the bridge in a magic object adding a new chapter to the great history of urban scenic light in the city of Lyon.

Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann


Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann


Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann
Passerelle De la Paix
© Michael Zimmermann


Passerelle De la Paix
Floor Plan
Passerelle De la Paix
Floor Plan
Passerelle De la Paix

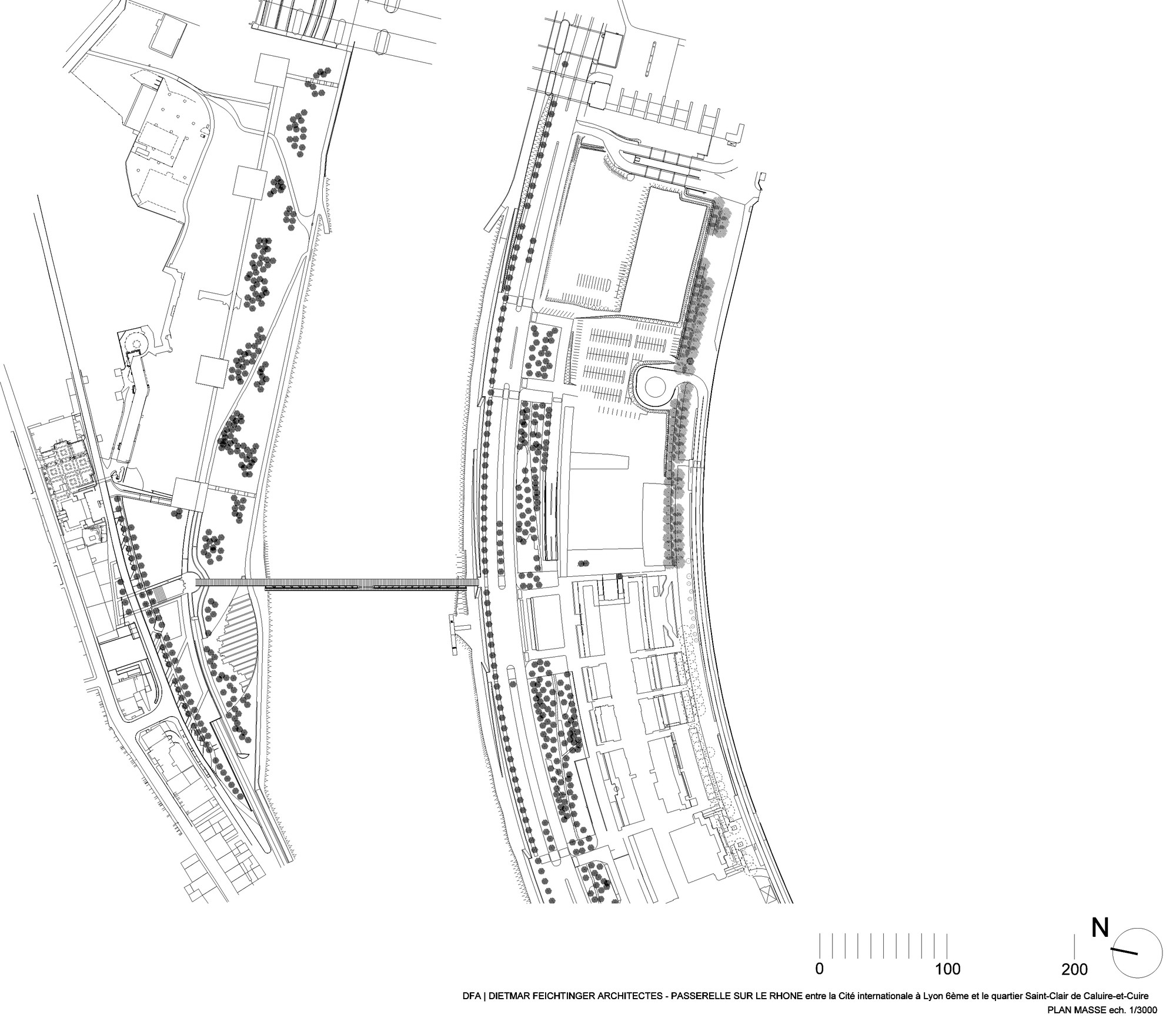

Master Plan
Passerelle De la Paix
Section Detail
Passerelle De la Paix
Section Detail
Passerelle De la Paix
Section Detail


Passerelle De la Paix
Scheme 1
Passerelle De la Paix
Scheme 2
Passerelle De la Paix
Scheme 3
Passerelle De la Paix
Scheme 4
Passerelle De la Paix
Scheme 5
Passerelle De la Paix
Scheme 6
Passerelle De la Paix
Scheme 7
Passerelle De la Paix
Scheme 8


Passerelle De la Paix
Elevation
Passerelle De la Paix
Model
