United Design 10 Atelier 一合建筑设计研究中心U10建筑工作室

Jia Du Clubhouse

Jia Du Clubhouse
© Zhang Guangyuan

JIA DU CLUBHOUSE

U10

CATEGORY
Community Center

LOCATION
Langfang, China

YEAR
2014

ARCHITECTS
U10

AREA
2500.0 m²

PHOTOGRAPHS
Zhang Guangyuan

DESIGN STAFF
Yu Haiwei,Liu Yanyan,Wei Wei,Liu Binyang

Jia Du Clubhouse
© Zhang Guangyuan
Jia Du Clubhouse
© Zhang Guangyuan

Text description provided by architect.

We call it the Crystal Ring The building is located on the border of Beijing and Hebei province. It is the startup project of a nearly two million square meters residential and cultural industries complex community.

Jia Du Clubhouse
© Zhang Guangyuan
Jia Du Clubhouse
© Zhang Guangyuan

The building is used for demonstration and reception at the beginning of the development, and it will serve the whole community as a clubhouse after the completion of the entire projects.

The status site is a natural green space which has plenty of various huge trees. Thus the attitude towards the environment becomes the starting point of the design. The building which floats upon the grass looks like a sparkling crystal ring hidden among the woods.

Jia Du Clubhouse
© Zhang Guangyuan
Jia Du Clubhouse
© Zhang Guangyuan

The form of the building is an irregular ring. Trees are out of, or in, or within the building. Instead of deliberately using perfect curve, the shape has been softly stretched in order to yield the roots of the remained trees. This uncertainty has actually increased the natural properties of the building.

In order to create pure and transparent sense of space, we not only combine the vertical components with the outer surface, but also control a minimum size of their section.

Jia Du Clubhouse
© Zhang Guangyuan
Jia Du Clubhouse
© Zhang Guangyuan

The inner and outer rings of dense columns keep their distance of 2m to provide the vertical support. The roof structure has been staggered into woven “branches” instead of adopting the conventional approach of normal direction beam.

To some extent, this design will reduce the span of construction and enhance the overall stiffness which forms unique indoor space by exposing the woven beams.

Jia Du Clubhouse
© Zhang Guangyuan
Jia Du Clubhouse
© Zhang Guangyuan

In the north side of the building, there are four sample rooms interspersed among the reserved trees which are connected with the main building by means of a glass corridor.

The landscape design which is based on texture of original wood creates a concept of original nature growing.

With some willow reflections, two delicate water pools located in the south decorate the building which makes it more outstanding.

Jia Du Clubhouse
© Zhang Guangyuan
Jia Du Clubhouse
© Zhang Guangyuan


Jia Du Clubhouse
Diagram01
Jia Du Clubhouse
Diagram02
Jia Du Clubhouse
Diagram03
Jia Du Clubhouse
Diagram04


Jia Du Clubhouse
Floor Plan
Jia Du Clubhouse

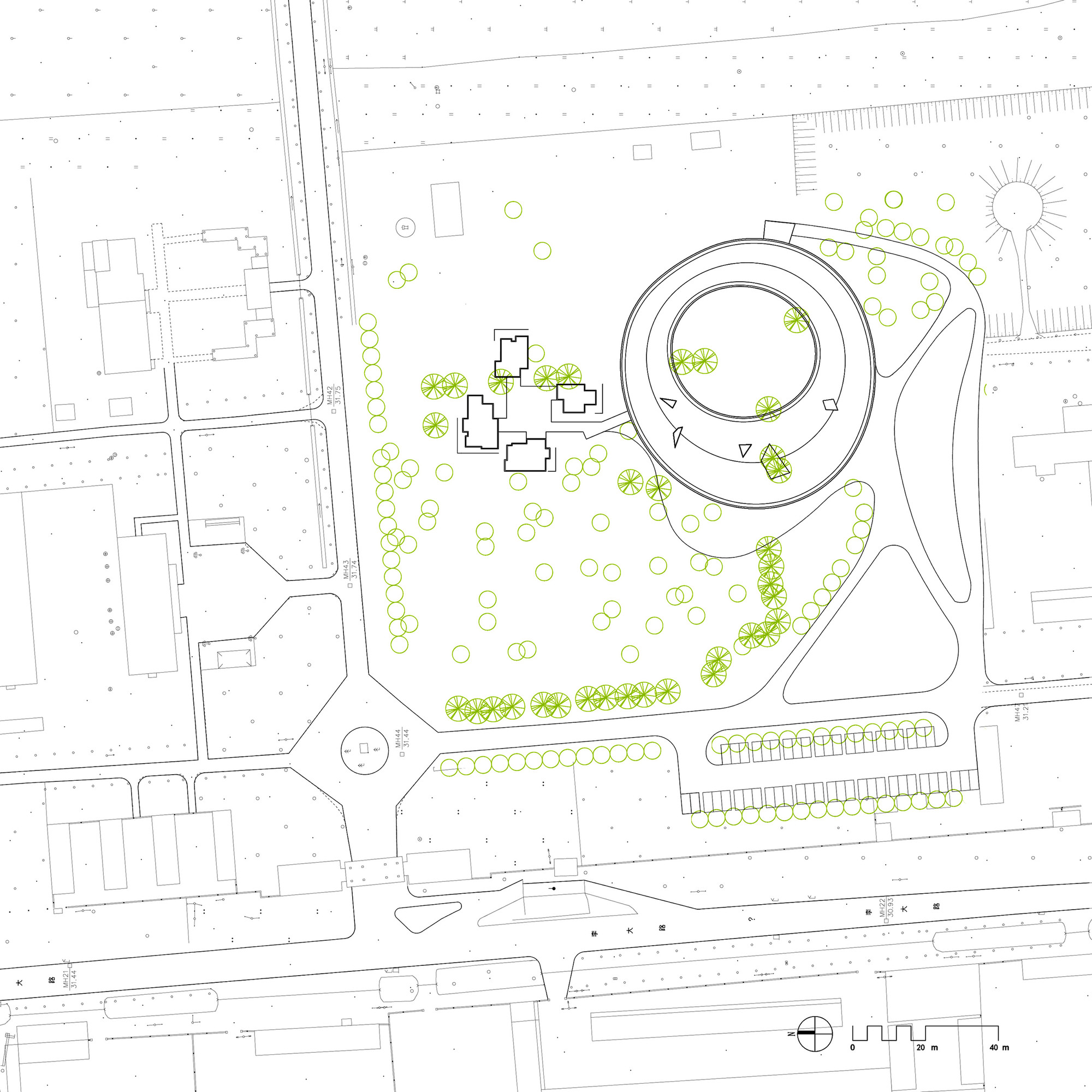

Site Plan


Jia Du Clubhouse
section
Jia Du Clubhouse
Details
