ARCHITECTS
hyla architects

LOCATION
Singapore

CATEGORY
Houses

AREA
316.0 m²

YEAR
2014

PHOTOGRAPHS
Derek Swalwell

MAIN CONTRACTOR
Praxis Contractors Pte Ltd

STRUCTURAL ENGINEER
SB Ng & Associates CE

SITE AREA
189.2 m2

Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell

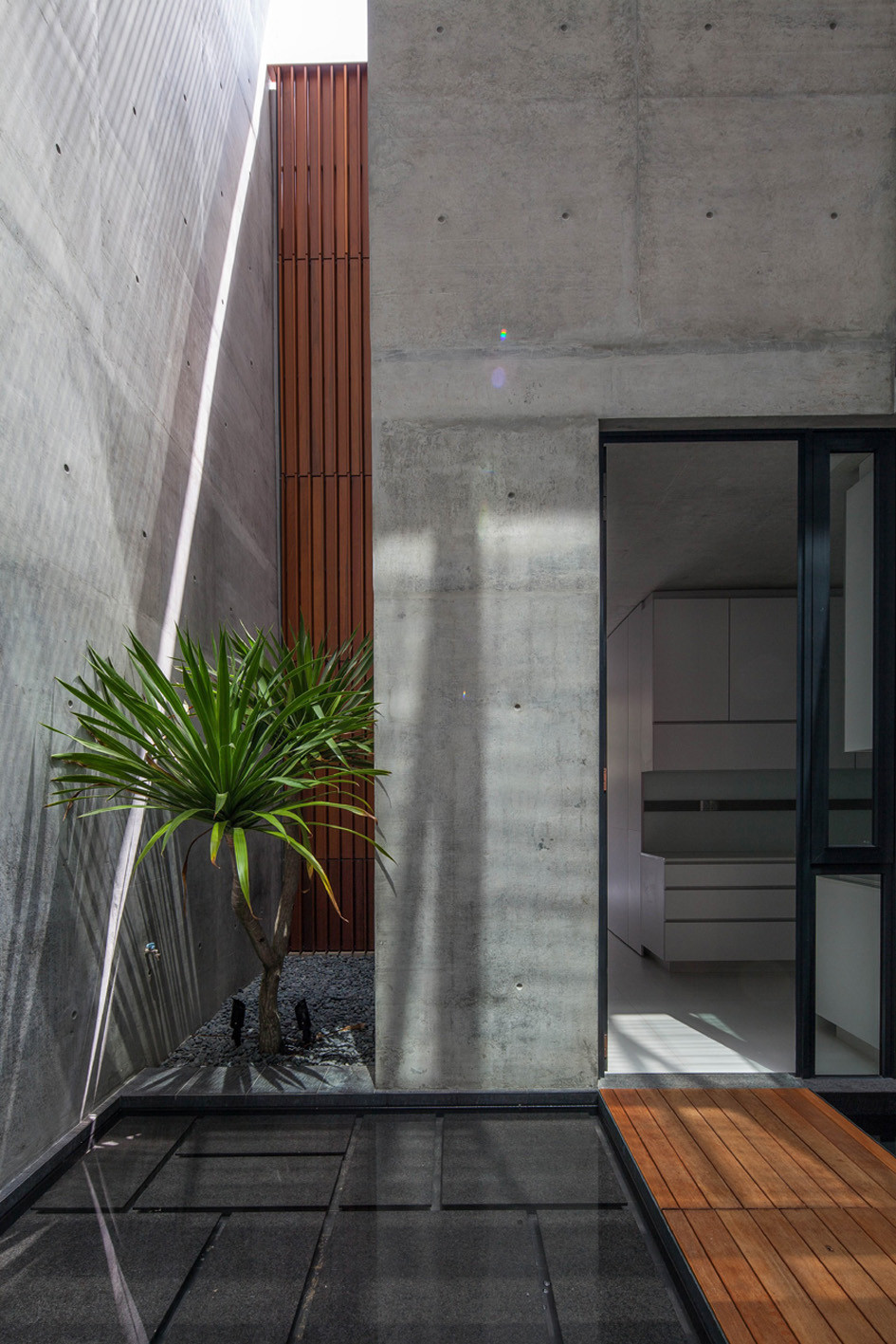

A light well with a reflecting pool divides this intermediate terrace house into two blocks.The light well is covered at the top with a glass and timber trellis providing shelter from the rain and yet still allowing light and ventilation to pass through the entire house.

Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell

The staircase runs along the side and underneath it is a gently cascading water feature which feeds into the pool.

On the 1st storey, a screen / display shelf divides the staircase from the living room.

Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell

The living, dining and dry kitchen occupy the front block and is in one continuous space, whilst the wet kitchen and service areas are in the rear block. A timber bridge crosses the water feature from the 1st to the 2nd block.

The top of the stair well is also covered in glass and timber. The timber trellis is hung on steel cables giving it a gentle camber.

Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell

The stairs lead to the roof terrace on the attic level where the master bedroom is. The master bathroom has a similar timber trellis detail over the bath and shower area, but with smaller and round timber sections to fit the smaller scale of the space.

The connecting bridges on the 2nd storey and attic level are all not in line with the 1st level bridge thereby giving a greater sense of space in the light well.

The whole house is in off form concrete and tropical timbers of teak and chengal.

Belimbing Avenu
© Derek Swalwell


Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell


Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell
Belimbing Avenu
© Derek Swalwell


Belimbing Avenu
Floor Plan
Belimbing Avenu
Floor Plan
Belimbing Avenu
Floor Plan


Belimbing Avenu
Front Elevation
Belimbing Avenu
Rear Elevation


Belimbing Avenu

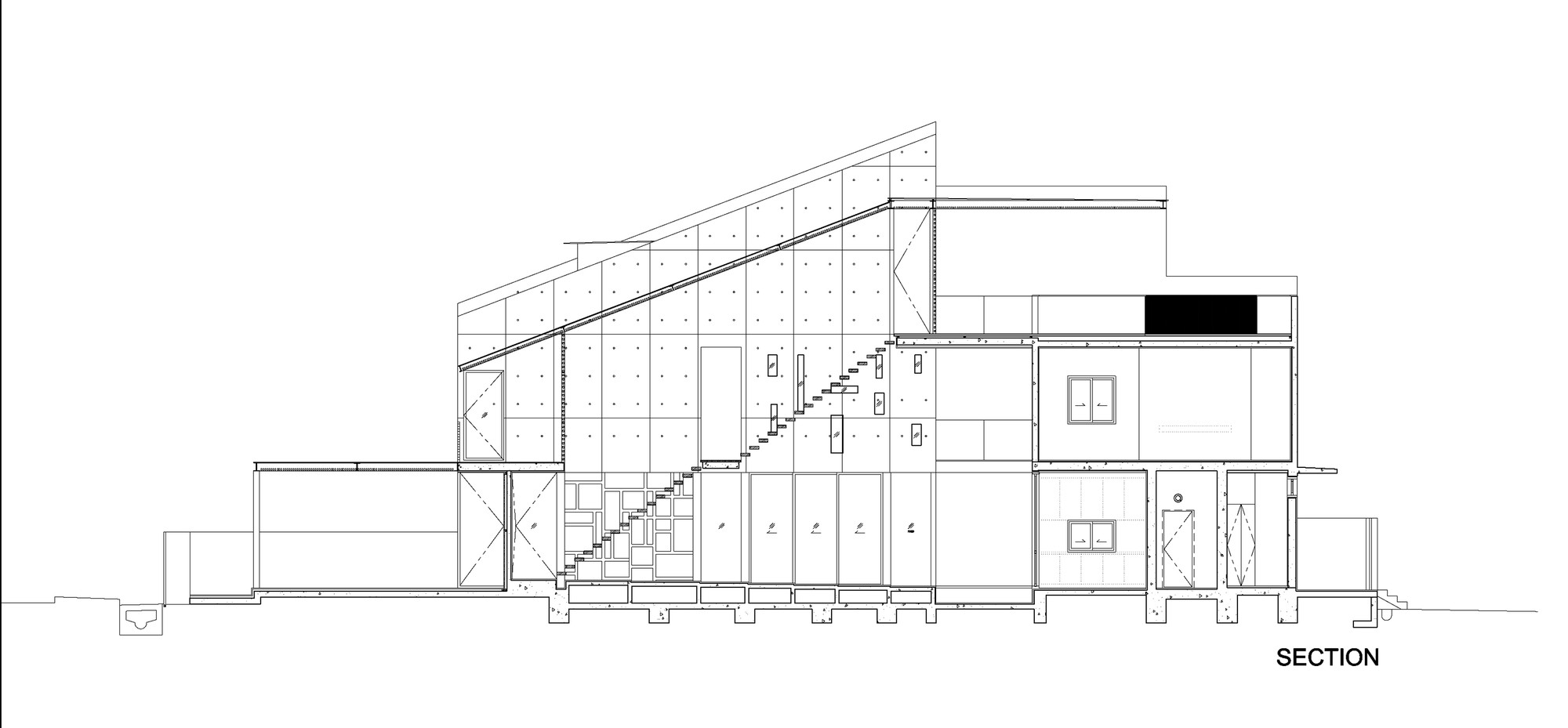

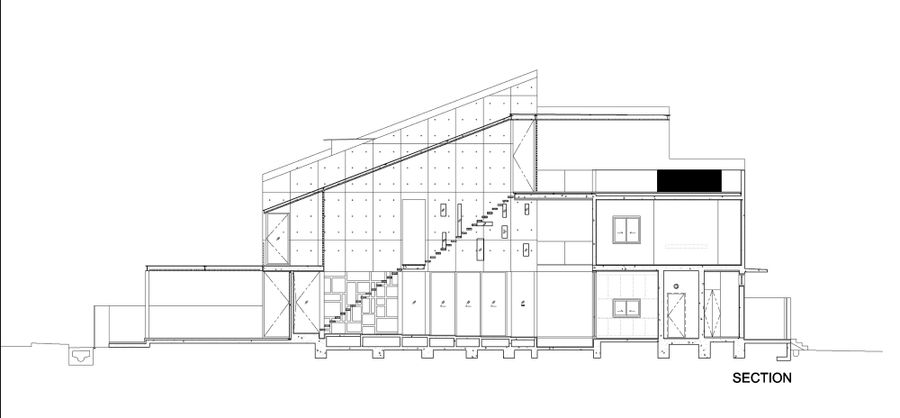

Section
