PRD OFFICE BUILDING

Fassio-Viaud Architectes

LOCATION
Pantin, France

CATEGORY
Office Buildings

YEAR
2014

PHOTOGRAPHS
Sergio Grazia

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia

A Major First in France: Positive-energy Own-consumption in Offices

An important first in France, the office-building project delivered in January of 2014 in Pantin (Greater Paris) by the Fassio-Viaud agency for PRD Office, runs on positive-energy own-consumption.

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia

Part of the energy it produces is used directly on site for heating, lighting, ventilation and hot water but also for recharging the electric cars that are made available to employees. The remainder is transferred to the EDF grid.

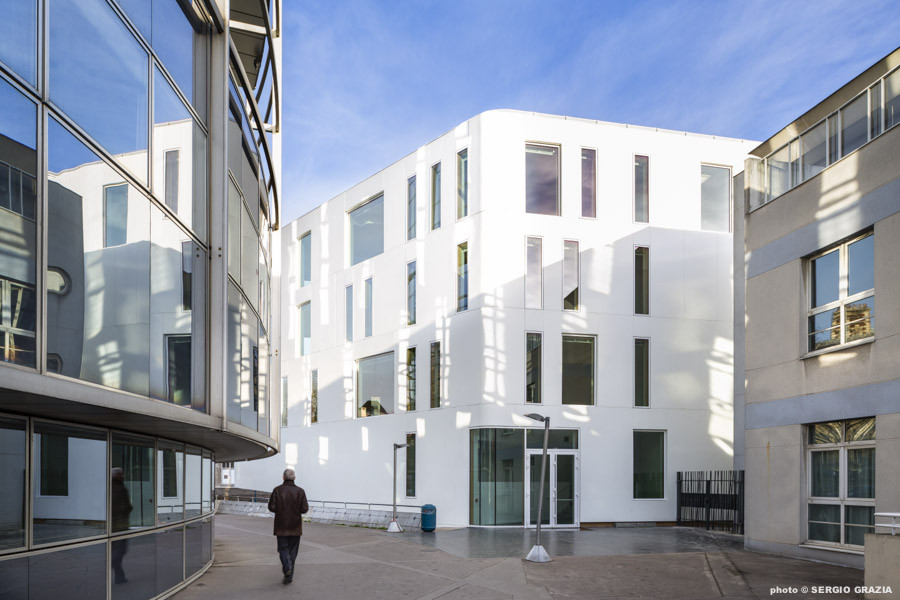

The building is only the second in France to use Corian® in its construction, a material known for being long-lasting. It is self-cleaning and can be sanded to remove graffiti easily. It gives the building a fluid outline as if it had been carved from a block.

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia

The building's energy needs have been reduced to a minimum because of a high-performance compact envelope.

The façades are load-bearing, so thick, and transpierced by bay windows placed in a 1.35 m pattern to ensure maximum natural sunlight and occupy only 40% of the linear façade.

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia

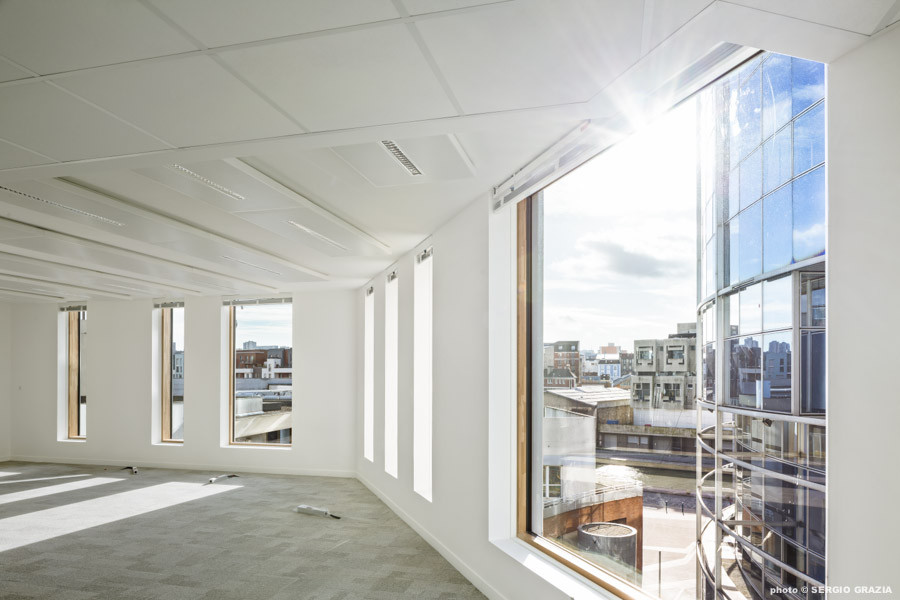

The office interior has been carefully designed to maximise user comfort with 2.90 metre ceilings (compared to the usual 2.5 m) and systematic natural lighting in each office.

By playing with the slope of the land, the parking garage is on the ground level, a choice making it possible to make considerable savings both during construction and in the building's daily use since artificial light is unnecessary.

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia

It also made it possible to place the work stations in the upper floors and spare them manifestly uncomfortable positioning.

The project even surpasses its brief by resolving several sticky urban issues by increasing the surface area of the playground of a nearby primary school while placing an embankment of greenery between the two buildings.

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia

The building also helped rationalise and improve access to an existing parking garage by freeing a spacious entry, making it a prow visible from the road leading to Paris.

PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia


PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
© Sergio Grazia
PRD Office Building
PRD Office Building
© Sergio Grazia


PRD Office Building

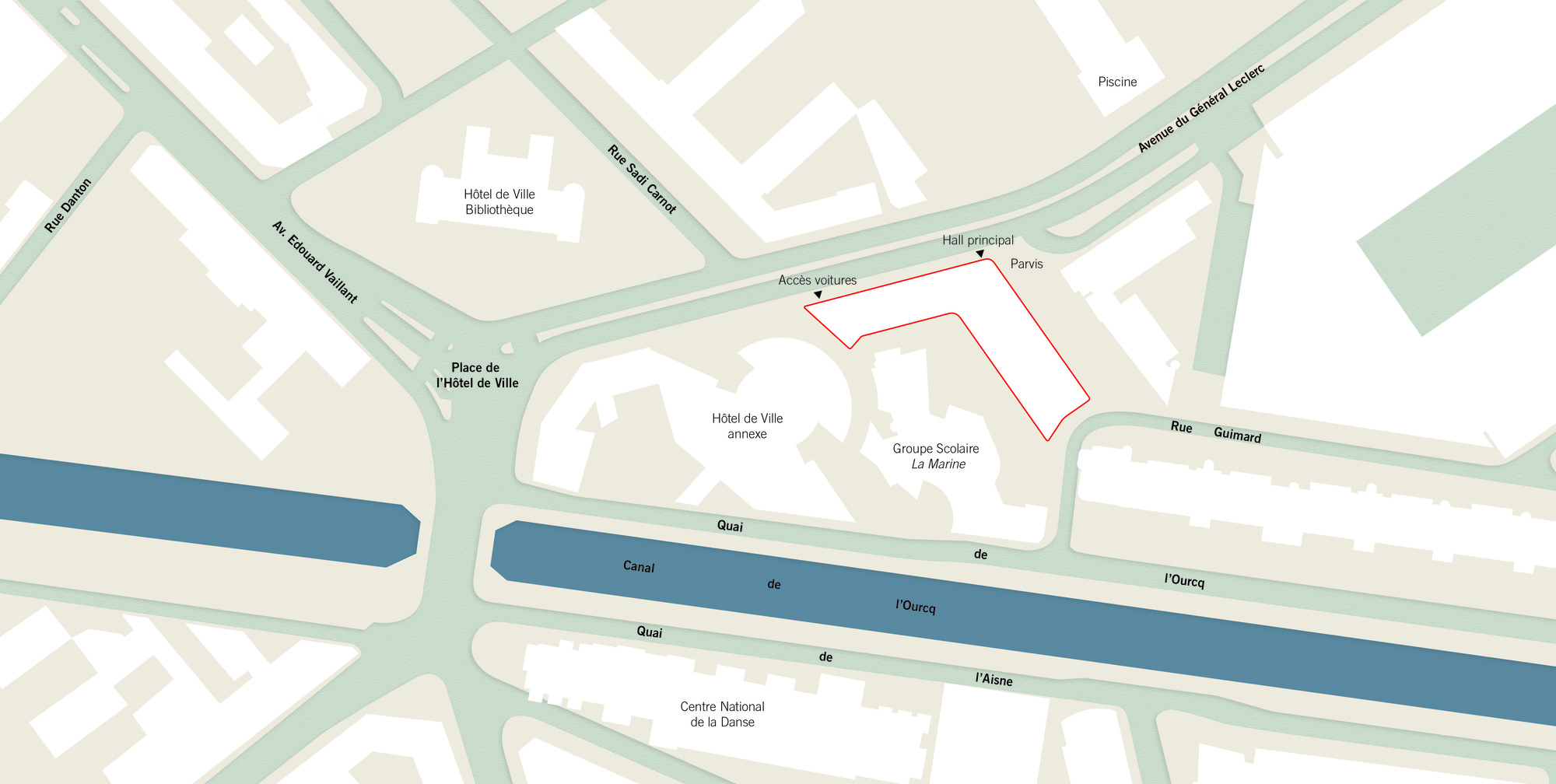

Site Plan
PRD Office Building
Site Plan


PRD Office Building
Section Diagram
PRD Office Building
Plan
PRD Office Building
Plan


PRD Office Building

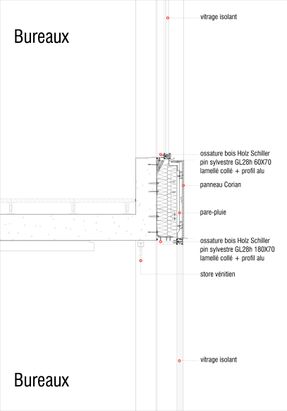

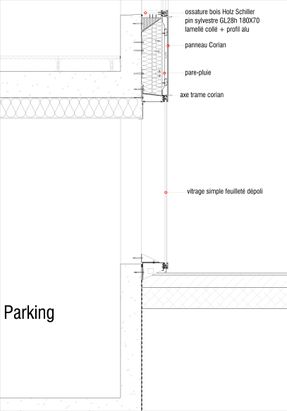

Detail
PRD Office Building
Detail
PRD Office Building
Detail
