AL ZORAH PAVILION

Annabel Karim Kassar

🧨 Al Zorah Pavilion
© Tony Elieh

CATEGORY
Pavilion, Institutional Buildings, Cultural Center

LOCATION
Ajman, United Arab Emirates

AREA
4500.0 m²

PHOTOGRAPHS
Tony Elieh

HEIGHT FROM MANGROVE SIDE
14m

COLLABORATORS
Walid Hamze, Nehmat Alameh, Violaine Jeantet, Jean Sfeir

FOOTPRINT
45x45m

YEAR
2014

LIGTING DESIGN
Cai Light

🧨 Al Zorah Pavilion
© Tony Elieh

Al Zorah pavilion in Ajman is a landmark, it is the first project to be implemented on site, as part of the city's redevelopment.

The structure isa 4 500 Msq multifunctional center dedicated to Administration, Culture and Entertainment overlooking the mangrove of Ajman.

🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh

The pavilion is designed with a very sensitive approach to the site, in symbiosis with the landscape. It is conceived as a simple geometric form standing in the desert as a landscape within another.

It rests under a canopy, a folded roof reminiscent of the existing topographical strata leading down to the water.

🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh

Facing South, the roof is all clad with zinc shingles protecting the pavilion from strong sunlight and simultaneously blocking the noise from the nearby highway.

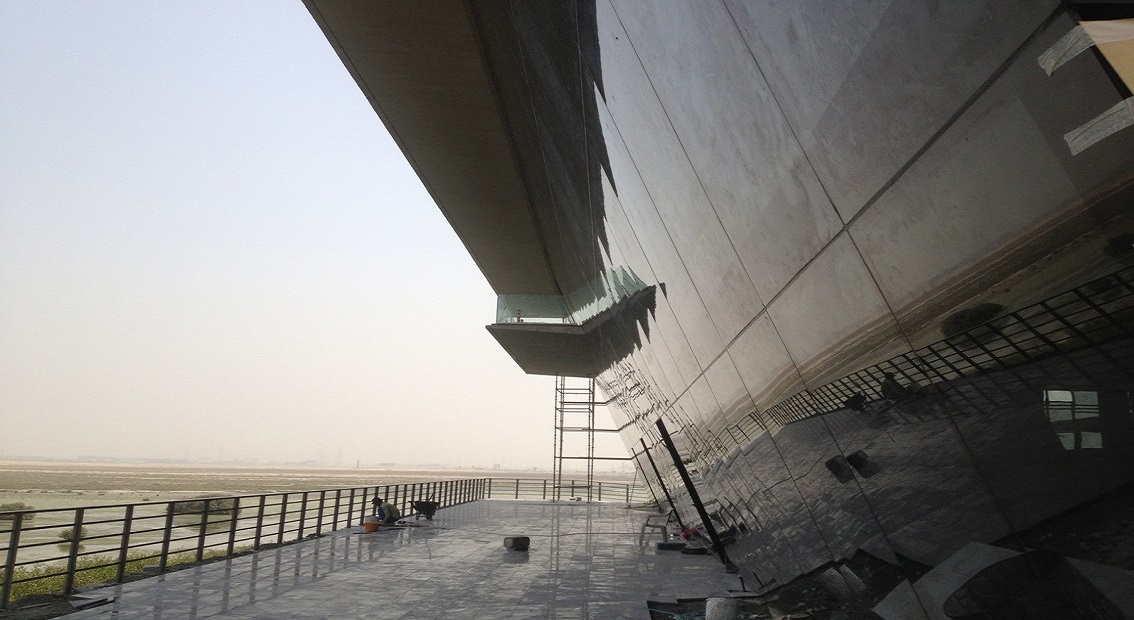

The dark tinted glass façade is oriented North towards the mangroves, providing transparency into the interior and unobstructed views to the natural landscape.

🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh

The roof catches sunlight and shines by day time, it's lit up with LED projectors by night.

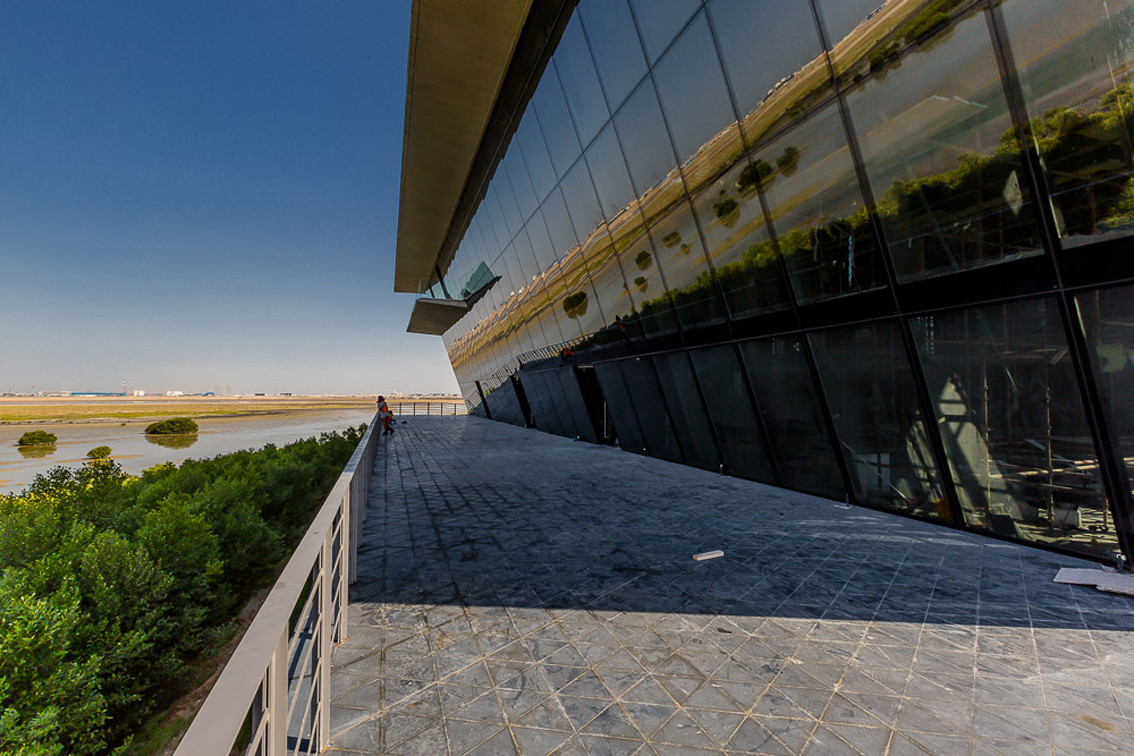

The flooring at ground level is in triangular tiles of black granite "nero assoluto".

The pavilion houses an Internal Auditorium of 150 seats extending to the exterior for outdoor events, an exhibition space, a Café with a terrace, a guest house at the roof top level and an administrative floor.

The car parking is underground, sheltered with a green layer.

🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh

Spaces open up from under a folded crossed cut slab: the slope of the folded roof starts from the entrance and reaches up to the highest point of the structure through an open air staircase which leads to terraced belvedere spaces looking out to the sea; it beckons visitors to climb it to survey the rooftop views.

The entrance is at the cut between the "roof-scape" and has a well-framed view out towards the natural mangrove.

🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh

The pavilion extends with a walkway that takes visitors on a stroll into the landscape.

The entire building is like a balcony looking out towards Al Zorah’s mangroves.

🧨 Al Zorah Pavilion
© Tony Elieh


🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh


🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh
🧨 Al Zorah Pavilion
© Tony Elieh


🧨 Al Zorah Pavilion
East Elevation


🧨 Al Zorah Pavilion
Basement
🧨 Al Zorah Pavilion

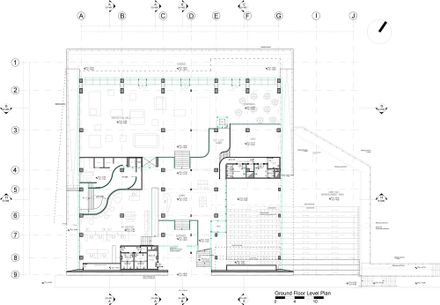

Ground Floor Plan
🧨 Al Zorah Pavilion
First Floor Plan
