Costanera Lyon 2

COSTANERA LYON 2

Eugenio Simonetti + Renato Stewart

Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre

ARCHITECTS
Eugenio Simonetti, Renato Stewart

CATEGORY
Office Buildings

AREA
230000.0 m²

LOCATION
Chile

PHOTOGRAPHS
Pablo Casals-Aguirre

YEAR
2014

MANUFACTURERS
Viracon, Bercia, Fanaloza

LIGHTING
Oriana Ponzini

STRUCTURE
Eduardo Spoerer

VENICE BIENNALE MODEL
Eduardo Maldonado

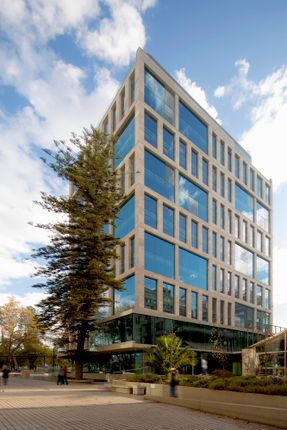

Costanera Lyon 2
© Pablo Casals-Aguirre

Text description provided by architect.

The building occupies the site located at the corner of Santa Magdalena and Avenida Andrés Bello. For approval the draft sectional plan filed for interior passages of the Providencia district which was designed by the architect and town planner GermanBannen in 1973.

Costanera Lyon 2 finally complete the interior passage known as Plaza del Sol , which originated in 1978 with Dos Caracoles under Banner Master plan.

Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre

STRUCTURE

The structure was designed based on rigid reinforced concrete frame and core that allows to transfer all the vertical and seismic loads through the facade to the foundations by 12 meters long reinforced concrete diagonals leading down from the third floor to a slab capital 70cm thick located in the first basement.

The proposed structure allows 100 % free plans to users. The proposed structure functions as thermal mass reducing energy consumption used in heating and AC for the offices.

Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre

XIV VENICE BIENNALE

Costanera Lyon 2 was selected to be exhibited at the XIV Venice Biennale.

For the exibhition we created a 32 kilos exo-structure based on the compression of 21 pieces of marble that transfer the loads to each other until the base , exactly as the building does.

Costanera Lyon 2
© Pablo Casals-Aguirre


Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre
Costanera Lyon 2
© Pablo Casals-Aguirre


Costanera Lyon 2
Floor Plan
Costanera Lyon 2
Courtesy of Eugenio Simonetti, Renato Stewart


Costanera Lyon 2
Diagram
Costanera Lyon 2
Diagram
Costanera Lyon 2
Diagram


Costanera Lyon 2
Detail
Costanera Lyon 2
Elevation
Costanera Lyon 2
Section
