Neutelings Riedijk Architecten B.V.

Culture House Eemhuis

CULTURE HOUSE EEMHUIS

Neutelings Riedijk Architects

Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten

ARCHITECTS
Neutelings riedijk architects

CATEGORY
Gallery, library, visual arts center

AREA
16000.0 m²

YEAR
2014

CLIENT
City of Amersfoort

MANUFACTURERS
Euramax, harry van interieurbouw, ifs-sgt, q-railing

STRUCTURAL DESIGN
Abt adviesbureau voor bouwtechniek

GENERAL CONTARCTOR
Dura Vermeer Bouw bv

LOCATION
Amersfoort, The Netherlands

BUILDING PHYSICS
DGMR Raadgevend Ingenieurs Installation design: HE Adviseurs, Rotterdam

COST MANAGMENT
Bbn adviseurs, amsterdam

BUILDING SITE MANAGEMENT & SUPERVISION
Royal haskoning dhv

Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten

Text description provided by architect.

The Eemhuis combines a number of existing cultural institutes in the city of Amersfoort:

the city library, the exposition center, the heritage archives and a school for dance, music and visual arts.

It is located on an urban redevelopment area close to the city center.

Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten

The building is organized as a stacking of the cultural programs.

The public domain is continued into the interior of the building in all directions.

At the ground floor, the public square becomes a covered plaza, with a grand café and entrances to the various functions.

Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten

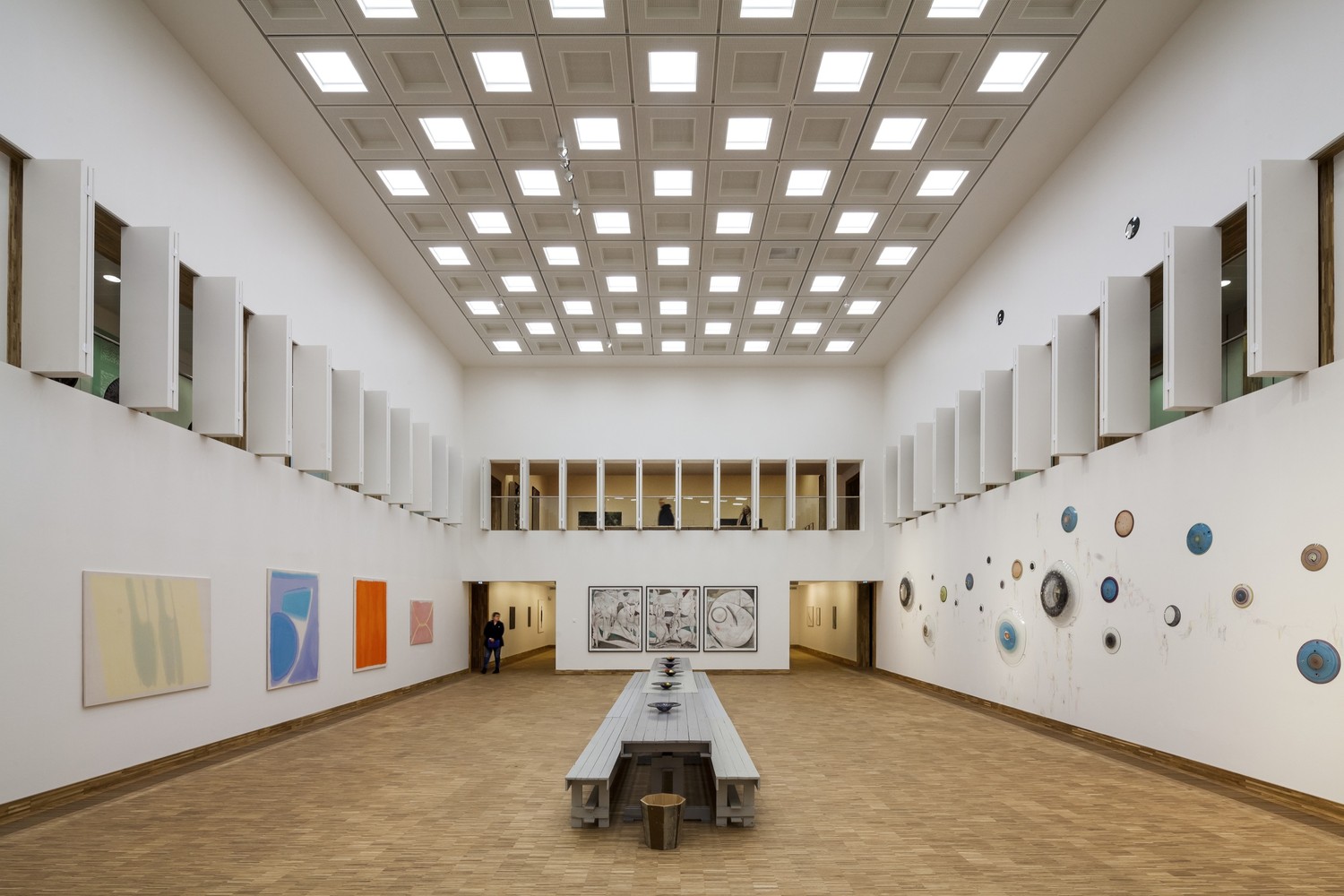

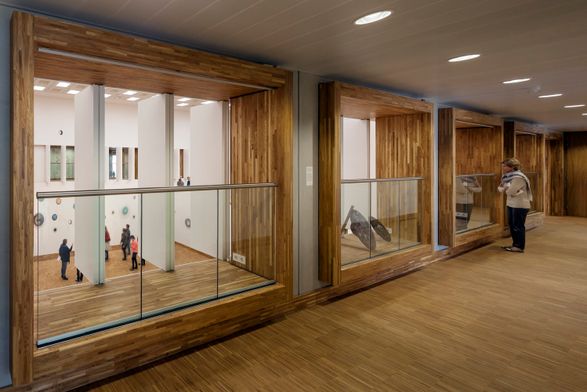

The exposition center is set directly off the square on the ground floor, with a large central exhibition hall that is half sunken in the ground and is surrounded by an enfilade of smaller exhibition rooms.

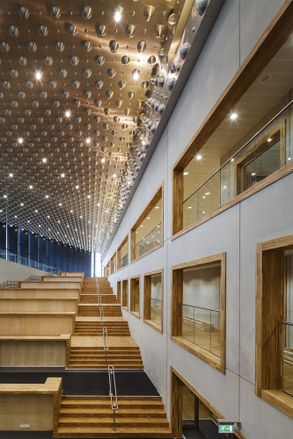

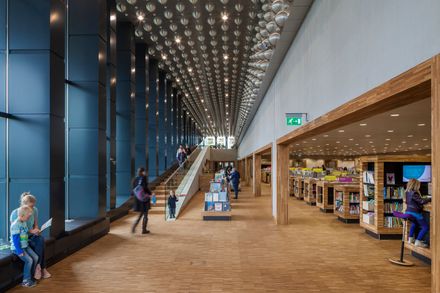

The library is a plaza of stepped information terraces as a prolongation of the city square that brings the visitors up to the main library floor.

On the top of the stairs the library spills into a vast open space with book stacks and reading and study areas overlooking the city.

Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten

Above it hovers the archive volume that forms the ceiling of this space.The attic of the building houses the arts school.

The three arts departments (theatre & dance, visual arts and music) are each expressed separately as cantilevered beams that crown the complex.

The façades are composed of a classical tripartite as imposed by the master plan. The plinth is made of 30 cm long elongated glazed bricks, reinforcing the horizontal lining.

Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten

The crown of the building is made of metal panels with a dotted pattern of semi-spheres that enhance the alienating quality of the cantilevered volumes against the northern Dutch clouds.


Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten
Culture House Eemhuis
Courtesy of Scagliolabrakke, Neutelings Riedijk Architecten


Culture House Eemhuis
Basement
Culture House Eemhuis

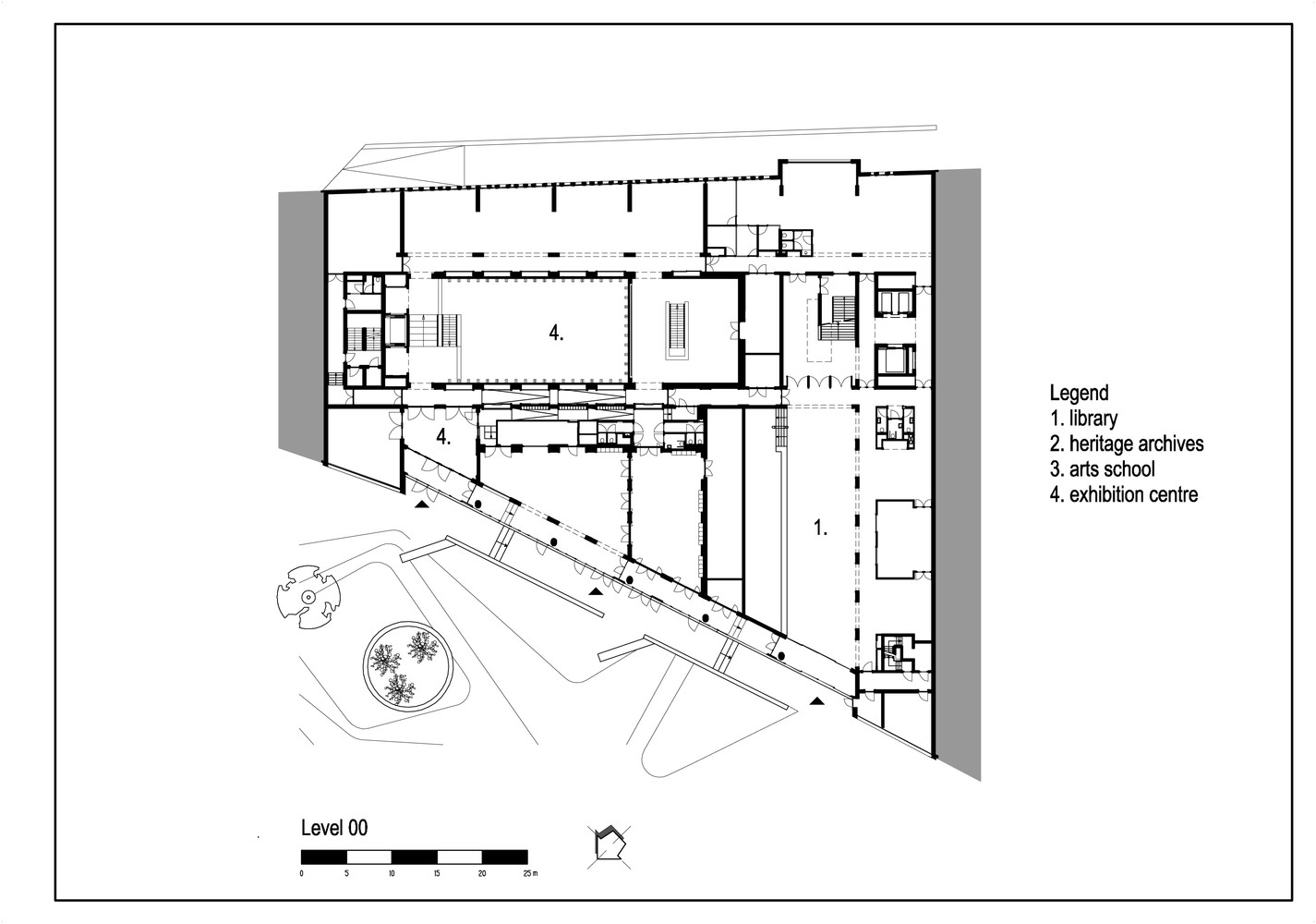

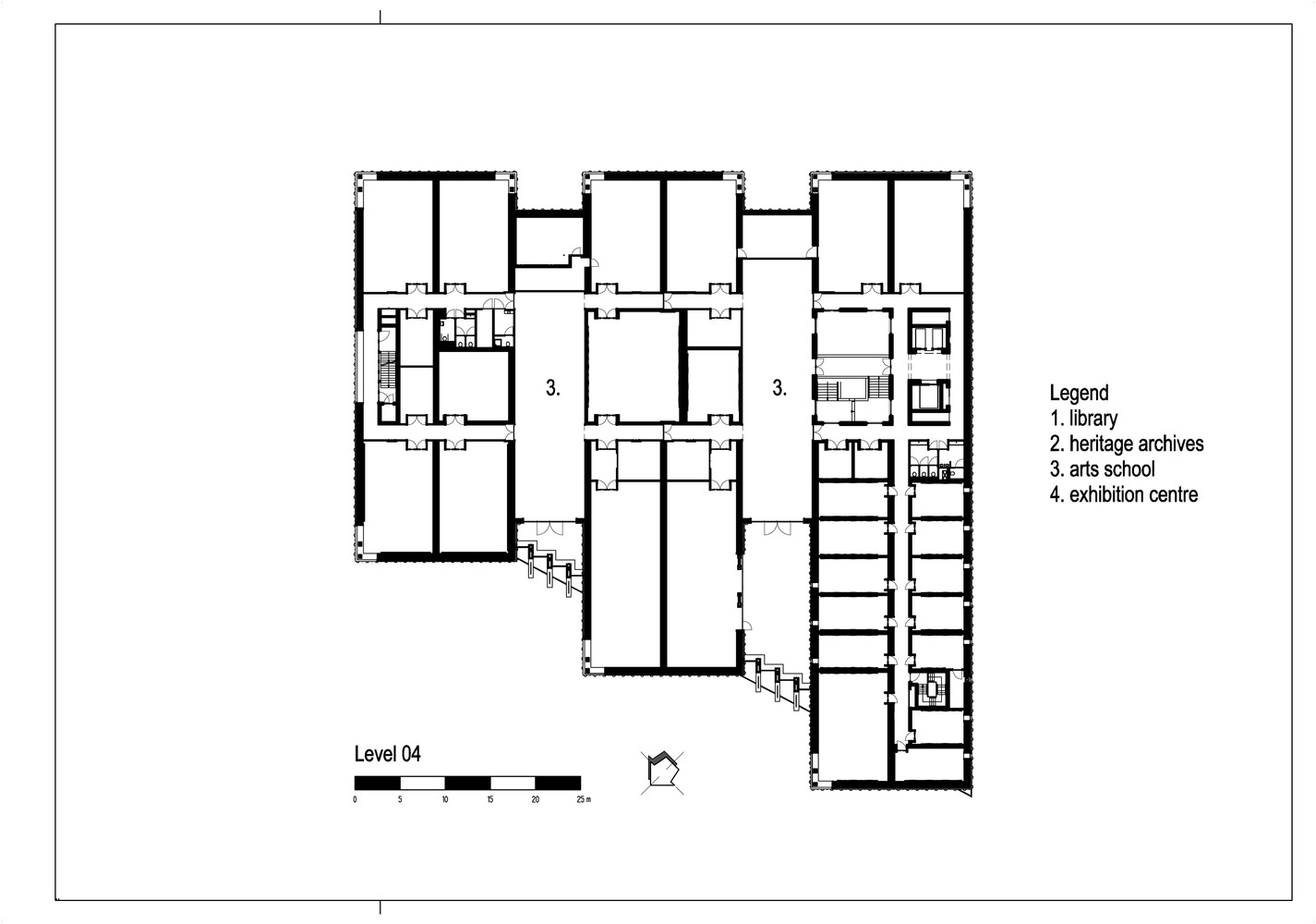

Floor Plan
Culture House Eemhuis
Floor Plan
Culture House Eemhuis
Floor Plan
Culture House Eemhuis
Floor Plan
Culture House Eemhuis
Floor Plan


Culture House Eemhuis

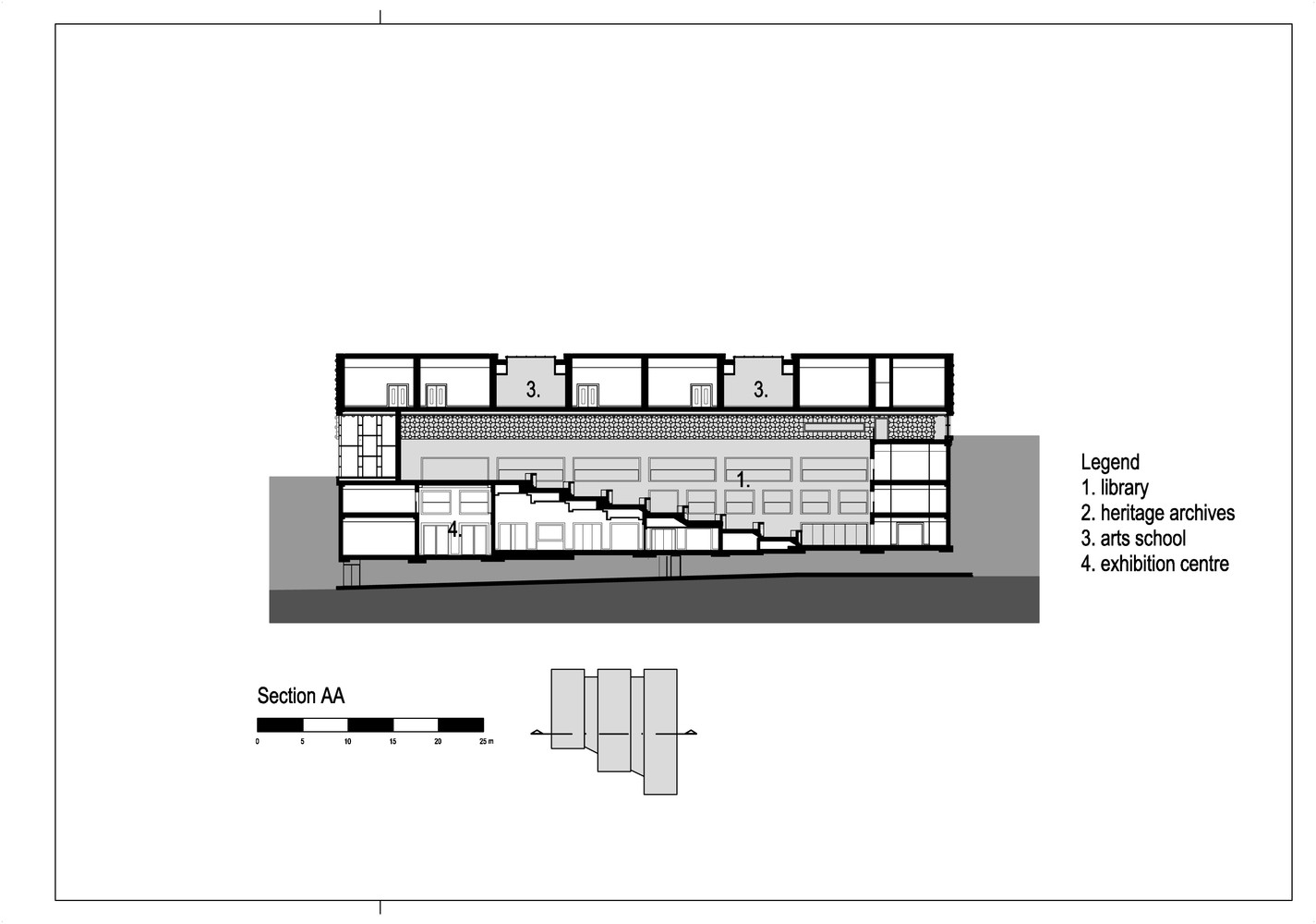

Section
Culture House Eemhuis
Section


Culture House Eemhuis
Elevation
Culture House Eemhuis
Elevation
