gmp International GmbH

Arena Da Amazônia

ARENA DA AMAZONIA

Gmp Architects

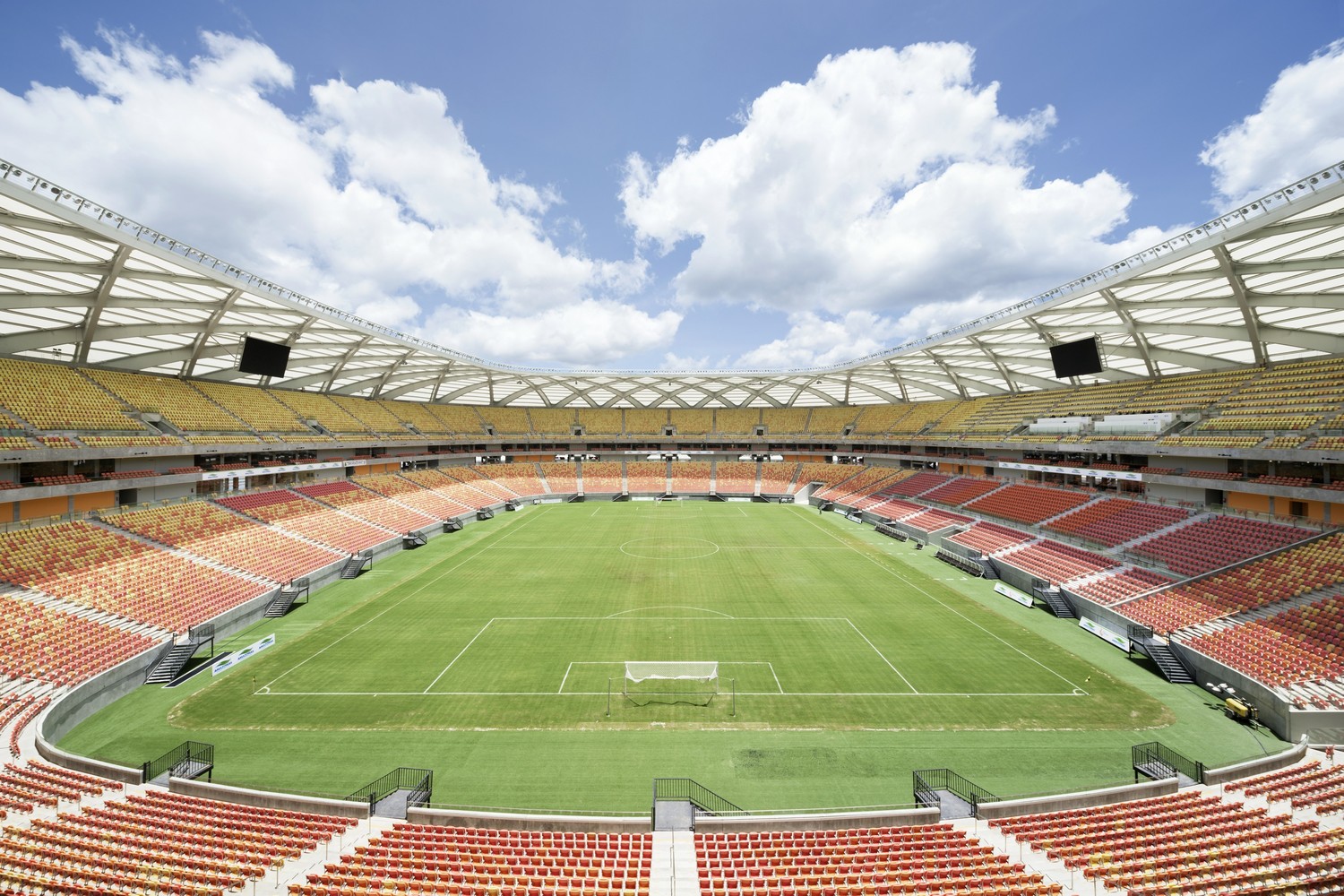

Arena Da Amazônia
© Marcus Bredt

ARCHITECTS
gmp Architects

CATEGORY
Soccer Stadium

PHOTOGRAPHS
Marcus Bredt

YEAR
2014

IN COOPERATION WITH
schlaich bergermann and partners, Stuttgart; stadia, São Paulo

STRUCTURAL DESIGN
schlaich bergermann and partners–Knut Göppert with Knut Stockhusen and miriam sayeg

STRUCTURAL TEAM MEMBERS
Tiago Carvalho, Uli Dillmann, Andreas Eisele, Florian Geiger, Alberto Goosen, Sebastian Grotz, Jochen Gugeler, Achim Holl, Roman Kemmler, Hubert Kunz, Sandra Küstner, Walter Paganucci, Jana Pav- lovic, Bernd Ruhnke, Guilherme Sayeg, Tilman Schober, Alexander Stäblein, Alfred Strasdeit, Kai Zweigart

LOCATION
Manaus, Brazil

STRUCTURAL DESIGN OF SOLID CONSTRUCTION IN COOPERATION WITH
EGT, São Paulo; Larenge, São Paulo; Ruy Bentes, São Paulo

MANUFACTURERS
Sika

LANDSCAPE DESIGN
St raum a (scheme design phase), Interact, São Paulo

Arena Da Amazônia
© Marcus Bredt

Text description provided by architect.

This stadium design was based on the idea of creating a simple but highly efficient stadium which also makes reference to the special location, to the fascination and natural diversity of forms in the tropical rainforest.

Designed for 44,400 spectators, the stadium is located at the central traffic axis that links the airport with the inner city.

Arena Da Amazônia
© Marcus Bredt
Arena Da Amazônia
© Marcus Bredt

The new building was integrated into a sports park with Sambadrome, field and track facilities, multi-purpose halls and an aquatic center.

The project was developed in cooperation with the gmp partner practice STADIA from São Paulo and the structural engineers schlaich bergermann und partner.

Arena Da Amazônia
© Marcus Bredt
Arena Da Amazônia
© Marcus Bredt

Making best use of the topography with its gentle slope in the terrain, the stadium has been placed on a base which provides space for VIP access, the media, the players and parking spaces.

A ring including spectator boxes, offices and a restaurant sepa- rates the upper tier from the lower tier, which is recessed in the base.

Arena Da Amazônia
© Marcus Bredt
Arena Da Amazônia
© Marcus Bredt

The roof structure is composed of mutually bracing cantilever elements in the form of hollow steel box girders which also serve as large gutters for the discharge of the enormous quanti- ties of water expected during tropical rain events.

In view of the hot and humid climate at the Amazon, the roof extends into a facade which provides shade to the spectator balconies and vertical access routes.

The roof and facade panels consist of translucent glass fiber fabric.

Arena Da Amazônia
© Marcus Bredt
Arena Da Amazônia
© Marcus Bredt

The Arena da Amazônia is one of the world’s first stadiums to be certified under the LEED scheme administered by the US Green Building Council.


Arena Da Amazônia
Floor Plan
Arena Da Amazônia
Floor Plan
Arena Da Amazônia
Floor Plan
Arena Da Amazônia
Floor Plan
Arena Da Amazônia
Floor Plan


Arena Da Amazônia
Section
Arena Da Amazônia
Section
Arena Da Amazônia
Section


Arena Da Amazônia
Location
Arena Da Amazônia
Site Plan
