Dap Studio / Elena Sacco - Paolo Danelli

Residential Building In Via Bellincione

Residential Building In Via Bellincione
© Barbara Corsico

RESIDENTIAL BUILDING IN VIA BELLINCIONE

DAP Studio

ARCHITECTS
DAP Studio

LOCATION
Milan, Italy

CATEGORY
Adaptive Reuse

ARCHITECT IN CHARGE
Elena Sacco, Paolo Danelli

PHOTOGRAPHS
Barbara Corsico

COORDINATION
Paolo Danelli

STRUCTURE
Enrico Villa

FACILITIES
Ebner Engeneering

SUPERVISION OF CONSTRUCTION
Paolo Danelli

COMPANIES
Operate Edili imprese varie

PROJECT YEAR
2014

SIZE
1000m2 Building, 400m2 underground, Outdoor area (external) 750m20

At the beginning of 1910, in the area next to Rottole and Lambrate, the Miralago was built and conceived as a place of leisure with a restaurant, a dance hall, a pub, a boat rental and a solarium overlooking a body of water.

Residential Building In Via Bellincione
© Barbara Corsico

The basin, which was drained in the 50s, was probably a former quarry located on the south side of Piazza Udine.

The lands were property of the Ingegnoli family , nurserymen that moved their main nursery to Cascina Melghera at the end of '800, between Via Feltre and via Crescenzago.

Residential Building In Via Bellincione
© Barbara Corsico

Along the present via Bellincione next to the country house of the family was built a single-family residential building that is the original core of our project.

Later, the country house was demolished and the residential building was enlarged but it kept those typological traits that, somehow, reminded its origins.

In the following years the building and its garden have been gradually surrounded by the growing city.

When Luigi asked us to renovate his family house we were surprised. Being friends since childhood, we knew how strongly he and his family took care of their home over the years: to turn it into a residence seemed to us a sort of lack of respect for their past.

Residential Building In Via Bellincione
© Barbara Corsico

Together we reflected about the transformation of the building in order to adapt it to a new way of living and, at the same time, to a built landscape that, in the meantime, has deeply changed. The result of these reflections may be summarized by few key words: Transforming, Regenerating, Adapting.

TRANSFORMING

The building is included in a trapezoidal lot with the shorter side facing on the current Via Bellincione.

Residential Building In Via Bellincione
© Barbara Corsico

Even if the garden is surrounded by the high apartments buildings typical of the suburban landscape, the house is protected by lush vegetation that provides a great intimacy.

Originally the three floors above ground of the house were linked by external stairs: the garage and laundry room were on the ground floor, the residence were on the first and second floors and the attic was on the third one.

A series of porches, terraces and balconies added over the years have transformed the original building by helping to strengthen further the contrast of both style and scale with the architectural context.

Residential Building In Via Bellincione
© Barbara Corsico

The transformation process is carried out in two directions, the most obvious was to remove all the addition made to the building to bring it back to its original rigour and, at the same time, to make it complying with the new requirements of the owners.

The second change was made to the garden, which, thanks to its private and intimate space, has become a place of relationship and comparison between future residents and urban space.

Residential Building In Via Bellincione
© Barbara Corsico

REGENERATING

The regeneration of the building, particularly its urban and constructive aspects and the plant design, allows to lengthen its life thus avoiding new soil consumption.

However the real regeneration is a more complex process, which also involves social and cultural aspects and contribute to change the perception of a place and to trigger new behaviors.

Residential Building In Via Bellincione
Before

During the development of the project, we wondered about the the nature and habits of future residents: young families or individuals staying for short periods, thanks to the proximity of Città Studi universities and of the new tertiary pole near Piazza Udine.

A so prefigured “social landscape” made us understand that the public spaces such as garden, entrance, underground parking, atrium and vertical connections should have been designed in such a way to facilitate relationships between people.

Residential Building In Via Bellincione
Before

ADAPTING

Lambrate radically transformed over the years and the house of Luigi, once on the banks of the artificial lake "Miralago", is now included in a suburban high density residential area.

Also the rules that oversee the renovation of a building have been deeply changed, so that the project had to adapt the building to new regulations and standards.

Residential Building In Via Bellincione
© Barbara Corsico

These kind of limitations - reduced distances from the adjacent buildings, impossibility to create openings on neighbour areas, etc - generated a very narrow scope of action. The construction of the new underground parking and the raising of the existing building are actions that have improved functionality and enabled, at the same time, the economic sustainability of the operation.

THE PROJECT

From an architectural point of view the project removed all those typological traits that made the building so in contrast with the context, according to a more rigorous and clean design.

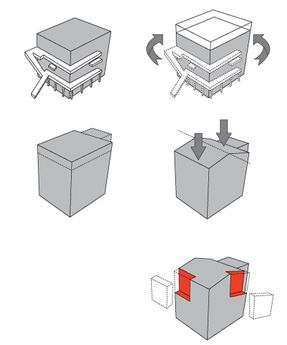

We acted on the building first through the simplification of the existing architecture, by removing all those superfluous elements (outside stairs, balconies, canopies and surfaces) that prevented a clear reading of the volumes.

Residential Building In Via Bellincione
© Barbara Corsico

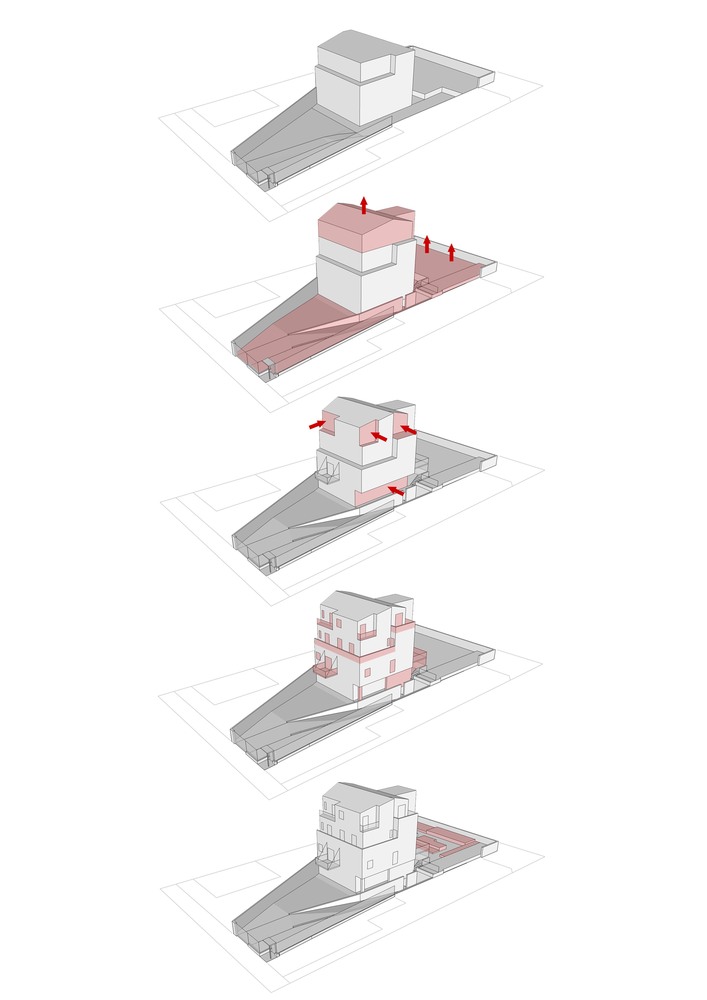

The volume thus "stripped" of its accretions was then shaped through two main actions: the adding of new parts and the “excavation” of others.

In order to clarify this volumetric composition the main surfaces of the volumes have been differentiated with two colours, dark gray and light gray. The facades design has been based on a modular grid on which we have set the composition of windows, balconies and cladding .

The covering is made of thin porcelain tiles directly applied on the coat insulation. Facades materials and colours integrate with the surrounding built landscape but the large format of the coating introduced a new element, giving us the possibility to modulate the size of the tiles and to create a light drawing.


Residential Building In Via Bellincione
Residential Building In Via Bellincione
Residential Building In Via Bellincione


Residential Building In Via Bellincione
Location
Residential Building In Via Bellincione
Site Plan


Residential Building In Via Bellincione
Section
Residential Building In Via Bellincione
Section


Residential Building In Via Bellincione

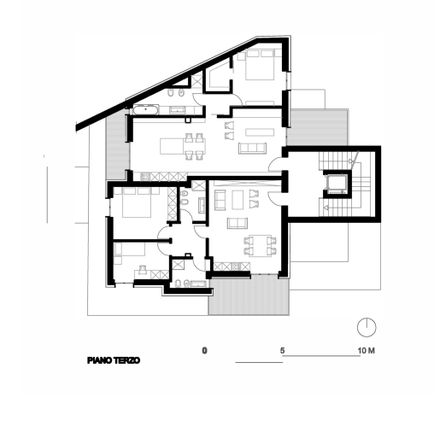

Floor Plan
Residential Building In Via Bellincione
Floor Plan
Residential Building In Via Bellincione
Floor Plan


Residential Building In Via Bellincione
Diagram
Residential Building In Via Bellincione
Diagram
Residential Building In Via Bellincione
Diagram


Residential Building In Via Bellincione
Elevation
Residential Building In Via Bellincione
Section
Residential Building In Via Bellincione
Elevation
