Moramarco + Ventrella Architetti

Casa CS

Casa CS
© Moramarco+Ventrella architetti

CASA CS

Moramarco+Ventrella architetti

ARCHITECTS
Moramarco+Ventrella architetti

COLLABORATORS
A.Berardi, A.Carannante

STRUCTURAL DESIGN
G.Pantaleo

Consultant
A.Esposito (progetto preliminare)

TYPE OF ASSIGNMENT
Progetto I Direzione Lavori

Constructor
Aresta Costruzioni

FACILLITIES
M. D’Eligio

BUDGET
350.000 euro

AREA
300.0 sqm

YEAR
2014

LOCATION
Bitritto, Italy

CATEGORY
Houses

Casa CS
© Moramarco+Ventrella architetti
Casa CS
© Moramarco+Ventrella architetti

Text description provided by architect.

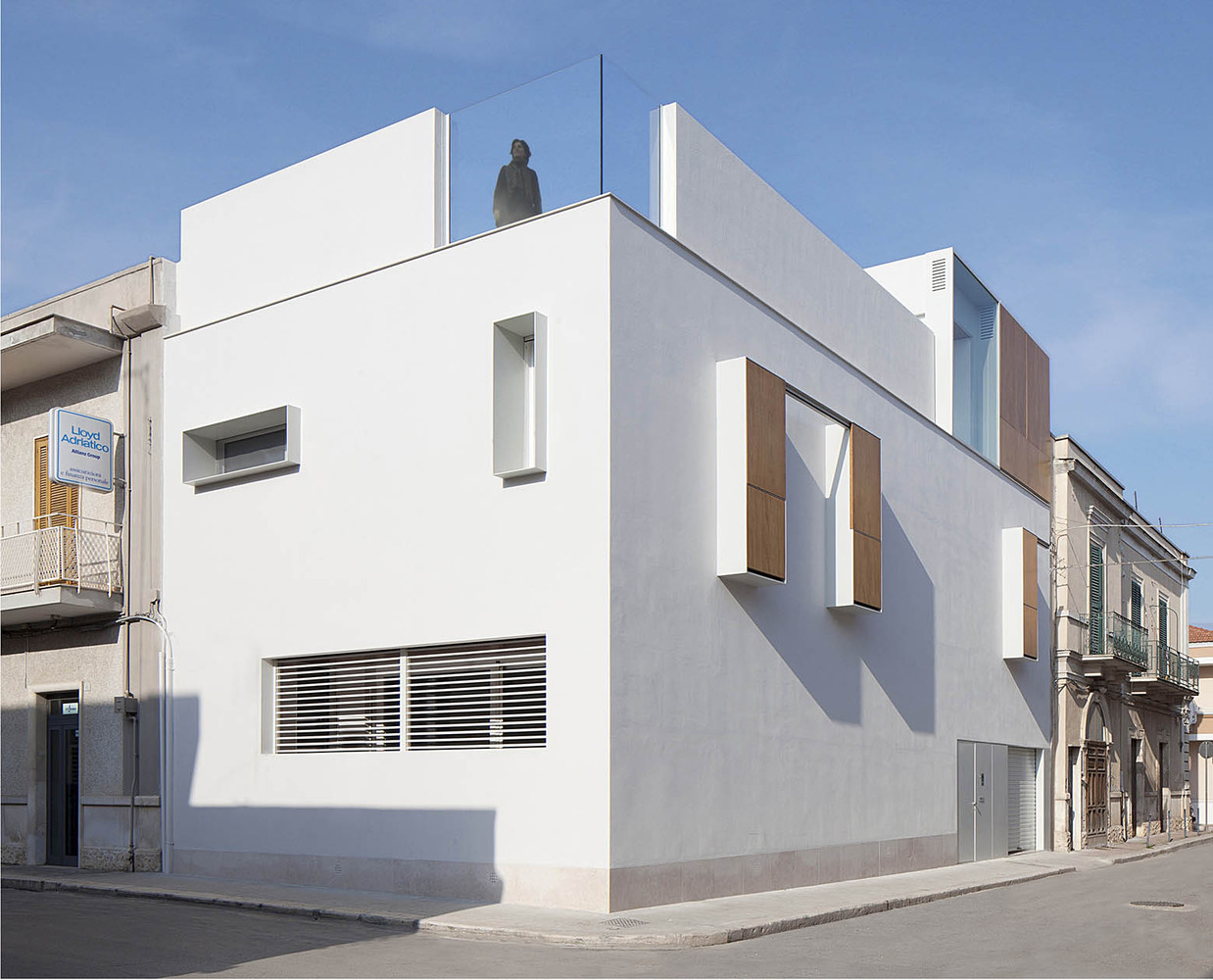

The building is a residential building located near the main square of Bitritto, a small town not far from Bari.

Casa CS
© Moramarco+Ventrella architetti
Casa CS
© Moramarco+Ventrella architetti

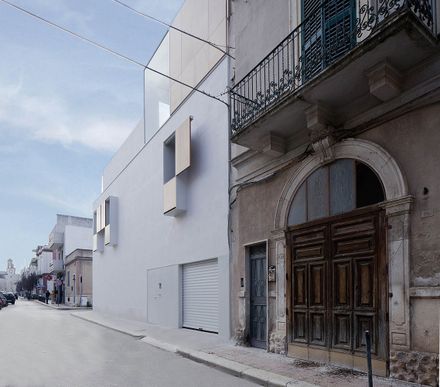

It is positioned in a corner lot, within a densely built part of the city, situated among buildings which differ greatly both in their quality and period.

The request of the client was to transform the building, formerly dedicated to different uses, into a solely residential building.

The project is essentially focused on the new relationships between the building and the surrounding urban context and between internal and external spaces of the house due to the new volume, first obtained by demolition operations and thesubsequent construction.

Casa CS
© Moramarco+Ventrella architetti
Casa CS
© Moramarco+Ventrella architetti
Casa CS
© Moramarco+Ventrella architetti

The building consists of a living area on the ground floor , a sleeping area on the first floor and a studio on the upper level where the strongest connection with the open space is created, due to the outer overlooking balcony.

It has been very important to solve the problem of giving natural light to the indoor spaces while at the same time keeping the privacy for themselves.

We thought to close off and lift ground zero: the east facade is totally windowless at the basement while the south one has been moved back and shaded using a brise-soleil, and a little green space created.

Casa CS
© Moramarco+Ventrella architetti
Casa CS
© Moramarco+Ventrella architetti

The stairwell has been totally transformed; the previous heavy concrete structure has been substituted with a hung steel structure with wooden steps.

It is a source of light, it brings a light beam from the large upper level window to the lower living room, illuminating all the interiors facing the stairwell.

Casa CS
© Moramarco+Ventrella architetti


Casa CS

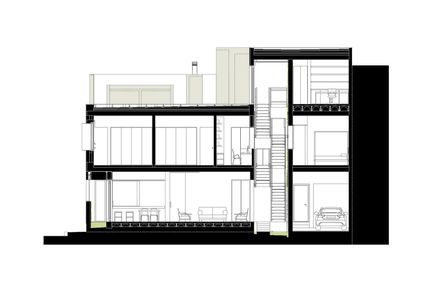

Section
Casa CS
Section
Casa CS
Section
Casa CS
Floor Plan


Casa CS
Floor Plan
Casa CS
Floor Plan
Casa CS
Exploded Isometric


Casa CS
Elevation
Casa CS
Elevation
