WOODEN BRICK HOUSE

Jaro Krobot

ARCHITECTS
Jaro Krobot

PHOTOGRAPHS
Martin Karšňák

AREA
93.0 sqm

YEAR
2014

LOCATION
Lučatín, Slovakia

CATEGORY
Houses

Text description provided by architect.

The house is built in Lučatín, a small village in central part of Slovakia. This fragile environment has clearly set the limits and inputs – volume of building, scale, urbanism of village, wood as a material – both structural and visual.

Wooden Brick House
© Martin Karšňák
Wooden Brick House
© Martin Karšňák

There has been an older brick house standing on the site of the new house. Its condition was poor, therefor it has been replaced by new construction. The volume of new house reproduces the original one.

Demolition of an old wooden barn in the rear of the property was not an easy decision, although it opened up a whole new view into the natural surrounding without disturbing the rhythm of street. Existing adjacent stone wall and coniferous trees were taken as fixed landmarks to communicate with.

Wooden Brick House
© Martin Karšňák
Wooden Brick House
© Martin Karšňák

House layout is a variation on the local traditional building – tree main spaces (- front room as a living area, kitchen in the middle, the back room - bedroom), connected by site corridor (called gang).

This corridor, extending trough the whole house is formed into functional spaces (entrance, storage spaces). Alltechnical equipment is concentrated in central core to minimize plumbing.

Wooden Brick House
© Martin Karšňák
Wooden Brick House
© Martin Karšňák
Wooden Brick House
© Martin Karšňák

Due to the character of the site, environmental impact got into consideration. In addition to the structure of wood it was also planned to reuse materials from old building and barns.

This has been achieved only in part - an old house was dismantled and the material distributed to other constructions in the area, but wood of barn was not healthy and could not be used as cladding material as intended. Still, all supplier firms were taken from the surrounding area.

Construction of the house is wooden - in this case, the Swiss system called STEKO, developed in collaboration with ETH Zurich. These are bricks made of solid spruce wood, which can be filled with different insulation.

Wooden Brick House
© Martin Karšňák
Wooden Brick House
© Martin Karšňák
Wooden Brick House
© Martin Karšňák

The wooden part of the building including the roof has been built in five days, which is a big advantage of this kind of construction.


Wooden Brick House
Model 1
Wooden Brick House
Model 2
Wooden Brick House
Model 3
Wooden Brick House
Model 4
Wooden Brick House
Model 5
Wooden Brick House
Model 6


Wooden Brick House
Elevation


Wooden Brick House
Section 1
Wooden Brick House
Section 2
Wooden Brick House

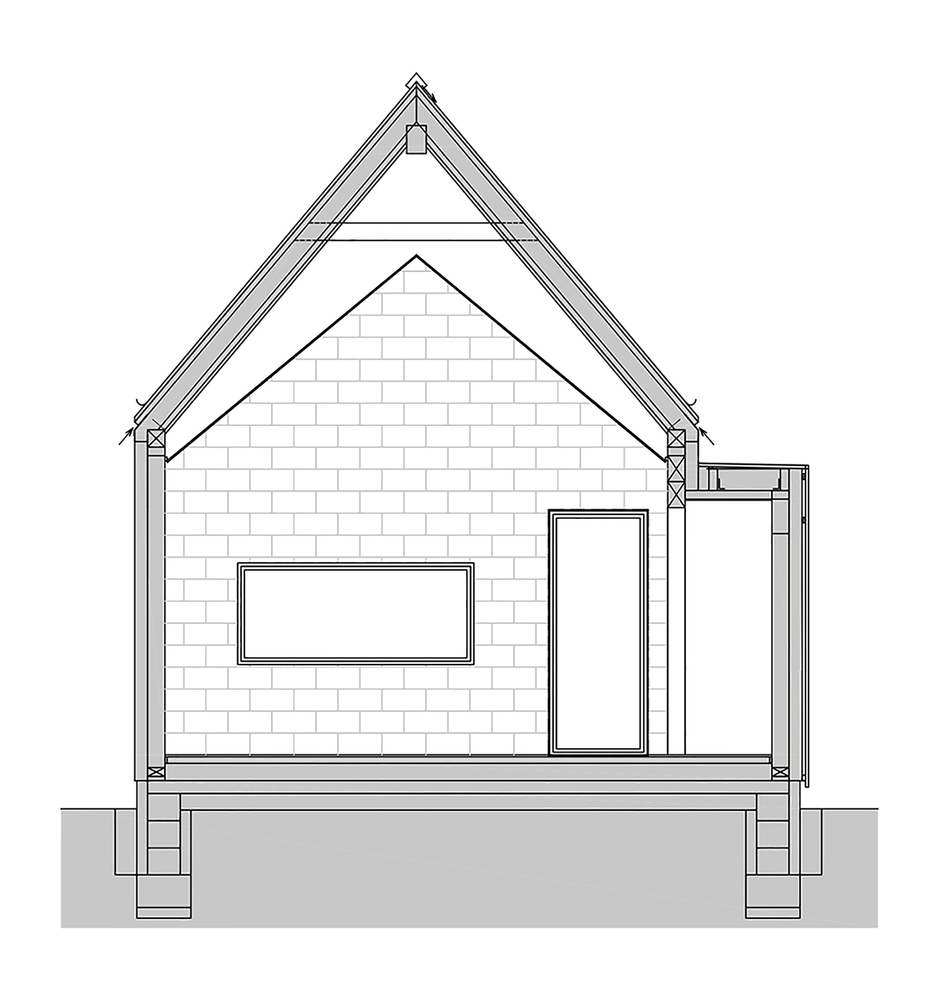

Section 3


Wooden Brick House

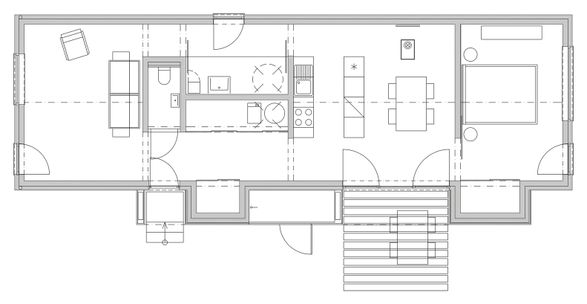

Floor Plan
Wooden Brick House
Site Plan
