Nomadic Shelter

Nomadic Shelter
© Piotr Paczkowski

NOMADIC SHELTER

SALT Siida Workshop

ARCHITECTS
Salt Siida Workshop

TUTORING
Sami Rintala, Joar Nango, Roger Mullin, Alberto Altés, Håvard Arnhoff

ARCHITECTS & BUILDERS
Simon Bengtsson, Josep Garriga Tarrés, Benny Kwok, Mihai Mardare, Piotr Paczkowski

PHOTOGRAPHS
Piotr Paczkowski

YEAR
2014

LOCATION
Fylkesveg 475 160, 8140 inndyr, Norway

CATEGORY
Cabins & Iodges

Text description provided by architect.

These two words: nomadic and shelter, reflect the very needs of the people from Nordic traditions.

The intervention is to create a very simple prototype shelter for fire, sleep and meetings.

Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski

A playful sequence of functional spaces is created using the module of an inhabitable wooden box.

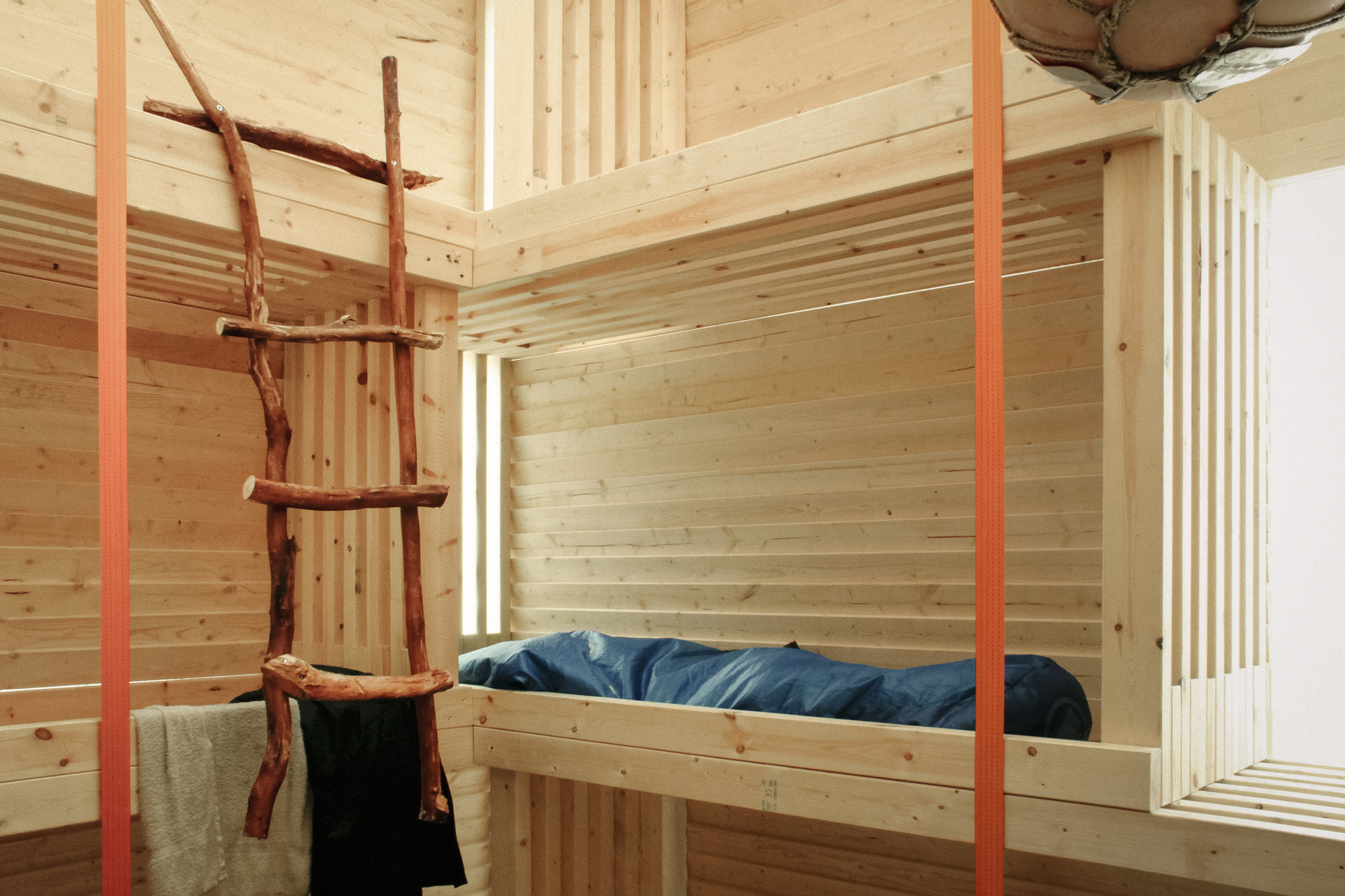

These wooden boxes, designed to the dimensions of an optimal comfortable area for sleeping and seating, are stacked around the fire as a sleeping shelter, opening new possibilities of gathering and living.

Like in vernacular Lávvu tents the fire becomes the heating core and defines the natural reason to meet with others, triggering conversations across various levels of the building.

Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski

The shelter is meant to be temporary, easy to transport, expand or mass produce, not only hosting nomads, but being nomadic itself.

The building system of has been optimized by using only two modular boxes: 2,40 x 1,20 x 0,80 m and 3,20 x 1,20 x 0,80 m.

Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski

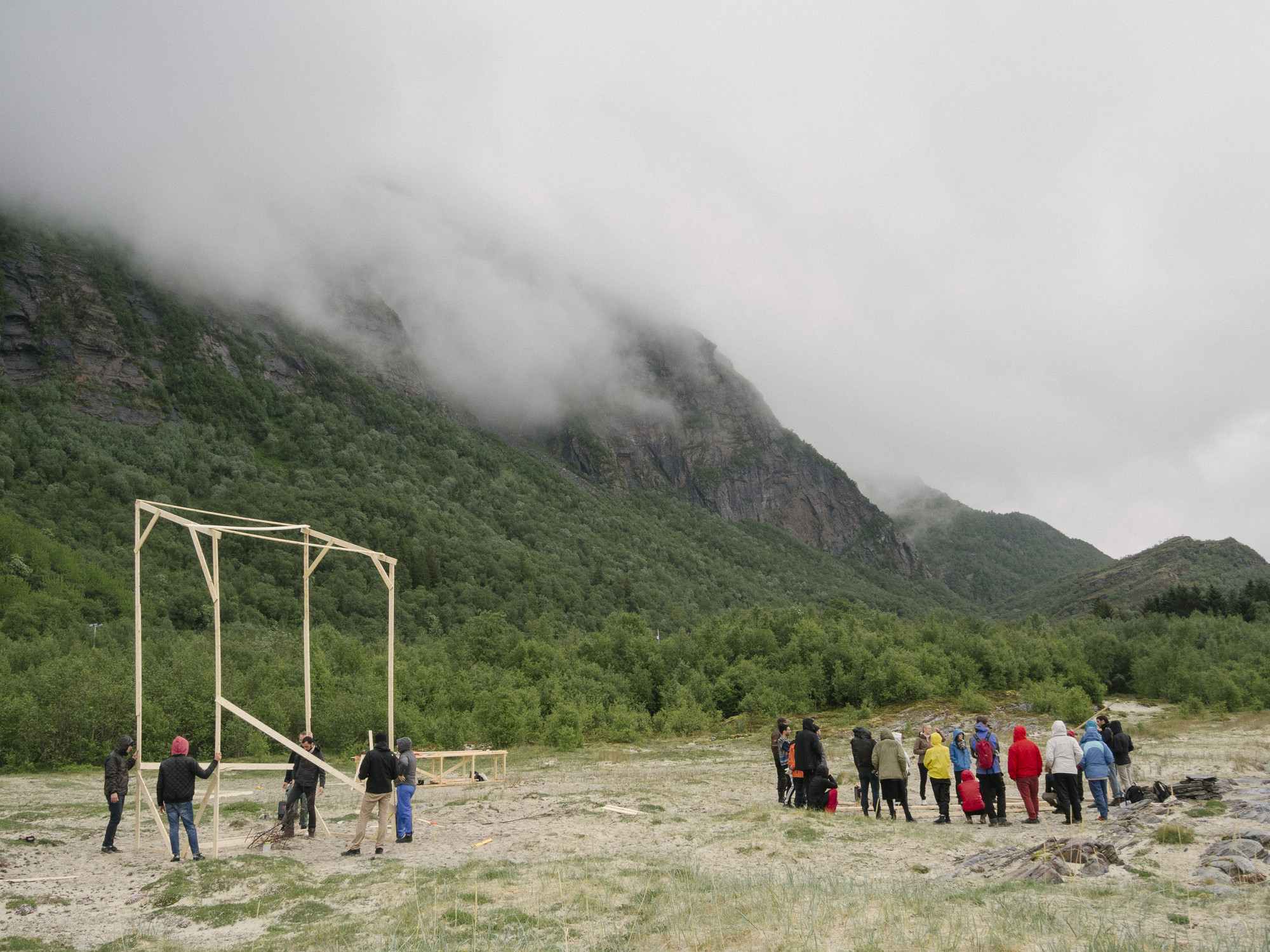

Thirteen boxes are stacked on top of each other using only manpower and then secured together with screws and straps, reaching a height of 4,80 m and safely accommodating up to 12 people.

Through combining different box sizes the interior space becomes vivid and appropriable, yet some of the levels are more suitable to serve as benches or chairs.

Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski

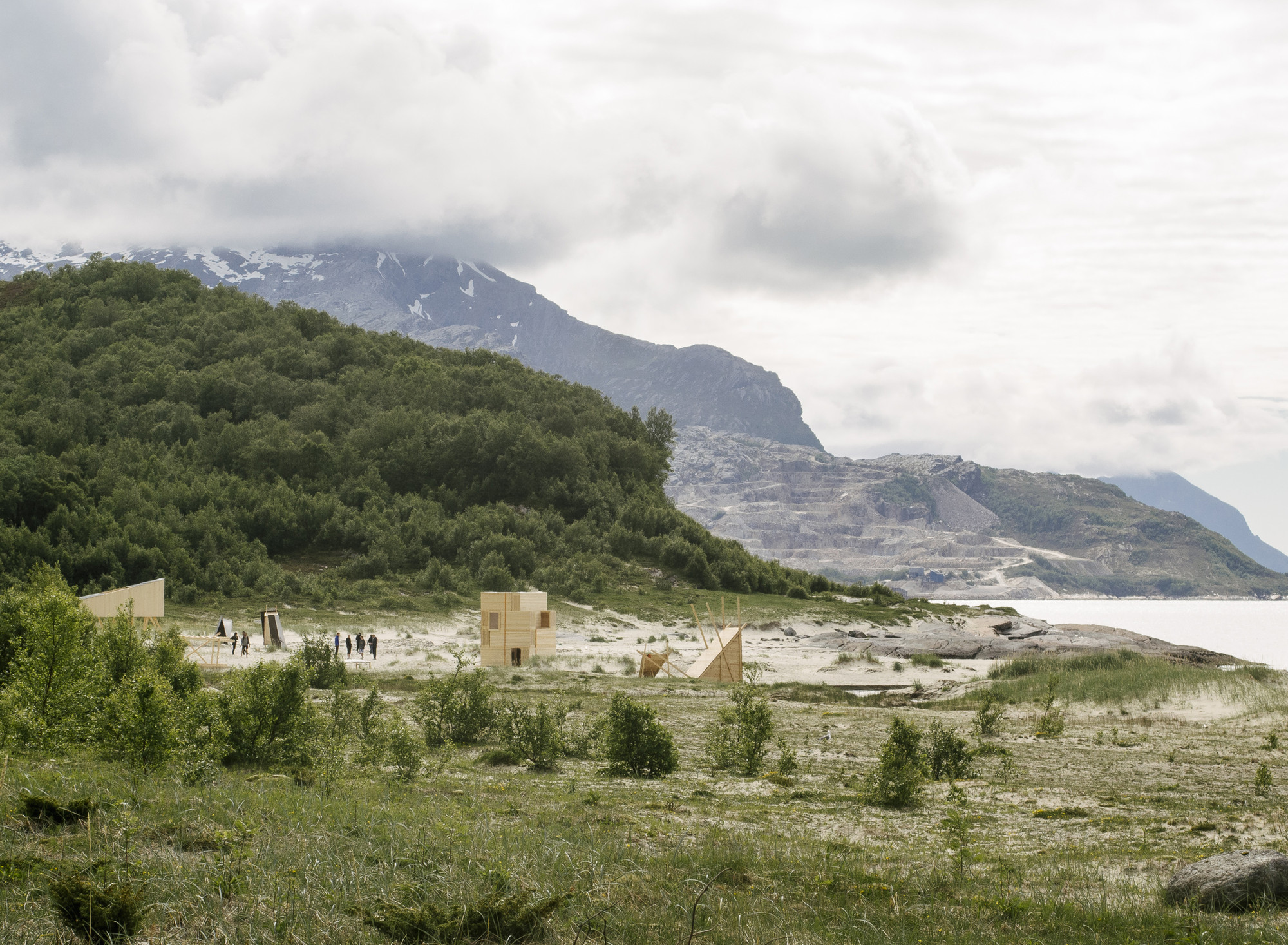

The stackable shelter connects to the astonishing Norwegian landscape with windows framing the Norwegian Sea and the mountains and a northern balcony, a very unique viewpoint towards the midnight sun.

Each box is built up from a corner finger-joint of 2x4 inch timber logs fixed with screws.

An outdoor cladding layer out of overlapped 1x4 inch planks makes each box windproof and waterproof against the harsh cold Artic weather.

Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski

This simple and logic system merges the high structural strength of the 2x4 inch timber logs with relatively lightweight modules and a uniform visual aesthetic quality.

The layout can be reconfigured, to upscale or downscale the final volume, while the boxes are easy to unstack, transport and reassemble.

The ease of construction and the choice of materials, which can be reused or recycled, enhances the temporary feeling of the built space and makes a strong sustainable statement.

Nomadic Shelter
© Piotr Paczkowski


Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski


Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski
Nomadic Shelter
© Piotr Paczkowski


Nomadic Shelter
Ground floor plan
Nomadic Shelter
Second floor plan
Nomadic Shelter
Third floor plan
Nomadic Shelter
Forth floor plan


Nomadic Shelter
Section 1
Nomadic Shelter
Section 2


Nomadic Shelter
Axonometric 1
Nomadic Shelter
Axonometric 2
Nomadic Shelter
Axonometric 3
Nomadic Shelter
Axonometric 5
Nomadic Shelter
Axonometric 6
Nomadic Shelter
Axonometric 7


Nomadic Shelter
Diagram 1
Nomadic Shelter
Diagram 2
Nomadic Shelter
Diagram 3
