Amir Mann - Ami Shinar Architects & Planners Ltd.

Pernick Academic and Administration Building

Pernick Academic and Administration Building
© Aviad Bar Ness

PERNICK ACADEMIC AND ADMINISTRATION BUILDING

Amir Mann- Ami Shinar Architects and Planners

CATEGORY
University

LOCATION
Ramat gan, Israel

AREA
4250.0 sqm

ARCHITECTS
Amir Mann / Ami Shinar Architects And Planners

PROJECT YEAR
2014

Text description provided by architect.

This project is the first step in the implementation of our overall master plan for the renewal of the Shenkar Campus, won after an architectural competition in 2008.

Pernick Academic and Administration Building
© Aviad Bar Ness
Pernick Academic and Administration Building
© Aviad Bar Ness

Our plan calls for the renovation of old buildings step by step, as well as creating new ones, eventually forming the “Shenkar Yard” – a large outdoor space for student activities and social interaction at the heart of this compact urban campus.

The renovated2,200 sqm Pernick Building with the additional 2,250 sqm in two new floors, house the Fashion department, Textile Design, Industrial Management, Chemistry, Computer Sciences and Department of Administration and Management.

Pernick Academic and Administration Building
© Aviad Bar Ness
Pernick Academic and Administration Building
© Aviad Bar Ness

The old building was entirely encased by an exterior structural steel frame supporting the two new floors, while also strengthening the existing structure for earthquake resistance.

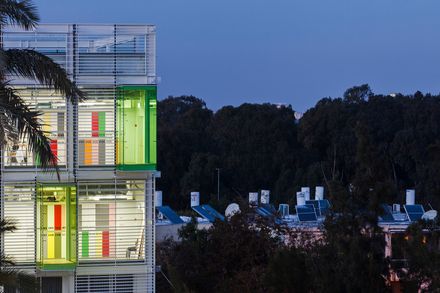

Aluminum louvers were installed within this frame in varying densities, creating a mesh-like façade, an architectural “fabric” that unite old and new, as well expressing the essence of fashion design.

Pernick Academic and Administration Building
© Aviad Bar Ness
Pernick Academic and Administration Building
© Aviad Bar Ness

Colored all-glass bay window or "boxes" penetrate this layer outward at random. Here students will display their designs to the public, while creating a dialogue between the future designers and the adjacent urban fabric around.

The studios within the new floors expose their steel construction, as well as all mechanical and electric systems, all colored in white and carefully coordinated.

This architectural vocabulary echoes the basics of the industrial nature of the College at large, especially that of Fashion Design Department, based on layers and textures, while associate with the old mill spaces of the industrial era.

Pernick Academic and Administration Building
© Aviad Bar Ness
Pernick Academic and Administration Building
© Aviad Bar Ness

The partitions between the studios and the main hallway comprise of two meter high drywall niches with glass above, through which the exposed systems penetrate.

Clusters of lockers, colored in random compositions are installed within these partitions, creating a dynamic spatial quality, while the exterior louvers and the colored glass boxes create ever changing reflections of light and shadows, day and night.

Pernick Academic and Administration Building
© Aviad Bar Ness
Pernick Academic and Administration Building
© Aviad Bar Ness

Beyond the program and design challenges, the complexity of this project arose from both its tight budget as well as the necessity to construct it in stages only at semester breaks.

The project was awarded as the best educational building, 2014 by DOMUS magazine, Israel.

Pernick Academic and Administration Building
© Aviad Bar Ness


Pernick Academic and Administration Building
Floor Plan


Pernick Academic and Administration Building
Master Plan
Pernick Academic and Administration Building
Master Plan


Pernick Academic and Administration Building

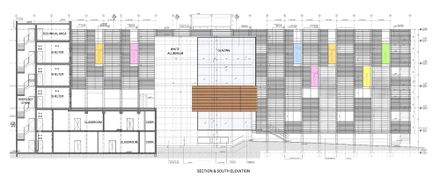

Section

Pernick Academic and Administration Building
Section
Pernick Academic and Administration Building
Section
