SONGJIANG ART CAMPUS

Archi-Union Architects

ARCHITECTS
Archi-union Architects

LOCATION
Shanghai, China

CATEGORY
Campus, Cultural Architecture

AREA
150000.0 m²

YEAR
2015

PROJECT TEAM
Alex Han, Hyde Meng, Gu Hongbing, Kong Xiangping, Wang Ou, Zhang Xiangjun

STRUCTURE
Shi Rongwei, Lu Renrui, Zhang Xinhua

MEP
Shi Rongwei, Lu Renrui, Zhang Xinhua

Text description provided by architect.

The project is located at Xinqiao Town, Songjiang District, a suburb of Shanghai. How to address the local culture and context and create new urban space became the main concern of this project.

Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus
© Archi-Union Architects

Songjiang, as the cradle of Shanghai’s history and culture, has been overdeveloped during recent years.

This rapid and chaotic development raises the problem of cultural vacuum. Many public spaces are seldom used and the green parks are lack of social activities.

We try to reorganize the space through integrating the systems of pedestrian and green lands. A compact street layout realized close relationship with neighborhood.

Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus
© Archi-Union Architects

Meanwhile, green areas weave into the base of the site and build up a corresponding relationship with the existing river, resulting in an integrated space of water, green and architecture.

The landscape system, which is an important element of this project, is considered as an infrastructure system of the whole project.

Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus

It connects traffic, views and service facilities in the campus, brings unique value to individual building, and realizes the traditional Chinese scenery of garden, lake and laneway.

The high density and FAR value of the site are the two main problems we need to resolve in this project. We try to create a multilayer high-density hybrid art campus through architectural design.

Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus
© Archi-Union Architects

The program of the campus was blurry at start of the development. We proposed an integrated community with programs such as office, art studios and social art areas to the client. On one hand, through the prototype design, we explore the possibility of flexible spatial combination within the basic column grids.

The resulting combined space is built upon a simple module. On the other hand, the commercial programs along the street provide service, collection and trading function, promoting communications with the external world.

Songjiang Art Campus
Songjiang Art Campus
© Archi-Union Architects

Every building has its own characteristic. Different combination between landscape and semi outdoor spaces like balcony, terrace and courtyard, improves the artistic quality of each unit.

As a result, the artists can always take what they need in the campus and the spaces are often flexible for different kinds of art events.

Through the prototypical combination and spatial planning of a basic functional space, the design realizes the beneficial combination of the industry chain and provides potential opportunities for future development.

Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus
© Archi-Union Architects

For the construction of the architectural unit, we focus on the application of digital design within a tight project budget. The rational geometric logic is expressed by a simple fabrication method to realize the contemporary value of traditional building material.

Through careful design of architectural elements like beam, column and facade panel, the structure exposes itself showing the nature beauty of the building.

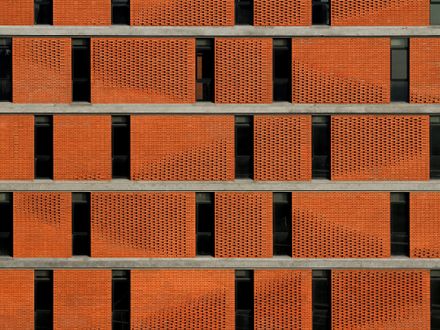

The use of red shale brick, the glass and the concrete reflect the tectonic relationship of different material, bring overall harmony to the building. The traditional stretching and header brick laying method is reinterpreted by the non-linear logic of computational design.

Songjiang Art Campus
© Archi-Union Architects
Songjiang Art Campus
© Archi-Union Architects

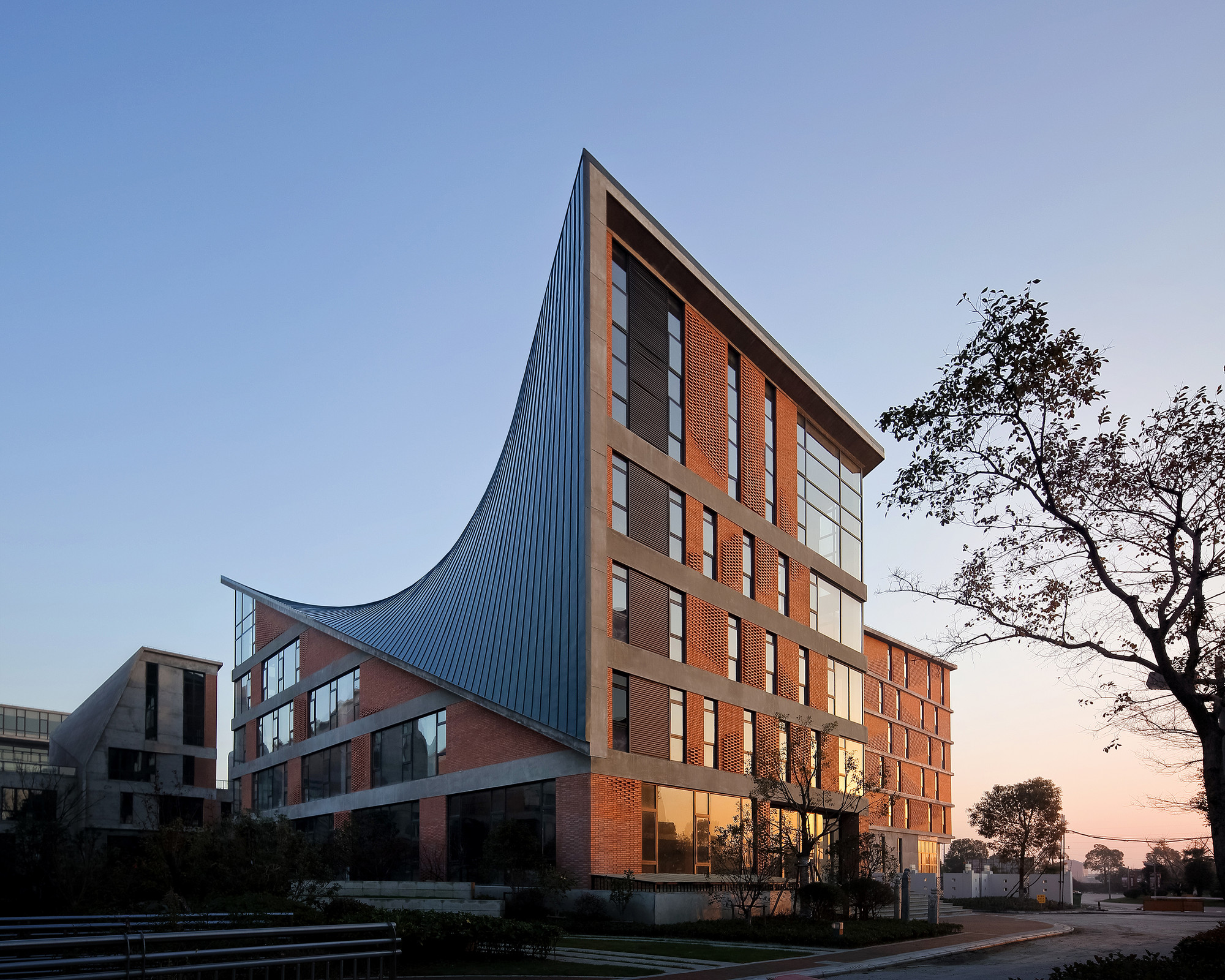

The simple positioning and numbering methods translated from digital design media are easy and economical for the local builders to apply. The twisted roof of the club house at the entrance of the campus proposes a powerful gesture to the public.

The relationship between the twisted roof and sky varies via changes of observing location. The accurate laying of the titanium zinc panels is successfully achieved through the guidance of geometrical ruled surface.


Songjiang Art Campus
Master Plan 1
Songjiang Art Campus
Master Plan 2


Songjiang Art Campus

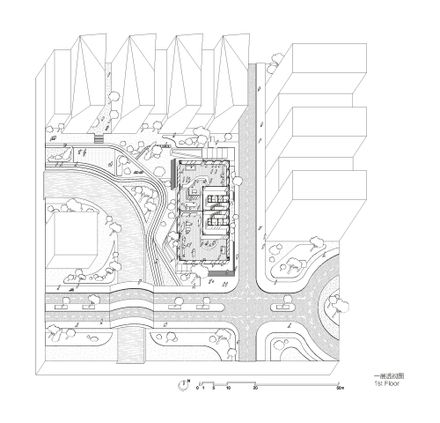

First Floor Plan
Songjiang Art Campus
Second Floor Plan
Songjiang Art Campus
Third Floor Plan
Songjiang Art Campus
Fourth Floor Plan
Songjiang Art Campus

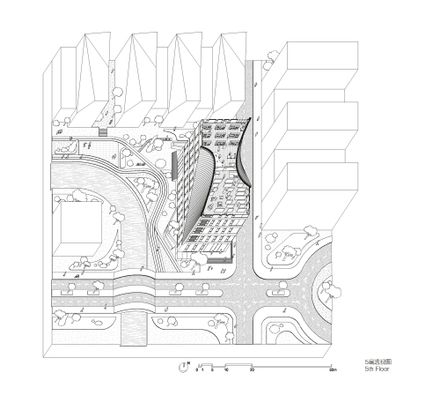

Fifth Floor Plan
Songjiang Art Campus
Roof Plan


Songjiang Art Campus

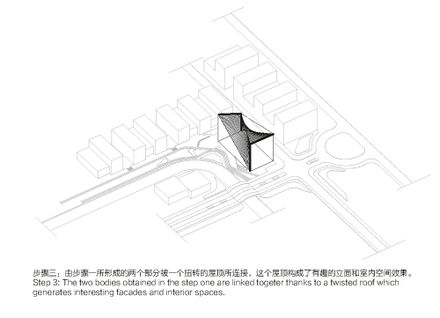

Diagram 1
Songjiang Art Campus
Diagram 2
Songjiang Art Campus
Diagram 3
Songjiang Art Campus
Diagram 4


Songjiang Art Campus
Typology A

Songjiang Art Campus
Typology B
Songjiang Art Campus
Typology C


Songjiang Art Campus
Construction Details
Songjiang Art Campus
Structure


Songjiang Art Campus

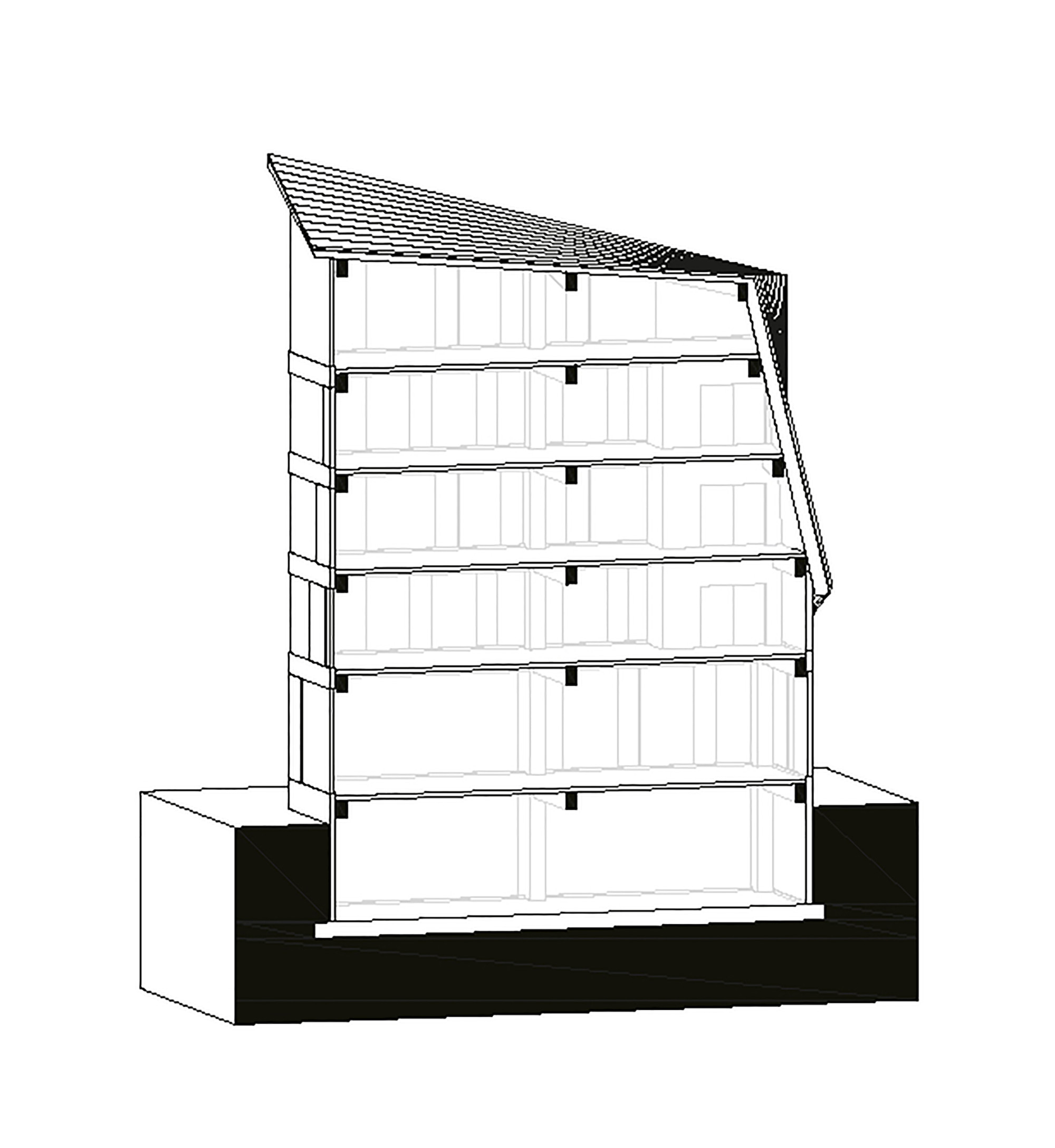

Diagram Section 1
Songjiang Art Campus
Diagram Section 2
Songjiang Art Campus
Diagram Section 3
Songjiang Art Campus
Diagram Section 4
Songjiang Art Campus
Diagram Section 5
Songjiang Art Campus
Diagram Section 6
Songjiang Art Campus
Diagram Section 7
Songjiang Art Campus
Diagram Section 8
