PIR2 Oslo, AS

Cabin Ryfylke

CABIN RYFYLKE

Pir II Oslo + Resell Nicca

Cabin Ryfylke
© Olav Resell

MANUFACTURERS
Accoya, Minera Skifer, INNTEC

ARCHITECTS
Pir ii Oslo, Resell Arkitektur

CATEGOTY
Houses

LOCATION
peland, Norway

AREA
120.0 m2

PROJECT YEAR
2014

PJØRHOTOGRAPHER
Olav Resell

Cabin Ryfylke
© Olav Resell

Text description provided by architect.

The cabin is situated in gently sloping terrain on a lush small island northeast of Stavanger.

The island has no road connection to the mainland, and all building materials have therefore been taken over by boat.

The enclosing form is chosen to create a protected and sunny outdoor space with views over the fjord to the south. In this area of the country the general rule is that winds from the north bring clear skies and sunny weather.

Cabin Ryfylke
© Olav Resell
Cabin Ryfylke
© Olav Resell

On the south side of the cabin, one is thus protected against the strongest winds during good weather.

The cabins common spaces, such as living room, dining room and kitchen caters onto this side, while the majority of bedrooms and wet rooms are located on the opposite side, where they lie sheltered facing the forest.

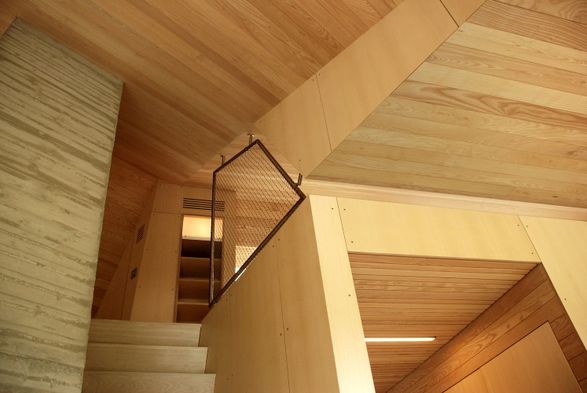

The cabin has an upper level, accessible via stairs from the kitchen/entrance area, designed for different kinds of use.The outer room is strongly connected to the other common spaces, while the inner is a separate unit.

Cabin Ryfylke
© Olav Resell
Cabin Ryfylke
© Olav Resell

Window openings have been made in roof and walls to ensure visual contact with the fjord and the surroundings.

The client wanted maximum utilization of the permissible built-up area, and had specific requirements as for how many people would be able to stay at the cabin simultaneously.

In order to meet these wishes the amount of areas only used for movement is reduced to a minimum, while the entire upper level has a height that makes these areas not included in the total square footage.

Cabin Ryfylke
© Olav Resell
Cabin Ryfylke
© Olav Resell

Furthermore, the design of integrated and space-saving solutions for beds, cupboards and other storage has made it possible to create compact, yet versatile spaces.

A Norwegian slate stone is used on the outer shape of the facade, while counter-sunken areas of the facade are clad with a wooden paneling.

The diamond shaped slate is stretched longitudinally and format sizes are pushed towards the maximum of what is possible to extract.

Cabin Ryfylke
© Olav Resell
Cabin Ryfylke
© Olav Resell

The slate is dark grey/black and contains iron, which gives a natural color changing play under different weather and lighting conditions.

The wooden cladding is made of acetylated wood, which has a stability that has made it possible to work with a very high level of precision.

In all transitions without the danger of movement and displacement. Ash is chosen as the main interior material, and it is used in various forms: as paneling on ceiling and walls.

Cabin Ryfylke
© Olav Resell
Cabin Ryfylke
© Olav Resell

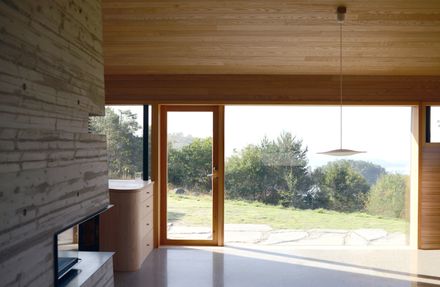

Plywood on walls and solid furnishings, and as solid wood flooring on the upper floor. A key element in the cabin is the concrete structure in the living room.

It is cast with horizontal paneling formwork, and houses a wood burning stove that function as a fireplace when open and as an oven when closed. The structure acts as a heat storage element in the cabin.

Cabin Ryfylke
© Olav Resell


Cabin Ryfylke
Section AA
Cabin Ryfylke
Section CC
Cabin Ryfylke

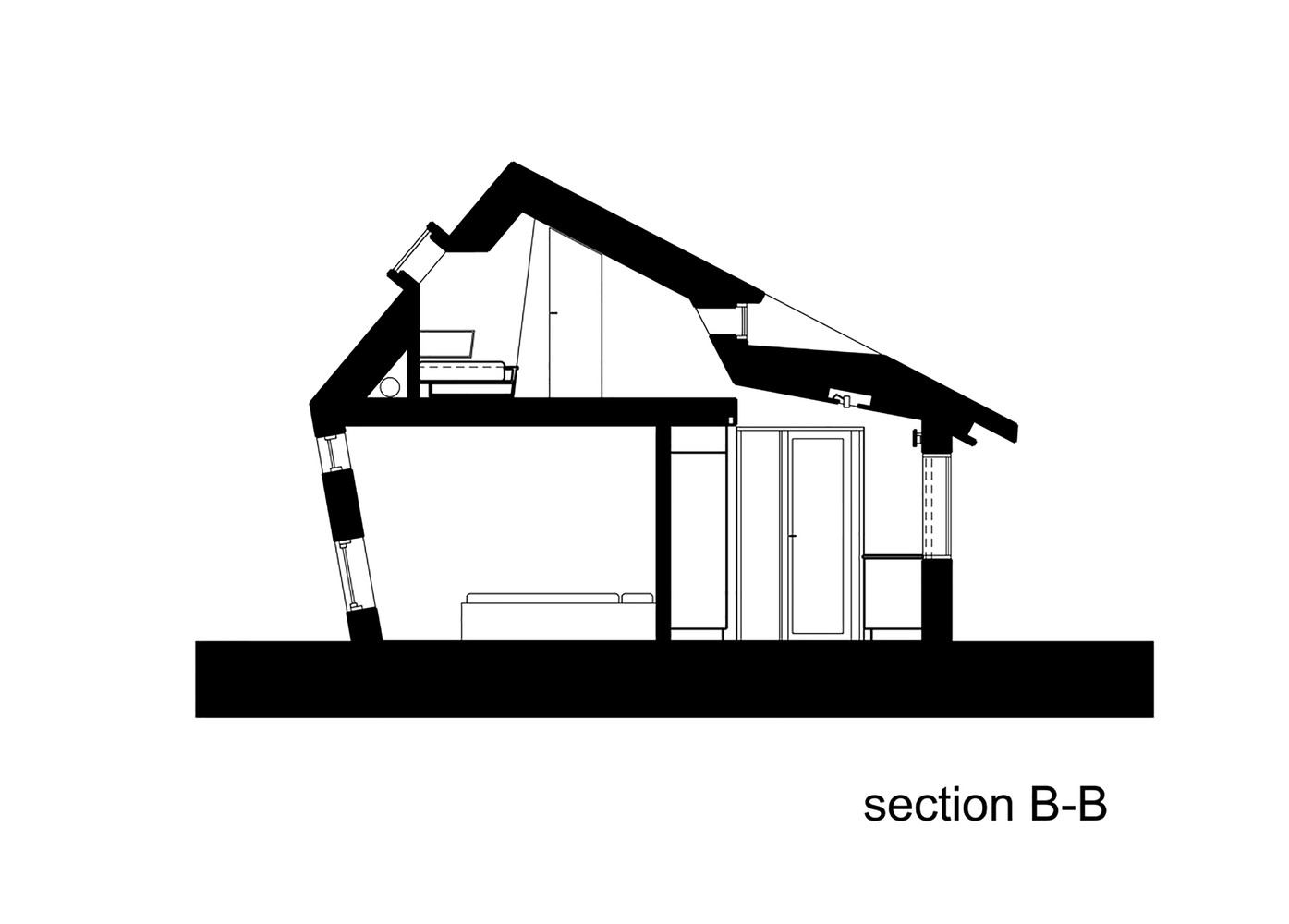

Section BB


Cabin Ryfylke
East Elevation
Cabin Ryfylke
South Elevation
Cabin Ryfylke
West Elevation

Cabin Ryfylke
Ground Floor Plan
