Atelier Oslo, AS

Cabin Norderhov- Raman

Cabin Norderhov- Raman
© Lars Petter Pettersen

CABIN NORDERHOV

Atelier Oslo

ARCHITECTS
Atelier Oslo

MANUFACTURERS
Aps Aluminium Profil Systemer As, Focus

PHOTOGRAPHER
Lars Petter Pettersen, Jonas Adolfsen

AREA
80.0 m2

PROJECT YEAR
2014

LOCATION
Norderhov, Norway

CATEGORY
Cabins

Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen

Text description provided by architect.

The project is located in Krokskogen forests, outside the town of Hønefoss. Its location on a steep slope gives a fantastic view over the lake Steinsfjorden.

The site is often exposed to strong winds, so the cabin is organized around several outdoors spaces that provide shelter from the wind and receives the sun at different times of the day.

Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen

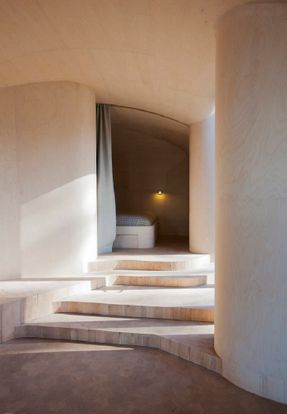

The interior is a shaped as a continuous space. The curved walls and ceilings form continuous surfaces clad with 4mm birch plywood.

The floor follows the terrain and divides the plan into several levels that also defines the different functional zones of the cabin.

The transitions between these levels create steps that provide varies places for sitting and lying down.

Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen

The fireplace is located at the center of the cabin, set down in the floor of the main access level.

This provides the feeling of a campfire in the landscape. Large glass walls are located in the living and dining areas.

Seen from all levels in the cabin, you can enjoy the fireplace from far away or lying down next to it.

Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen

Large glass walls are located in the living and dining areas.

The frames of the glass are detailed carefully to avoid seeing it from the inside.

Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen

This creates a more direct relationship with the nature outside.

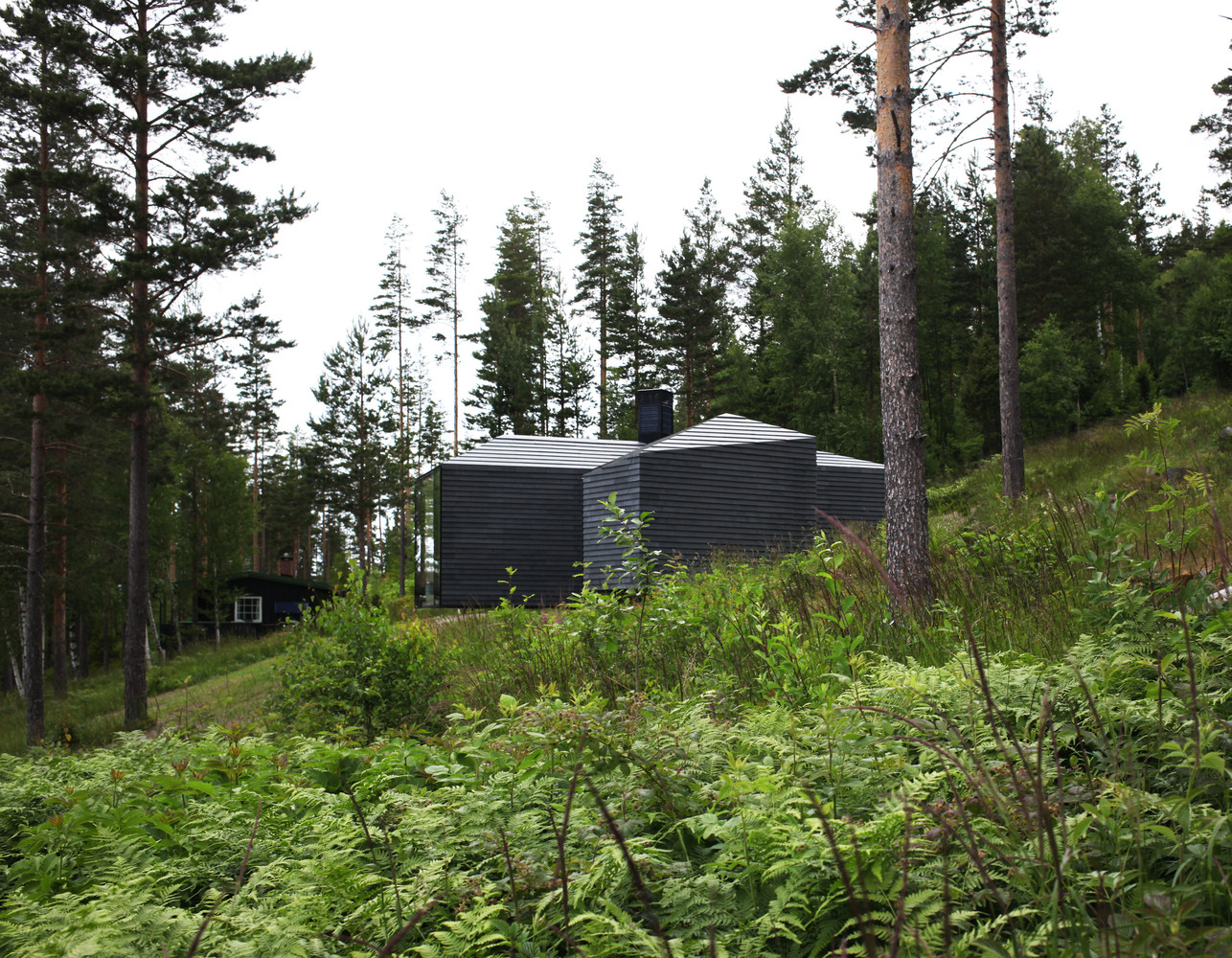

Outside, the cottage has a more rectangular geometry and the walls and roofs are covered with 20mm basalt stone slabs laid in a pattern similar the ones often used for traditional wooden claddings in Norway.

The lodge consists mainly of prefabricated elements. The main structure is laminated timber completed with a substructure of Kerto construction plywood.

Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen

The Kerto boards are CNC milled and defines the geometry both externally and internally.

The cabin is supported by steel rods drilled directly into the rock, supplemented with a small concrete foundation under the fireplace for stabilization.


Cabin Norderhov- Raman
 © Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen
Cabin Norderhov- Raman
© Lars Petter Pettersen


Cabin Norderhov- Raman
Elevation
Cabin Norderhov- Raman
Section
Cabin Norderhov- Raman
Floor Plan


Cabin Norderhov- Raman
Detail
Cabin Norderhov- Raman
Detail
Cabin Norderhov- Raman
Detail
Cabin Norderhov- Raman
Detail
Cabin Norderhov- Raman

Detail


Cabin Norderhov- Raman
Section
Cabin Norderhov- Raman
Elevation


Cabin Norderhov- Raman
Floor Plan
