Ayaltointegral, S.L.

Gibraltar University

GIBRALTAR UNIVERSITY

Ayaltointegral

Gibraltar University
© David Frutos

ARCHITECTS
Ayalto Integral

BUILDING COMPANY
Casais l.t.d

COLLABORATOR ARCHITECTS
Pedro Carcelén Fernández

FACADE
Setenta l.T.D

DEVELOPER
Gibraltar Government

ARCHITECT IN CHARGE
Xavier Ozores

QUANTITY SURVEYOR
Jorge Carcelén Fernández

PHOTOGRAPHS
© David Frutos

AREA
5137.0 m2

YEAR
2015

LOCATION
Europa Point, Gibraltar Gx11 1aa, Gibraltar

CATEGORY
University, Refurbishment

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

Text description provided by architect.

Since the first time we visited the barracks located at Europa point we take account of the great possibilities of this project, or his location (N-S orientation and impressive sea views) as well as for the buildings intrinsic value as cultural heritage (antiquity, materials, and interior brick vaults).

Firstly we focus our intervention on pulling down all the structures added on different moments for the uses placed during the complex´s life.

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

After trying, unsuccessfully, to locate all the large programme of necessities in the existing buildings when we realize that we need to build two new buildings.

By this time we made the decision of arrange and promote this “in between spaces”, as a goal for the project.

THE COURTYARD

We have previously decided to refurbish the existing buildings for the Academic Staff Offices (because of its north light and a certain independence from the Common Teaching Facilities) when we decide to develop some new volumes to complete the necessities program.

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

This new buildings give us the chance of restore the original trace. This new enclosure appears like a sort of “cloister” with a new private garden.

THE ATRIUM

In order to organise the program´s circulations we took advantage of two axis, North-South and East-West.

The first one sets a circulation from the north entrance, courtyard, and goes across the main building to the barracks. We change vertical communications (stairs and lift) to this point.

The west-east axis (parallel to the main building façade) defines the two new entrances to the university.

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

Were this two axis cross each other is our new central point for the university. For this reason we make the decision of relocate in this place all the representative areas (Main reception, Learning Café, Main Hall...etc) to promote social interaction and a natural exchange of knowledge and experiences between academic staff, students and visitors.

From our point of view this should be the aim of the university and the project´s principal consideration.

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

This space needs to link all the activities and take advantage of the important slope (from the principal building to the barracks) to develop a double height atrium.

We cover up this space with thermic glaze and a white steel frames (equipped with brisoleis) to create an Impluvium of changing natural light.

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

This social interaction areas are kept more formal on the ground level, and more informal on the basement level (closer to the university´s refectory). Even though both areas share this central atrium.

MAIN BUILDING

We tried to keep its character of the XVIII century main building placing all the representative areas, like Managing Unit, Library, Study Areas and Main Hall (in the N-S axis) in it.

Gibraltar University
© David Frutos
Gibraltar University
© David Frutos

BARRACKS

We decide to use this interesting rooms to set in them all shared needs for both qualifications, like Common Teaching Facilities, Offices for Support Staff, Toilets, and Staff room...etc. We set all classroom in a central place whereas all the complementary uses are moved to the ends.

NEW BUILDINGS

We build two prismatic volumes, each side of the atrium, to locate the Faculty of Health studies and the Faculty of Hospitality.

Gibraltar University

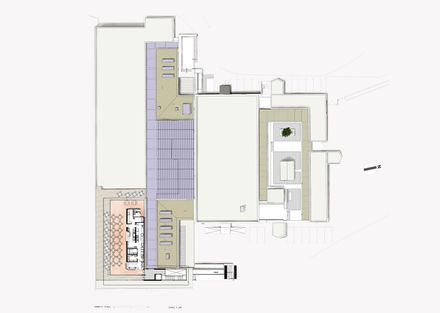

Floor Plan
Gibraltar University
Floor Plan

This blind boxes look for zenithlightning by sky lights on the ground level, and look like there are support by metal profiles on the basement level.We tried to make change the façade with the purpose of create a new user´s sphere in each level.

We tried to make change the façade with the purpose of create a new user´s sphere in each level. With an independent entrance close to the main access, we locate the restaurant on top of the current barracks.

Gibraltar University
Floor Plan
Gibraltar University
Floor Plan

We have tried to generate a clear and open space only, produced with glaze steel frames and shadows. Barely defined by a light roof we tried to take advantage of the exceptional views of Africa on top of Europe point.


Gibraltar University
Section
Gibraltar University
Sketch
Gibraltar University
Detail
