CHRYSALIS CHILDCARE CENTRE

Collingridge and Smith Architects

LOCATION
AUCKLAND, NEW ZEALAND

CATEGORY
School

AREA
800.0 m²

YEAR
2015

QS
Kwanto

BUILDER
Keola homes ltd

PLANNERS
Planning Focus

LANDSCAPER
Playscapes

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

Text description provided by architect.

The site is in a commercial zone and is dominated by two mature protected trees, with driplines that cannot be built under.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

This makes the site uneconomic for most commercial uses but actually presents a unique and beautiful opportunity for a childcare centre.

Our brief was to create a unique and innovative childcare centre capturing the cultural and spiritual values of the area.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

Our starting point was the site itself which presented both the problem and the solution: the trees.

For most developers the trees have been a big problem, but for early childhood they provide a beautiful and symbolic solution.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

One is an English Oak tree, the other a native Pohutakawa, both of equal size and stature, standing side by side, their branches touching at the heart of the site.

This symbolism forms the basis for the whakapapa of the site and its new use: a bi-cultural (and multicultural) childcare centre.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

In the traditional Maori view, the trees also represent Tane who separated Rangi and Papa to create the world (of light).

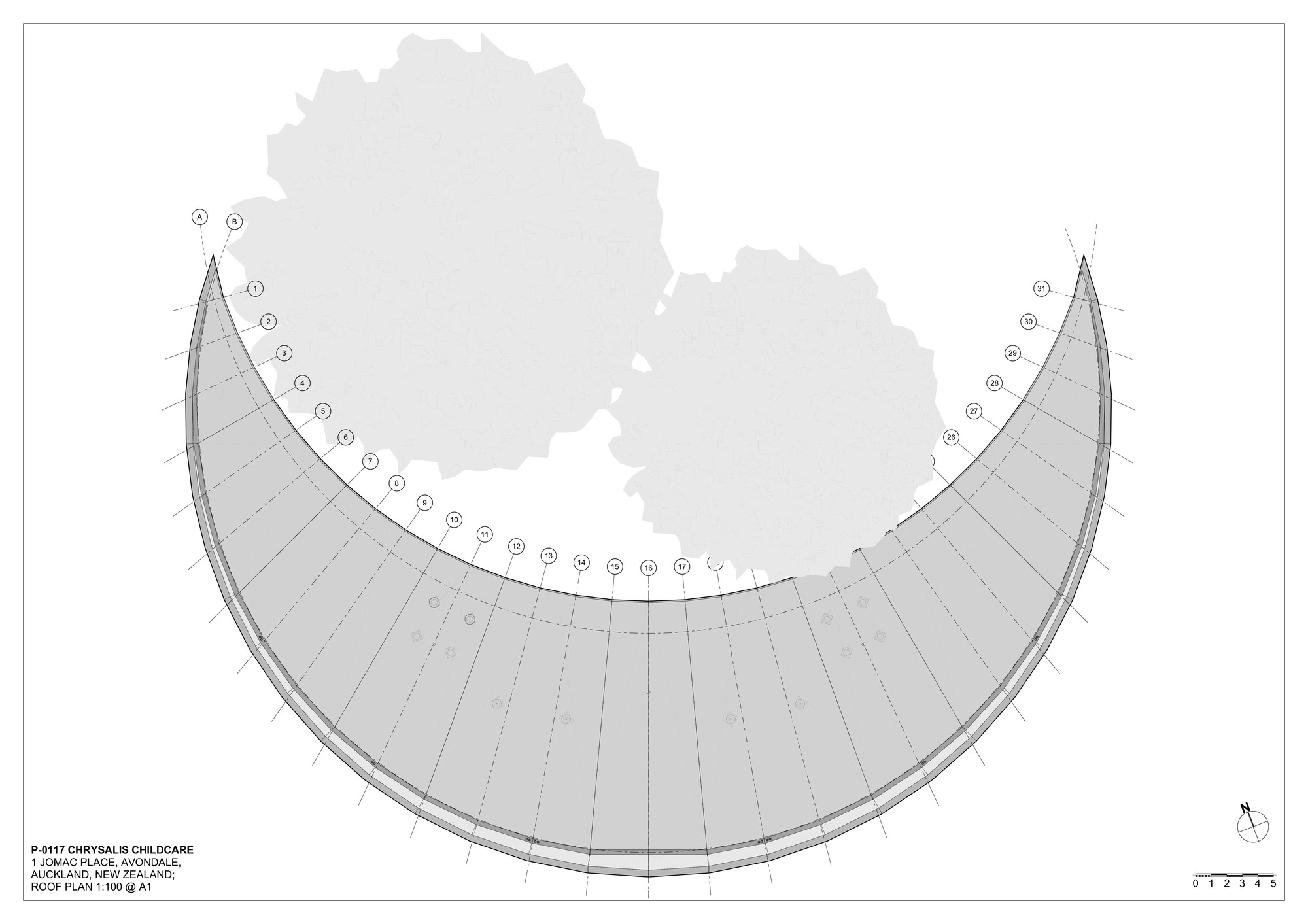

The design draws on this by creating a ‘void’ or space around the trees, which separates out the various elements of the new centre and provides a protective enclosure around the root zone.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

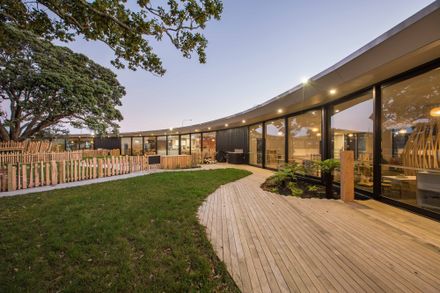

The building represents Papa (earth mother) who was locked in a tight embrace with Rangi (sky father), and so the graceful curve of the building appears like two arms reaching out to the sky.

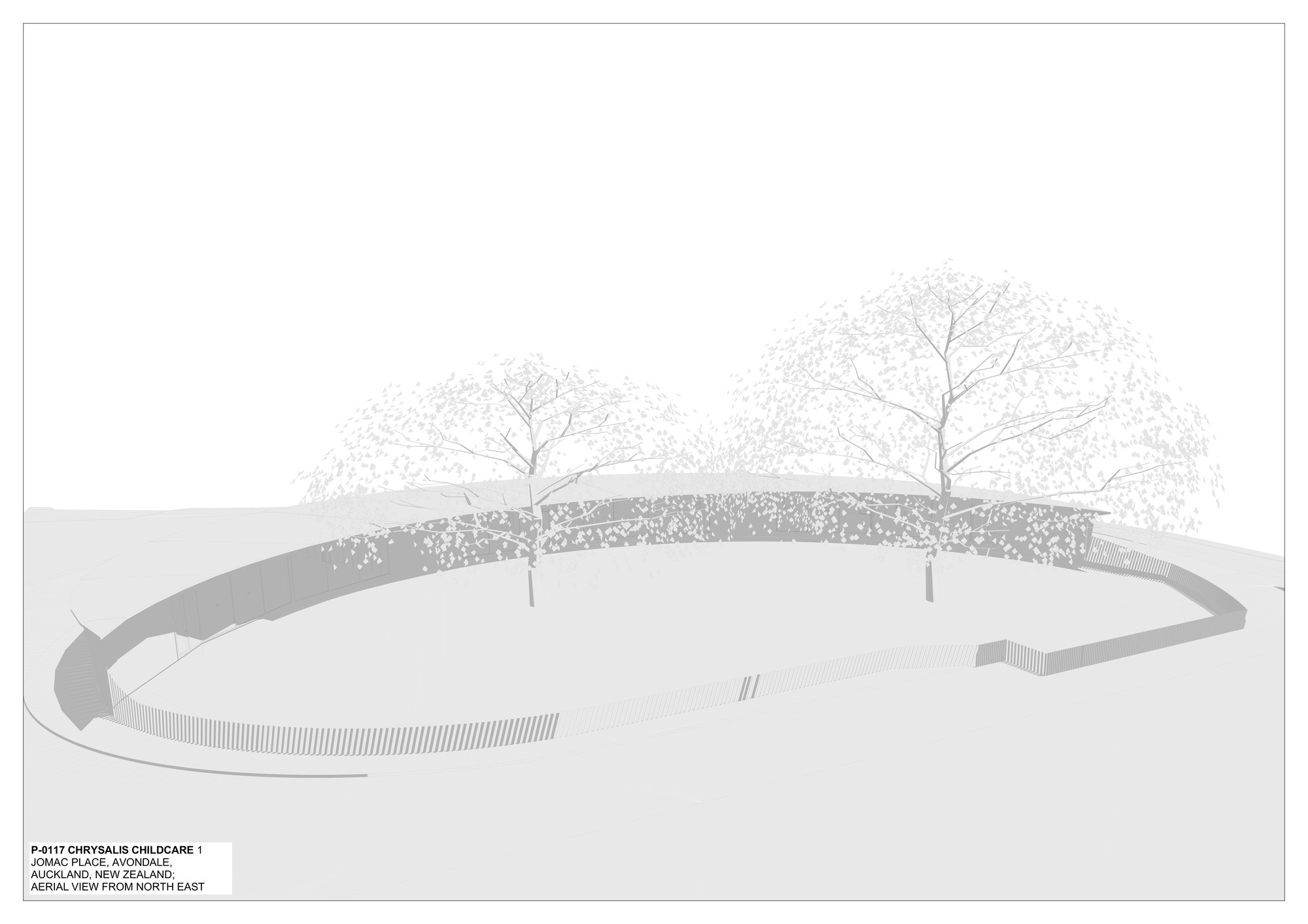

The elevational form further enhances this effect by keeping a respectful height below the trees, allowing good views of them from the wider environment.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

Further symbolism can be found throughout the design, the most striking being the sail forms around the outer curve of the building.

These are based on traditional Maori sail forms but honour all the cultures of New Zealand, all of whom originally made the journey by sailing boats.

Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects

The layered effect of the overlapping sails also recalls traditional carving patterns whilst the colouring and curve of the building represents the Koru or unfurled fern frond.

They also give a dynamic form to the building when viewed from the road, and the subtle shift in colour of each sail from dark green to white gives a dynamic and constantly changing experience as the viewer moves around the building.

Chrysalis Childcare Centre
© Collingridge and Smith Architects


Chrysalis Childcare Centre
© Collingridge and Smith Architects
Chrysalis Childcare Centre
© Collingridge and Smith Architects


Chrysalis Childcare Centre
Elevation
Chrysalis Childcare Centre
Elevation
Chrysalis Childcare Centre
Detail
Chrysalis Childcare Centre
Detail


Chrysalis Childcare Centre
Section
Chrysalis Childcare Centre
Floor Plan
Chrysalis Childcare Centre
Floor Plan
Chrysalis Childcare Centre
Floor Plan
