Bailo Museum in Treviso

Bailo Museum in Treviso
© Marco Zanta

BAILO MUSEUM IN TREVISO

studiomas architetti + Heinz Tesar

ARCHITECT
Heinz Tesar, Studiomas Architetti

STRUCTURAL ENGINEERING
Studio di Ingegneria RS

EXHIBIT AND INTERIOR DESIGN
Studiomas (marco rapposelli, piero puggina)

GENERAL CONTRACTOR
Due P Costruzioni srl

MECHANICAL & ELECTRICAL ENGINEER
Studio Cassutti sas

MANUFACTURERS
Secco Sistemi

SITE SUPERVISION
Studio Mas, Marco Rapposelli

INTERIORS CONTRACTOR
Harmoge srl, Villorba

PHOTOGRAPHS
Marco Zanta

AREA
1780.0 m2

YEAR
2015

LOCATION
Treviso tv, Italy

CATEGORY
Renovation

Text description provided by architect.

Studiomas architetti and Heinz Tesar won a competition to renovate the museum in 2010.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

Two elements were added to the 16th-century monastery building:

a cruciform façade, which marks the new entrance, and a covered passageway, the “galleria”, which forms also the new entrance hall.

The Museo Bailo hosts a collection of 20th-century art, but was closed 15 years ago as the former monastery building was in need of significant refurbishment.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

The museum needed also a new facade, more adequate to its institutional role and to its position in the centre of the ancient town; the existing facade, rebuilt in 1952, was totally lacking in quality.

So the project add a new frontage to the southern wing of the historic building, which was bomb-damaged during the second world war and reconstructed in 1952.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

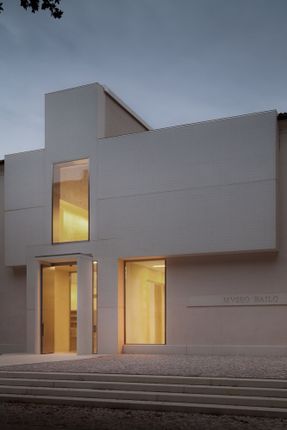

The cross-shaped form is a composition of eight precast artificial-stone slabs, dotted with small perforations, which are made from a mixture of Carrara marble and a special white cement.

It stands out in front of pre-existing walls, coated in a type of polished white plaster called marmorino. Behind the façade an extension made from white concrete was slotted into a narrow inner courtyard.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

It forms the museum's new arcade and hosts ticket hall and book shop, but is also used as an exhibition space and conference hall.

This new “galleria” is a smooth concrete body, about 28 metres of lenght, 3 metres of width, 12 metres of height, setting on four thin pillars.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

A skylight runs the length of the 28-metre-long extension, helping to bring natural light into the building. Three windows – one in the axis of the cross, another to the right of the door and a third in the flank of the extension – face onto a small piazza in front of the building.

The work was designed by Arturo Martini (1889-1947), a Treviso-born artist whose paintings, sculptures and graphics are included in the museum's collection.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

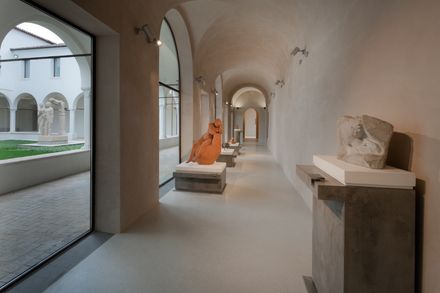

The gallery walls are covered in sand-coloured stucco and the floors are made of terrazzo, Carrara marble and white cement – a reference to the finish used on the building's outer walls.

Partition walls were removed from rooms in the old part of the building to reveal the original layout, which now features a series of wide, vaulted galleries.

A conservative restoration of all the building's original decorative elements, materials and structures has been achieved in the cloister, in the vaulted rooms as well as in the wall's decorative paintings.

Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta
Bailo Museum in Treviso
© Marco Zanta

Sculptures are displayed on a series of mottled grey plinths and in vitrines designed by the architects.

All the bases, the glass cases, the tables and the furniture have been re-designed like a family of small architectures serving the art works, hosted in the ancient rooms of the museum. The museum reopened to visitors at the end of October 2015.

Bailo Museum in Treviso
© Marco Zanta


Bailo Museum in Treviso
Floor Plan
Bailo Museum in Treviso
Detail


Bailo Museum in Treviso
Section
Bailo Museum in Treviso
Section
