Austria Pavilion – Milan Expo 2015

AUSTRIA PAVILION – MILAN EXPO 2015

Team.breathe.austria

Austria Pavilion – Milan Expo 2015
© Daniele Madia

LOACTION
Via Giorgio Stephenson, 107, 20157 Milano, Italy

COLLABORATION PARTNERS
Hohensinn Architektur ZT GmbH, LandLAB, i_a&l, TU-Graz, Engelsmann Peters, BOKU Wien IBLB, Bernhard Scharf, Stefan Peters, Wolfgang Kessling, Andreas Goritschnig, Bernhard König, Lendlabor Graz, Anna Resch, Lisa Enzenhofer, Alexander Kellas, Karlheinz Boiger, Markus Jeschaunig

CATEGORY
Pavillion

PHOTOGRAPHS
Daniele Madia, terrain

PROJECT YEAR
2015

HEAD OF CONECPT AND PLANNING
Klaus K.

LOENHART  - TERRAIN
architects and landscape architects BDA

Austria Pavilion – Milan Expo 2015
© Daniele Madia

Text description provided by architect.

AIR AS FOOD AND A CATALYST FOR URBAN PRACTICES

In response to the theme of this year’s Milan EXPO, “Feeding the Planet, Energy for Life”, the Austrian contribution breathe.austria draws our attention to an essential nutrient and one of our most precious resources: air.

As fundamental components of the biosphere, air, climate and the atmosphere unite all living creatures on our planet. As such, air is both a source of sustenance and a natural asset.

At breathe.austria the pavilion itself is the exhibition. It functions as a prototype to address possible future interaction between the natural environment and urban strategies by demonstrating the potential of hybrid systems that integrate nature AND technology.

Austria Pavilion – Milan Expo 2015
© terrain
Austria Pavilion – Milan Expo 2015
© terrain

The central element is a dense Austrian forest brought together with technical elements in order to create a breathing microclimate.

With this oxygen- and carbon-producing core, the pavilion becomes an “air generating station” – and the only building on the entire EXPO site to withstand. Hot Milanese summer without conventional air conditioning. For the project designers, such combinations of natural and technological systems will initiate a paradigm shift in the future.

Austria Pavilion – Milan Expo 2015
© terrain
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria

The pavilion was developed by the interdisciplinary project group team.breathe.austria under the direction of architect, landscape architect and university professor Klaus Loenhart.

NATURAL PERFORMANCE AND INTEGRAL TECHNOLOGY

The pavilion’s entire floor area is densely planted with 12 Austrian forest ecotypes, ranging from mosses and shrubs to towering, 12-metre trees.

Austria Pavilion – Milan Expo 2015
© terrain
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria

In a natural, water-rich forest, cooling occurs through evapotranspiration, meaning the evaporation of water from flora and fauna as well as from the soil and water surface.

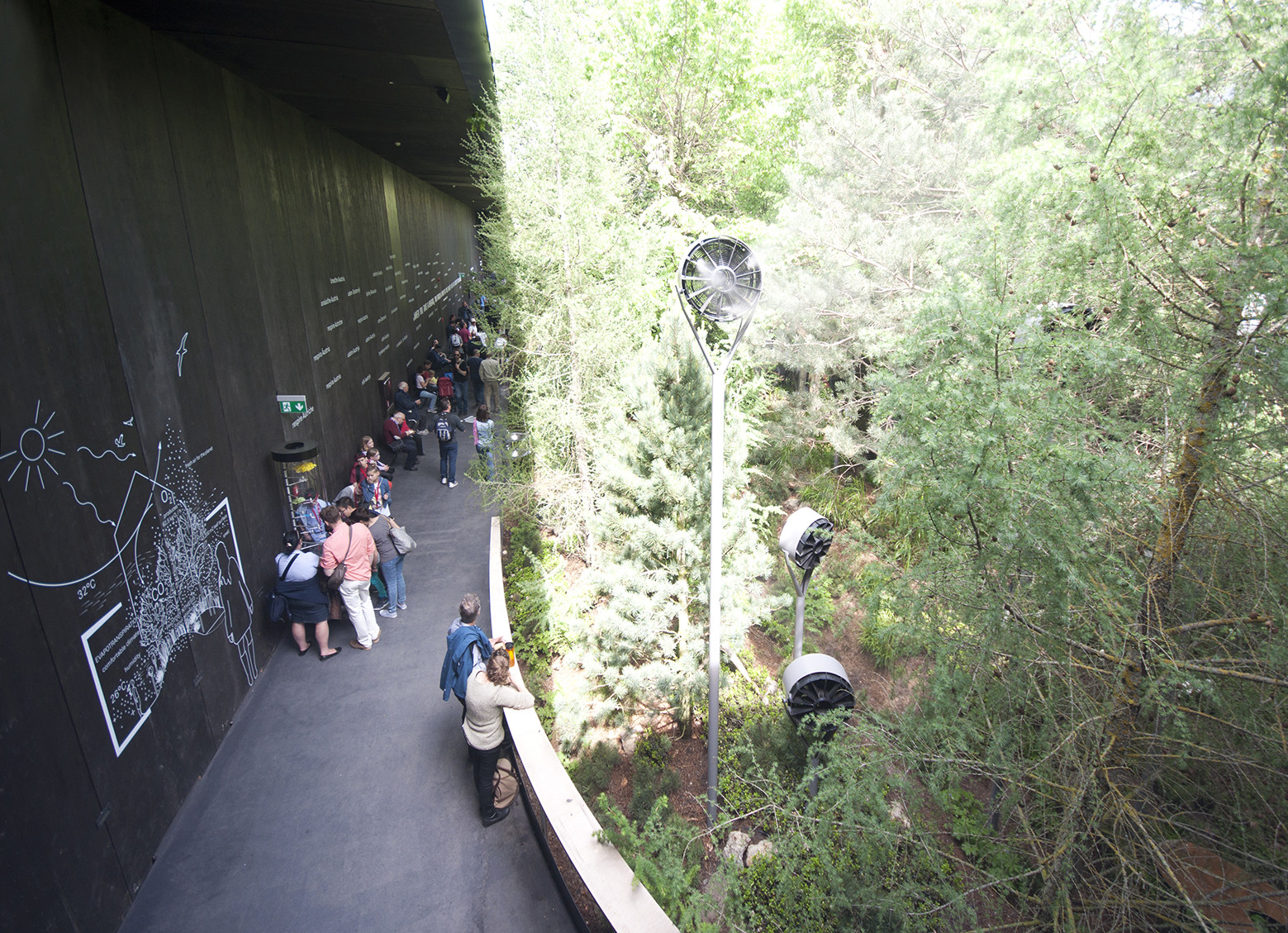

At breathe.austria, however, the evaporative cooling process is technically augmented. While the pavilion surface area is only 560 m2, thermodynamic high- pressure misting nozzles are used to activate the total evaporation surface of the pavilion vegetation, amounting to around 43,000 m2.

Austria Pavilion – Milan Expo 2015
© Daniele Madia
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© terrain

Despite the spatial constraints, breathe.austria succeeds in creating a unique climate zone within the pavilion: a pleasantly cool, fresh atmosphere that invites guests to linger.

The effective interplay between nature and technology cools the interior space by 5 to 7° C and supplants conventional air conditioning. The pavilion produces 62.5 kg/h of oxygen – enough for 1,800 visitors. On its surface area of 560 m2, breathe.

Austria achieves the equivalent of a much larger, 3-hectare natural forest. The pavilion serves as a breathing “photosynthesis collector” that contributes to global oxygen production.

Austria Pavilion – Milan Expo 2015
© Render
Austria Pavilion – Milan Expo 2015
© Daniele Madia

The contribution breathe.austria is a model for future urban practices.

It demonstrates the great potential and importance of communicating the interaction of technology and natural environments, which can inspire countless other projects.

Austria Pavilion – Milan Expo 2015
© Daniele Madia
Austria Pavilion – Milan Expo 2015
© terrain

The Austrian pavilion is a sensual, experiential site that connects the seemingly irreconcilable – technology and natural diversity – while being climatically active.

Austria provides a living example of hybrid systems combining nature and technology can lead to ecological success.

Austria Pavilion – Milan Expo 2015
© Daniele Madia


Austria Pavilion – Milan Expo 2015
© Daniele Madia
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Daniele Madia
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria
Austria Pavilion – Milan Expo 2015
© Courtesy of team.breathe.austria


Austria Pavilion – Milan Expo 2015

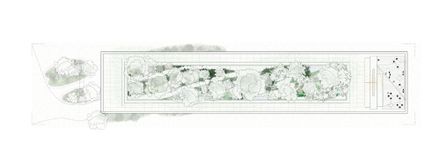

Floor Plan
Austria Pavilion – Milan Expo 2015
Floor Plan
Austria Pavilion – Milan Expo 2015
Floor Plan
Austria Pavilion – Milan Expo 2015
Floor Plan


Austria Pavilion – Milan Expo 2015
Elevation
Austria Pavilion – Milan Expo 2015
Section

Austria Pavilion – Milan Expo 2015
Exploded Axonometric
Austria Pavilion – Milan Expo 2015
Concept Section
Austria Pavilion – Milan Expo 2015
Detail
