XYstudio s.c.

Yellow Elephant Kindergarten

YELLOW ELEPHANT KINDERGARTEN

Xystudio

Yellow Elephant Kindergarten
© Courtesy of xystudio

ARCHITECT
Xystudio

LOCATION
Ostrow Mazowiecka, Poland

CATEGORY
Kindergarten

AREA
810.0 m2

PROJECT YEAR
2015

MANUFATURER
Balsan, Trespa

Yellow Elephant Kindergarten

Text description provided by architect.

Kindergarten was designed as groundfloor, atrial building with 5 rooms (2 for nursery and 3 for kindergarten).

It is planned for 125 children. Pent roof is in glued laminated timber construction.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

Interior courtyard with sandpit and tree is a „heart of the building”. The facade from courtyard is opened to the atrium with large windows to allow a maximum of natural light.

Locker rooms have direct conncection with classrooms. Windows from locker rooms can slide open to let children go to the garden in the shortest way possible.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

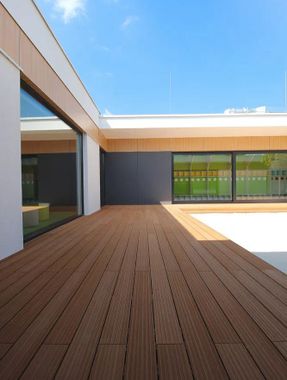

Glazed corridors and low roofs are passages of courtyard. They blurs the boundaries between inside and outside. Roofed arbour close the composition. It can function as a scene or audience.

SCALE

It was the most important aspect which impact for the building shape.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

The heights of entrances, roofings and windowsills were subordinated by scale.

Entrances and roofings were designed in 2,3m height, so that a childen entering the building feels more " homely " scale.The heights were maximally reduced especially for the children, that they can feel that building was designed for them.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

Classrooms windows are long with low lintel adjusted to the child's height. Thereby they are more accessible to kids and help them contact with the outside.

LIGHT

The building was located with respect to the world directions to ensure the required insolation. Also there was kept in mind a high level of shading in the inner courtyard.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

All the classrooms lintels are on the same level – 1,5m. Each classroom has 2 or 3 skylights.

They provide diffused light which don't overheat the rooms. Courtyard arrangement was subordinated by sun path.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

The playground between the building wings is safe and comfort place for the kids playing in the sandbox and in courtyard arcades. During the day interchangeably the half of the courtyard is shaded.

FUNCTION

Modular arrangement given the opportunity to create a very simple and clear functions:
- East part: nursery and social facilities.
- West part: kindergarten.
- Central part: administration.

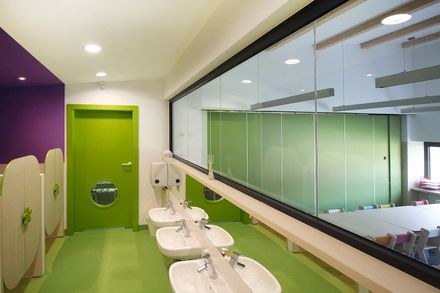

The corridors function as a locker rooms. They are well lighted, glazed and conntected with courtyard.

Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio

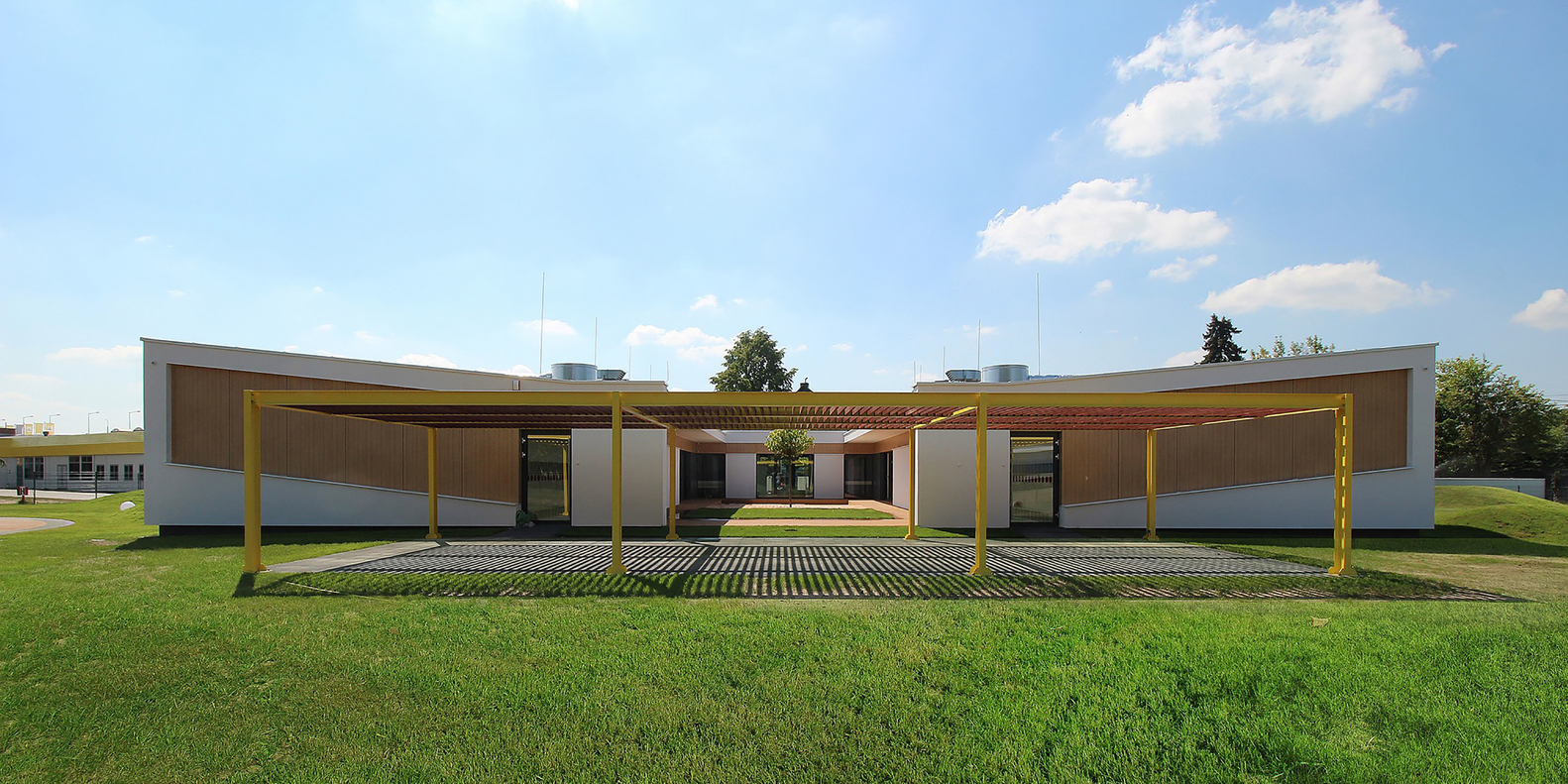

In conclusion the kindergarten life goes around the courtyard "magic" tree. Roofed arbour and courtyard completes the building.

The wings of the building are also a barrier against the wind, which increases the length of time thatchildren can safely and comfortably spend outdoors.

Yellow Elephant Kindergarten
© Courtesy of xystudio


Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio
Yellow Elephant Kindergarten
© Courtesy of xystudio


Yellow Elephant Kindergarten
Section


Yellow Elephant Kindergarten
Floor Plan
Yellow Elephant Kindergarten
Site Plan
