Ar43 Architects Pte Ltd

Paterson 3

Paterson 3
© Albert Lim KS

PATERSON 3

AR43 Architects

ARCHITECTS
AR43 Architects

PHOTOGRPHS
Albert Lim KS

BUILDERS
OAL Builders

AREA
283.56 sqm & 313.20 sqm

CLIENT
Bukit Sembawang Estates Limited

PROJECT YEAR
2015

STRUCTURAL ENGINEER
MSE Consultants

LOCATION
Orchard Rd, Singapore

QUANTITY SURVEYOR
WS Surveyorship Pte Ltd

M&E ENGINEER
EWC Engineers

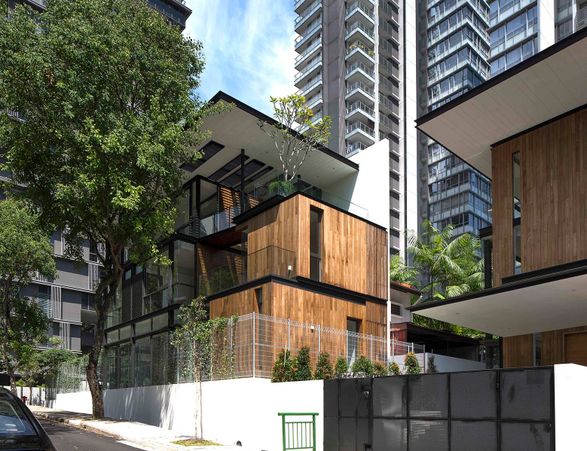

Paterson 3 comprises of 2 uniquely designed corner terrace units. Whilst sited within a walking distance to the bustling Orchard Road, each unit is pleasantly situated within a calm, soothingly hidden-away haven along Lengkok Angsa.

Paterson 3
© Albert Lim KS
Paterson 3
© Albert Lim KS
Paterson 3
© Albert Lim KS

The design emphasizes on the relation between indoor/ outdoor, through the use of full height glass windows and large sliding panels.

The play of elements between the timber cladding, panoramic glass and dark colored metal ties this enclave together into a contemporary art-inspired façade.

The design of each unit features clean defined lines, and an open-layout with courtyard space.

This allows for abundant tropical sunlight to filter into the living spaces.

Paterson 3
© Albert Lim KS
Paterson 3
© Albert Lim KS

Each of these spaces that were being allocated manages to retain the privacies of its users.

The courtyard / water-feature were designed into the unit’s layout, resulting in a transition break between the front and the rear spaces.

This created the opportunity for stepping stones and playful bridge-connection within the courtyard’s void. The roof terrace is essential in not only accommodating the growth of featured trees but to also to allow outdoor living spaces under the glimpse of stars and its urban landscape.

Paterson 3
© Albert Lim KS
Paterson 3
© Albert Lim KS

The large cantilevered roof above the courtyard offers natural light to penetrate the 3 storey deep open spaces below while still providing shelter. The courtyard spaces are covered at the top with laminated glass and filtered by aluminum trellis providing shelter from the rain and yet allowing balmy light to nourish the green wall along the party wall and featured tree below.

Natural timber cladding, suspended bridges, green walls, roof garden and water-featureswere integrated within the project, aimed to amplify the exciting tropical living within a tight urban environment.

Paterson 3
© Albert Lim KS


Paterson 3
Perspective View


Paterson 3
Sectioon


Paterson 3
Elevation


Paterson 3

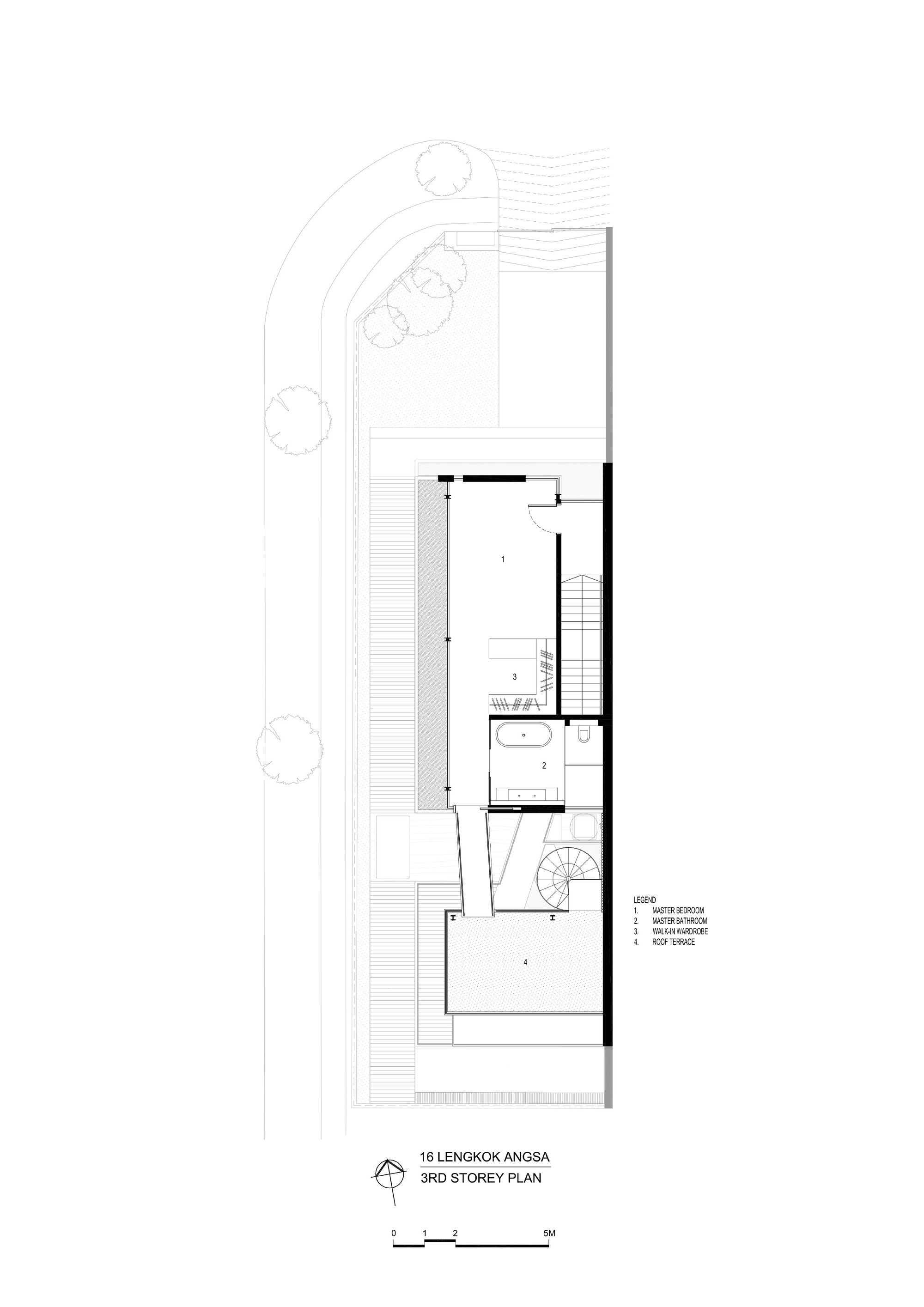

Floor Plan
Paterson 3
Floor Plan
Paterson 3
Floor Plan
