WXCA

European Centre For Geological Education

EUROPEAN CENTRE FOR GEOLOGICAL EDUCATION

 WXCA

European Centre For Geological Education
© Daniel Ciesielski

ARCHITECT
WXCA

LOCATION
Chęciny, Poland

CATEGORY
Science Center

COST
$30000000 PLN

PROJECT YEAR
2015

PHOTOGRAPHS
Daniel Ciesielski

INSTALLATION
Karolina Wozniak

INVESTOR
University of Warsw

GENERAL CONTRACTOR
ANNA-BUD sp. z o.o.,

ARCHITECTS IN CHARGE
Szczepan Wroński, Paweł Grodzicki, Krzysztof Budzisz, Zbigniew Wroński

FAÇADE TECHNOLOGY
PROFA

TEAM
Michał Czerwiński, Marcin Jurusik, Ewa Gajda, Katarzyna Błaszkiewicz, Maciej Rudnicki, Agnieszka Nowicka, Katarzyna Kwiatkowska, Jacek Hawrylak, Marta Sękulska, Patrycja Michalak – Dębiec

AREA
8450.0 m2

ACOUSTICS
AKUSTIX, Piotr PekalaI

LANDSCAPE ARCHITECTURE
RS AK

CONSTRUCTION
Katarzyna Micigolska

INSTALATIONS
Karolina Wozniak

INVESTOR
University of Warsw

CONTACTS
Rafal Adamski, Grzegorz Snochowski

SITE AREA
35,577 SQM

GROSS COVERED AREA
3,700 sqm

USABLE AREA
6,500 sqm

European Centre For Geological Education
© Daniel Ciesielski

Text description provided by architect.

The Swietokrzyskie Mountains are an unique place for geologists, as there are exposed rocks illustrating 560 million years of Earth's history located on a relatively small area.
A few steps in this area is like turning back time by 100 million years.

The fact that the layers of rocks of different ages located around Checiny are now on the surface, is a unique phenomenon on a European scale.

European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski

From the cultural point of view, our location is approx. 500m away from the ruins of a medieval royal castle situated on an adjacent hill and near the small town of Checiny with a preserved medieval urban layout.

The main objective of the concept is to split the functions into separate buildings. This way we achieved five two-storey buildings connected with a glass corridor.

European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski

The rectangular blocks of the buildings were scattered around the quarry like freshly loosened stone blocks that are the reminiscent of the former function of this place.

The geometric shapes of the buildings, as compared to the background of the aforementioned 30 m rock wall, create a connection between what is natural and what is processed with the human hand, making us reflect on the importance of natural resources and their management.

The intention of the project was to create forms that will not dominate, but complement its unique location.

European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski

Function (Architecture and use of space):
The ECEG complex is comprised of five buildings. First main building includes representative functions: an entrance lobby connected to the canteen and a foyer with an auditorium hall for 240 people.

The second building is a research laboratory facility with geological laboratories where the found specimens are subjected to pre-treatment.

Then the created formulations are analyzed in chemical, geophysical and geological mapping laboratories. The whole technological line is connected with an education area enabling young students of geology to participate in the process.

The other three buildings are intended as a hotel base. Building 3 was designed with a higher standard intended for the staff and guests of the facility, and building 4 as an accommodation base for students.
The hotel buildings have been designed with double rooms.

European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski

Each room has a large window with a comfortable, wide desk designed in such a way so as to form a whole with the window. Thanks to this, users will be able to peacefully explore knowledge and contemplate the surrounding landscape.

MATERIALS

The project is located in old, exploited quarry in region of Holy Cross Mountains which are a unique place of geologists illustrating 560 million years of Earth’s history, 500m away from the ruins of medieval royal castle.

European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski

The rectangular blocks of the buildings were scattered around the quarry like freshly loosened stone blocks that are the reminiscent of the former function of this place. The façade is made of different fractions, chipped stone block of limestone, geologically identical with the quarry rock.

RENEWABLE ENERGY

The main source of heating and cooling for the buildings are heat pumps with a ground heat exchanger. The lower source consists of 91 wells drilled 120m deep.


European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski

Heat pumps will work in the “water” / “glycol” system.
In addition, water is also heated thanks to the solar installation in the form of solar collectors placed on the roofs.Landscape design and green roofs are preserving naturally occurring plant species in this area like grassland swards.


European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski
European Centre For Geological Education
© Daniel Ciesielski


European Centre For Geological Education

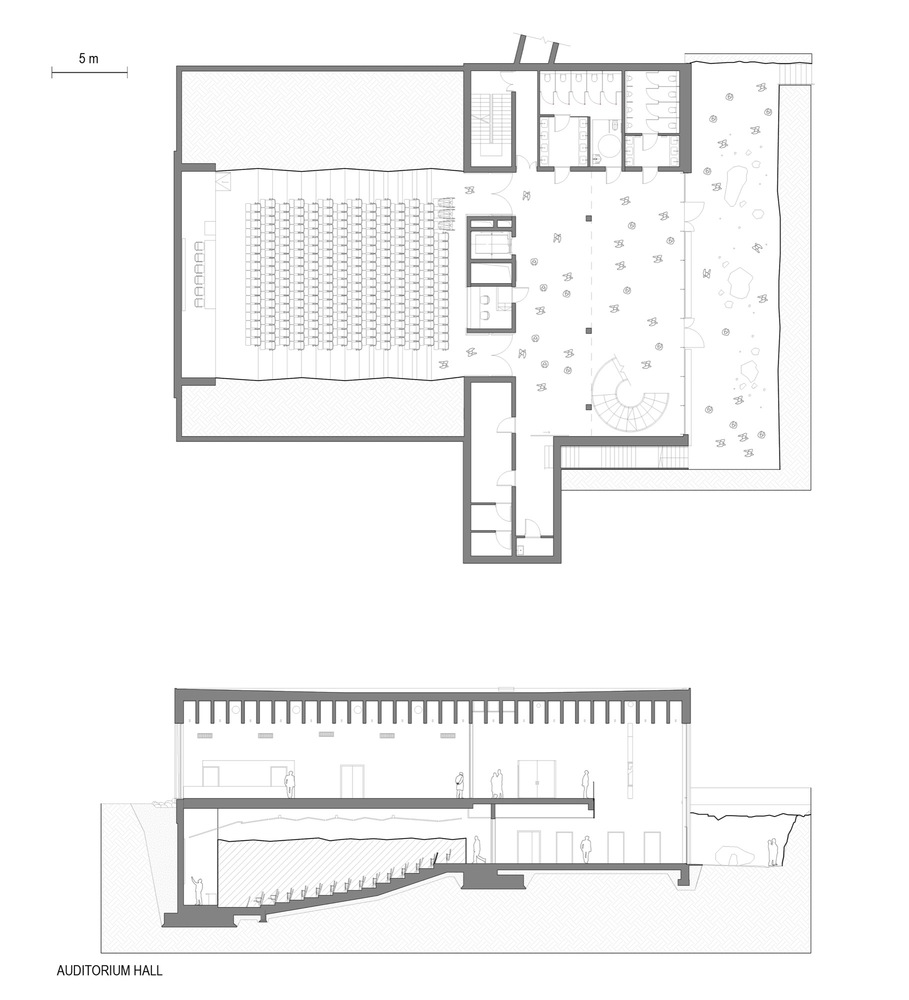

Plan / Section
European Centre For Geological Education
Plan / Section
European Centre For Geological Education
Site Plan
European Centre For Geological Education
Plan
European Centre For Geological Education
Plan


European Centre For Geological Education
Diagram
European Centre For Geological Education
Diagram
