ALTERATIONS AND RENOVATIONS TO THE PORT ELIZABETH OPERA HOUSE

 The Matrix... Urban Designers and Architects

ARCHITECTS
The Matrix... Urban Designers and Architects

ARCHITECT IN CHARGE
The Matrix... Urban Designers and Architects

CONTRACTOR
GVK-Siya Zama Building Contractors (EP) Pty Ltd

HERITAGE
Bryan Wintermeyer and Gerrie Horn

DESIGN TEAM
Albrecht Herholdt, Tony Danev, Jaco Potgieter

STRUCTURAL ENGINEERS
AfriCoast Consulting Engineers

TEXT'S AUTHOR
Tony Danev

QUANTITY SURVEYOR
Markus Burri Quantity Surveyors

ELECTRICAL ENGINEERS
Royal Haskoning DHV

MANUFACTURERS
Caesarstone, Plascon

MECHANICAL ENGINEERS
Royal Haskoning DHV

PHOTOGRAPHS
Rob Duker

AREA
310.0 sqm

YEAR
2015

LOCATION
Whites Rd, Port Elizabeth, 6001, South Africa

CATEGORY
Extension

Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker

Text description provided by architect.

The Port Elizabeth Opera House was originally designed by local architect George William Smith and opened its doors on 1 December 1892.

Four additions followed - the first in 1911, followed by extensions in 1927, 1934 and 1985. The current Opera House is thus made up of five distinct parts which throughout the years have merged into a single building of a distinct neo-classical style.

At present the Opera House is the oldest theatre in Africa and also the oldest operating theatre in the Southern hemisphere. In 2011 the Port Elizabeth Opera House Board decided to rationalise circulation in the Opera House, renovate the building internally, and to extend the cabaret theatre and improve its access. In order to achieve this, the following formed part of the Project scope:

Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker
Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker

• Addition of a dedicated Foyer space and passenger lift serving the cabaret theatre – known as ‘The Barn’
• Extensions to ‘The Barn’
• Renovations to existing Opera House foyer and main theatre inetranlly, including internal/external painting and damp damage repairs

• Upgrade of Staff offices, including new circulation core
• Replacement of Carpets and Wallpapers
• Major upgrade of Air-Conditioning, Lighting, Fire Detection and Ventilation systems
• Compliance with National Building Regulations in terms of access for disabled persons

The Matrix... Urban Designers and Architects were appointed in September 2011 to facilitate the Project and conceptualise the Design brief and it implementation.

Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker
Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker
Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker

Following extensive consultation with local heritage practitioners and public stake holders through the preparation of a comprehensive Heritage Impact Assessment, the design approach taken was based on three main principles:

CONTRAST

In line with contemporary heritage practices to avoid re-creating a false impression the ‘new’ extensions are intentionally contrasted with the ‘old’ through form, materials, tectonics as well as spatial character. The vertical and horizontal proportions of the ‘old’ building is re-interpreted in an elegant stainless steel screen.

Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker
Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker

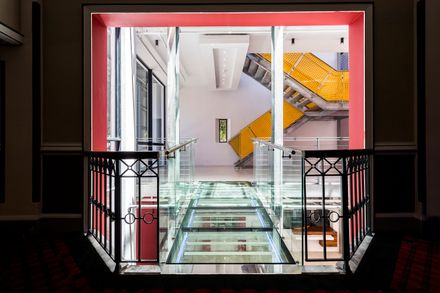

The new Foyer Extension is also spatially extraverted in nature further contrasting the largely introverted old building. Floor levels are intentionally ‘misaligned’ further articulating the threshold between the different spaces through a ‘transparent’ glass bridge.

It was further decided to acknowledge the history of the building throughout the years by creative use of colour and painting the various additions throughout the years in different hues from the same palette.

Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker
Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker

The colours vary from light (oldest) to dark (newest) thus depicting a visual timeline of the Opera House throughout the decades.

Background Building: The Foyer Extension is distinctly contemporary, however, far less articulated compared to the old building thus achieving a background aesthetic instead of competing with the richly decorated ‘old’ building.

‘Green’ Principles: The new Foyer Extension is naturally ventilated though means of a stack effect. Cool air is drawn into the building at lower levels through ducts and a stack effect is used to circulate hot air out at the top through a system of motorised louvers.

Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker
Alterations And Renovations To The Port Elizabeth Opera House
© Rob Duker

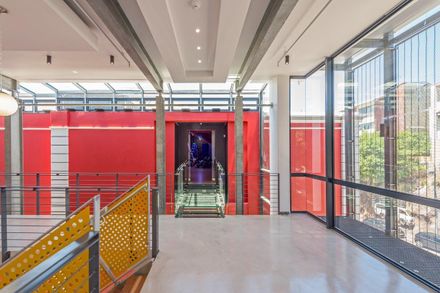

The extension further recedes ‘behind’ the old Opera House while the height is kept lower than the existing. A clear glass ‘break’ is deliberately established separating the ‘old’ from the ‘new’ both spatially and visually


Alterations And Renovations To The Port Elizabeth Opera House
Ground Floor Plan
Alterations And Renovations To The Port Elizabeth Opera House
1st Floor Plan
Alterations And Renovations To The Port Elizabeth Opera House
2nd Floor Plan
Alterations And Renovations To The Port Elizabeth Opera House
Location


Alterations And Renovations To The Port Elizabeth Opera House

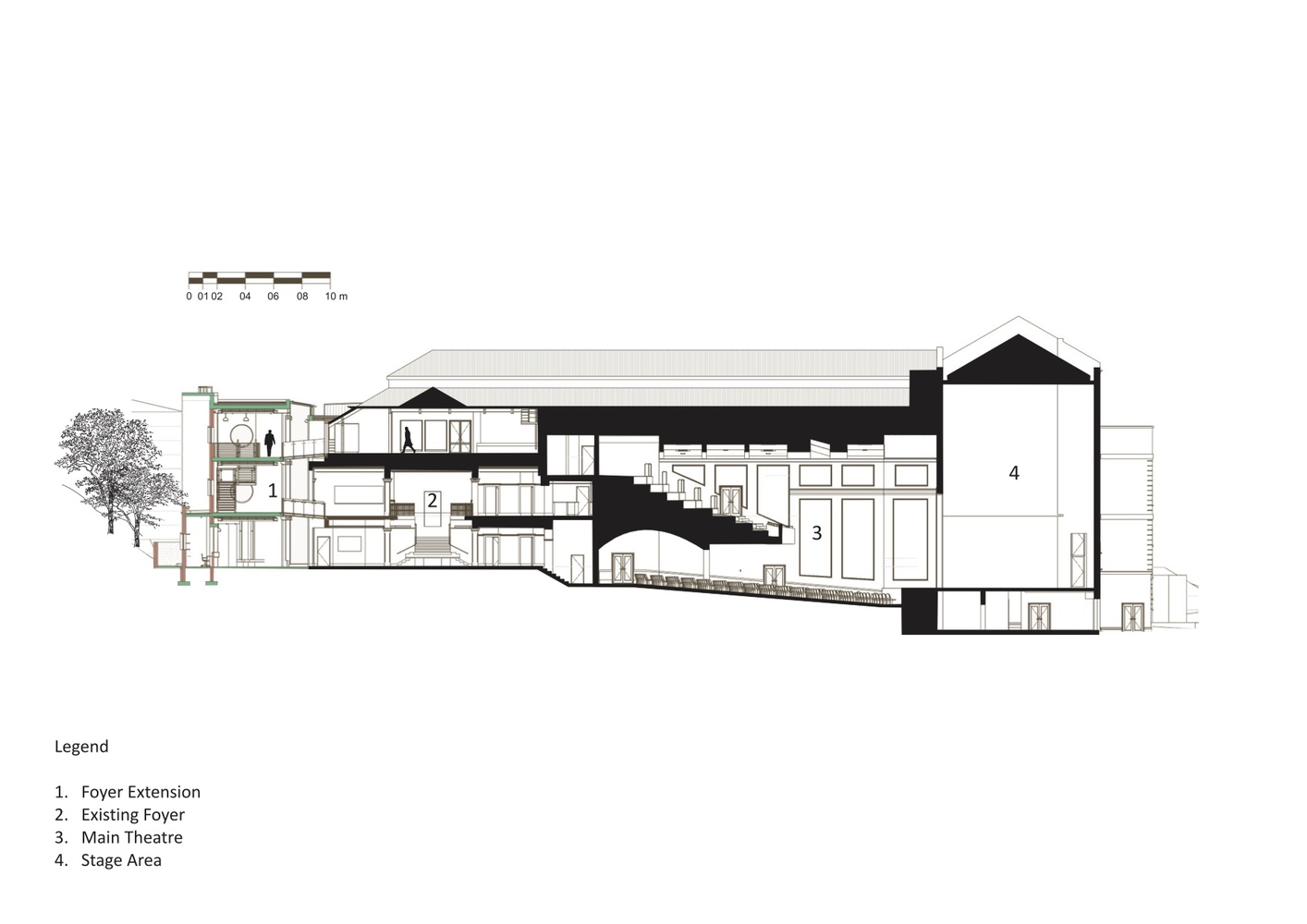

Section
Alterations And Renovations To The Port Elizabeth Opera House
Section
Alterations And Renovations To The Port Elizabeth Opera House
Sectional Perspective
Alterations And Renovations To The Port Elizabeth Opera House
Elevation


Alterations And Renovations To The Port Elizabeth Opera House
Detail
Alterations And Renovations To The Port Elizabeth Opera House
Detail
Alterations And Renovations To The Port Elizabeth Opera House
Detail
Alterations And Renovations To The Port Elizabeth Opera House
Detail
Alterations And Renovations To The Port Elizabeth Opera House
Detail


Alterations And Renovations To The Port Elizabeth Opera House

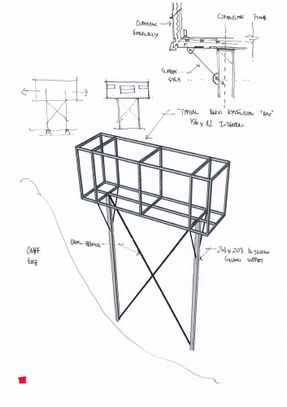

Conceptual Sketch
Alterations And Renovations To The Port Elizabeth Opera House
Conceptual Sketch
Alterations And Renovations To The Port Elizabeth Opera House
Conceptual Sketch

Alterations And Renovations To The Port Elizabeth Opera House
Conceptual Sketch
