5CUBE ENERGY PAVILION

de Siún Scullion Architects

ARCHITECTS
De Siún Scullion Architects

CATEGORY
Small Scale

DESIGN TEAM
Declan Scullion, Mícheál de Siún

AREA
18.0 sqm

PROJECT YEAR
2015

PHOTOGRAPHS
Ros Kavanagh

LOCATION
Hanover Quay, Dublin, Co. Dublin City, Ireland

ELECTRCIAL ENGINEERS
IN2 Engineering Design Partnership

STRUCTURAL DESIGN
Cora

MAIN CONTRACTOR
Townlink Construction Ltd

STRUCTURAL ENGINEERS
Casey O’Rourke Associates

Text description provided by architect.

5CUBE is a semi-permanent pavilion in Hanover Quay, Dublin Docklands, physically representing the volume of oil consumed every five minutes in Ireland. It was designed by Declan Scullion of the newly formed practice de Siún Scullion Architects, Dublin (www.dssa.ie).

5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh

The 5CUBE is the result of an open competition run by the EU funded ACE For Energy project which seeks to promote the uptake of renewable energy through various initiatives throughout Europe.

The competition was open to designers of all disciplines and the brief was to create a renewable energy feature which would raise awareness of renewable energy and be capable of replication and/or relocation on multiple sites.

5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh

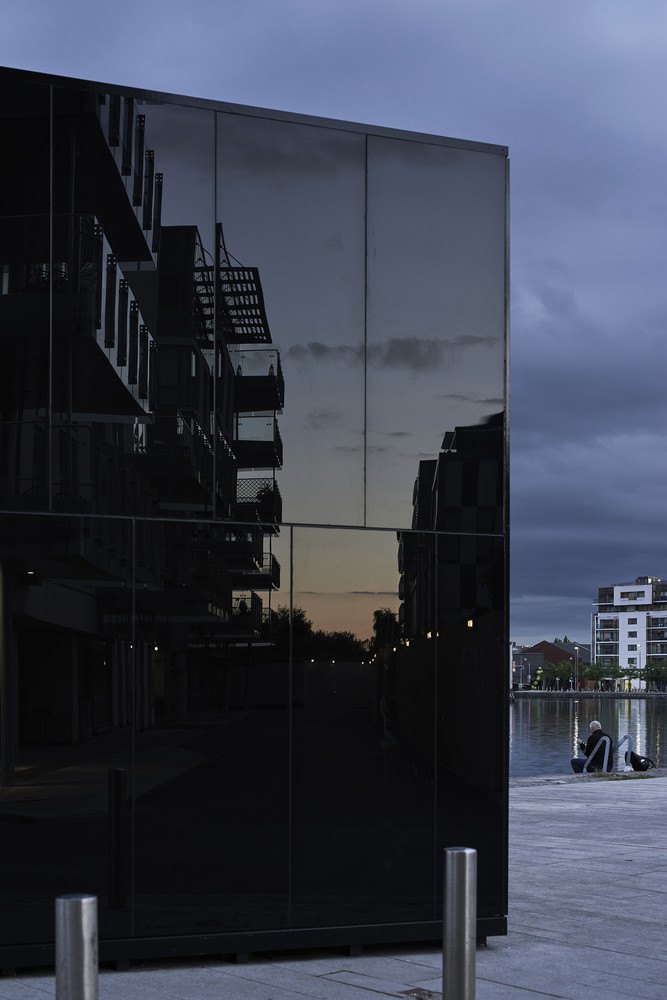

The volume represents 473 barrels of oil, measuring 4.2m cubed, and is wrapped in black toughened glass-faced cladding panels. The concept behind the pavilion was to develop an easily replicable symbol of consumption, which could be scaled up or down, and would confront the public with current rate of fossil fuel depletion.

The 5CUBE has been designed so that it can be easily dismantled and relocated in any location; no foundations are needed due to internal ballasting solution using sand-filled boxes. The idea is that the installation might appear somewhere new overnight and then disappear again; a surreal and mysterious silent monolith.

5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh

As well as visualizing the volume of oil being consumed, there are also two mirrored bands on opposite sides of the box.

On the east side, where the sun rises, a strip 50cm high represents (in BOE, or Barrels of Oil Equivalent) how much energy came from renewable energy sources in that same five minutes.

5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh

Opposite on the west, another​ larger​ mirrored strip represents Ireland’s targeted volume of energy from renewable energy sources for 2020.

Inside the two mirrored strips viewers can look into the box and see the sky reflected and manipulated in various ways to create an illusion of a globe on one side, the east, and an infinite sky within the box on the other side, to the west.

5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh

The sky has been selected as a means of representing all the multiple forms of renewable energy in opposition to the glossy black glass mass representing oil.

The sky was thought to be relevant as so many renewable energy sources are a direct or indirect result of the forces of nature, our environment or put simply, the weather - the wind visible in the movement of clouds, the sun transforming the colour of the sky from bright blue to warm orange, or even indeed the rain in dramatically powerful stormy weather.

5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh

On the roof self- generated energy via Photovoltaic panels illuminates the interior which creates quite a subtle yet dazzling reflection by night– the 5CUBE literally glowing with its own internal energy source.


5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh
5CUBE Energy Pavilion
© Ros Kavanagh


5CUBE Energy Pavilion
Floor Plan
5CUBE Energy Pavilion
Section


5CUBE Energy Pavilion
Detail
5CUBE Energy Pavilion
Detail
5CUBE Energy Pavilion
Detail
5CUBE Energy Pavilion
Detail


5CUBE Energy Pavilion
Elevation
5CUBE Energy Pavilion
Elevation
5CUBE Energy Pavilion
Elevation
