Moreno Architecture & Associés, S.A R.L.

One on One

One on One
© Andrés Lejona

ONE ON ONE

Moreno Architecture

ARCHITECTS
Moreno Architecture

LOCATION
Luxembourg City, Luxembourg

CATEGORY
Office Buildings

ARCHITECT IN CHARGE
Stefano Moreno, Stefan Hildebrant

AREA
5000.0 m2

PROJECT YEAR
2015

PHOTGRAPHS
Andrés Lejona

MANUFACTURERS
Schüco, Interpane

STRUCTURAL ENGINEER
INCA

TECHNICAL ENGINEER
BOYDENS

GENERAL CONTRACTOR
SOLUDEC

SUBCONTRACTOR
SEITZ STAHLBAU

QUALITY & SAFETY CONTROL
Secolx

Text description provided by architect.

One on One is characterised by bold architecture featuring glass and metal, composed of superimposed staggered volumes.

URBAN CONTEXT

One on One’s urban context is at the same time very attractive and complex. Situated in a corner of Luxembourg’s business district the building has a great visibility in the heart of the city.

One on One
© Andrés Lejona
One on One
© Andrés Lejona
One on One
© Andrés Lejona

The complexity of the site is due to the triangular geometry form of the terrain, between existing buildings and 2 arterial roads.

This situation inspired Moreno Architecture to create a building out of 12 superimposed skewed volumes of glass and metal. This resourceful optimisation of internal space offers high flexibility for accommodating open-plan or partitioned offices.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

In words of Stefano Moreno: “Despite the complex urban situation, the challenge was to create the maximum amount of office space while ensuring maximum flexibility. We used all tricks and knowledge to transform constraints into strengths and strong architectural elements."

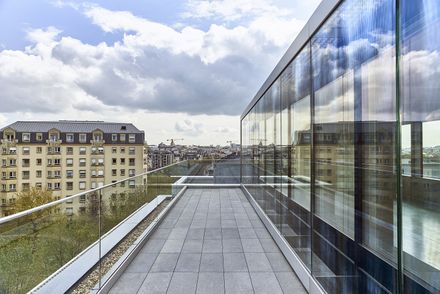

This resulted in designing a building where glass cubes stack and shift, creating private terraces along the building’s inward-facing edges.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

GENERAL DESCRIPTION

One on One is a 6-storey office building and 3 levels of underground. It has 3.000 m2 of office space within 5.000 m2 of built surface. “This building is seemingly created from the simple idea of stacking office cubes but in fact it is the product of a multitude of constraints and the combination of vital elements."

The spectacular restructuring of this corner site’s volumes has resulted in the creation of a premium building which offers its users impressive, easily arranged office spaces.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

ARCHITECTURAL CONCEPT

The challenge to sustain the overhanging volumes without perturbing inner columns behind the facade required a flexible and light system.

Therefore, the structure is composed of column and beam steel construction.

The steel structure is aligned with the façades to free the inner space.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

A central core of reinforced concrete gathers all building circulations (stairs and elevators) and offers perfect size and shape for flexible peripheral office layouts. Steel and concrete structure are founded on a concrete basement.

CONSTRUCTION / MATERIALS AND STRUCTURE

The shape of steel-frames is following the movement of the superposed volumes, organised in a 1.25m-grid and stuck together by collaborating concrete-slabs. The columns create an irregular structure that is sustained by a 65 cm concrete slab at ground level.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

The openness and transparency that come out of the column-free open-space is enhanced by the absence of visible lintels. This choice allows to maximize natural lighting, thus creating a very qualitative working space.

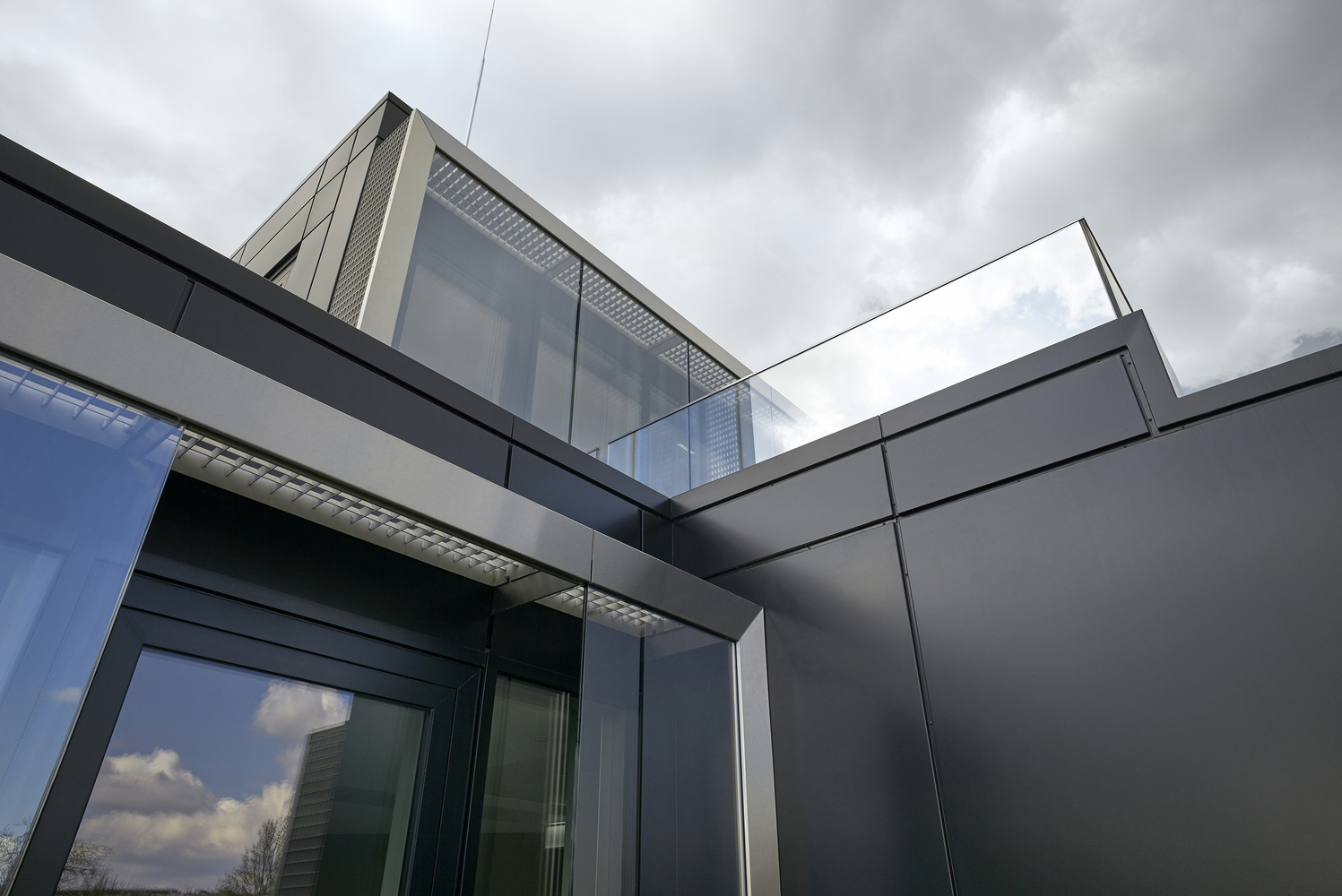

The façade is composed of a combination of a triple-glass curtain-wall system and traditional isolated metallic boxes.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

The exterior double-skin is provided by high performance solar glass and offers an efficient solar protection while the offices benefit of daylight, reflected by inner stores. A double-floor system and active ceilings sustain the great flexibility of the offices.

PRODUCT DESCRIPTION

One on one’s steel-frame structure is composed of 33 different beam sections (IPE, HEA, HEB, HEM and U) and 90 different assembly solutions of steel components.

One on One
© Andrés Lejona
One on One
© Andrés Lejona

From the very beginning the structure was designed and 3D-modelized as a whole. The structure reaches a total of 260 tons of S-355 structural steel that represents a total of 6 kilometres of steel.


One on One
-3º Level Plan
One on One
-2º Level Plan
One on One
-1º Level Plan
One on One
00 Level Plan
One on One
1º Level Plan
One on One
2º Level Plan
One on One
3º Level Plan
One on One
4º Level Plan
One on One
5º Level Plan


One on One
Supporting Structure
One on One

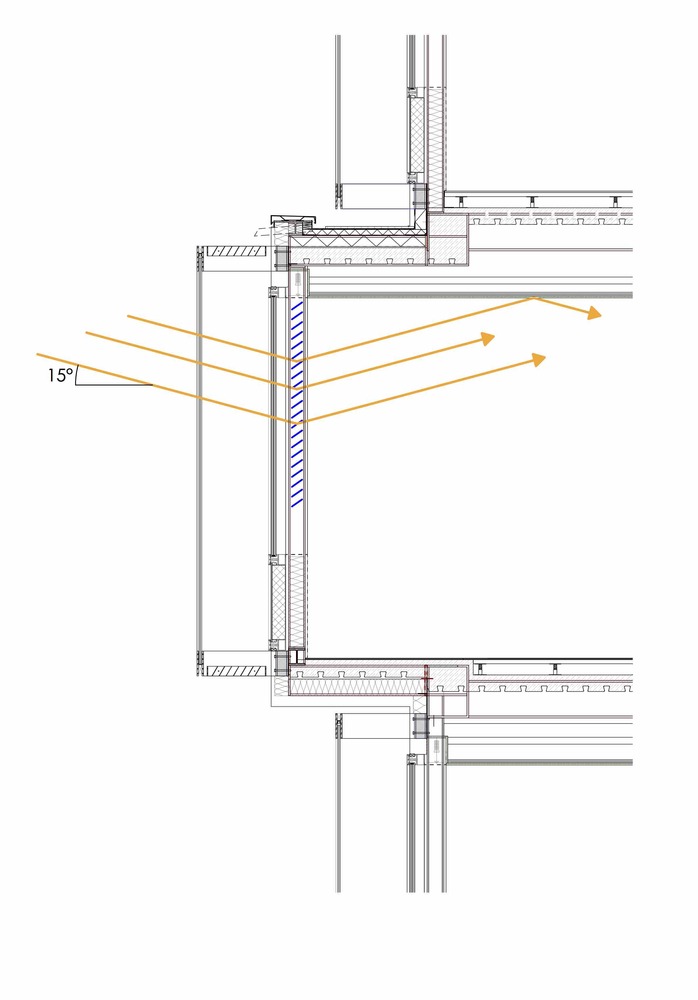

Natural Light
One on One
Isolation
One on One

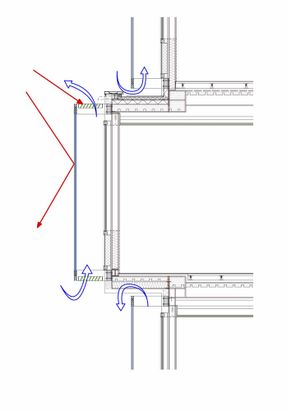

Duble Skin
One on One
Principle Section
One on One
Section


One on One
Axonometric
One on One
SIte Plan
