PLAN: B architects

Zebrano

ZEBRANO

Plan b arquitectos + M+Group

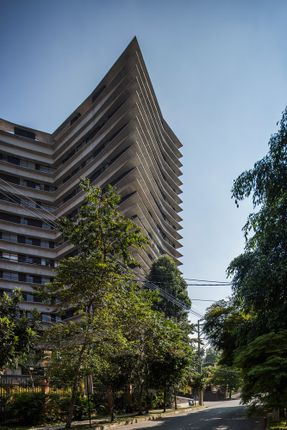

Zebrano
© Alejandro Arango

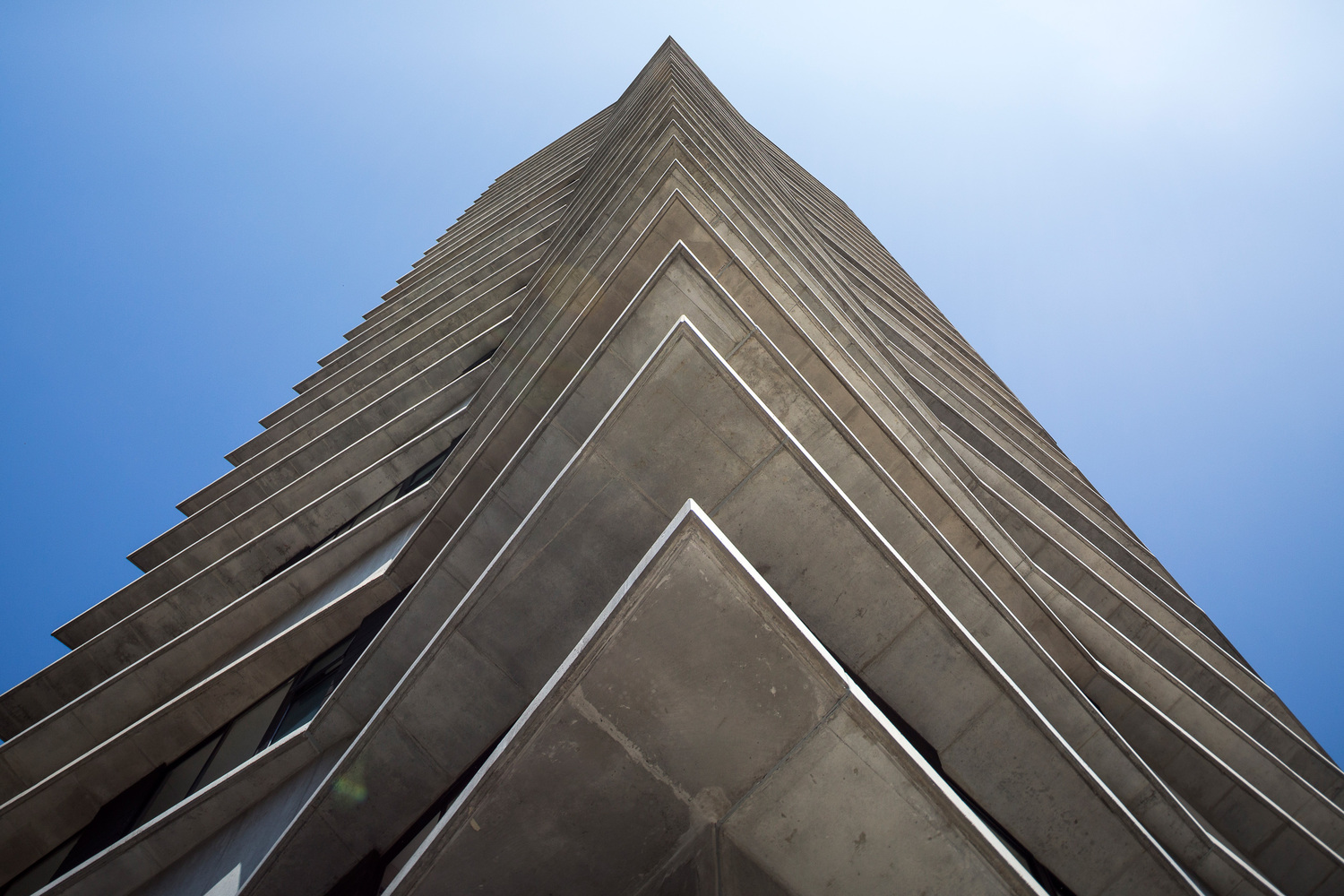

Zebrano
© Alejandro Arango

ARCHITECTS
M+Group, Plan b arquitectos

CATEGORY
Apartments

LOCATION
Envigado, Colombia

PROJECT MANAGEMENT
Felipe Mesa, Federico Mesa, Andrés Felipe Mesa Trujillo

ECOSYSTEM
Bosque montano, Montaneforest

YEAR
2016

MANUFACTURER
Acquafloor, Adoquinar, Alco, Argos, Prefabricados e Innovaciones Zanzíbar

PHOTOGRAPHS
Alejandro Arango

CLIENT
Ríos Constructores

CONSTRUCTOR
Ríos Constructores

PROJECT TEAM
Juan Camilo Garcés, María Clara Osorio, Carlos Blanco, Daniel Tobón, Esteban Hincapié, Santiago Mora

Zebrano
© Alejandro Arango

Text description provided by architect.

1. ADAPTABILITY TO THE SUN

This building settles in plan to an irregular and tight plot which imposes its perimeter shape.

For a better adjustment, the program is fragmented in to two big apartments in each level, leaving in the middle a long shaped hall which allows to change the direction, turning to find the most favorable position obeying simultaneously with a strict urban regulation regarding the setbacks and visual control towards other buildings. Its shape is also the shape of the plot.

Zebrano
© Alejandro Arango
Zebrano
© Alejandro Arango

2. PROGRAM

In section the building adapts to the high inclination of the plot, leaving the main access at street level, 4 inferior levels for parking, 13 above levels of apartments and a final level with a terrace, common areas, gardens and a pool.

In the first nine floors there are ten and eight apartments of one level, and in the final four floors, four apartments of two floors and double height in the social area. The area of these apartments varies between 160 and 280m2, they are thought to be for big, conventional and families with children.

Zebrano
© Alejandro Arango
Zebrano
© Alejandro Arango

3. TROPICAL SURROUNDINGS

Although in plan the both built volumes have variations in their orientation, in reality its main façades and most extensive, face the strong sun of the morning and afternoon in a tropical environment without seasons and constant climatic conditions.

To maintain the building in shade throughout the year longitudinal and continuous eaves have been proposed. They gain and lose depth according to the spaces they protect, always widening in the social areas and in the bedrooms and decreasing in service areas.

Balconies and terraces are always located in the interior of the façade’s perimeter and the windows are always positioned in between eaves.

Zebrano
© Alejandro Arango
Zebrano
© Vásquez Villegas Fotografía
Zebrano
© Alejandro Arango

Strategic openings have been considered to favor cross ventilation in the interior of the apartments.

4. DIRECT CONTACT WITH THE STREET.

Before impermeable urbanism, this buildings tries to do the opposite: instead of closing itself completely inside a control fence, its outline is exposed to the street, it can be touched and it locates in the first level the access booth and premises for a café which can be used by both the neighbors and the community in general.

Zebrano
© Alejandro Arango


Zebrano
© Alejandro Arango
Zebrano
© Alejandro Arango
Zebrano
© Vásquez Villegas Fotografía
Zebrano
© Vásquez Villegas Fotografía
Zebrano
© Vásquez Villegas Fotografía
Zebrano
© Alejandro Arango


Zebrano
Site Plan
Zebrano
Floor Plan
Zebrano
Duplex Floor Plan 1
Zebrano
Duplex Floor Plan 2


Zebrano
Diagram


Zebrano
Detail
Zebrano
Detail


Zebrano
Zebrano
Zebrano
Zebrano
Section
Zebrano
Section
Zebrano
Section
Zebrano
Diagram
