WAVE HOUSING

Saaha, Ahaknap

ARCHITECTS
Saaha, Ahaknap

PROJECT YEAR
2016

ARCHITECT IN CHRAGE
Kenan Brčkalija, Adnan Harambašić

MANUFACTURER
Atlas Schindler, Knauf, Plaka, Semmelrock

AREA
10800.0 m2

PROJECT TEAM
Amer Sadiković, Merdžana Mujkanović, Asmir Šabić, Hana Kevilj

GENERAL CONTRACTOR
Butmir Ltd

LOCATION
Sarajevo, Bosnia and Herzegovina

PHOTOGRPHS
Anida Krečo

CLIENT
Compact Invest Ltd

Text description provided by architect.

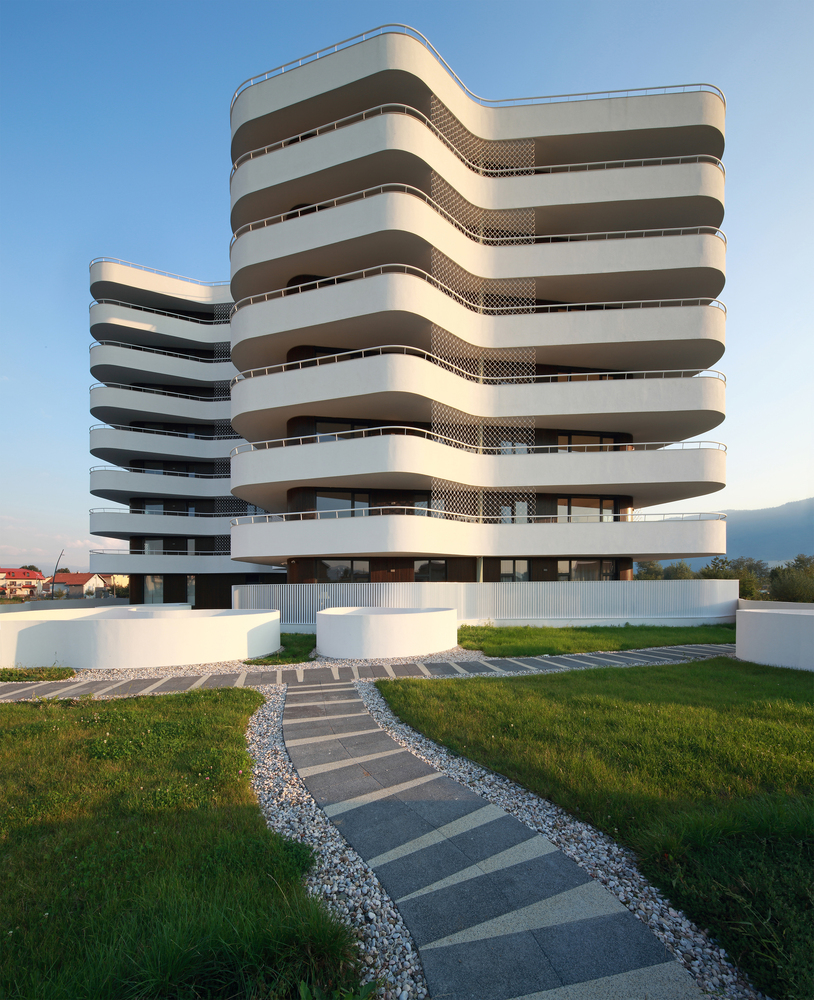

Wave Housing is situated in Otes, the suburban neighbourhood of Sarajevo, with the river and mountains as its close and distant surroundings. In order to extend the interior space of the apartment towards outside and the views, the wave-like structure is added to the regulated building volume from 2nd floor upwards.

Wave Housing
© Anida Krečo
Wave Housing
© Anida Krečo

In this way, each unit is given a lavish and unique outdoor area/terrace, making it a defining architectural element of the project.

While the inner facade of the building is clad in warm wooden ribs, outside is kept simple in white plaster with metal screens providing additional visibility protections to the apartment terraces.

Wave Housing
© Anida Krečo
Wave Housing
© Anida Krečo

PRODUCT DESCRIPTION

Local materials Facade: Composite wooden vertical panels 4x4cm made from local spruce and fir tree.

Panels are placed vertically at intervals of 1 cm and skirting laths 4x7 cm with vertical reveal façade openings and the thermal insulation boards of rock wool 12 cm thick laminated with black fibreglass mat.

Glass: Triple pane glass units - combination of 4.2.2 + 16 Argon +6 Low E Safety network on the balconies: Galvanized iron profiles painted in white colour with all necessary preparation work.

Wave Housing
© Anida Krečo
Wave Housing
© Anida Krečo

The network consists of squares derived from iron sheet 40x4 mm external size of 114x114 mm with all the peaks associated with cross stitch of iron with a diameter of 8 mm.

Hresa stone: local stone quarried from the surrounding hills highly resistant to cold and heat. Used for lining the main staircases and entrance hall.


Wave Housing

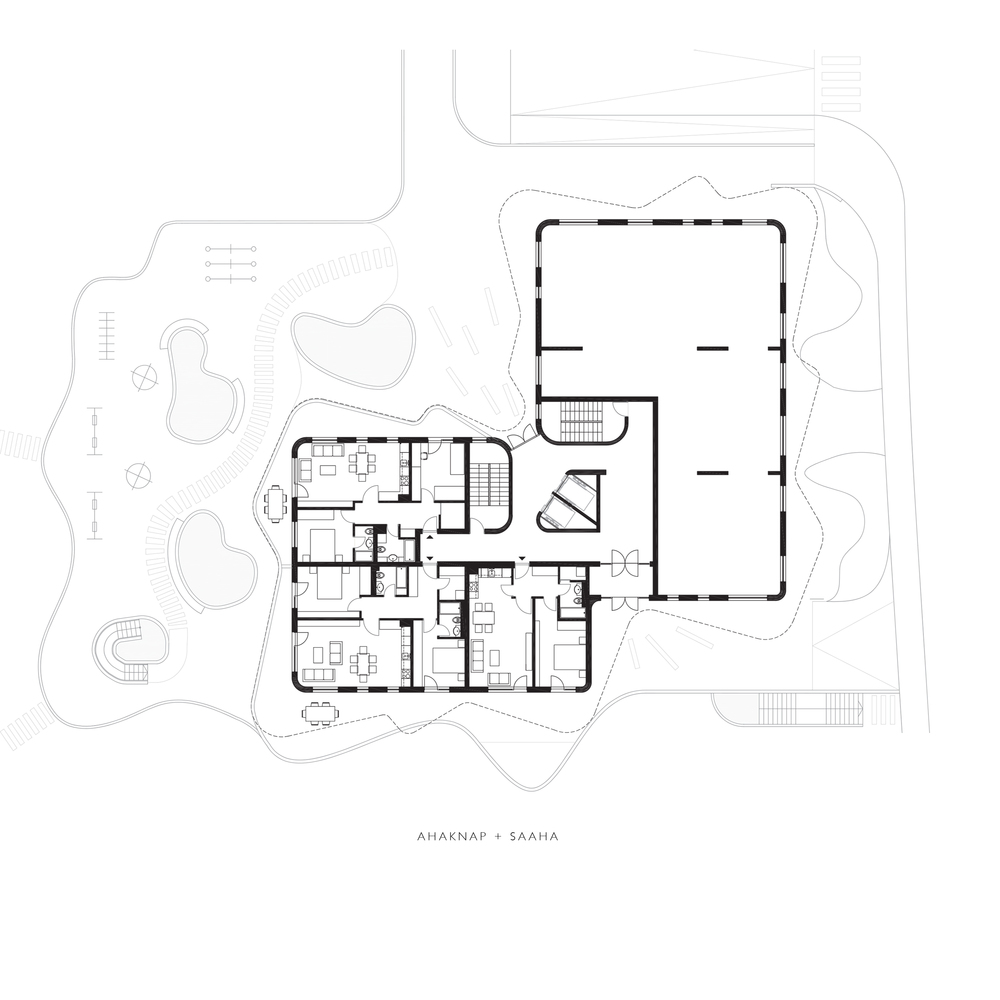

Plan
Wave Housing
Plan
Wave Housing
Plan
Wave Housing
Roof Plan
Wave Housing
Section
Wave Housing
Section


Wave Housing
Elevation
Wave Housing
Elevation
Wave Housing
Elevation


Wave Housing

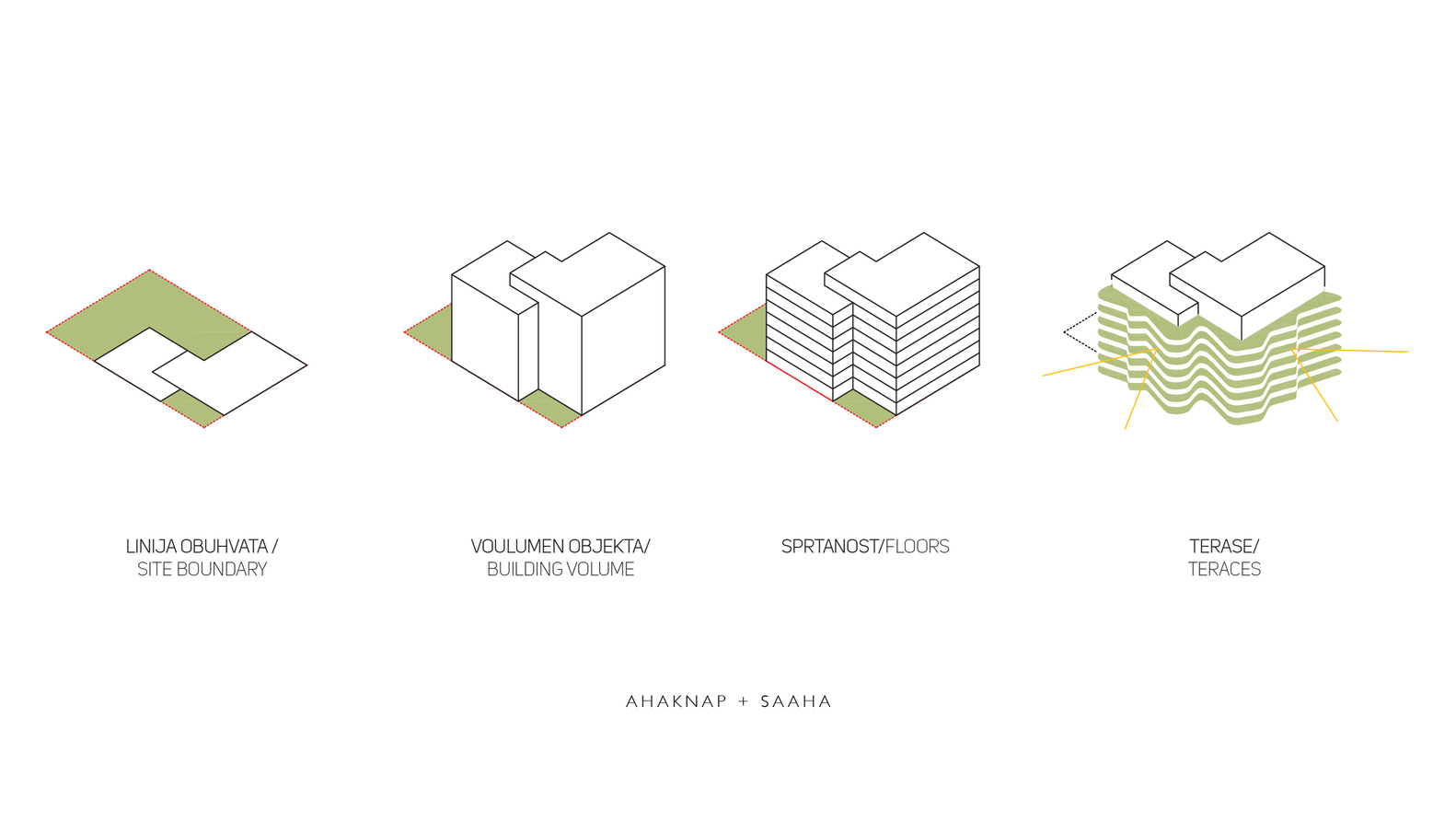

Diagram
