2xm

2xm
© Federico Cairoli

2XM

TDA

ARCHITECTS
TDA

COLLABORATORS
Magali Ibarrola, Luis Landivar, Miguel Duarte (p), Enrique Granada

PROJECT ARCHITECTS
Miguel Duarte, Larissa Rojas

PHOTOGRAPHS
Federico Cairoli

YEAR
2016

LOCATION
Lambare, Paraguay

CATEGORY
Houses

Text description provided by architect.

An elderly mother decides to build two compact houses along with her daughter, upon her own recent state of widowhood, giving up the large-sized house in which the family used to live.

2xm
© Federico Cairoli
2xm
© Federico Cairoli

This project reflects on compactness. (This can be defined as the ratio between the usable space of buildings and the space occupied by the surface).

Typically the amount of square meters guarantees social position, the more square meters we built, the more socially accepted we were, she commented.

2xm
© Federico Cairoli
2xm
© Federico Cairoli

The passing of time is fast. Children migrate building new places and that home becomes a museum, dark and silent.

Fearing abandonment and especially oblivion, this proposal restates coexistence based on practicality but especially constituting a new concept of compact use of space.

Based on functional requirements and especially the qualification of space rather than quantifying square meters.

2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli

We define a load bearing structure in reinforced concrete (efficiency and low maintenance cost, as requested by the future user) that optimizes the occupation giving emphasis to the void.

An upper beam 25 meters long. 2 columns locabackground-color: rgba(206, 214, 224, 1)ted in a 1 to 5 relation. A side wall. This basic and combined structure builds 3 habitable blocks and 2 intermediate courtyards.

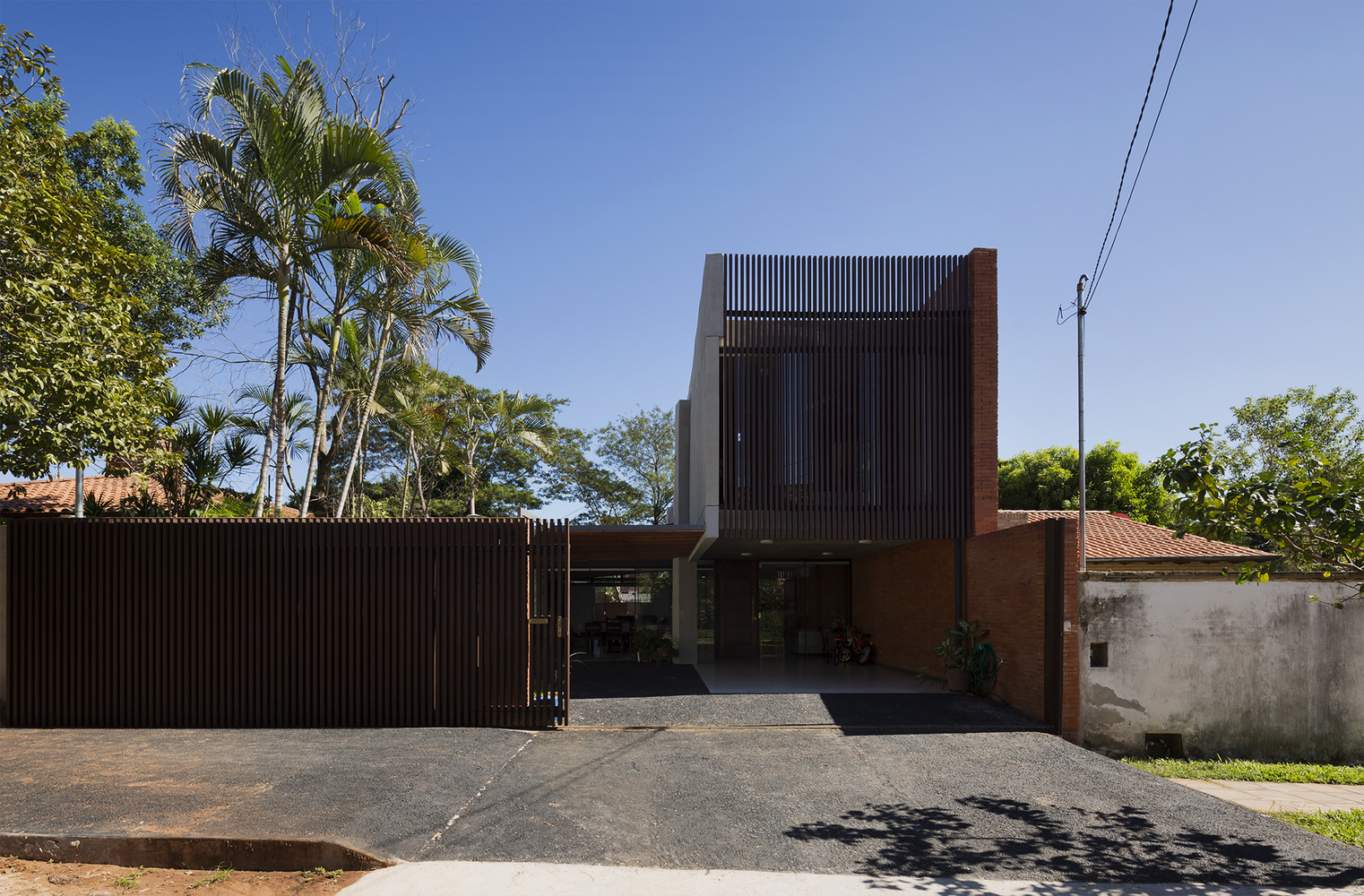

Two overlapping houses 4 meters wide and 25 meters deep in a 12x30 meter plot. The front block is suspended 7 meters, generating the garages on the ground floor.

2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli

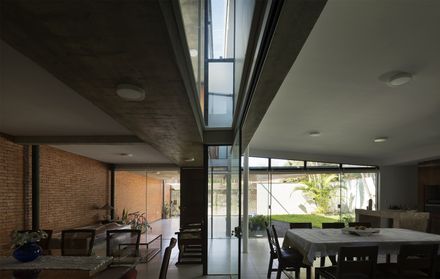

The central block (fully suspended) houses living room and kitchen. The rear block houses the suite of the mother, also catilevered.

Upstairs the daughter's dwelling, with 3 bedrooms en suite and private living room. All the blocks have intermediate light and ventilation courtyards. A house that occupies a minimum area of land, giving the possibility to enjoy the garden.

The exterior image results from the interior spatial search. Structural abstraction and dignity, rich spatiality, controlled lighting and human scale.

2xm
© Federico Cairoli
2xm
© Federico Cairoli


2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli


2xm
© Federico Cairoli
2xm
© Federico Cairoli
2xm
© Federico Cairoli


2xm
Plan 1
2xm
Plan 2


2xm
Site Plan
2xm
Elevation


2xm
Section
