O’Donnell + Tuomey

Central European University

CENTRAL EUROPEAN UNIVERSITY

O’Donnell + Tuomey

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

ARCHITECTS
O’Donnell + Tuomey

LOCATION
Nador U. 9, 1051 Budapest, Hungary

CATEGORY
University

DIRECTORS
Sheila O’Donnell & John Tuomey

ASSOCIATE
Mark Grehan

FIRE CONSULTANT
Takács-Tetra

LOCAL ARCHITECT
Teampannon

PROJECT YEAR
2016

CLIENT
Central European University

STRUCTURAL ENGINEER
Kenese

MECHANICAL ENGINEER
Temesvári Ltd.

ACOUSTIC CONSULTANT
Aqrate Akusztikai, Mérnök Iroda

LANDSCAPE ARCHITECT
Gardenworks

QUANTITY SERVEYOR
Tomlin

KITCHEN KENDE
Gastro Zrt

ECOLOGIST
Róbert Vidéki

SECURITY
IJA Consultants

ELECTRICAL ENGINEER
Kelevill Ltd.

PROJECT ARCHITECT
Central European University Development of ce

ARCHITECTS
Anne Louise Duignan, Brian Barber, Jitka Leonard, Geoff Brouder, Henrik Wolterstorff

ARCHITECTURAL ASSISTANTS
Kevin O’Brien, Jonathan Janssens, Gary Watkin, Iseult O’Clery, Lauren Small, Edin Gicevic

ARCHITECTS (TEAMPANNON)
Bence Varga, Ádám Kern, Andrea Szabó, Eszter Bagdy, Szabolcs Kriston, Ágnes Légár, Gábor Palotás, Szandra Borsay

MANUFACTURERS
Schüco, Argo-Hungary Kft, Armstrong Ceilings, Baumit, Domoferm, Dorma-Hüppe, Edelholz, Frissbeton Kft, Garzon Bútor Zrt, Herczeg és Társa Kft, Hirös-Róna Zrt, Hydroproof Kft, Ivanka, Ivánkaconcrete, Kemabo Kft, Linea Bútor Kft, Makrofa Kft, Moratus Kft, Pápai asztalos Kft, ROCKWOOL, +4

Central European University
© Tamás Bujnovszky

Text description provided by architect.

This is the first phase of a campus masterplan for the Central European University.

The project changes the relationship of the university to the city.

Phase 1 provides a public face for the university, a new entrance on axis with the Danube, a library and learning café for citizens and students.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

The campus becomes integrated with the urban realm.

Our brief was to design a new 35,000sqm Campus on a World Heritage site in central Budapest, incorporating all University Departments and facilities.

The scheme involves the radical transformation of five adjoining, previously disconnected, historic buildings and the construction of two new buildings.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

Budapest is a city of courtyards and passageways. The streetscape is repetitive in plot dimension and only slightly varied in parapet height.

The contemporary expression of the new building at Nador 15 is designed to be in sympathetic conversation with its neighbours.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

The limestone façade is locally sourced from the same quarry as most of the historic buildings in the city.

This is the first new building to be built in recent times in this historically protected context.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

The existing CEU campus consisted of adjoining buildings, each with their own entrance, with minimal interconnectivity between them.

We identified opportunities to intervene in this downtown urban block, to make what was a disconnected and disparate set of buildings into an open campus.

We employed a process of selective subtraction and addition to transform the campus into a metaphorical crossroads.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

By a carefully considered “surgical” strategy we linked existing and new facilities through a legible sequence of connected courtyards.

The functional layout provides easy communication between interrelated adjacencies, clusters connected by social spaces, encouraging interaction and collaboration between academic departments.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

We proposed a phased strategy, making connections between existing courtyards, demolishing inefficient buildings and designing new buildings around a series of courts.

Courtyards are roofed over to provide a tempered environment from the climatic extremes in winter and summer.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

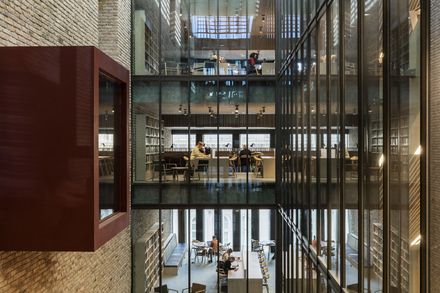

The courtyards are the campus, providing circulation system and social space.

Openings are cut through to provide visual connections.

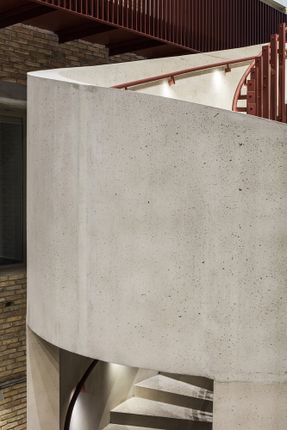

Flying staircases interconnect department offices to teaching spaces.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

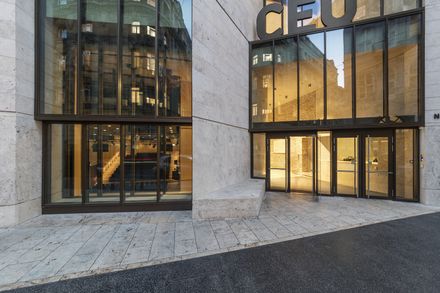

The new building on Nador Utca forms the main entrance to the University.

It houses the library and learning commons over a multi-purpose auditorium and conference facilities.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky

The adjoining building is radically refurbished to provide a covered courtyard for public events, with a business school and teaching spaces at upper levels. A roof garden straddles both buildings to provide views over the city skyline.

The palette of materials has been selected for their endurance and natural material qualities that give character to the overall appearance. Stone, timber, concrete and steel form the fabric of the internal public spaces, with bespoke furniture used throughout the building.

The new facades are constructed with local limestone, designed to emphasize the geometric quality of the building and continuing the tradition of solidity and permanence of the Budapest stone architecture.

Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky


Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky
Central European University
© Tamás Bujnovszky


Central European University
Implantation


Central European University
sectional Perspective
Central European University
sectional Perspective
Central European University
Sectional Perspective Library
Central European University
Sectional Perspective Theatre


Central European University
Work Phase Diagram
Central European University
Work Phase Diagram
Central European University
Work Phase Diagram
Central European University
Work Phase Diagram


Central European University

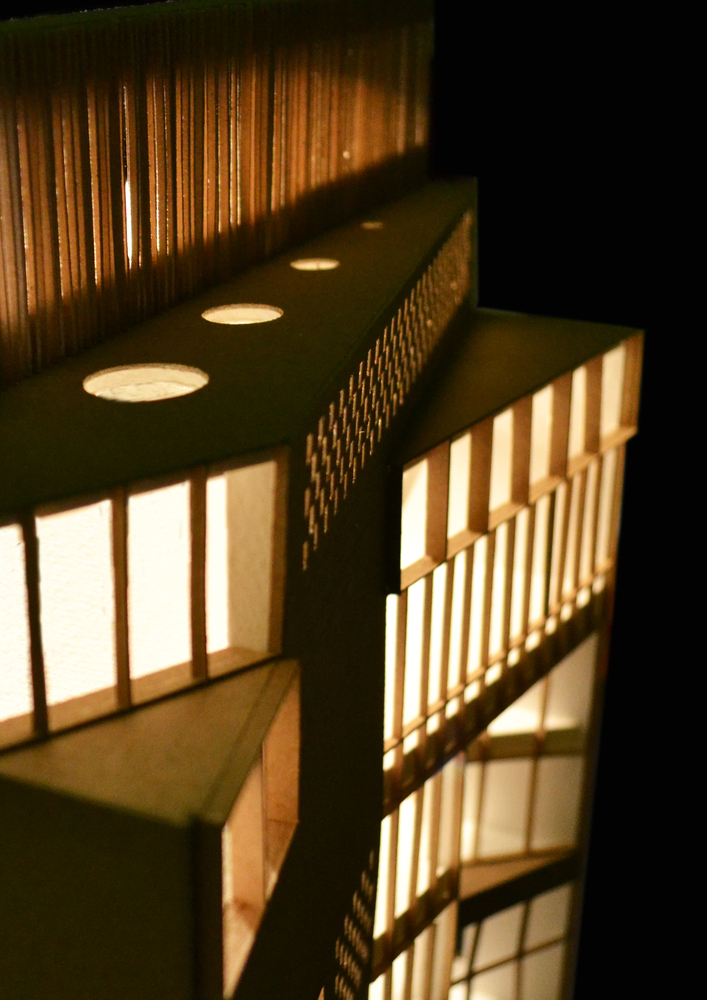

Model
Central European University
Model
Central European University
Model
Central European University
Model
Central European University
Model
Central European University
Model
Central European University
Model
Central European University
Model


Central European University
Presentation Drawing
Central European University
Presentation Drawing
Central European University
Presentation Drawing  Ground Floor Plan
Central European University
Presentation Drawing Site Plan
Central European University
presentation Drawing Site plan
Central European University
Presentation Drawing Site plan


Central European University
Basement Plan
Central European University
Basement Plan
Central European University

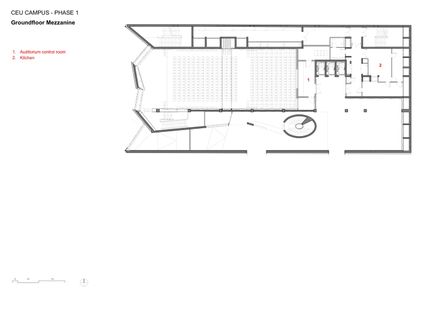

Ground Floor Mezzanine Plan
Central European University
Ground Floor Mezzanine Plan
Central European University
Ground Floor Plan
Central European University
First Floor
Central European University
Second Floor Plan
Central European University
Second Floor Plan
Central European University
Third Floor Plan
Central European University
Fourth Floor Plan
Central European University
Fifth Floor Plan
Central European University
Sixth Floor Plan
Central European University
Seventh Floor Plan
Central European University
Diagram Urban Study


Central European University
Elevation
Central European University
Elevation
Central European University
Elevation
Central European University
Connecting Courtyards Sketch
Central European University
Facade Sketch Nador 15
Central European University
Facade Sketch
Central European University
Interior Courtyard Drawing
Central European University
Elevation Drawing
