USAQUÉN URBAN WETLAND

CESB / Obraestudio

ARCHITECTS
Obraestudio

AREA
91493 ft²

CITY
Bogota

LEAD ARCHITECTS
Arq. Juan Melo Lozano

PROJECT YEAR
2016

COUNTRY
Colombia

CLIENTS
Centro Empresarial Santa Barbara CESB

DESIGN TEAM
Bio.Mateo Hernández / Arq. Lorena González / Arq. Lucas Nieto / Arq. Juan Camilo Arias

Usaquén Urban Wetland
© Daniel Segura
Usaquén Urban Wetland
© Daniel Segura

Text description provided by architect.

Obraestudio was awarded first prize in the open national design competition for the exterior platform of the Santa Barbara business center.

Usaquén Urban Wetland
© Daniel Segura
Usaquén Urban Wetland
© Jairo Llano

The competition was sponsored by The Colombian Architects Society.

The 8,500 sq. meter landscape transformation aims to revitalize the common access space to the Torres Unidas Building, Scotia Bank, Samsung, AR and W Hotel towers, an emblematic public space corner of northeastern Bogotá.

The project´s design concept is based on the wetlands of the Bogota Savannah, their neighboring rocky areas and their typical abundant plant species.

Usaquén Urban Wetland
© Jairo Llano
Usaquén Urban Wetland
© Jairo Llano
Usaquén Urban Wetland
© Andrés Valbuena

A natural ecosystem -- half aquatic, half terrestrial -- is recreated by the geometry, colors and textures of the overall design.

Existing buildings and the exterior common areas are a provocative, clear contrast to the wild, free-growing landscape elements.

A recycled rainwater garden over the main square creates a native urban wetland that blends harmoniously with the surrounding Andean hills backdrop and preserves the native vegetation in its natural habitat.

Usaquén Urban Wetland
© Daniel Segura
Usaquén Urban Wetland
© Andrés Valbuena

The pre-existing, dividing void of the parking lots is replaced by a linear park teeming with sinuous trails interspersed with lush native vegetation, water and gravel to inspire slow and meditative walks.

Despite the seemingly wild, natural and free-form aspects of the urban design components, a clear, rationalized structure and construction style underlies this vastly spatial composition.

The project retains and values the pre-existing green rooftops, and proposes a radical makeover of the old elevator and stair construction by overlaying a steel structure that will not only integrate architecture and landscape but also accentuate the exterior platform with a sculptural and meditative space right at its visual axis.

Usaquén Urban Wetland
© Andrés Valbuena


Usaquén Urban Wetland

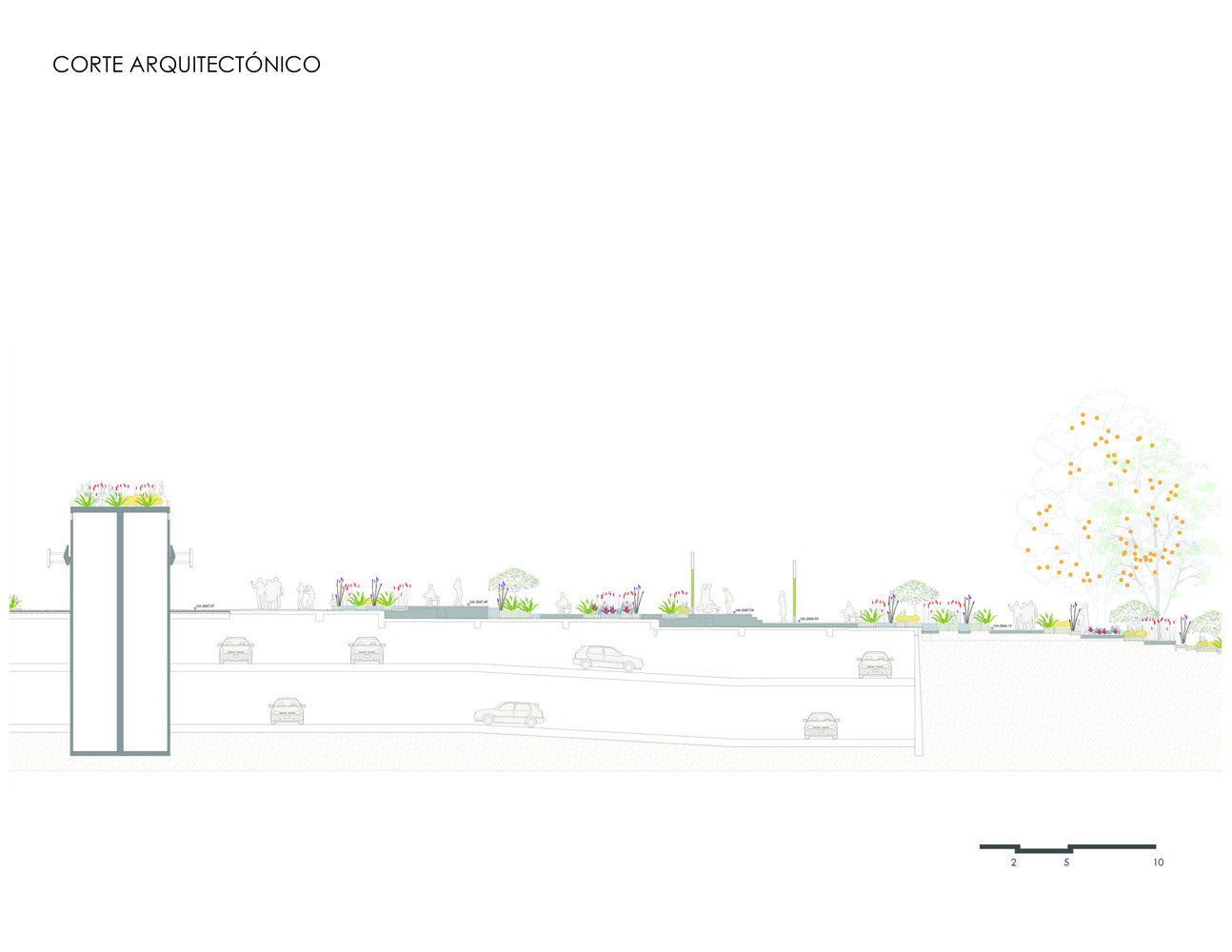

Section 01
Usaquén Urban Wetland
Section 01
Usaquén Urban Wetland

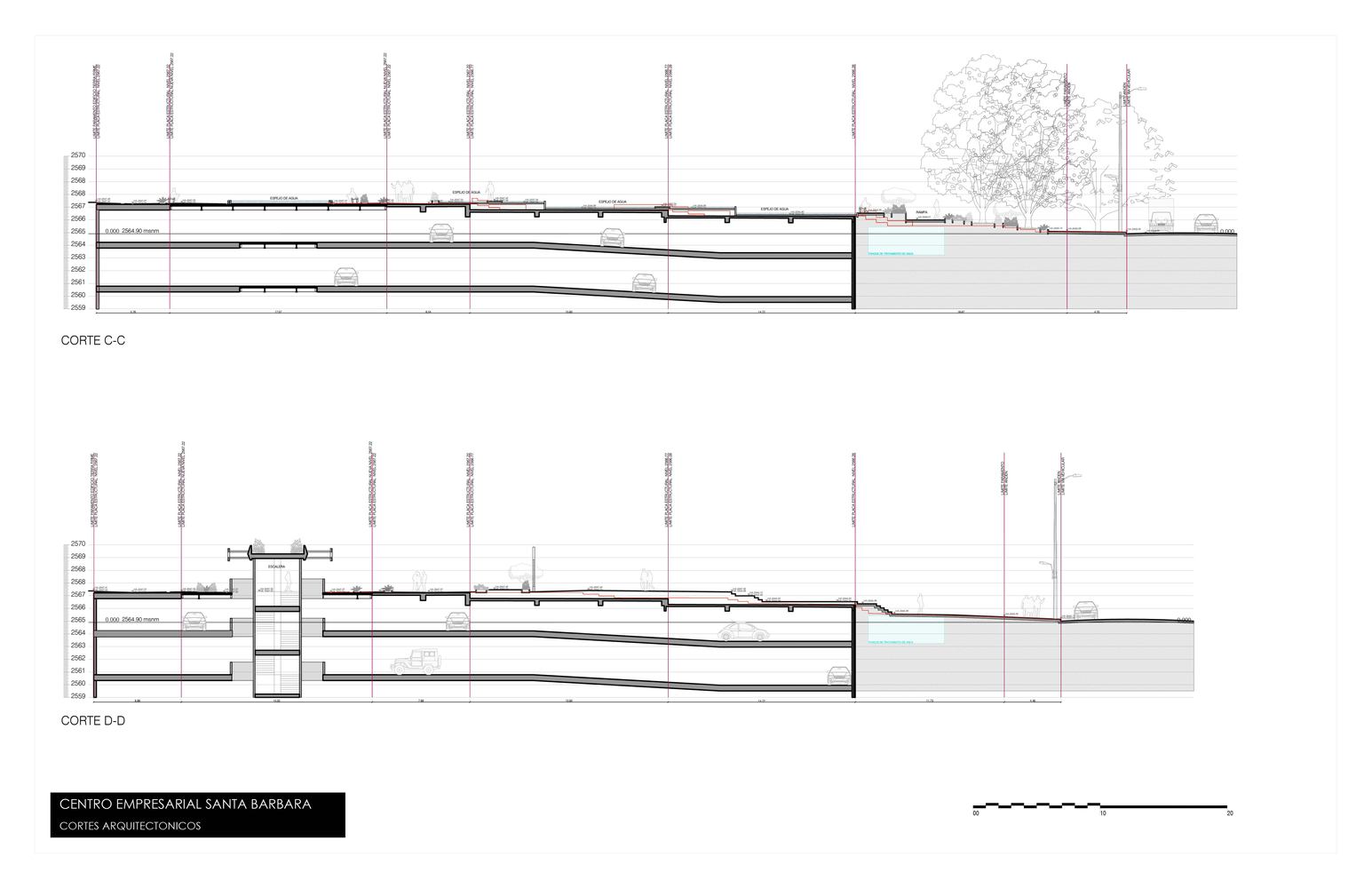

Section 02
Usaquén Urban Wetland
Section 02


Usaquén Urban Wetland
Caneca detail 01
Usaquén Urban Wetland

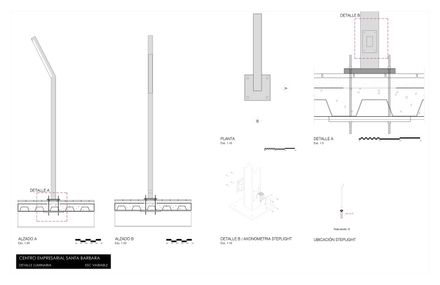

Luminaire detail 01
Usaquén Urban Wetland
Luminaire detail 02
Usaquén Urban Wetland
Central Deck


Usaquén Urban Wetland
Steel Structure Detail
Usaquén Urban Wetland
Steel structure
Usaquén Urban Wetland
Plan
Usaquén Urban Wetland
Architecture Plan
Usaquén Urban Wetland
Landscaping
Usaquén Urban Wetland
Location
